KFbxNode Class Reference

#include
<kfbxnode.h>

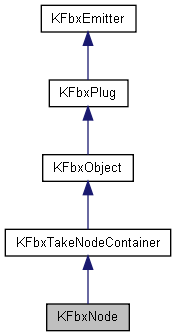

Inheritance diagram for KFbxNode:

[legend]

List of all members.

Detailed Description

This class provides the structure to build a node hierarchy.

It is a composite class that contains node tree management services in itself. Cyclic graphs are forbidden in a node hierarchy.

The content of a node is in its node attribute, which is an instance of a class derived from KFbxNodeAttribute. A node attribute can be shared among nodes. By default, the node attribute pointer is NULL meaning it is a simple reference point.

A node also contains an array of take nodes to hold animation data. See KFbxTakeNodeContainer for more details.

Definition at line 99 of file kfbxnode.h.


Node Display Parameters
enum	EShadingMode
	Shading modes. More...
enum	EMultiTakeMode
	MultiTake states. More...
void	SetVisibility (bool pIsVisible)
	Set visibility.
bool	GetVisibility () const
	Get visibility.
void	SetShadingMode (EShadingMode pShadingMode)
	Set the shading mode.
EShadingMode	GetShadingMode () const
	Get the shading mode.
void	SetMultiLayer (bool pMultiLayer)
	Enable or disable the multilayer state.
bool	GetMultiLayer () const
	Get multilayer state.
void	SetMultiTakeMode (EMultiTakeMode pMultiTakeMode)
	Set the multitake mode.
EMultiTakeMode	GetMultiTakeMode () const
	Get multitake mode.
Pivot Management
Pivots are used to specify translation, rotation and scaling centers in coordinates relative to a node's origin. A node has two pivot contexts defined by the EPivotSet enumeration. The node's animation data can be converted from one pivot context to the other.
enum	EPivotSet
	Pivot sets. More...
enum	EPivotState
	Pivot state. More...
void	SetPivotState (EPivotSet pPivotSet, EPivotState pPivotState)
	Set the pivot state.
void	GetPivotState (EPivotSet pPivotSet, EPivotState &pPivotState)
	Get the pivot state.
void	SetRotationOrder (EPivotSet pPivotSet, ERotationOrder pRotationOrder)
	Set rotation space Determine the rotation space (Euler or Spheric) and the rotation order.
void	GetRotationOrder (EPivotSet pPivotSet, ERotationOrder &pRotationOrder)
	Get rotation order.
void	SetUseRotationSpaceForLimitOnly (EPivotSet pPivotSet, bool pUseForLimitOnly)
	Set rotation space for limit only.
bool	GetUseRotationSpaceForLimitOnly (EPivotSet pPivotSet)
	Get rotation space for limit only.
void	SetRotationActive (bool pVal)
	Set the RotationActive state.
bool	GetRotationActive ()
	Get the RotationActive state.
void	SetUseQuaternionForInterpolation (EPivotSet pPivotSet, bool pUseQuaternion)
	Set the Quaternion interpolation mode.
bool	GetUseQuaternionForInterpolation (EPivotSet pPivotSet) const
	Get the Quaternion interpolation mode.
void	SetRotationStiffness (KFbxVector4 pRotationStiffness)
	Set the rotation stiffness.
KFbxVector4	GetRotationStiffness ()
	Get the rotation stiffness.
void	SetMinDampRange (KFbxVector4 pMinDampRange)
	Set the minimum damp range angles.
KFbxVector4	GetMinDampRange ()
	Get the minimum damp range angles.
void	SetMaxDampRange (KFbxVector4 pMaxDampRange)
	Set the maximum damp range angles.
KFbxVector4	GetMaxDampRange ()
	Get the maximum damp range angles.
void	SetMinDampStrength (KFbxVector4 pMinDampStrength)
	Set the minimum damp strength.
KFbxVector4	GetMinDampStrength ()
	Get the miminum damp strength.
void	SetMaxDampStrength (KFbxVector4 pMaxDampStrength)
	Set the maximum damp strength.
KFbxVector4	GetMaxDampStrength ()
	Get the maximum damp strength.
void	SetPreferedAngle (KFbxVector4 pPreferedAngle)
	Set the preferred angle.
KFbxVector4	GetPreferedAngle ()
	Get the preferred angle.
void	SetRotationOffset (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set a translation offset for the rotation pivot.
KFbxVector4 &	GetRotationOffset (EPivotSet pPivotSet) const
	Get the translation offset for the rotation pivot.
void	SetRotationPivot (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set rotation pivot.
KFbxVector4 &	GetRotationPivot (EPivotSet pPivotSet) const
	Get rotation pivot.
void	SetPreRotation (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set pre-rotation in Euler angles.
KFbxVector4 &	GetPreRotation (EPivotSet pPivotSet) const
	Get pre-rotation in Euler angles.
void	SetPostRotation (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set post-rotation in Euler angles.
KFbxVector4 &	GetPostRotation (EPivotSet pPivotSet) const
	Get post-rotation in Euler angles.
void	SetScalingOffset (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set a translation offset for the scaling pivot.
KFbxVector4 &	GetScalingOffset (EPivotSet pPivotSet) const
	Get the translation offset for the scaling pivot.
void	SetScalingPivot (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set scaling pivot.
KFbxVector4 &	GetScalingPivot (EPivotSet pPivotSet) const
	Get scaling pivot.
void	SetGeometricTranslation (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set geometric translation The geometric translation is a local translation that is applied to a node attribute only.
KFbxVector4	GetGeometricTranslation (EPivotSet pPivotSet) const
	Get geometric translation.
void	SetGeometricRotation (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set geometric rotation The geometric rotation is a local rotation that is applied to a node attribute only.
KFbxVector4	GetGeometricRotation (EPivotSet pPivotSet)
	Get geometric rotation.
void	SetGeometricScaling (EPivotSet pPivotSet, KFbxVector4 pVector)
	Set geometric scaling The geometric scaling is a local scaling that is applied to a node attribute only.
KFbxVector4	GetGeometricScaling (EPivotSet pPivotSet)
	Get geometric scaling.
void	ConvertPivotAnimation (EPivotSet pConversionTarget, double pFrameRate, bool pKeyReduce=true)
	Recursively convert the animation data according to pivot settings.
void	ResetPivotSet (KFbxNode::EPivotSet pPivotSet)
	Reset a pivot set to the default pivot context.
void	ConvertPivotAnimationRecursive (EPivotSet pConversionTarget, double pFrameRate, bool pKeyReduce=true)
	Second version of ConvertPivotAnimation.
void	ResetPivotSetAndConvertAnimation (double pFrameRate=30., bool pKeyReduce=false, bool pToNodeCenter=true)
	Reset all the pivot sets to the default pivot context and convert the animation.
void	SetRotationPivotAsCenterRecursive (KFbxVector4 pParentGeometricOffset=KFbxVector4())
	Set rotation pivot as node center recursively.
Error Management
The same error object is shared among instances of this class.
enum	EError
	Error identifiers. More...
KError &	GetError ()
	Retrieve error object.
EError	GetLastErrorID () const
	Get last error code.
const char *	GetLastErrorString () const
	Get last error string.
Public and fast access Properties
KFbxTypedProperty< fbxDouble3 >	LclTranslation
	This property contains the translation information of the node.
KFbxTypedProperty< fbxDouble3 >	LclRotation
	This property contains the rotation information of the node.
KFbxTypedProperty< fbxDouble3 >	LclScaling
	This property contains the scaling information of the node.
KFbxTypedProperty< KFbxXMatrix >	GlobalTransform
	This property contains the global transform information of the node.
KFbxTypedProperty< fbxDouble1 >	Visibility
	This property contains the visibility information of the node.
KFbxTypedProperty< fbxDouble1 >	Weight
	This property contains the weight information of the node.
KFbxTypedProperty< fbxDouble3 >	PoleVector
	This property contains the pole vector information of the node.
KFbxTypedProperty< fbxDouble1 >	Twist
	This property contains the twist information of the node.
KFbxTypedProperty< fbxDouble3 >	WorldUpVector
	This property contains the world up vector information of the node.
KFbxTypedProperty< fbxDouble3 >	UpVector
	This property contains the up vector information of the node.
KFbxTypedProperty< fbxDouble3 >	AimVector
	This property contains the aim vector information of the node.
KFbxTypedProperty< fbxBool1 >	QuaternionInterpolate
	This property contains the quaternion interpolate flag of the node.
KFbxTypedProperty< fbxDouble3 >	RotationOffset
	This property contains the rotation offset information of the node.
KFbxTypedProperty< fbxDouble3 >	RotationPivot
	This property contains the rotation pivot information of the node.
KFbxTypedProperty< fbxDouble3 >	ScalingOffset
	This property contains the scaling offset information of the node.
KFbxTypedProperty< fbxDouble3 >	ScalingPivot
	This property contains the scaling pivot information of the node.
KFbxTypedProperty< fbxBool1 >	TranslationActive
	This property contains the translation active information of the node.
KFbxTypedProperty< fbxDouble3 >	Translation
	This property contains the translation information of the node.
KFbxTypedProperty< fbxDouble3 >	TranslationMin
	This property contains the min translation limit information of the node.
KFbxTypedProperty< fbxDouble3 >	TranslationMax
	This property contains the max translation limit information of the node.
KFbxTypedProperty< fbxBool1 >	TranslationMinX
	This property contains the flag which actives the x component of min translation limit of the node.
KFbxTypedProperty< fbxBool1 >	TranslationMinY
	This property contains the flag which actives the y component of min translation limit of the node.
KFbxTypedProperty< fbxBool1 >	TranslationMinZ
	This property contains the flag which actives the z component of min translation limit of the node.
KFbxTypedProperty< fbxBool1 >	TranslationMaxX
	This property contains the flag which actives the x component of max translation limit of the node.
KFbxTypedProperty< fbxBool1 >	TranslationMaxY
	This property contains the flag which actives the y component of max translation limit of the node.
KFbxTypedProperty< fbxBool1 >	TranslationMaxZ
	This property contains the flag which actives the z component of max translation limit of the node.
KFbxTypedProperty< ERotationOrder >	RotationOrder
	This property contains the rotation order information of the node.
KFbxTypedProperty< fbxBool1 >	RotationSpaceForLimitOnly
	This property contains the rotation space for limit only flag of the node.
KFbxTypedProperty< fbxDouble1 >	RotationStiffnessX
	This property contains the x value of the rotation stiffness of the node.
KFbxTypedProperty< fbxDouble1 >	RotationStiffnessY
	This property contains the y value of the rotation stiffness of the node.
KFbxTypedProperty< fbxDouble1 >	RotationStiffnessZ
	This property contains the z value of the rotation stiffness of the node.
KFbxTypedProperty< fbxDouble1 >	AxisLen
	This property contains axis length information of the node.
KFbxTypedProperty< fbxDouble3 >	PreRotation
	This property contains pre-rotation information of the node.
KFbxTypedProperty< fbxDouble3 >	PostRotation
	This property contains post-rotation information of the node.
KFbxTypedProperty< fbxBool1 >	RotationActive
	This property contains rotation active information of the node.
KFbxTypedProperty< fbxDouble3 >	RotationMin
	This property contains the min rotation limit information of the node.
KFbxTypedProperty< fbxDouble3 >	RotationMax
	This property contains the max rotation limit information of the node.
KFbxTypedProperty< fbxBool1 >	RotationMinX
	This property contains the flag which actives the x component of min rotation limit of the node.
KFbxTypedProperty< fbxBool1 >	RotationMinY
	This property contains the flag which actives the y component of min rotation limit of the node.
KFbxTypedProperty< fbxBool1 >	RotationMinZ
	This property contains the flag which actives the z component of min rotation limit of the node.
KFbxTypedProperty< fbxBool1 >	RotationMaxX
	This property contains the flag which actives the x component of max rotation limit of the node.
KFbxTypedProperty< fbxBool1 >	RotationMaxY
	This property contains the flag which actives the y component of max rotation limit of the node.
KFbxTypedProperty< fbxBool1 >	RotationMaxZ
	This property contains the flag which actives the z component of max rotation limit of the node.
KFbxTypedProperty < ETransformInheritType >	InheritType
	This property contains inherit type information of the node.
KFbxTypedProperty< fbxBool1 >	ScalingActive
	This property contains scaling active information of the node.
KFbxTypedProperty< fbxDouble3 >	Scaling
	This property contains scaling information of the node.
KFbxTypedProperty< fbxDouble3 >	ScalingMin
	This property contains the min scaling limit information of the node.
KFbxTypedProperty< fbxDouble3 >	ScalingMax
	This property contains the max scaling limit information of the node.
KFbxTypedProperty< fbxBool1 >	ScalingMinX
	This property contains the flag which actives the x component of min scaling limit of the node.
KFbxTypedProperty< fbxBool1 >	ScalingMinY
	This property contains the flag which actives the y component of min scaling limit of the node.
KFbxTypedProperty< fbxBool1 >	ScalingMinZ
	This property contains the flag which actives the z component of min scaling limit of the node.
KFbxTypedProperty< fbxBool1 >	ScalingMaxX
	This property contains the flag which actives the x component of max scaling limit of the node.
KFbxTypedProperty< fbxBool1 >	ScalingMaxY
	This property contains the flag which actives the y component of max scaling limit of the node.
KFbxTypedProperty< fbxBool1 >	ScalingMaxZ
	This property contains the flag which actives the z component of max scaling limit of the node.
KFbxTypedProperty< fbxDouble3 >	GeometricTranslation
	This property contains geometric translation information of the node.
KFbxTypedProperty< fbxDouble3 >	GeometricRotation
	This property contains geometric rotation information of the node.
KFbxTypedProperty< fbxDouble3 >	GeometricScaling
	This property contains geometric scaling information of the node.
KFbxTypedProperty< fbxDouble1 >	MinDampRangeX
	This property contains the x component of the minimum damp range angles of the node.
KFbxTypedProperty< fbxDouble1 >	MinDampRangeY
	This property contains the y component of the minimum damp range angles of the node.
KFbxTypedProperty< fbxDouble1 >	MinDampRangeZ
	This property contains the z component of the minimum damp range angles of the node.
KFbxTypedProperty< fbxDouble1 >	MaxDampRangeX
	This property contains the x component of the maximum damp range angles of the node.
KFbxTypedProperty< fbxDouble1 >	MaxDampRangeY
	This property contains the y component of the maximum damp range angles of the node.
KFbxTypedProperty< fbxDouble1 >	MaxDampRangeZ
	This property contains the z component of the maximum damp range angles of the node.
KFbxTypedProperty< fbxDouble1 >	MinDampStrengthX
	This property contains the x component of the minimum damp strength of the node.
KFbxTypedProperty< fbxDouble1 >	MinDampStrengthY
	This property contains the y component of the minimum damp strength of the node.
KFbxTypedProperty< fbxDouble1 >	MinDampStrengthZ
	This property contains the z component of the minimum damp strength of the node.
KFbxTypedProperty< fbxDouble1 >	MaxDampStrengthX
	This property contains the x component of the maximum damp strength of the node.
KFbxTypedProperty< fbxDouble1 >	MaxDampStrengthY
	This property contains the y component of the maximum damp strength of the node.
KFbxTypedProperty< fbxDouble1 >	MaxDampStrengthZ
	This property contains the z component of the maximum damp strength of the node.
KFbxTypedProperty< fbxDouble1 >	PreferedAngleX
	This property contains the x component of the preferred angle of the node.
KFbxTypedProperty< fbxDouble1 >	PreferedAngleY
	This property contains the y component of the preferred angle of the node.
KFbxTypedProperty< fbxDouble1 >	PreferedAngleZ
	This property contains the z component of the preferred angle of the node.
KFbxTypedProperty< fbxReference * >	LookAtProperty
	This property contains look at property of the node.
KFbxTypedProperty< fbxReference * >	UpVectorProperty
	This property contains the up vector property of the node.
KFbxTypedProperty< fbxBool1 >	Show
	This property contains show information of the node.
KFbxTypedProperty< fbxBool1 >	NegativePercentShapeSupport
	This property contains negative percent shape support information of the node.
KFbxTypedProperty< fbxInteger1 >	DefaultAttributeIndex
	This property contains default attribute index information of the node.
KFbxTypedProperty< fbxBool1 >	Freeze
	This property contains manipulation state information of the node.
KFbxTypedProperty< fbxBool1 >	LODBox
	This property contains level of detail mode information of the node.
Node Tree Management
This class holds the node tree structure in itself.
KFbxNode *	GetParent ()
	Get the parent node.
KFbxNode const *	GetParent () const
	Get the parent node.
bool	AddChild (KFbxNode *pNode)
	Add a child node and its underlying node tree.
KFbxNode *	RemoveChild (KFbxNode *pNode)
	Remove the child node.
int	GetChildCount (bool pRecursive=false) const
	Get the number of children nodes.
KFbxNode *	GetChild (int pIndex)
	Get child by index.
KFbxNode const *	GetChild (int pIndex) const
	Get child by index.
KFbxNode *	FindChild (char const *pName, bool pRecursive=true, bool pInitial=false)
	Finds a child node by name.
Node Target Management
When set, the target defines the orientation of the node. By default, the node's X axis points towards the target. A rotation offset can be added to change this behavior. While the default relative orientation to target is right for cameras, this feature is useful for lights because they require a 90-degree offset on the Z axis. By default, the node's up vector points towards the Up node. If an Up node is not specified, the node's Up vector points towards the Y axis. A rotation offset can be added to change this behavior. While the default relative orientation to target is right for cameras, this feature is useful for lights because they require a 90-degree offset on the Z axis.
void	SetTarget (KFbxNode *pNode)
	The target must be part of the same scene and it cannot be itself.
KFbxNode *	GetTarget () const
	Get the target for this node.
void	SetPostTargetRotation (KFbxVector4 pVector)
	Set rotation offset from default relative orientation to target.
KFbxVector4	GetPostTargetRotation () const
	Get rotation offset from default relative orientation to target.
void	SetTargetUp (KFbxNode *pNode)
	The target up node must be part of the same scene and it cannot be itself.
KFbxNode *	GetTargetUp () const
	Get the target up node.
void	SetTargetUpVector (KFbxVector4 pVector)
	Set up vector offset from default relative target up vector.
KFbxVector4	GetTargetUpVector () const
	Get up vector offset from default relative target up vector.
UpdateId Management
virtual kFbxUpdateId	GetUpdateId (eFbxUpdateIdType pUpdateId=eUpdateId_Object) const
	Returns the update ID of this object.
Node Attribute Management
KFbxNodeAttribute *	SetNodeAttribute (KFbxNodeAttribute *pNodeAttribute)
	Set the node attribute.
KFbxNodeAttribute *	GetNodeAttribute ()
	Get the default node attribute.
KFbxNodeAttribute const *	GetNodeAttribute () const
	Get the default node attribute.
int	GetNodeAttributeCount () const
	Get the count of node attribute(s).
int	GetDefaultNodeAttributeIndex () const
	Get index of the default node attribute.
bool	SetDefaultNodeAttributeIndex (int pIndex)
	Set index of the default node attribute.
KFbxNodeAttribute *	GetNodeAttributeByIndex (int pIndex)
	Get node attribute by index.
KFbxNodeAttribute const *	GetNodeAttributeByIndex (int pIndex) const
	Get node attribute by index.
int	GetNodeAttributeIndex (KFbxNodeAttribute *pNodeAttribute) const
	Get index corresponding to a given node attribute Pointer.
bool	AddNodeAttribute (KFbxNodeAttribute *pNodeAttribute)
	Add a connection to a given node attribute Pointer.
KFbxNodeAttribute *	RemoveNodeAttribute (KFbxNodeAttribute *pNodeAttribute)
	Remove a connection from a given node attribute.
KFbxNodeAttribute *	RemoveNodeAttributeByIndex (int pIndex)
	Remove a connection to a given node attribute.
KFbxLodGroup *	GetLodGroup ()
	Get the node attribute casted to a KFbxLodGroup pointer.
KFbxNull *	GetNull ()
	Get the node attribute casted to a KFbxNull pointer.
KFbxMarker *	GetMarker ()
	Get the node attribute casted to a KFbxMarker pointer.
KFbxSkeleton *	GetSkeleton ()
	Get the node attribute casted to a KFbxSkeleton pointer.
KFbxGeometry *	GetGeometry ()
	Get the node attribute casted to a KFbxGeometry pointer.
KFbxMesh *	GetMesh ()
	Get the node attribute casted to a KFbxMesh pointer.
KFbxNurb *	GetNurb ()
	Get the node attribute casted to a KFbxNurb pointer.
KFbxNurbsSurface *	GetNurbsSurface ()
	Get the node attribute casted to a KFbxNurbsSurface pointer.
KFbxNurbsCurve *	GetNurbsCurve ()
	Get the node attribute casted to a KFbxNurbsCurve pointer.
KFbxTrimNurbsSurface *	GetTrimNurbsSurface ()
	Get the node attribute casted to a KFbxNurbsSurface pointer.
KFbxSubdiv *	GetSubdiv ()
	Get the node attribute casted to a KFbxSubdiv pointer.
KFbxPatch *	GetPatch ()
	Get the node attribute casted to a KFbxPatch pointer.
KFbxCamera *	GetCamera ()
	Get the node attribute casted to a KFbxCamera pointer.
KFbxCameraSwitcher *	GetCameraSwitcher ()
	Get the node attribute casted to a KFbxCameraSwitcher pointer.
KFbxLight *	GetLight ()
	Get the node attribute casted to a KFbxLight pointer.
KFbxOpticalReference *	GetOpticalReference ()
	Get the node attribute casted to a KFbxOpticalReference pointer.
Default Animation Values
This set of functions provides direct access to default animation values in the default take node.
void	SetDefaultT (const KFbxVector4 &pT)
	Set default translation vector (in local space).
KFbxVector4 &	GetDefaultT (KFbxVector4 &pT)
	Get default translation vector (in local space).
void	SetDefaultR (const KFbxVector4 &pR)
	Set default rotation vector (in local space).
KFbxVector4 &	GetDefaultR (KFbxVector4 &pR)
	Get default rotation vector (in local space).
void	SetDefaultS (const KFbxVector4 &pS)
	Set default scale vector (in local space).
KFbxVector4 &	GetDefaultS (KFbxVector4 &pS)
	Get default scale vector (in local space).
void	SetDefaultVisibility (double pVisibility)
	Set default visibility.
double	GetDefaultVisibility ()
	Get default visibility.
Transformation propagation
This set of functions provides direct access to the transformation propagations settings of the KFbxNode. Those settings determine how transformations must be applied when evaluating a node's transformation matrix.
void	SetTransformationInheritType (ETransformInheritType pInheritType)
	Set transformation inherit type.
void	GetTransformationInheritType (ETransformInheritType &pInheritType)
	Get transformation inherit type.
Access to TRS Local and Global Position
KFbxVector4 &	GetLocalTFromDefaultTake (bool pApplyLimits=false)
	Gets the Local Translation from the default take.
KFbxVector4 &	GetLocalRFromDefaultTake (bool pApplyLimits=false)
	Gets the Local Rotation from the default take.
KFbxVector4 &	GetLocalSFromDefaultTake (bool pApplyLimits=false)
	Gets the Local Scale from the default take.
KFbxXMatrix &	GetGlobalFromDefaultTake (EPivotSet pPivotSet=eSOURCE_SET, bool pApplyTarget=false)
	Get the Global Transformation Matrix from the default take.
KFbxVector4 &	GetLocalTFromCurrentTake (KTime pTime, bool pApplyLimits=false)
	Gets the Local Translation from the current take at a given time.
KFbxVector4 &	GetLocalRFromCurrentTake (KTime pTime, bool pApplyLimits=false)
	Gets the Local Rotation from the current take at a given time.
KFbxVector4 &	GetLocalSFromCurrentTake (KTime pTime, bool pApplyLimits=false)
	Gets the Local Scale from the current take at a given time.
KFbxXMatrix &	GetGlobalFromCurrentTake (KTime pTime, EPivotSet pPivotSet=eSOURCE_SET, bool pApplyTarget=false)
	Get the Global Transformation Matrix from the current take at a given time.
Character Link
int	GetCharacterLinkCount ()
	Get number of character links.
bool	GetCharacterLink (int pIndex, KFbxCharacter *pCharacter, int pCharacterLinkType, int pNodeId, int pNodeSubId)
	Get character link at given index.
int	FindCharacterLink (KFbxCharacter *pCharacter, int pCharacterLinkType, int pNodeId, int pNodeSubId)
	Find if a given character link exists.
Material Management
int	AddMaterial (KFbxSurfaceMaterial *pMaterial)
	Add a material to this node.
bool	RemoveMaterial (KFbxSurfaceMaterial *pMaterial)
	Remove a material from this node.
int	GetMaterialCount () const
KFbxSurfaceMaterial *	GetMaterial (int pIndex) const
	Access a material on this node.
void	RemoveAllMaterials ()
	Remove all materials applied to this node.
int	GetMaterialIndex (char const *pName) const
	Find an applied material with the given name.
Public Member Functions
virtual bool	GetAnimationInterval (KTime &pStart, KTime &pStop)
	Find out start and end time of the current take.

Member Enumeration Documentation

enum EShadingMode

Shading modes.

eHARD_SHADING
eWIRE_FRAME
eFLAT_SHADING
eLIGHT_SHADING
eTEXTURE_SHADING
eLIGHT_TEXTURE_SHADING

Definition at line 258 of file kfbxnode.h.

enum EMultiTakeMode

MultiTake states.

eOLD_MULTI_TAKE
eMULTI_TAKE
eMONO_TAKE

Definition at line 293 of file kfbxnode.h.

enum EPivotSet

Pivot sets.

eSOURCE_SET
eDESTINATION_SET

Definition at line 602 of file kfbxnode.h.

enum EPivotState

Pivot state.

ePIVOT_STATE_ACTIVE
ePIVOT_STATE_REFERENCE

Definition at line 612 of file kfbxnode.h.

enum EError

Error identifiers.

Some of these are only used internally.

eTAKE_NODE_ERROR
eNODE_NAME_CLASH
eMATERIAL_NAME_CLASH
eTEXTURE_NAME_CLASH
eVIDEO_NAME_CLASH
eNOT_A_CHILD
eCYCLIC_GRAPH
eINDEX_OUT_OF_RANGE
eATTRIBUTE_NOT_CONNECTED
eERROR_COUNT

Definition at line 1135 of file kfbxnode.h.

Member Function Documentation

KFbxNode* GetParent ( )

Get the parent node.

Returns:: Pointer to parent node or NULL if the current node has no parent.

KFbxNode const* GetParent ( ) const

Get the parent node.

Returns:: Pointer to parent node or NULL if the current node has no parent.

bool AddChild ( KFbxNode * pNode )

Add a child node and its underlying node tree.

Parameters:

pNode

Child node.

Returns:

true on success, false otherwise. In the last case, KFbxNode::GetLastErrorID() can return one of the following:

eCYCLIC_GRAPH: The child node is already in the current node tree, the operation fails to avoid a cyclic graph.
eNODE_NAME_CLASH: The child node has a name already owned by another node in the destination scene.
eTEXTURE_NAME_CLASH: A texture in the child node has a name already owned by another texture in the destination scene.
eVIDEO_NAME_CLASH: A video in the child node has a name already owned by another video in the destination scene.
eMATERIAL_NAME_CLASH: A material in the child node has a name already owned by another material in the destination scene.

The operation will succeed in any case if the current node doesn't belong to a scene.

Remarks:: If the added node already has a parent, it is first removed from it.

KFbxNode* RemoveChild ( KFbxNode * pNode )

Remove the child node.

Parameters:

pNode

The given child node to be removed.

Returns:: The removed child node.

int GetChildCount ( bool pRecursive = false ) const

Get the number of children nodes.

Parameters:

pRecursive If true the method will also count all the descendant children.

Returns:: Total number of children for this node.

KFbxNode* GetChild ( int pIndex )

Get child by index.

Parameters:

pIndex

The child index.

Returns:: Child node or NULL if index is out of range. In the last case, KFbxNode::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxNode const* GetChild ( int pIndex ) const

Get child by index.

Parameters:

pIndex

The child index.

Returns:: Child node or NULL if index is out of range. In the last case, KFbxNode::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxNode* FindChild	(	char const *	pName,
		bool	pRecursive = `true`,
		bool	pInitial = `false`
	)

Finds a child node by name.

Parameters:

	pName	Name of the searched child node.
	pRecursive	Flag to request recursive calls.
	pInitial	Flag to a search in initial names.

Returns:: Found child node or NULL if no child node with this name exists.

void SetTarget ( KFbxNode * pNode )

The target must be part of the same scene and it cannot be itself.

Parameters:

pNode

The target.

KFbxNode* GetTarget ( ) const

Get the target for this node.

Returns:: NULL if target isn't set.

void SetPostTargetRotation ( KFbxVector4 pVector )

Set rotation offset from default relative orientation to target.

Parameters:

pVector

The rotation offset.

KFbxVector4 GetPostTargetRotation ( ) const

Get rotation offset from default relative orientation to target.

Returns:: The rotation offset.

void SetTargetUp ( KFbxNode * pNode )

The target up node must be part of the same scene and it cannot be itself.

Parameters:

pNode

The target.

KFbxNode* GetTargetUp ( ) const

Get the target up node.

Returns:: NULL if the target up model isn't set.

void SetTargetUpVector ( KFbxVector4 pVector )

Set up vector offset from default relative target up vector.

Parameters:

pVector

The rotation offset.

KFbxVector4 GetTargetUpVector ( ) const

Get up vector offset from default relative target up vector.

Returns:: The up vector offset.

virtual kFbxUpdateId GetUpdateId ( eFbxUpdateIdType pUpdateId = eUpdateId_Object ) const [virtual]

Returns the update ID of this object.

Parameters:

pUpdateId

The update ID type.

Returns:: The update ID.

Reimplemented from KFbxObject.

void SetVisibility ( bool pIsVisible )

Set visibility.

Parameters:

pIsVisible Node is visible in the scene if set to true.

bool GetVisibility ( ) const

Get visibility.

Returns:: true if node is visible in the scene.

void SetShadingMode ( EShadingMode pShadingMode )

Set the shading mode.

Parameters:

pShadingMode

The shading mode.

EShadingMode GetShadingMode ( ) const

Get the shading mode.

Returns:: The currently set shading mode.

void SetMultiLayer ( bool pMultiLayer )

Enable or disable the multilayer state.

Parameters:

pMultiLayer

The new state of the multi-layer flag.

bool GetMultiLayer ( ) const

Get multilayer state.

Returns:: The current state of the multi-layer flag.

void SetMultiTakeMode ( EMultiTakeMode pMultiTakeMode )

Set the multitake mode.

Parameters:

pMultiTakeMode

The multitake mode to set.

EMultiTakeMode GetMultiTakeMode ( ) const

Get multitake mode.

Returns:: The currently set multitake mode.

KFbxNodeAttribute* SetNodeAttribute ( KFbxNodeAttribute * pNodeAttribute )

Set the node attribute.

Parameters:

pNodeAttribute

Node attribute object

Returns:: Pointer to previous node attribute object. NULL if the node didn't have a node attribute or if the new node attribute is equal to the previous node attribute.

Remarks:: A node attribute can be shared between nodes.
If this node has more than one attribute, the deletion of other attributes is done.

KFbxNodeAttribute* GetNodeAttribute ( )

Get the default node attribute.

Returns:: Pointer to the default node attribute or NULL if the node doesn't have a node attribute.

KFbxNodeAttribute const* GetNodeAttribute ( ) const

Get the default node attribute.

Returns:: Pointer to the default node attribute or NULL if the node doesn't have a node attribute.

int GetNodeAttributeCount ( ) const

Get the count of node attribute(s).

Returns:: Number of node attribute(s) connected to this node.

int GetDefaultNodeAttributeIndex ( ) const

Get index of the default node attribute.

Returns:: index of the default node attribute or -1 if there is no default node attribute

bool SetDefaultNodeAttributeIndex ( int pIndex )

Set index of the default node attribute.

Parameters:

pIndex

Returns:: true if the operation succeeds or false in other case. In the last case, KFbxNode::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxNodeAttribute* GetNodeAttributeByIndex ( int pIndex )

Get node attribute by index.

Parameters:

pIndex

The index

Returns:: Pointer to corresponding node attribute or NULL if index is out of range. In the last case, KFbxNode::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxNodeAttribute const* GetNodeAttributeByIndex ( int pIndex ) const

Get node attribute by index.

Parameters:

pIndex

The index

Returns:: Pointer to corresponding node attribute or NULL if index is out of range. In the last case, KFbxNode::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

int GetNodeAttributeIndex ( KFbxNodeAttribute * pNodeAttribute ) const

Get index corresponding to a given node attribute Pointer.

Parameters:

pNodeAttribute

The pointer to a node attribute.

Returns:: Index of the node attribute or -1 if pNodeAttribute is NULL or not connected to this node. In the last case, KFbxNode::GetLastErrorID() returns eATTRIBUTE_NOT_CONNECTED.

bool AddNodeAttribute ( KFbxNodeAttribute * pNodeAttribute )

Add a connection to a given node attribute Pointer.

Parameters:

pNodeAttribute

The pointer to a node attribute.

Returns:: true if the operation succeeded or false if the operation failed.

Remarks:: If the parameter node attribute is already connected to this node, false is returned

KFbxNodeAttribute* RemoveNodeAttribute ( KFbxNodeAttribute * pNodeAttribute )

Remove a connection from a given node attribute.

Parameters:

pNodeAttribute

The pointer to a node attribute.

Returns:: Pointer to the removed node attribute or NULL if the operation failed. In the last case, KFbxNode::GetLastErrorID() returns eATTRIBUTE_NOT_CONNECTED.

KFbxNodeAttribute* RemoveNodeAttributeByIndex ( int pIndex )

Remove a connection to a given node attribute.

Parameters:

pIndex

Index of the node attribute.

Returns:: Pointer to the removed node attribute or NULL if the operation failed. In the last case, KFbxNode::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxLodGroup* GetLodGroup ( )

Get the node attribute casted to a KFbxLodGroup pointer.

Returns:: Pointer to the Lod group. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eLODGROUP.

KFbxNull* GetNull ( )

Get the node attribute casted to a KFbxNull pointer.

Returns:: Pointer to the null. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eNULL.

KFbxMarker* GetMarker ( )

Get the node attribute casted to a KFbxMarker pointer.

Returns:: Pointer to the marker. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eMARKER.

KFbxSkeleton* GetSkeleton ( )

Get the node attribute casted to a KFbxSkeleton pointer.

Returns:: Pointer to the skeleton. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eSKELETON.

KFbxGeometry* GetGeometry ( )

Get the node attribute casted to a KFbxGeometry pointer.

Returns:: Pointer to the geometry. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eMESH, KFbxNodeAttribute::eNURB or KFbxNodeAttribute::ePATCH.

KFbxMesh* GetMesh ( )

Get the node attribute casted to a KFbxMesh pointer.

Returns:: Pointer to the mesh. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eMESH.

KFbxNurb* GetNurb ( )

Get the node attribute casted to a KFbxNurb pointer.

Returns:: Pointer to the nurb. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eNURB.

KFbxNurbsSurface* GetNurbsSurface ( )

Get the node attribute casted to a KFbxNurbsSurface pointer.

Returns:: Pointer to the nurbs surface. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eNURBS_SURFACE.

KFbxNurbsCurve* GetNurbsCurve ( )

Get the node attribute casted to a KFbxNurbsCurve pointer.

Returns:: Pointer to the nurbs curve. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eNURBS_CURVE.

KFbxTrimNurbsSurface* GetTrimNurbsSurface ( )

Get the node attribute casted to a KFbxNurbsSurface pointer.

Returns:: Pointer to the nurbs surface. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eNURBS_SURFACE.

KFbxSubdiv* GetSubdiv ( )

Get the node attribute casted to a KFbxSubdiv pointer.

Returns:: Pointer to the subdivision surface. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eSUBDIV.

KFbxPatch* GetPatch ( )

Get the node attribute casted to a KFbxPatch pointer.

Returns:: Pointer to the patch. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::ePATCH.

KFbxCamera* GetCamera ( )

Get the node attribute casted to a KFbxCamera pointer.

Returns:: Pointer to the camera. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eCAMERA.

KFbxCameraSwitcher* GetCameraSwitcher ( )

Get the node attribute casted to a KFbxCameraSwitcher pointer.

Returns:: Pointer to the camera switcher. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eCAMERA_SWITCHER.

KFbxLight* GetLight ( )

Get the node attribute casted to a KFbxLight pointer.

Returns:: Pointer to the light. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eLIGHT.

KFbxOpticalReference* GetOpticalReference ( )

Get the node attribute casted to a KFbxOpticalReference pointer.

Returns:: Pointer to the optical reference. NULL if the node doesn't have a node attribute or if the node attribute type is not KFbxNodeAttribute::eOPTICAL_REFERENCE.

void SetDefaultT ( const KFbxVector4 & pT )

Set default translation vector (in local space).

Parameters:

pT

The translation vector.

KFbxVector4& GetDefaultT ( KFbxVector4 & pT )

Get default translation vector (in local space).

Parameters:

pT

The vector that will receive the default translation value.

Returns:: Input parameter filled with appropriate data.

void SetDefaultR ( const KFbxVector4 & pR )

Set default rotation vector (in local space).

Parameters:

pR

The rotation vector.

KFbxVector4& GetDefaultR ( KFbxVector4 & pR )

Get default rotation vector (in local space).

Parameters:

pR

The vector that will receive the default rotation value.

Returns:: Input parameter filled with appropriate data.

void SetDefaultS ( const KFbxVector4 & pS )

Set default scale vector (in local space).

Parameters:

pS

The rotation vector.

KFbxVector4& GetDefaultS ( KFbxVector4 & pS )

Get default scale vector (in local space).

Parameters:

pS

The vector that will receive the default translation value.

Returns:: Input parameter filled with appropriate data.

void SetDefaultVisibility ( double pVisibility )

Set default visibility.

Parameters:

pVisibility

A value on a scale from 0 to 1. 0 means hidden and any higher value means visible.

Remarks:: This parameter is only effective if node visibility is enabled. Function KFbxNode::SetVisibility() enables node visibility.

double GetDefaultVisibility ( )

Get default visibility.

Returns:: A value on a scale from 0 to 1. 0 means hidden and any higher value means visible.

Remarks:: This parameter is only effective if node visibility is enabled. Function KFbxNode::SetVisibility() enables node visibility.

void SetTransformationInheritType ( ETransformInheritType pInheritType )

Set transformation inherit type.

Set how the Translation/Rotation/Scaling transformations of a parent node affect his children.

Parameters:

pInheritType

One of the following values eINHERIT_RrSs, eINHERIT_RSrs or eINHERIT_Rrs

void GetTransformationInheritType ( ETransformInheritType & pInheritType )

Get transformation inherit type.

Parameters:

pInheritType

The returned value.

void SetPivotState	(	EPivotSet	pPivotSet,
		EPivotState	pPivotState
	)

Set the pivot state.

Tell FBX to use the pivot for TRS computation (ACTIVE), or just keep it as a reference.

Parameters:

	pPivotSet	Specify which pivot set to modify its state.
	pPivotState	The new state of the pivot set.

void GetPivotState	(	EPivotSet	pPivotSet,
		EPivotState &	pPivotState
	)

Get the pivot state.

Return the state of the pivot. If ACTIVE, we must take the pivot TRS into account when computing the final transformation of a node.

Parameters:

	pPivotSet	Specify which pivot set to retrieve its state.
	pPivotState	The current state of the pivot set.

void SetRotationOrder	(	EPivotSet	pPivotSet,
		ERotationOrder	pRotationOrder
	)

Set rotation space Determine the rotation space (Euler or Spheric) and the rotation order.

Parameters:

	pPivotSet	Specify which pivot set to modify its rotation order.
	pRotationOrder	The new state of the pivot rotation order.

void GetRotationOrder	(	EPivotSet	pPivotSet,
		ERotationOrder &	pRotationOrder
	)

Get rotation order.

Parameters:

	pPivotSet	Specify which pivot set to retrieve its rotation order.
	pRotationOrder	The current rotation order of the pivot set.

void SetUseRotationSpaceForLimitOnly	(	EPivotSet	pPivotSet,
		bool	pUseForLimitOnly
	)

Set rotation space for limit only.

Parameters:

	pPivotSet	Specify which pivot set to set the rotation space limit flag.
	pUseForLimitOnly	When set to `true`, the current rotation space (set with SetRotationOrder) define the rotation space for the limit only; leaving the rotation animation in Euler XYZ space. When set to `false`, the current rotation space defines the rotation space for both the limits and the rotation animation data.

bool GetUseRotationSpaceForLimitOnly ( EPivotSet pPivotSet )

Get rotation space for limit only.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The rotation space limit flag current value.

void SetRotationActive ( bool pVal )

Set the RotationActive state.

Parameters:

pVal

The new state of the property.

Remarks:: When this flag is set to false, the RotationOrder, the Pre/Post rotation values and the rotation limits should be ignored.

bool GetRotationActive ( )

Get the RotationActive state.

Returns:: The value of the RotationActive flag.

void SetUseQuaternionForInterpolation	(	EPivotSet	pPivotSet,
		bool	pUseQuaternion
	)

Set the Quaternion interpolation mode.

Parameters:

	pPivotSet	Specify which pivot set to query.
	pUseQuaternion	The new value for the flag.

bool GetUseQuaternionForInterpolation ( EPivotSet pPivotSet ) const

Get the Quaternion interpolation mode.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The currently state of the flag.

void SetRotationStiffness ( KFbxVector4 pRotationStiffness )

Set the rotation stiffness.

The stiffness attribute is used by IK solvers to generate a resistance to a joint motion. The higher the stiffness the less it will rotate. Stiffness works in a relative sense: it determines the willingness of this joint to rotate with respect to the other joint in the IK chain.

Parameters:

pRotationStiffness

The rotation stiffness values are limited to the range [0, 100].

KFbxVector4 GetRotationStiffness ( )

Get the rotation stiffness.

Returns:: The currently set rotation stiffness values.

void SetMinDampRange ( KFbxVector4 pMinDampRange )

Set the minimum damp range angles.

This attributes apply resistance to a joint rotation as it approaches the lower boundary of its rotation limits. This functionality allows joint motion to slow down smoothly until the joint reaches its rotation limits instead of stopping abruptly. The MinDampRange specifies when the deceleration should start.

Parameters:

pMinDampRange

: Angle in degrees where deceleration should start

KFbxVector4 GetMinDampRange ( )

Get the minimum damp range angles.

Returns:: The currently set minimum damp range angles.

void SetMaxDampRange ( KFbxVector4 pMaxDampRange )

Set the maximum damp range angles.

This attributes apply resistance to a joint rotation as it approaches the upper boundary of its rotation limits. This functionality allows joint motion to slow down smoothly until the joint reaches its rotation limits instead of stopping abruptly. The MaxDampRange specifies when the deceleration should start.

Parameters:

pMaxDampRange

: Angle in degrees where deceleration should start

KFbxVector4 GetMaxDampRange ( )

Get the maximum damp range angles.

Returns:: The currently set maximum damp range angles.

void SetMinDampStrength ( KFbxVector4 pMinDampStrength )

Set the minimum damp strength.

This attributes apply resistance to a joint rotation as it approaches the lower boundary of its rotation limits. This functionality allows joint motion to slow down smoothly until the joint reaches its rotation limits instead of stopping abruptly. The MinDampStrength defines the rate of deceleration

Parameters:

pMinDampStrength

Values are limited to the range [0, 100].

KFbxVector4 GetMinDampStrength ( )

Get the miminum damp strength.

Returns:: The currently set minimum damp strength values.

void SetMaxDampStrength ( KFbxVector4 pMaxDampStrength )

Set the maximum damp strength.

This attributes apply resistance to a joint rotation as it approaches the upper boundary of its rotation limits. This functionality allows joint motion to slow down smoothly until the joint reaches its rotation limits instead of stopping abruptly. The MaxDampStrength defines the rate of deceleration

Parameters:

pMaxDampStrength

Values are limited to the range [0, 100].

KFbxVector4 GetMaxDampStrength ( )

Get the maximum damp strength.

Returns:: The currently set maximum damp strength values.

void SetPreferedAngle ( KFbxVector4 pPreferedAngle )

Set the preferred angle.

The preferredAngle attribute defines the initial joint configuration used by a single chain ik solver to calculate the inverse kinematic solution.

Parameters:

pPreferedAngle

Angle in degrees

KFbxVector4 GetPreferedAngle ( )

Get the preferred angle.

Returns:: The currently set preferred angle.

void SetRotationOffset	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set a translation offset for the rotation pivot.

The translation offset is in coordinates relative to the node's origin.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector	The translation offset.

KFbxVector4& GetRotationOffset ( EPivotSet pPivotSet ) const

Get the translation offset for the rotation pivot.

The translation offset is in coordinates relative to the node's origin.

Parameters:

pPivotSet

Specify which pivot set to to query the value.

Returns:: The currently set vector.

void SetRotationPivot	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set rotation pivot.

The rotation pivot is the center of rotation in coordinates relative to the node's origin.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector	The new position of the rotation pivot.

KFbxVector4& GetRotationPivot ( EPivotSet pPivotSet ) const

Get rotation pivot.

The rotation pivot is the center of rotation in coordinates relative to the node's origin.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The current position of the rotation pivot.

void SetPreRotation	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set pre-rotation in Euler angles.

The pre-rotation is the rotation applied to the node before rotation animation data.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector	The X,Y,Z rotation values to set.

KFbxVector4& GetPreRotation ( EPivotSet pPivotSet ) const

Get pre-rotation in Euler angles.

The pre-rotation is the rotation applied to the node before rotation animation data.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The X,Y and Z rotation values.

void SetPostRotation	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set post-rotation in Euler angles.

The post-rotation is the rotation applied to the node after the rotation animation data.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector	The X,Y,Z rotation values to set.

KFbxVector4& GetPostRotation ( EPivotSet pPivotSet ) const

Get post-rotation in Euler angles.

The post-rotation is the rotation applied to the node after the rotation animation data.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The X,Y and Z rotation values.

void SetScalingOffset	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set a translation offset for the scaling pivot.

The translation offset is in coordinates relative to the node's origin.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector	The translation offset.

KFbxVector4& GetScalingOffset ( EPivotSet pPivotSet ) const

Get the translation offset for the scaling pivot.

The translation offset is in coordinates relative to the node's origin.

Parameters:

pPivotSet

Specify which pivot set to query the value.

Returns:: The currently set vector.

void SetScalingPivot	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set scaling pivot.

The scaling pivot is the center of scaling in coordinates relative to the node's origin.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector

Returns:: The new position of the scaling pivot.

KFbxVector4& GetScalingPivot ( EPivotSet pPivotSet ) const

Get scaling pivot.

The scaling pivot is the center of scaling in coordinates relative to the node's origin.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The current position of the scaling pivot.

void SetGeometricTranslation	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set geometric translation The geometric translation is a local translation that is applied to a node attribute only.

This translation is applied to the node attribute after the node transformations. This translation is not inherited across the node hierarchy.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector	The translation vector.

KFbxVector4 GetGeometricTranslation ( EPivotSet pPivotSet ) const

Get geometric translation.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The current geometric translation.

void SetGeometricRotation	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set geometric rotation The geometric rotation is a local rotation that is applied to a node attribute only.

This rotation is applied to the node attribute after the node transformations. This rotation is not inherited across the node hierarchy.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector	The X,Y and Z rotation values.

KFbxVector4 GetGeometricRotation ( EPivotSet pPivotSet )

Get geometric rotation.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The current geometric rotation.

void SetGeometricScaling	(	EPivotSet	pPivotSet,
		KFbxVector4	pVector
	)

Set geometric scaling The geometric scaling is a local scaling that is applied to a node attribute only.

This scaling is applied to the node attribute after the node transformations. This scaling is not inherited across the node hierarchy.

Parameters:

	pPivotSet	Specify which pivot set to modify.
	pVector	The X,Y and Z scale values.

KFbxVector4 GetGeometricScaling ( EPivotSet pPivotSet )

Get geometric scaling.

Parameters:

pPivotSet

Specify which pivot set to query.

Returns:: The current geometric scaling.

void ConvertPivotAnimation	(	EPivotSet	pConversionTarget,
		double	pFrameRate,
		bool	pKeyReduce = `true`
	)

Recursively convert the animation data according to pivot settings.

Parameters:

	pConversionTarget	If set to EPivotSet::eDESTINATION_SET, convert animation data from the EPivotSet::eSOURCE_SET pivot context to the EPivotSet::eDESTINATION_SET pivot context. Otherwise, the conversion is computed the other way around.
	pFrameRate	Resampling frame rate in frames per second.
	pKeyReduce	Apply or skip key reducing filter.

void ResetPivotSet ( KFbxNode::EPivotSet pPivotSet )

Reset a pivot set to the default pivot context.

Parameters:

pPivotSet

Pivot set to reset.

Remarks:: The default pivot context is with all the pivots disabled.

void ConvertPivotAnimationRecursive	(	EPivotSet	pConversionTarget,
		double	pFrameRate,
		bool	pKeyReduce = `true`
	)

Second version of ConvertPivotAnimation.

This version now takes into account the new pivot set

Parameters:

	pConversionTarget	If set to EPivotSet::eDESTINATION_SET, convert animation data from the EPivotSet::eSOURCE_SET pivot context to the EPivotSet::eDESTINATION_SET pivot context. Otherwise, the conversion is computed the other way around.
	pFrameRate	Resampling frame rate in frames per second.
	pKeyReduce	Apply or skip key reducing filter.

void ResetPivotSetAndConvertAnimation	(	double	pFrameRate = `30.`,
		bool	pKeyReduce = `false`,
		bool	pToNodeCenter = `true`
	)

Reset all the pivot sets to the default pivot context and convert the animation.

Parameters:

	pFrameRate	Resampling frame rate in frames per second.
	pKeyReduce	Apply or skip key reducing filter.
	pToNodeCenter,:	Reset pivots to node center if true, or retain pivot places if false

Remarks:: The resulting animation will be visually equivalent and all the pivots will be cleared.
Will recursively convert the animation of all the children nodes.

void SetRotationPivotAsCenterRecursive ( KFbxVector4 pParentGeometricOffset = KFbxVector4() )

Set rotation pivot as node center recursively.

Parameters:

pParentGeometricOffset

Offset vector to be applied.

KFbxVector4& GetLocalTFromDefaultTake ( bool pApplyLimits = false )

Gets the Local Translation from the default take.

Parameters:

pApplyLimits

true if node limits are to be applied on result

Returns:: The Local Translation.

Referenced by KFbxCharacterPose::GetLocalPosition().

KFbxVector4& GetLocalRFromDefaultTake ( bool pApplyLimits = false )

Gets the Local Rotation from the default take.

Parameters:

pApplyLimits

true if node limits are to be applied on result

Returns:: The Local Rotation.

Referenced by KFbxCharacterPose::GetLocalPosition().

KFbxVector4& GetLocalSFromDefaultTake ( bool pApplyLimits = false )

Gets the Local Scale from the default take.

Parameters:

pApplyLimits

true if node limits are to be applied on result

Returns:: The Local Scale.

Referenced by KFbxCharacterPose::GetLocalPosition().

KFbxXMatrix& GetGlobalFromDefaultTake	(	EPivotSet	pPivotSet = `eSOURCE_SET`,
		bool	pApplyTarget = `false`
	)

Get the Global Transformation Matrix from the default take.

Parameters:

	pPivotSet	The pivot set to take into account
	pApplyTarget	Applies the necessary transform to align into the target node

Returns:: The Global Transformation Matrix

Referenced by KFbxCharacterPose::GetGlobalPosition().

KFbxVector4& GetLocalTFromCurrentTake	(	KTime	pTime,
		bool	pApplyLimits = `false`
	)

Gets the Local Translation from the current take at a given time.

Parameters:

	pTime	The time at which we want to evaluate
	pApplyLimits	true if node limits are to be applied on result

Returns:: The Local Translation.

KFbxVector4& GetLocalRFromCurrentTake	(	KTime	pTime,
		bool	pApplyLimits = `false`
	)

Gets the Local Rotation from the current take at a given time.

Parameters:

	pTime	The time at which we want to evaluate
	pApplyLimits	true if node limits are to be applied on result

Returns:: The Local Rotation.

KFbxVector4& GetLocalSFromCurrentTake	(	KTime	pTime,
		bool	pApplyLimits = `false`
	)

Gets the Local Scale from the current take at a given time.

Parameters:

	pTime	The time at which we want to evaluate
	pApplyLimits	true if node limits are to be applied on result

Returns:: The Local Scale.

KFbxXMatrix& GetGlobalFromCurrentTake	(	KTime	pTime,
		EPivotSet	pPivotSet = `eSOURCE_SET`,
		bool	pApplyTarget = `false`
	)

Get the Global Transformation Matrix from the current take at a given time.

Parameters:

	pTime	The time at which we want to evaluate
	pPivotSet	The pivot set to take into accounr
	pApplyTarget	Applies the necessary transform to align into the target node

Returns:: The Global Transformation Matrix

int GetCharacterLinkCount ( )

Get number of character links.

Returns:: The number of character links.

bool GetCharacterLink	(	int	pIndex,
		KFbxCharacter **	pCharacter,
		int *	pCharacterLinkType,
		int *	pNodeId,
		int *	pNodeSubId
	)

Get character link at given index.

Parameters:

	pIndex	Index of character link.
	pCharacter	Pointer to receive linked character if function succeeds.
	pCharacterLinkType	Pointer to receive character link type if function succeeds, cast to `ECharacterLinkType`.
	pNodeId	Pointer to receive node ID if function succeeds. Cast to `ECharacterNodeId` if returned character link type is `eCharacterLink` or `eControlSetLink`. Cast to `EEffectorNodeId` if returned character link type is `eControlSetEffector` or `eControlSetEffectorAux`.
	pNodeSubId

Returns:: true if function succeeds, false otherwise.

int FindCharacterLink	(	KFbxCharacter *	pCharacter,
		int	pCharacterLinkType,
		int	pNodeId,
		int	pNodeSubId
	)

Find if a given character link exists.

Parameters:

	pCharacter	Character searched.
	pCharacterLinkType	Character link type searched, cast to `ECharacterLinkType`.
	pNodeId	Node ID searched. Cast from to `ECharacterNodeId` if searched character link type is `eCharacterLink` or `eControlSetLink`. Cast from `EEffectorNodeId` if searched character link type is `eControlSetEffector` or `eControlSetEffectorAux`.
	pNodeSubId

Returns:: Index of found character link if it exists, -1 otherwise.

virtual bool GetAnimationInterval	(	KTime &	pStart,
		KTime &	pStop
	)			`[virtual]`

Find out start and end time of the current take.

Query a node and all its children recursively for the current take node start and end time.

Parameters:

	pStart	Reference to store start time. `pStart` is overwritten only if start time found is lower than `pStart` value. Initialize to KTIME_INFINITE to make sure the start time is overwritten in any case.
	pStop	Reference to store end time. `pStop` is overwritten only if stop time found is higher than `pStop` value. Initialize to KTIME_MINUS_INFINITE to make sure the stop time is overwritten in any case.

Returns:: true on success, false otherwise.

Reimplemented from KFbxTakeNodeContainer.

int AddMaterial ( KFbxSurfaceMaterial * pMaterial )

Add a material to this node.

Parameters:

pMaterial

The material to add.

Returns:: non-negative index of added material, or -1 on error.

bool RemoveMaterial ( KFbxSurfaceMaterial * pMaterial )

Remove a material from this node.

Parameters:

pMaterial

The material to remove.

Returns:: true on success, false otherwise

int GetMaterialCount ( ) const

Returns:: The number of materials applied to this node

KFbxSurfaceMaterial* GetMaterial ( int pIndex ) const

Access a material on this node.

Parameters:

pIndex

Valid range is [0, GetMaterialCount() - 1]

Returns:: The pIndex-th material, or NULL if pIndex is invalid.

void RemoveAllMaterials ( )

Remove all materials applied to this node.

int GetMaterialIndex ( char const * pName ) const

Find an applied material with the given name.

Parameters:

pName

The requested name

Returns:: an index to a material, or -1 if no applied material has the requested name.

KError& GetError ( )

Retrieve error object.

Returns:: Reference to error object.

EError GetLastErrorID ( ) const

Get last error code.

Returns:: Last error code.

const char* GetLastErrorString ( ) const

Get last error string.

Returns:: Textual description of the last error.

Member Data Documentation

KFbxTypedProperty<fbxDouble3> LclTranslation

This property contains the translation information of the node.

To access this property do: LclTranslation.Get(). To set this property do: LclTranslation.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1174 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> LclRotation

This property contains the rotation information of the node.

To access this property do: LclRotation.Get(). To set this property do: LclRotation.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1183 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> LclScaling

This property contains the scaling information of the node.

To access this property do: LclScaling.Get(). To set this property do: LclScaling.Set(fbxDouble3).

Default value is 1.,1.,1.

Definition at line 1192 of file kfbxnode.h.

KFbxTypedProperty<KFbxXMatrix> GlobalTransform

This property contains the global transform information of the node.

To access this property do: GlobalTransform.Get(). To set this property do: GlobalTransform.Set(KFbxXMatrix).

Default value is identity matrix

Definition at line 1201 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> Visibility

This property contains the visibility information of the node.

To access this property do: Visibility.Get(). To set this property do: Visibility.Set(fbxDouble1).

Default value is 1.

Definition at line 1210 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> Weight

This property contains the weight information of the node.

To access this property do: Weight.Get(). To set this property do: Weight.Set(fbxDouble1).

Definition at line 1218 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> PoleVector

This property contains the pole vector information of the node.

To access this property do: PoleVector.Get(). To set this property do: PoleVector.Set(fbxDouble3).

Definition at line 1226 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> Twist

This property contains the twist information of the node.

To access this property do: Twist.Get(). To set this property do: Twist.Set(fbxDouble1).

Definition at line 1234 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> WorldUpVector

This property contains the world up vector information of the node.

To access this property do: WorldUpVector.Get(). To set this property do: WorldUpVector.Set(fbxDouble3).

Definition at line 1242 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> UpVector

This property contains the up vector information of the node.

To access this property do: UpVector.Get(). To set this property do: UpVector.Set(fbxDouble3).

Definition at line 1250 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> AimVector

This property contains the aim vector information of the node.

To access this property do: AimVector.Get(). To set this property do: AimVector.Set(fbxDouble3).

Definition at line 1258 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> QuaternionInterpolate

This property contains the quaternion interpolate flag of the node.

To access this property do: QuaternionInterpolate.Get(). To set this property do: QuaternionInterpolate.Set(fbxBool1).

Default value is false.

Definition at line 1267 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> RotationOffset

This property contains the rotation offset information of the node.

To access this property do: RotationOffset.Get(). To set this property do: RotationOffset.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1276 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> RotationPivot

This property contains the rotation pivot information of the node.

To access this property do: RotationPivot.Get(). To set this property do: RotationPivot.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1285 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> ScalingOffset

This property contains the scaling offset information of the node.

To access this property do: ScalingOffset.Get(). To set this property do: ScalingOffset.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1294 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> ScalingPivot

This property contains the scaling pivot information of the node.

To access this property do: ScalingPivot.Get(). To set this property do: ScalingPivot.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1303 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> TranslationActive

This property contains the translation active information of the node.

To access this property do: TranslationActive.Get(). To set this property do: TranslationActive.Set(fbxBool1).

Default value is false.

Definition at line 1312 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> Translation

This property contains the translation information of the node.

To access this property do: Translation.Get(). To set this property do: Translation.Set(fbxDouble3).

Definition at line 1320 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> TranslationMin

This property contains the min translation limit information of the node.

To access this property do: TranslationMin.Get(). To set this property do: TranslationMin.Set(fbxDouble3). Default value is 0.,0.,0.

Definition at line 1329 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> TranslationMax

This property contains the max translation limit information of the node.

To access this property do: TranslationMax.Get(). To set this property do: TranslationMax.Set(fbxDouble3). Default value is 0.,0.,0.

Definition at line 1338 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> TranslationMinX

This property contains the flag which actives the x component of min translation limit of the node.

To access this property do: TranslationMinX.Get(). To set this property do: TranslationMinX.Set(fbxBool1).

Default value is false.

Definition at line 1347 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> TranslationMinY

This property contains the flag which actives the y component of min translation limit of the node.

To access this property do: TranslationMinY.Get(). To set this property do: TranslationMinY.Set(fbxBool1).

Default value is false.

Definition at line 1356 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> TranslationMinZ

This property contains the flag which actives the z component of min translation limit of the node.

To access this property do: TranslationMinZ.Get(). To set this property do: TranslationMinZ.Set(fbxBool1).

Default value is false.

Definition at line 1365 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> TranslationMaxX

This property contains the flag which actives the x component of max translation limit of the node.

To access this property do: TranslationMaxX.Get(). To set this property do: TranslationMaxX.Set(fbxBool1).

Default value is false.

Definition at line 1374 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> TranslationMaxY

This property contains the flag which actives the y component of max translation limit of the node.

To access this property do: TranslationMaxY.Get(). To set this property do: TranslationMaxY.Set(fbxBool1).

Default value is false.

Definition at line 1383 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> TranslationMaxZ

This property contains the flag which actives the z component of max translation limit of the node.

To access this property do: TranslationMaxZ.Get(). To set this property do: TranslationMaxZ.Set(fbxBool1).

Default value is false.

Definition at line 1392 of file kfbxnode.h.

KFbxTypedProperty<ERotationOrder> RotationOrder

This property contains the rotation order information of the node.

To access this property do: RotationOrder.Get(). To set this property do: RotationOrder.Set(ERotationOrder). Default value is eEULER_XYZ.

Definition at line 1401 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> RotationSpaceForLimitOnly

This property contains the rotation space for limit only flag of the node.

To access this property do: RotationSpaceForLimitOnly.Get(). To set this property do: RotationSpaceForLimitOnly.Set(fbxBool1).

Default value is false.

Definition at line 1410 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> RotationStiffnessX

This property contains the x value of the rotation stiffness of the node.

To access this property do: RotationStiffnessX.Get(). To set this property do: RotationStiffnessX.Set(fbxDouble1).

Default value is 0.

Definition at line 1419 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> RotationStiffnessY

This property contains the y value of the rotation stiffness of the node.

To access this property do: RotationStiffnessY.Get(). To set this property do: RotationStiffnessY.Set(fbxDouble1).

Default value is 0.

Definition at line 1428 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> RotationStiffnessZ

This property contains the z value of the rotation stiffness of the node.

To access this property do: RotationStiffnessZ.Get(). To set this property do: RotationStiffnessZ.Set(fbxDouble1).

Default value is 0.

Definition at line 1437 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> AxisLen

This property contains axis length information of the node.

To access this property do: AxisLen.Get(). To set this property do: AxisLen.Set(fbxDouble1).

Default value is 10.

Definition at line 1446 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> PreRotation

This property contains pre-rotation information of the node.

To access this property do: PreRotation.Get(). To set this property do: PreRotation.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1455 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> PostRotation

This property contains post-rotation information of the node.

To access this property do: PostRotation.Get(). To set this property do: PostRotation.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1464 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> RotationActive

This property contains rotation active information of the node.

To access this property do: RotationActive.Get(). To set this property do: RotationActive.Set(fbxBool1).

Default value is false.

Definition at line 1473 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> RotationMin

This property contains the min rotation limit information of the node.

To access this property do: RotationMin.Get(). To set this property do: RotationMin.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1482 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> RotationMax

This property contains the max rotation limit information of the node.

To access this property do: RotationMax.Get(). To set this property do: RotationMax.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1491 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> RotationMinX

This property contains the flag which actives the x component of min rotation limit of the node.

To access this property do: RotationMinX.Get(). To set this property do: RotationMinX.Set(fbxBool1).

Default value is false.

Definition at line 1500 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> RotationMinY

This property contains the flag which actives the y component of min rotation limit of the node.

To access this property do: RotationMinY.Get(). To set this property do: RotationMinY.Set(fbxBool1).

Default value is false.

Definition at line 1509 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> RotationMinZ

This property contains the flag which actives the z component of min rotation limit of the node.

To access this property do: RotationMinZ.Get(). To set this property do: RotationMinZ.Set(fbxBool1).

Default value is false.

Definition at line 1518 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> RotationMaxX

This property contains the flag which actives the x component of max rotation limit of the node.

To access this property do: RotationMaxX.Get(). To set this property do: RotationMaxX.Set(fbxBool1).

Default value is false.

Definition at line 1527 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> RotationMaxY

This property contains the flag which actives the y component of max rotation limit of the node.

To access this property do: RotationMaxY.Get(). To set this property do: RotationMaxY.Set(fbxBool1).

Default value is false.

Definition at line 1536 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> RotationMaxZ

This property contains the flag which actives the z component of max rotation limit of the node.

To access this property do: RotationMaxZ.Get(). To set this property do: RotationMaxZ.Set(fbxBool1).

Default value is false.

Definition at line 1545 of file kfbxnode.h.

KFbxTypedProperty<ETransformInheritType> InheritType

This property contains inherit type information of the node.

To access this property do: InheritType.Get(). To set this property do: InheritType.Set(ETransformInheritType).

Default value is eINHERIT_RrSs.

Definition at line 1554 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> ScalingActive

This property contains scaling active information of the node.

To access this property do: ScalingActive.Get(). To set this property do: ScalingActive.Set(fbxBool1).

Default value is false.

Definition at line 1563 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> Scaling

This property contains scaling information of the node.

To access this property do: Scaling.Get(). To set this property do: Scaling.Set(fbxDouble3).

Definition at line 1571 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> ScalingMin

This property contains the min scaling limit information of the node.

To access this property do: ScalingMin.Get(). To set this property do: ScalingMin.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1580 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> ScalingMax

This property contains the max scaling limit information of the node.

To access this property do: ScalingMax.Get(). To set this property do: ScalingMax.Set(fbxDouble3).

Default value is 1.,1.,1.

Definition at line 1589 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> ScalingMinX

This property contains the flag which actives the x component of min scaling limit of the node.

To access this property do: ScalingMinX.Get(). To set this property do: ScalingMinX.Set(fbxBool1).

Default value is false.

Definition at line 1598 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> ScalingMinY

This property contains the flag which actives the y component of min scaling limit of the node.

To access this property do: ScalingMinY.Get(). To set this property do: ScalingMinY.Set(fbxBool1).

Default value is false.

Definition at line 1607 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> ScalingMinZ

This property contains the flag which actives the z component of min scaling limit of the node.

To access this property do: ScalingMinZ.Get(). To set this property do: ScalingMinZ.Set(fbxBool1).

Default value is false.

Definition at line 1616 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> ScalingMaxX

This property contains the flag which actives the x component of max scaling limit of the node.

To access this property do: ScalingMaxX.Get(). To set this property do: ScalingMaxX.Set(fbxBool1).

Default value is false.

Definition at line 1625 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> ScalingMaxY

This property contains the flag which actives the y component of max scaling limit of the node.

To access this property do: ScalingMaxY.Get(). To set this property do: ScalingMaxY.Set(fbxBool1).

Default value is false.

Definition at line 1634 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> ScalingMaxZ

This property contains the flag which actives the z component of max scaling limit of the node.

To access this property do: ScalingMaxZ.Get(). To set this property do: ScalingMaxZ.Set(fbxBool1).

Default value is false.

Definition at line 1643 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> GeometricTranslation

This property contains geometric translation information of the node.

To access this property do: GeometricTranslation.Get(). To set this property do: GeometricTranslation.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1652 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> GeometricRotation

This property contains geometric rotation information of the node.

To access this property do: GeometricRotation.Get(). To set this property do: GeometricRotation.Set(fbxDouble3).

Default value is 0.,0.,0.

Definition at line 1661 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble3> GeometricScaling

This property contains geometric scaling information of the node.

To access this property do: GeometricScaling.Get(). To set this property do: GeometricScaling.Set(fbxDouble3).

Default value is 1.,1.,1.

Definition at line 1670 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MinDampRangeX

This property contains the x component of the minimum damp range angles of the node.

To access this property do: MinDampRangeX.Get(). To set this property do: MinDampRangeX.Set(fbxDouble1).

Default value is 0.

Definition at line 1682 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MinDampRangeY

This property contains the y component of the minimum damp range angles of the node.

To access this property do: MinDampRangeY.Get(). To set this property do: MinDampRangeY.Set(fbxDouble1).

Default value is 0.

Definition at line 1691 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MinDampRangeZ

This property contains the z component of the minimum damp range angles of the node.

To access this property do: MinDampRangeZ.Get(). To set this property do: MinDampRangeZ.Set(fbxDouble1).

Default value is 0.

Definition at line 1700 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MaxDampRangeX

This property contains the x component of the maximum damp range angles of the node.

To access this property do: MaxDampRangeX.Get(). To set this property do: MaxDampRangeX.Set(fbxDouble1).

Default value is 0.

Definition at line 1709 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MaxDampRangeY

This property contains the y component of the maximum damp range angles of the node.

To access this property do: MaxDampRangeY.Get(). To set this property do: MaxDampRangeY.Set(fbxDouble1).

Default value is 0.

Definition at line 1718 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MaxDampRangeZ

This property contains the z component of the maximum damp range angles of the node.

To access this property do: MaxDampRangeZ.Get(). To set this property do: MaxDampRangeZ.Set(fbxDouble1).

Default value is 0.

Definition at line 1727 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MinDampStrengthX

This property contains the x component of the minimum damp strength of the node.

To access this property do: MinDampStrengthX.Get(). To set this property do: MinDampStrengthX.Set(fbxDouble1).

Default value is 0.

Definition at line 1736 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MinDampStrengthY

This property contains the y component of the minimum damp strength of the node.

To access this property do: MinDampStrengthY.Get(). To set this property do: MinDampStrengthY.Set(fbxDouble1).

Default value is 0.

Definition at line 1745 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MinDampStrengthZ

This property contains the z component of the minimum damp strength of the node.

To access this property do: MinDampStrengthZ.Get(). To set this property do: MinDampStrengthZ.Set(fbxDouble1).

Default value is 0.

Definition at line 1754 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MaxDampStrengthX

This property contains the x component of the maximum damp strength of the node.

To access this property do: MaxDampStrengthX.Get(). To set this property do: MaxDampStrengthX.Set(fbxDouble1).

Default value is 0.

Definition at line 1763 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MaxDampStrengthY

This property contains the y component of the maximum damp strength of the node.

To access this property do: MaxDampStrengthY.Get(). To set this property do: MaxDampStrengthY.Set(fbxDouble1).

Default value is 0.

Definition at line 1772 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> MaxDampStrengthZ

This property contains the z component of the maximum damp strength of the node.

To access this property do: MaxDampStrengthZ.Get(). To set this property do: MaxDampStrengthZ.Set(fbxDouble1).

Default value is 0.

Definition at line 1781 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> PreferedAngleX

This property contains the x component of the preferred angle of the node.

To access this property do: PreferedAngleX.Get(). To set this property do: PreferedAngleX.Set(fbxDouble1).

Default value is 0.

Definition at line 1790 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> PreferedAngleY

This property contains the y component of the preferred angle of the node.

To access this property do: PreferedAngleY.Get(). To set this property do: PreferedAngleY.Set(fbxDouble1).

Default value is 0.

Definition at line 1799 of file kfbxnode.h.

KFbxTypedProperty<fbxDouble1> PreferedAngleZ

This property contains the z component of the preferred angle of the node.

To access this property do: PreferedAngleZ.Get(). To set this property do: PreferedAngleZ.Set(fbxDouble1).

Default value is 0.

Definition at line 1808 of file kfbxnode.h.

KFbxTypedProperty<fbxReference*> LookAtProperty

This property contains look at property of the node.

To access this property do: LookAtProperty.Get(). To set this property do: LookAtProperty.Set(fbxReference*).

Definition at line 1817 of file kfbxnode.h.

KFbxTypedProperty<fbxReference*> UpVectorProperty

This property contains the up vector property of the node.

To access this property do: UpVectorProperty.Get(). To set this property do: UpVectorProperty.Set(fbxReference*).

Definition at line 1825 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> Show

This property contains show information of the node.

To access this property do: Show.Get(). To set this property do: Show.Set(fbxBool1).

Default value is true.

Definition at line 1834 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> NegativePercentShapeSupport

This property contains negative percent shape support information of the node.

To access this property do: NegativePercentShapeSupport.Get(). To set this property do: NegativePercentShapeSupport.Set(fbxBool1).

Default value is true.

Definition at line 1843 of file kfbxnode.h.

KFbxTypedProperty<fbxInteger1> DefaultAttributeIndex

This property contains default attribute index information of the node.

To access this property do: DefaultAttributeIndex.Get(). To set this property do: DefaultAttributeIndex.Set(fbxInteger1).

Default value is -1.

Definition at line 1852 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> Freeze

This property contains manipulation state information of the node.

To access this property do: Freeze.Get(). To set this property do: Freeze.Set(fbxBool1).

Default value is false.

Definition at line 1861 of file kfbxnode.h.

KFbxTypedProperty<fbxBool1> LODBox

This property contains level of detail mode information of the node.

To access this property do: LODBox.Get(). To set this property do: LODBox.Set(fbxBool1).

True: Bounding box False: Geometry object is displayed. Default value is false.

Definition at line 1872 of file kfbxnode.h.

KFbxNode Class Reference

Detailed Description

Node Display Parameters

Pivot Management

Error Management

Public and fast access Properties

Node Tree Management

Node Target Management

UpdateId Management

Node Attribute Management

Default Animation Values

Transformation propagation

Access to TRS Local and Global Position

Character Link

Material Management

Public Member Functions

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation
