KFbxGeometry Class Reference

#include <kfbxgeometry.h>

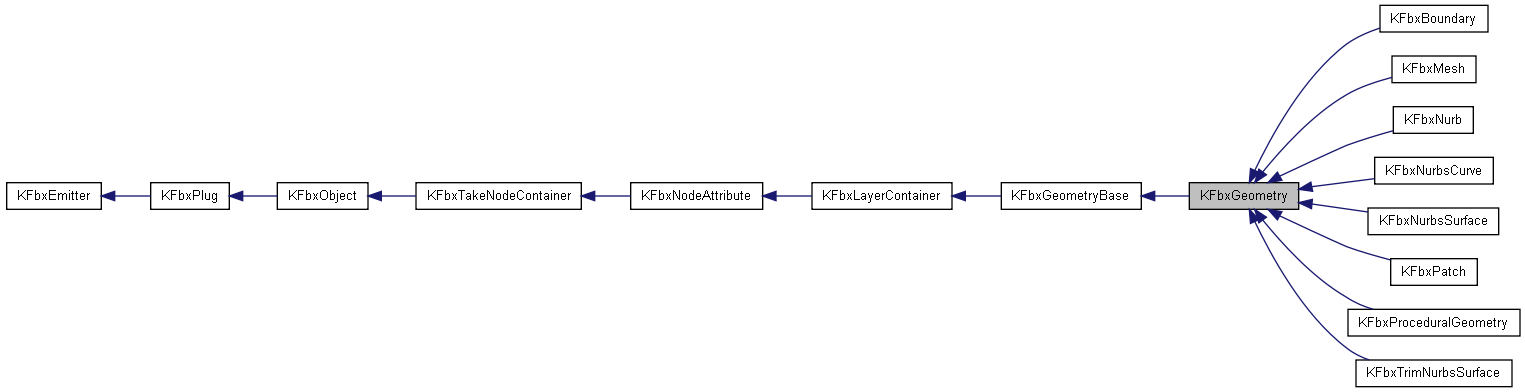

Inheritance diagram for KFbxGeometry:

[legend]

List of all members.

---

Detailed Description

Contains common properties for mesh, nurb, and patch node attributes.

A geometry node attribute has arrays of links, shapes, materials and textures. It also has arrays for control points, normals, material indices, texture indices, and texture UV coordinates. Some of these are only used in mesh node attributes.

Definition at line 74 of file kfbxgeometry.h.

Error Management
enum	EError
	Error identifiers. More...
KError &	GetError ()
	Retrieve error object.
EError	GetLastErrorID () const
	Get last error code.
const char *	GetLastErrorString () const
	Get last error string.
Deformer Management
int	AddDeformer (KFbxDeformer *pDeformer)
	Add a deformer.
int	GetDeformerCount () const
	Get the number of deformers.
KFbxDeformer *	GetDeformer (int pIndex) const
	Get deformer at given index.
int	GetDeformerCount (KFbxDeformer::EDeformerType pType) const
	Get the number of deformers of a given type.
KFbxDeformer *	GetDeformer (int pIndex, KFbxDeformer::EDeformerType pType) const
	Get deformer of a gieven type at given index.
Connected Geometry Weighted Map(s) Management
KFbxGeometryWeightedMap *	GetSourceGeometryWeightedMap ()
	Return the source geometry weighted map connected.
int	GetDestinationGeometryWeightedMapCount ()
	Get the number of destination geometry weighted map(s) connected.
KFbxGeometryWeightedMap *	GetDestinationGeometryWeightedMap (int pIndex)
	Get destination geometry weighted map at a given index.
Shape Management
virtual int	AddShape (KFbxShape *pShape, char const *pShapeName)
	Add a shape and its associated name.
virtual void	ClearShape ()
	Removes all shapes without destroying them.
virtual int	GetShapeCount () const
	Get the number of shapes.
virtual KFbxShape *	GetShape (int pIndex)
	Get shape at given index.
virtual KFbxShape const *	GetShape (int pIndex) const
	Get shape at given index.
virtual char const *	GetShapeName (int pIndex) const
	Get shape name at given index.
virtual KFCurve *	GetShapeChannel (char const *pShapeName, bool pCreateAsNeeded=false, char const *pTakeName=NULL)
	Get a shape channel.
virtual KFCurve *	GetShapeChannel (int pIndex, bool pCreateAsNeeded=false, char const *pTakeName=NULL)
	Get a shape channel.
Pivot Management
The geometry pivot is used to specify additional translation, rotation, and scaling applied to all the control points when the model is exported.
KFbxXMatrix &	GetPivot (KFbxXMatrix &pXMatrix) const
	Get pivot matrix.
void	SetPivot (KFbxXMatrix &pXMatrix)
	Set pivot matrix.
void	ApplyPivot ()
	Apply the pivot matrix to all vertices/normals of the geometry.
Default Animation Values
These functions provides direct access to default animation values specific to a geometry. These functions only work if the geometry has been associated with a node.
void	SetDefaultShape (int pIndex, double pPercent)
	Set default deformation for a given shape.
void	SetDefaultShape (char const *pShapeName, double pPercent)
	Set default deformation for a given shape.
double	GetDefaultShape (int pIndex)
	Get default deformation for a given shape.
double	GetDefaultShape (char const *pShapeName)
	Get default deformation for a given shape.
Public Types
enum	ESurfaceMode
	Surface modes This information is only used in nurbs and patches. More...
Public Member Functions
virtual EAttributeType	GetAttributeType () const
	Return the type of node attribute.
virtual KFbxObject *	Clone (KFbxObject *pContainer, KFbxObject::ECloneType pCloneType) const
	Creates a clone of this object.

---

Member Enumeration Documentation

enum ESurfaceMode

Surface modes This information is only used in nurbs and patches.

Types of surfaces.

• eRAW
• eLOW_NO_NORMALS
• eLOW
• eHIGH_NO_NORMALS
• eHIGH

Definition at line 237 of file kfbxgeometry.h.

enum EError

Error identifiers.

• eINDEX_OUT_OF_RANGE
• eNULL_PARAMETER
• eMATERIAL_NOT_FOUND
• eMATERIAL_ALREADY_ADDED
• eTEXTURE_NOT_FOUND
• eTEXTURE_ALREADY_ADDED
• eSHAPE_ALREADY_ADDED
• eSHAPE_INVALID_NAME
• eSHAPE_NAME_CLASH
• eSHAPE_NO_CURVE_FOUND
• eUNKNOWN_ERROR

Reimplemented in KFbxNurbsCurve.

Definition at line 337 of file kfbxgeometry.h.

---

Member Function Documentation

virtual EAttributeType GetAttributeType

(

)

const [virtual]

Return the type of node attribute.

This class is pure virtual.

Reimplemented from KFbxLayerContainer.

Reimplemented in KFbxMesh, KFbxNurb, KFbxNurbsCurve, KFbxNurbsSurface, KFbxPatch, KFbxBoundary, and KFbxTrimNurbsSurface.

int AddDeformer

(

KFbxDeformer *

pDeformer

)

Add a deformer.

Parameters:

pDeformer

Pointer to the deformer object to add.

Returns:

Index of added deformer.

int GetDeformerCount

(

)

const

Get the number of deformers.

Returns:

Number of deformers that have been added to this object.

KFbxDeformer* GetDeformer

(

int

pIndex

)

const

Get deformer at given index.

Parameters:

pIndex

Index of deformer.

Returns:

Pointer to deformer or NULL if pIndex is out of range. In this case, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

int GetDeformerCount

(

KFbxDeformer::EDeformerType

pType

)

const

Get the number of deformers of a given type.

Parameters:

pType

Type of deformer to count

Returns:

Number of deformers that have been added to this object.

KFbxDeformer* GetDeformer	(	int	pIndex,
		KFbxDeformer::EDeformerType	pType
	)			const

Get deformer of a gieven type at given index.

Parameters:

	pIndex	Index of deformer.
	pType	Type of deformer.

Returns:

Pointer to deformer or NULL if pIndex is out of range. In this case, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

KFbxGeometryWeightedMap* GetSourceGeometryWeightedMap

(

)

Return the source geometry weighted map connected.

Returns:

Pointer to the source geometry weighted map connected to this object if any.

int GetDestinationGeometryWeightedMapCount

(

)

Get the number of destination geometry weighted map(s) connected.

Returns:

Number of destination geometry weighted map(s) connected to this object.

KFbxGeometryWeightedMap* GetDestinationGeometryWeightedMap

(

int

pIndex

)

Get destination geometry weighted map at a given index.

Parameters:

pIndex

Index of link.

Returns:

Pointer to the destination geometry weighted map connected to this object if any.

virtual int AddShape	(	KFbxShape *	pShape,
		char const *	pShapeName
	)			[virtual]

Add a shape and its associated name.

Parameters:

	pShape	Pointer to the shape object.
	pShapeName	Name given to the shape.

Returns:

Index of added shape, -1 if operation failed. If the operation fails, KFbxGeometry::GetLastErrorID() can return one of the following:

• eNULL_PARAMETER: Pointer to shape is NULL.
• eSHAPE_ALREADY_ADDED: Shape has already been added.
• eSHAPE_INVALID_NAME: The provided name is empty.
• eSHAPE_NAME_CLASH: The provided name is already used by another shape.

Remarks:

The provided name is stripped from surrounding whitespaces before being compared with other shape names. It is recommended not to prefix the shape name with its enclosing node name because MotionBuilder is known to strip this prefix and not save it back.

Reimplemented in KFbxTrimNurbsSurface.

virtual void ClearShape

(

)

[virtual]

Removes all shapes without destroying them.

If shapes aren't explicitly destroyed before calling this function, they will be destroyed along with the SDK manager.

Reimplemented in KFbxTrimNurbsSurface.

virtual int GetShapeCount

(

)

const [virtual]

Get the number of shapes.

Returns:

Number of shapes that have been added to this object.

Reimplemented in KFbxTrimNurbsSurface.

virtual KFbxShape* GetShape

(

int

pIndex

)

[virtual]

Get shape at given index.

Parameters:

pIndex

Index of shape.

Returns:

Pointer to shape or NULL if pIndex is out of range. In this case, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

Reimplemented in KFbxTrimNurbsSurface.

virtual KFbxShape const* GetShape

(

int

pIndex

)

const [virtual]

Get shape at given index.

Parameters:

pIndex

Index of shape.

Returns:

Pointer to shape or NULL if pIndex is out of range. In this case, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

Reimplemented in KFbxTrimNurbsSurface.

virtual char const* GetShapeName

(

int

pIndex

)

const [virtual]

Get shape name at given index.

Parameters:

pIndex

Index of shape.

Returns:

Shape name or NULL if pIndex is out of range. In this case, KFbxGeometry::GetLastErrorID() returns eINDEX_OUT_OF_RANGE.

Reimplemented in KFbxTrimNurbsSurface.

virtual KFCurve* GetShapeChannel	(	char const *	pShapeName,
		bool	pCreateAsNeeded = false,
		char const *	pTakeName = NULL
	)			[virtual]

Get a shape channel.

The shape channel property has a scale from 0 to 100, 100 meaning full shape deformation. The default value is 0.

Parameters:

	pShapeName	Shape Property name.
	pCreateAsNeeded	If true, the fcurve is created if not already present.
	pTakeName	Take from which we want the FCurve (if NULL, use the current take).

Returns:

Animation curve or NULL if an error occurred. In this case, KFbxGeometry::GetLastErrorID() returns one of the following:

• eINDEX_OUT_OF_RANGE: Shape index is out of range.
• eSHAPE_NO_CURVE_FOUND: Shape curve could not be found.

virtual KFCurve* GetShapeChannel	(	int	pIndex,
		bool	pCreateAsNeeded = false,
		char const *	pTakeName = NULL
	)			[virtual]

Get a shape channel.

The shape channel property has a scale from 0 to 100, 100 meaning full shape deformation. The default value is 0.

Parameters:

	pIndex	Shape index.
	pCreateAsNeeded	If true, the fcurve is created if not already present.
	pTakeName	Take from which we want the FCurve (if NULL, use the current take).

Returns:

Animation curve or NULL if an error occurred. In this case, KFbxGeometry::GetLastErrorID() returns one of the following:

• eINDEX_OUT_OF_RANGE: Shape index is out of range.
• eSHAPE_NO_CURVE_FOUND: Shape curve could not be found.

Reimplemented in KFbxTrimNurbsSurface.

KFbxXMatrix& GetPivot

(

KFbxXMatrix &

pXMatrix

)

const

Get pivot matrix.

Parameters:

pXMatrix

Placeholder for the returned matrix.

Returns:

Reference to the passed argument.

void SetPivot

(

KFbxXMatrix &

pXMatrix

)

Set pivot matrix.

Parameters:

pXMatrix

The Transformation matrix.

void ApplyPivot

(

)

Apply the pivot matrix to all vertices/normals of the geometry.

void SetDefaultShape	(	int	pIndex,
		double	pPercent
	)

Set default deformation for a given shape.

The default shape property has a scale from 0 to 100, 100 meaning full shape deformation. The default value is 0.

Parameters:

	pIndex	Shape index.
	pPercent	Deformation percentage on a scale ranging from 0 to 100.

Remarks:

This function has no effect if pIndex is out of range.

void SetDefaultShape	(	char const *	pShapeName,
		double	pPercent
	)

Set default deformation for a given shape.

The default shape property has a scale from 0 to 100, 100 meaning full shape deformation. The default value is 0.

Parameters:

	pShapeName	Shape name.
	pPercent	Deformation percentage on a scale ranging from 0 to 100.

Remarks:

This function has no effect if pShapeName is invalid.

double GetDefaultShape

(

int

pIndex

)

Get default deformation for a given shape.

The default shape property has a scale from 0 to 100, 100 meaning full shape deformation. The default value is 0.

Parameters:

pIndex

Shape index.

Returns:

The deformation value for the given shape, or 0 if pIndex is out of range.

double GetDefaultShape

(

char const *

pShapeName

)

Get default deformation for a given shape.

The default shape property has a scale from 0 to 100, 100 meaning full shape deformation. The default value is 0.

Parameters:

pShapeName

Shape name.

Returns:

The deformation value for the given shape, or 0 if pShapeName is invalid.

KError& GetError

(

)

Retrieve error object.

Returns:

Reference to error object.

EError GetLastErrorID

(

)

const

Get last error code.

Returns:

Last error code.

const char* GetLastErrorString

(

)

const

Get last error string.

Returns:

Textual description of the last error.

virtual KFbxObject* Clone	(	KFbxObject *	pContainer,
		KFbxObject::ECloneType	pCloneType
	)			const [virtual]

Creates a clone of this object.

Parameters:

	pContainer	The object, typically a document or a scene, that contains the new clone(can be NULL).
	pCloneType	The type of clone to be created.

Returns:

The new clone, or NULL (if the specified clone type is not supported).

Reimplemented from KFbxNodeAttribute.

Reimplemented in KFbxNurbsCurve, and KFbxProceduralGeometry.
