KFbxCamera Class Reference

#include
<kfbxcamera.h>

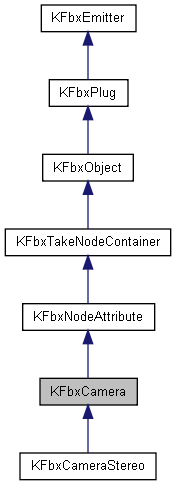

Inheritance diagram for KFbxCamera:

[legend]

List of all members.

Detailed Description

This node attribute contains methods for accessing the properties of a camera.

A camera can be set to automatically point at and follow another node in the hierarchy. To do this, the focus source must be set to ECameraFocusDistanceSource::eCAMERA_INTEREST and the followed node associated with function KFbxNode::SetTarget().

Definition at line 72 of file kfbxcamera.h.


Viewing Area Functions
enum	ECameraFormat
	Camera formats. More...
enum	ECameraAspectRatioMode
	Camera aspect ratio modes. More...
void	SetFormat (ECameraFormat pFormat)
	Set the camera format.
ECameraFormat	GetFormat () const
	Get the camera format.
void	SetAspect (ECameraAspectRatioMode pRatioMode, double pWidth, double pHeight)
	Set the camera aspect.
ECameraAspectRatioMode	GetAspectRatioMode () const
	Get the camera aspect ratio mode.
void	SetPixelRatio (double pRatio)
	Set the pixel ratio.
double	GetPixelRatio () const
	Get the pixel ratio.
void	SetNearPlane (double pDistance)
	Set the near plane distance from the camera.
double	GetNearPlane () const
	Get the near plane distance from the camera.
void	SetFarPlane (double pDistance)
	Set the far plane distance from camera.
double	GetFarPlane () const
	Get the far plane distance from camera.
Aperture and Film Functions
The aperture mode determines which values drive the camera aperture. When the aperture mode is eHORIZONTAL_AND_VERTICAL, eHORIZONTAL or eVERTICAL, the field of view is used. When the aperture mode is eFOCAL_LENGTH, the focal length is used. It is possible to convert the aperture mode into field of view or vice versa using functions ComputeFieldOfView and ComputeFocalLength. These functions use the camera aperture width and height for their computation.
enum	ECameraApertureFormat
	Camera aperture formats. More...
enum	ECameraApertureMode
	Camera aperture modes. More...
enum	ECameraGateFit
	Camera gate fit modes. More...
enum	ECameraFilmRollOrder
	Specifies how the roll is applied with respect to the pivot value. More...
void	SetApertureFormat (ECameraApertureFormat pFormat)
	Set the camera aperture format.
ECameraApertureFormat	GetApertureFormat () const
	Get the camera aperture format.
void	SetApertureMode (ECameraApertureMode pMode)
	Set the camera aperture mode.
ECameraApertureMode	GetApertureMode () const
	Get the camera aperture mode.
void	SetApertureWidth (double pWidth)
	Set the camera aperture width in inches.
double	GetApertureWidth () const
	Get the camera aperture width in inches.
void	SetApertureHeight (double pHeight)
	Set the camera aperture height in inches.
double	GetApertureHeight () const
	Get the camera aperture height in inches.
void	SetSqueezeRatio (double pRatio)
	Set the squeeze ratio.
double	GetSqueezeRatio () const
	Get the camera squeeze ratio.
double	ComputeFieldOfView (double pFocalLength) const
	Compute the angle of view based on the given focal length, the aperture width, and aperture height.
double	ComputeFocalLength (double pAngleOfView) const
	Compute the focal length based on the given angle of view, the aperture width, and aperture height.
BackPlane/FrontPlane and Plate Functions
In the FbxSdk terminology, the Back/Front plane is the support of the plate. And the plate is the support of the texture used for backgrounds/foregrounds. Functions and properties identified by the "Plate" name are affecting the display of the texture on the plate. The functions and properties identified with the "Back/FrontPlane" are affecting the plate. Typically a client application would place the BackPlate a small distance in front of the FarPlane and the FrontPlate just behind the NearPlane to avoid them to be hidden by the clipping. Unless otherwise noted, there are no restrictions on the values stored by the camera object therefore it is the responsability of the client application to process the information in a meaningful way and to maintain consistency between the different properties relationships.
enum	ECameraPlateDrawingMode
	Image plate drawing modes. More...
enum	ECameraFrontBackPlaneDistanceMode
	ECameraFrontBackPlaneDistanceMode Front and BackPlane distance modes. More...
enum	ECameraFrontBackPlaneDisplayMode
	Front/Back Plane display modes. More...
void	SetBackgroundFileName (const char *pFileName)
	Set the associated background image file.
char const *	GetBackgroundFileName () const
	Get the background image file name.
void	SetBackgroundMediaName (const char *pFileName)
	Set the media name associated to the background image file.
char const *	GetBackgroundMediaName () const
	Get the media name associated to the background image file.
void	SetShowBackPlate (bool pEnable)
	Enable or disable the display of the texture without the need to disconnect it from its plate.
bool	GetShowBackPlate () const
	Get the current state of the flag.
void	SetBackgroundAlphaTreshold (double pThreshold)
	Set back plate matte threshold.
double	GetBackgroundAlphaTreshold () const
	Get back plate matte threshold.
void	SetBackgroundTexture (KFbxTexture *pTexture)
	Attach the texture to the Back plate.
KFbxTexture *	GetBackgroundTexture () const
	Get the texture connected to the Back plate.
void	SetFitImage (bool pFitImage)
	Change the back plate fit image flag.
bool	GetFitImage () const
	Get the current back plate image flag.
void	SetCrop (bool pCrop)
	Change the back plate crop flag.
bool	GetCrop () const
	Get the current back plate crop flag.
void	SetCenter (bool pCenter)
	Change the back plate center flag.
bool	GetCenter () const
	Get the current back plate center flag.
void	SetKeepRatio (bool pKeepRatio)
	Change the back plate keep ratio flag.
bool	GetKeepRatio () const
	Get the current back plate keep ratio flag.
void	SetShowFrontPlate (bool pEnable)
	Enable or disable the display of the texture without the need to disconnect it from its plate.
bool	GetShowFrontPlate () const
	Get the current state of the flag.
void	SetFrontPlateFitImage (bool pFrontPlateFitImage)
	Change the front plate fit image flag.
bool	GetFrontPlateFitImage () const
	Get the current front plate fit image flag.
void	SetFrontPlateCrop (bool pFrontPlateCrop)
	Change the front plate crop flag.
bool	GetFrontPlateCrop () const
	Get the current front plate crop flag.
void	SetFrontPlateCenter (bool pFrontPlateCenter)
	Change the front plate center flag.
bool	GetFrontPlateCenter () const
	Get the current front plate center flag.
void	SetFrontPlateKeepRatio (bool pFrontPlateKeepRatio)
	Change the front plate keep ratio flag.
bool	GetFrontPlateKeepRatio () const
	Get the current front plate keep ratio flag.
void	SetForegroundOpacity (double pOpacity)
	Set the front plate opacity value.
double	GetForegroundOpacity () const
	Get the front plate opacity value.
void	SetForegroundTexture (KFbxTexture *pTexture)
	Attach the texture to the Front plate.
KFbxTexture *	GetForegroundTexture () const
	Get the texture connected to the Front plate.
void	SetBackPlaneDistance (double pDistance)
	Set the back plane distance from the camera.
double	GetBackPlaneDistance () const
	Get the back plane distance value.
void	SetBackPlaneDistanceMode (ECameraFrontBackPlaneDistanceMode pMode)
	Set the back plane distance mode flag.
ECameraFrontBackPlaneDistanceMode	GetBackPlaneDistanceMode () const
	Get the back plane distance mode.
void	SetFrontPlaneDistance (double pDistance)
	Set the front plane distance from the camera.
double	GetFrontPlaneDistance () const
	Get the front plane distance value.
void	SetFrontPlaneDistanceMode (ECameraFrontBackPlaneDistanceMode pMode)
	Set the front plane distance mode flag.
ECameraFrontBackPlaneDistanceMode	GetFrontPlaneDistanceMode () const
	Get the front plane distance mode flag.
void	SetViewFrustumFrontPlaneMode (ECameraFrontBackPlaneDisplayMode pMode)
	Set the front plane display mode.
ECameraFrontBackPlaneDisplayMode	GetViewFrustumFrontPlaneMode () const
	Get the front plane display mode.
void	SetViewFrustumBackPlaneMode (ECameraFrontBackPlaneDisplayMode pMode)
	Set the back plane display mode.
ECameraFrontBackPlaneDisplayMode	GetViewFrustumBackPlaneMode () const
	Get the back plane display mode.
Camera View Functions
It is the responsibility of the client application to perform the required tasks according to the state of the options that are either set or returned by these methods.
enum	ECameraSafeAreaStyle
	Camera safe area display styles. More...
void	SetViewCameraInterest (bool pEnable)
	Change the camera interest visibility flag.
bool	GetViewCameraInterest () const
	Get current visibility state of the camera interest.
void	SetViewNearFarPlanes (bool pEnable)
	Change the camera near and far planes visibility flag.
bool	GetViewNearFarPlanes () const
	Get current visibility state of the camera near and far planes.
Render Functions
It is the responsibility of the client application to perform the required tasks according to the state of the options that are either set or returned by these methods.
enum	ECameraRenderOptionsUsageTime
	Render options usage time. More...
enum	ECameraAntialiasingMethod
	Antialiasing methods. More...
enum	ECameraSamplingType
	Oversampling types. More...
enum	ECameraFocusDistanceSource
	Camera focus sources. More...
Utility Functions.
bool	IsBoundingBoxInView (const KFbxMatrix &pWorldToScreen, const KFbxMatrix &pWorldToCamera, const KFbxVector4 pPoints[8]) const
	Determine if the given bounding box is in the camera's view.
bool	IsPointInView (const KFbxMatrix &pWorldToScreen, const KFbxMatrix &pWorldToCamera, const KFbxVector4 &pPoint) const
	Determine if the given 3d point is in the camera's view.
KFbxMatrix	ComputeWorldToScreen (int pPixelWidth, int pPixelHeight, const KFbxXMatrix &pWorldToCamera) const
	Compute world space to screen space transformation matrix.
KFbxMatrix	ComputePerspective (int pPixelWidth, int pPixelHeight, bool pIncludePostPerspective) const
	Compute the perspective matrix for this camera.
Public Types
enum	ECameraProjectionType
	Camera projection types. More...
Public Member Functions
virtual EAttributeType	GetAttributeType () const
	Return the type of node attribute which is EAttributeType::eCAMERA.
void	Reset ()
	Reset the camera to default values.
Public Attributes
KFbxTypedProperty< fbxDouble3 >	Position
	This property handles the camera position (XYZ coordinates).
KFbxTypedProperty< fbxDouble3 >	UpVector
	This property handles the camera Up Vector (XYZ coordinates).
KFbxTypedProperty< fbxDouble3 >	InterestPosition
	This property handles the default point (XYZ coordinates) the camera is looking at.
KFbxTypedProperty< fbxDouble1 >	Roll
	This property handles the camera roll angle in degree(s).
KFbxTypedProperty< fbxDouble1 >	OpticalCenterX
	This property handles the camera optical center X, in pixels.
KFbxTypedProperty< fbxDouble1 >	OpticalCenterY
	This property handles the camera optical center Y, in pixels.
KFbxTypedProperty< fbxDouble3 >	BackgroundColor
	This property handles the camera RGB values of the background color.
KFbxTypedProperty< fbxDouble1 >	TurnTable
	This property handles the camera turn table angle in degree(s).
KFbxTypedProperty< fbxBool1 >	DisplayTurnTableIcon
	This property handles a flags that indicates if the camera displays the Turn Table icon or not.
KFbxTypedProperty< fbxBool1 >	UseMotionBlur
	This property handles a flags that indicates if the camera uses motion blur or not.
KFbxTypedProperty< fbxBool1 >	UseRealTimeMotionBlur
	This property handles a flags that indicates if the camera uses real time motion blur or not.
KFbxTypedProperty< fbxDouble1 >	MotionBlurIntensity
	This property handles the camera motion blur intensity (in pixels).
KFbxTypedProperty < ECameraAspectRatioMode >	AspectRatioMode
	This property handles the camera aspect ratio mode.
KFbxTypedProperty< fbxDouble1 >	AspectWidth
	This property handles the camera aspect width.
KFbxTypedProperty< fbxDouble1 >	AspectHeight
	This property handles the camera aspect height.
KFbxTypedProperty< fbxDouble1 >	PixelAspectRatio
	This property handles the pixel aspect ratio.
KFbxTypedProperty < ECameraApertureMode >	ApertureMode
	This property handles the aperture mode.
KFbxTypedProperty< ECameraGateFit >	GateFit
	This property handles the gate fit mode.
KFbxTypedProperty< fbxDouble1 >	FieldOfView
	This property handles the field of view in degrees.
KFbxTypedProperty< fbxDouble1 >	FieldOfViewX
	This property handles the X (horizontal) field of view in degrees.
KFbxTypedProperty< fbxDouble1 >	FieldOfViewY
	This property handles the Y (vertical) field of view in degrees.
KFbxTypedProperty< fbxDouble1 >	FocalLength
	This property handles the focal length (in millimeters).
KFbxTypedProperty< ECameraFormat >	CameraFormat
	This property handles the camera format.
KFbxTypedProperty< fbxBool1 >	UseFrameColor
	This property stores a flag that indicates to use or not a color for the frame.
KFbxTypedProperty< fbxDouble3 >	FrameColor
	This property handles the frame color.
KFbxTypedProperty< fbxBool1 >	ShowName
	This property handles the show name flag.
KFbxTypedProperty< fbxBool1 >	ShowInfoOnMoving
	This property handles the show info on moving flag.
KFbxTypedProperty< fbxBool1 >	ShowGrid
	This property handles the draw floor grid flag.
KFbxTypedProperty< fbxBool1 >	ShowOpticalCenter
	This property handles the show optical center flag.
KFbxTypedProperty< fbxBool1 >	ShowAzimut
	This property handles the show axis flag.
KFbxTypedProperty< fbxBool1 >	ShowTimeCode
	This property handles the show time code flag.
KFbxTypedProperty< fbxBool1 >	ShowAudio
	This property handles the show audio flag.
KFbxTypedProperty< fbxDouble3 >	AudioColor
	This property handles the show audio flag.
KFbxTypedProperty< fbxDouble1 >	NearPlane
	This property handles the near plane distance.
KFbxTypedProperty< fbxDouble1 >	FarPlane
	This property handles the far plane distance.
KFbxTypedProperty< fbxBool1 >	AutoComputeClipPlanes
	This property indicates that the clip planes should be automatically computed.
KFbxTypedProperty< fbxDouble1 >	FilmWidth
	This property handles the film aperture width (in inches).
KFbxTypedProperty< fbxDouble1 >	FilmHeight
	This property handles the film aperture height (in inches).
KFbxTypedProperty< fbxDouble1 >	FilmAspectRatio
	This property handles the film aperture aspect ratio.
KFbxTypedProperty< fbxDouble1 >	FilmSqueezeRatio
	This property handles the film aperture squeeze ratio.
KFbxTypedProperty < ECameraApertureFormat >	FilmFormat
	This property handles the film aperture format.
KFbxTypedProperty< fbxDouble1 >	FilmOffsetX
	This property handles the offset from the center of the film aperture, defined by the film height and film width.
KFbxTypedProperty< fbxDouble1 >	FilmOffsetY
	This property handles the vertical offset from the center of the film aperture, defined by the film height and film width.
KFbxTypedProperty< fbxDouble1 >	PreScale
	This property handles the pre-scale value.
KFbxTypedProperty< fbxDouble1 >	FilmTranslateX
	This property handles the horizontal film horizontal translation.
KFbxTypedProperty< fbxDouble1 >	FilmTranslateY
	This property handles the vertical film translation.
KFbxTypedProperty< fbxDouble1 >	FilmRollPivotX
	This property handles the horizontal pivot point used for rotating the film back.
KFbxTypedProperty< fbxDouble1 >	FilmRollPivotY
	This property handles the vertical pivot point used for rotating the film back.
KFbxTypedProperty< fbxDouble1 >	FilmRollValue
	This property handles the amount of rotation around the film back The roll value is specified in degrees.
KFbxTypedProperty < ECameraFilmRollOrder >	FilmRollOrder
	This property handles how the roll is applied with respect to the pivot value.
KFbxTypedProperty< fbxBool1 >	ViewCameraToLookAt
	This property handles the view camera to look at flag.
KFbxTypedProperty< fbxBool1 >	ViewFrustumNearFarPlane
	This property handles the view frustrum near and far plane display state.
KFbxTypedProperty < ECameraFrontBackPlaneDisplayMode >	ViewFrustumBackPlaneMode
	This property handles the view frustrum back plane mode.
KFbxTypedProperty< fbxDouble1 >	BackPlaneDistance
	This property handles the view frustrum back plane distance.
KFbxTypedProperty < ECameraFrontBackPlaneDistanceMode >	BackPlaneDistanceMode
	This property handles the view frustrum back plane distance mode.
KFbxTypedProperty < ECameraFrontBackPlaneDisplayMode >	ViewFrustumFrontPlaneMode
	This property handles the view frustrum front plane mode.
KFbxTypedProperty< fbxDouble1 >	FrontPlaneDistance
	This property handles the view frustrum front plane distance.
KFbxTypedProperty < ECameraFrontBackPlaneDistanceMode >	FrontPlaneDistanceMode
	This property handles the view frustrum front plane distance mode.
KFbxTypedProperty< fbxBool1 >	LockMode
	This property handles the lock mode.
KFbxTypedProperty< fbxBool1 >	LockInterestNavigation
	This property handles the lock interest navigation flag.
KFbxTypedProperty< fbxBool1 >	FitImage
	This property handles the fit image flag.
KFbxTypedProperty< fbxBool1 >	Crop
	This property handles the crop flag.
KFbxTypedProperty< fbxBool1 >	Center
	This property handles the center flag.
KFbxTypedProperty< fbxBool1 >	KeepRatio
	This property handles the keep ratio flag.
KFbxTypedProperty< fbxDouble1 >	BackgroundAlphaTreshold
	This property handles the background alpha threshold value.
KFbxTypedProperty< fbxDouble2 >	BackPlaneOffset
	This property handles the back plane offset.
KFbxTypedProperty< fbxDouble1 >	BackPlaneRotation
	This property handles the back plane rotation.
KFbxTypedProperty< fbxDouble2 >	BackPlaneScale
	This property handles the back plane scaling.
KFbxTypedProperty< fbxBool1 >	ShowBackplate
	This property handles the back plane show flag.
KFbxTypedProperty< fbxReference >	BackgroundTexture
	This property has the background textures connected to it.
KFbxTypedProperty< fbxBool1 >	FrontPlateFitImage
	This property handles the fit image for front plate flag.
KFbxTypedProperty< fbxBool1 >	FrontPlateCrop
	This property handles the front plane crop flag.
KFbxTypedProperty< fbxBool1 >	FrontPlateCenter
	This property handles the front plane center flag.
KFbxTypedProperty< fbxBool1 >	FrontPlateKeepRatio
	This property handles the front plane keep ratio flag.
KFbxTypedProperty< fbxBool1 >	ShowFrontplate
	This property handles the front plane show flag.
KFbxTypedProperty< fbxDouble2 >	FrontPlaneOffset
	This property handles the front plane offset.
KFbxTypedProperty< fbxDouble1 >	FrontPlaneRotation
	This property handles the front plane rotation.
KFbxTypedProperty< fbxDouble2 >	FrontPlaneScale
	This property handles the front plane scaling.
KFbxTypedProperty< fbxReference >	ForegroundTexture
	This property has the foreground textures connected to it.
KFbxTypedProperty< fbxDouble1 >	ForegroundOpacity
	This property handles the foreground image opacity value.
KFbxTypedProperty< fbxBool1 >	DisplaySafeArea
	This property handles the display safe area flag.
KFbxTypedProperty< fbxBool1 >	DisplaySafeAreaOnRender
	This property handles the display safe area on render flag.
KFbxTypedProperty < ECameraSafeAreaStyle >	SafeAreaDisplayStyle
	This property handles the display safe area display style.
KFbxTypedProperty< fbxDouble1 >	SafeAreaAspectRatio
	This property handles the display safe area aspect ratio.
KFbxTypedProperty< fbxBool1 >	Use2DMagnifierZoom
	This property handles the use 2d magnifier zoom flag.
KFbxTypedProperty< fbxDouble1 >	_2DMagnifierZoom
	This property handles the 2d magnifier zoom value.
KFbxTypedProperty< fbxDouble1 >	_2DMagnifierX
	This property handles the 2d magnifier X value.
KFbxTypedProperty< fbxDouble1 >	_2DMagnifierY
	This property handles the 2d magnifier Y value.
KFbxTypedProperty < ECameraProjectionType >	ProjectionType
	This property handles the projection type.
KFbxTypedProperty< fbxDouble1 >	OrthoZoom
	This property handles the orthographic zoom.
KFbxTypedProperty< fbxBool1 >	UseRealTimeDOFAndAA
	This property handles the use real time DOF and AA flag.
KFbxTypedProperty< fbxBool1 >	UseDepthOfField
	This property handles the use depth of field flag.
KFbxTypedProperty < ECameraFocusDistanceSource >	FocusSource
	This property handles the focus source.
KFbxTypedProperty< fbxDouble1 >	FocusAngle
	This property handles the focus angle (in degrees).
KFbxTypedProperty< fbxDouble1 >	FocusDistance
	This property handles the focus distance.
KFbxTypedProperty< fbxBool1 >	UseAntialiasing
	This property handles the use anti aliasing flag.
KFbxTypedProperty< fbxDouble1 >	AntialiasingIntensity
	This property handles the anti aliasing intensity.
KFbxTypedProperty < ECameraAntialiasingMethod >	AntialiasingMethod
	This property handles the anti aliasing method.
KFbxTypedProperty< fbxBool1 >	UseAccumulationBuffer
	This property handles the use accumulation buffer flag.
KFbxTypedProperty< fbxInteger1 >	FrameSamplingCount
	This property handles the frame sampling count.
KFbxTypedProperty < ECameraSamplingType >	FrameSamplingType
	This property handles the frame sampling type.

Member Enumeration Documentation

enum ECameraProjectionType

Camera projection types.

ePERSPECTIVE
eORTHOGONAL
Remarks:
By default, the camera projection type is set to ePERSPECTIVE. If the camera projection type is set to eORTHOGONAL, the following options are not relevant:
- aperture format
- aperture mode
- aperture width and height
- angle of view/focal length
- squeeze ratio

Definition at line 96 of file kfbxcamera.h.

enum ECameraFormat

Camera formats.

eCUSTOM_FORMAT
eD1_NTSC
eNTSC
ePAL
eD1_PAL
eHD
e640x480
e320x200
e320x240
e128x128
eFULL_SCREEN

Definition at line 121 of file kfbxcamera.h.

enum ECameraAspectRatioMode

Camera aspect ratio modes.

eWINDOW_SIZE
eFIXED_RATIO
eFIXED_RESOLUTION
eFIXED_WIDTH
eFIXED_HEIGHT

Definition at line 156 of file kfbxcamera.h.

enum ECameraApertureFormat

Camera aperture formats.

eCUSTOM_APERTURE_FORMAT
e16MM_THEATRICAL
eSUPER_16MM
e35MM_ACADEMY
e35MM_TV_PROJECTION
e35MM_FULL_APERTURE
e35MM_185_PROJECTION
e35MM_ANAMORPHIC
e70MM_PROJECTION
eVISTAVISION
eDYNAVISION
eIMAX

Definition at line 253 of file kfbxcamera.h.

enum ECameraApertureMode

Camera aperture modes.

The aperture mode determines which values drive the camera aperture. If the aperture mode is eHORIZONTAL_AND_VERTICAL, eHORIZONTAL, or eVERTICAL, then the field of view is used. If the aperture mode is eFOCAL_LENGTH, then the focal length is used.

eHORIZONTAL_AND_VERTICAL
eHORIZONTAL
eVERTICAL
eFOCAL_LENGTH

Definition at line 288 of file kfbxcamera.h.

enum ECameraGateFit

Camera gate fit modes.

eNO_FIT No resoluton gate fit.
eVERTICAL_FIT Fit the resolution gate vertically within the film gate.
eHORIZONTAL_FIT Fit the resolution gate horizontally within the film gate.
eFILL_FIT Fit the resolution gate within the film gate.
eOVERSCAN_FIT Fit the film gate within the resolution gate.
eSTRETCH_FIT Fit the resolution gate to the film gate.

Definition at line 351 of file kfbxcamera.h.

enum ECameraFilmRollOrder

Specifies how the roll is applied with respect to the pivot value.

eROTATE_TRANSLATE The film back is first rotated then translated by the pivot point value.
eHORIZONTAL_AND_VERTICAL The film back is first translated then rotated by the film roll value.

Definition at line 378 of file kfbxcamera.h.

enum ECameraPlateDrawingMode

Image plate drawing modes.

eBACKGROUND Image is drawn behind models.
eFOREGROUND Image is drawn in front of models based on alpha channel.
eBACKGROUND_AND_FOREGROUND Image is drawn behind and in front of models depending on alpha channel.

Definition at line 438 of file kfbxcamera.h.

enum ECameraFrontBackPlaneDistanceMode

ECameraFrontBackPlaneDistanceMode Front and BackPlane distance modes.

eRELATIVE_TO_INTEREST
eRELATIVE_TO_CAMERA

Definition at line 603 of file kfbxcamera.h.

enum ECameraFrontBackPlaneDisplayMode

Front/Back Plane display modes.

eDISABLED
eALWAYS
eWHEN_MEDIA

Definition at line 660 of file kfbxcamera.h.

enum ECameraSafeAreaStyle

Camera safe area display styles.

eROUND
eSQUARE

Definition at line 724 of file kfbxcamera.h.

enum ECameraRenderOptionsUsageTime

Render options usage time.

eINTERACTIVE
eAT_RENDER

Definition at line 743 of file kfbxcamera.h.

enum ECameraAntialiasingMethod

Antialiasing methods.

eOVERSAMPLING_ANTIALIASING
eHARDWARE_ANTIALIASING

Definition at line 753 of file kfbxcamera.h.

enum ECameraSamplingType

Oversampling types.

eUNIFORM
eSTOCHASTIC

Definition at line 763 of file kfbxcamera.h.

enum ECameraFocusDistanceSource

Camera focus sources.

eCAMERA_INTEREST
eSPECIFIC_DISTANCE

Definition at line 773 of file kfbxcamera.h.

Member Function Documentation

virtual EAttributeType GetAttributeType ( ) const [virtual]

Return the type of node attribute which is EAttributeType::eCAMERA.

Reimplemented from KFbxNodeAttribute.

Reimplemented in KFbxCameraStereo.

void Reset ( )

Reset the camera to default values.

Reimplemented in KFbxCameraStereo.

void SetFormat ( ECameraFormat pFormat )

Set the camera format.

Parameters:

pFormat

The camera format identifier.

Remarks:: Changing the camera format sets the camera aspect ratio mode to eFIXED_RESOLUTION and modifies the aspect width size, height size, and pixel ratio accordingly.

ECameraFormat GetFormat ( ) const

Get the camera format.

Returns:: The current camera format identifier.

void SetAspect	(	ECameraAspectRatioMode	pRatioMode,
		double	pWidth,
		double	pHeight
	)

Set the camera aspect.

Parameters:

	pRatioMode	Camera aspect ratio mode.
	pWidth	Camera aspect width, must be a positive value.
	pHeight	Camera aspect height, must be a positive value.

Remarks:

Changing the camera aspect sets the camera format to eCustom.

If the ratio mode is eWINDOW_SIZE, both width and height values aren't relevant.
If the ratio mode is eFIXED_RATIO, the height value is set to 1.0 and the width value is relative to the height value.
If the ratio mode is eFIXED_RESOLUTION, both width and height values are in pixels.
If the ratio mode is eFIXED_WIDTH, the width value is in pixels and the height value is relative to the width value.
If the ratio mode is eFIXED_HEIGHT, the height value is in pixels and the width value is relative to the height value.

ECameraAspectRatioMode GetAspectRatioMode ( ) const

Get the camera aspect ratio mode.

Returns:: The current aspect ratio identifier.

void SetPixelRatio ( double pRatio )

Set the pixel ratio.

Parameters:

pRatio

The pixel ratio value.

Remarks:: The value must be a positive number. Comprised between 0.05 and 20.0. Values outside these limits will be clamped. Changing the pixel ratio sets the camera format to eCUSTOM_FORMAT.

double GetPixelRatio ( ) const

Get the pixel ratio.

Returns:: The current camera's pixel ratio value.

void SetNearPlane ( double pDistance )

Set the near plane distance from the camera.

The near plane is the minimum distance to render a scene on the camera display. A synonym for the near plane is "front clipping plane".

Parameters:

pDistance

The near plane distance value.

Remarks:: The near plane value is limited to the range [0.001, 600000.0] and must be inferior to the far plane value.

double GetNearPlane ( ) const

Get the near plane distance from the camera.

The near plane is the minimum distance to render a scene on the camera display. A synonym for the near plane is "front clipping plane".

Returns:: The near plane value.

void SetFarPlane ( double pDistance )

Set the far plane distance from camera.

The far plane is the maximum distance to render a scene on the camera display. A synonym for the far plane is "back clipping plane".

Parameters:

pDistance

The far plane distance value.

Remarks:: The far plane value is limited to the range [0.001, 600000.0] and must be superior to the near plane value.

double GetFarPlane ( ) const

Get the far plane distance from camera.

The far plane is the maximum distance to render a scene on the camera display. A synonym for the far plane is "back clipping plane".

Returns:: The far plane value.

void SetApertureFormat ( ECameraApertureFormat pFormat )

Set the camera aperture format.

Parameters:

pFormat

The camera aperture format identifier.

Remarks:: Changing the aperture format modifies the aperture width, height, and squeeze ratio accordingly.

ECameraApertureFormat GetApertureFormat ( ) const

Get the camera aperture format.

Returns:: The camera's current aperture format identifier.

void SetApertureMode ( ECameraApertureMode pMode )

Set the camera aperture mode.

Parameters:

pMode

The camera aperture mode identifier.

ECameraApertureMode GetApertureMode ( ) const

Get the camera aperture mode.

Returns:: The camera's current aperture mode identifier.

void SetApertureWidth ( double pWidth )

Set the camera aperture width in inches.

Parameters:

pWidth

The aperture width value.

Remarks:: Must be a positive value. The minimum accepted value is 0.0001. Changing the aperture width sets the camera aperture format to eCUSTOM_FORMAT.

double GetApertureWidth ( ) const

Get the camera aperture width in inches.

Returns:: The camera's current aperture width value in inches.

void SetApertureHeight ( double pHeight )

Set the camera aperture height in inches.

Parameters:

pHeight

The aperture height value.

Remarks:: Must be a positive value. The minimum accepted value is 0.0001. Changing the aperture height sets the camera aperture format to eCUSTOM_FORMAT.

double GetApertureHeight ( ) const

Get the camera aperture height in inches.

Returns:: The camera's current aperture height value in inches.

void SetSqueezeRatio ( double pRatio )

Set the squeeze ratio.

Parameters:

pRatio

The sqeeze ratio value.

Remarks:: Must be a positive value. The minimum accepted value is 0.0001. Changing the squeeze ratio sets the camera aperture format to eCUSTOM_FORMAT.

double GetSqueezeRatio ( ) const

Get the camera squeeze ratio.

Returns:: The camera's current squeeze ratio value.

double ComputeFieldOfView ( double pFocalLength ) const

Compute the angle of view based on the given focal length, the aperture width, and aperture height.

Parameters:

pFocalLength

The focal length in millimeters

Returns:: The computed angle of view in degrees

double ComputeFocalLength ( double pAngleOfView ) const

Compute the focal length based on the given angle of view, the aperture width, and aperture height.

Parameters:

pAngleOfView

The angle of view in degrees

Returns:: The computed focal length in millimeters

void SetBackgroundFileName ( const char * pFileName )

Set the associated background image file.

Parameters:

pFileName

The path of the background image file.

Remarks:: The background image file name must be valid.
This method is still provided for legacy files (Fbx version 5.0 and earlier) and must not be used in any other cases.

char const* GetBackgroundFileName ( ) const

Get the background image file name.

Returns:: Pointer to the background filename string or NULL if not set.

Remarks:: This method is still provided for legacy files (Fbx version 5.0 and earlier) and must not be used in any other cases.

void SetBackgroundMediaName ( const char * pFileName )

Set the media name associated to the background image file.

Parameters:

pFileName

The media name of the background image file.

Remarks:: The media name is a unique name used to identify the background image file.
This method is still provided for legacy files (Fbx version 5.0 and earlier) and must not be used in any other cases.

char const* GetBackgroundMediaName ( ) const

Get the media name associated to the background image file.

Returns:: Pointer to the media name string or NULL if not set.

Remarks:: This method is still provided for legacy files (Fbx version 5.0 and earlier) and must not be used in any other cases.

void SetShowBackPlate ( bool pEnable )

Enable or disable the display of the texture without the need to disconnect it from its plate.

Parameters:

pEnable If true the texture is displayed.

Remarks:: It is the responsibility of the client application to perform the required tasks according to the state of this flag.

bool GetShowBackPlate ( ) const

Get the current state of the flag.

Returns:: true if show back plate is enabled, otherwise false.

Remarks:: It is the responsibility of the client application to perform the required tasks according to the state of this flag.

void SetBackgroundAlphaTreshold ( double pThreshold )

Set back plate matte threshold.

Parameters:

pThreshold

Threshold value on a range from 0.0 to 1.0.

Remarks:: This option is only relevant if the background drawing mode is set to eFOREGROUND or eBACKGROUND_AND_FOREGROUND.

double GetBackgroundAlphaTreshold ( ) const

Get back plate matte threshold.

Returns:: Threshold value on a range from 0.0 to 1.0.

Remarks:: This option is only relevant if the background drawing mode is set to eFOREGROUND or eBACKGROUND_AND_FOREGROUND.

void SetBackgroundTexture ( KFbxTexture * pTexture )

Attach the texture to the Back plate.

Parameters:

pTexture

New texture handle.

KFbxTexture* GetBackgroundTexture ( ) const

Get the texture connected to the Back plate.

Returns:: KFbxTexture* The texture handle.

void SetFitImage ( bool pFitImage )

Change the back plate fit image flag.

Parameters:

pFitImage

New value for the BackPlateFitImage property.

bool GetFitImage ( ) const

Get the current back plate image flag.

Returns:: The value of the BackPlateFitImage property.

void SetCrop ( bool pCrop )

Change the back plate crop flag.

Parameters:

pCrop

New value for the BackPlateCrop property.

bool GetCrop ( ) const

Get the current back plate crop flag.

Returns:: The value of the BackPlateCrop property.

void SetCenter ( bool pCenter )

Change the back plate center flag.

Parameters:

pCenter

New value for the BackPlateCenter property.

bool GetCenter ( ) const

Get the current back plate center flag.

Returns:: The value of the BackPlateCenter property.

void SetKeepRatio ( bool pKeepRatio )

Change the back plate keep ratio flag.

Parameters:

pKeepRatio

New value for the BackPlateKeepRatio property.

bool GetKeepRatio ( ) const

Get the current back plate keep ratio flag.

Returns:: The value of the BackPlateKeepRatio property.

void SetShowFrontPlate ( bool pEnable )

Enable or disable the display of the texture without the need to disconnect it from its plate.

Parameters:

pEnable If true the texture is displayed.

Remarks:: It is the responsibility of the client application to perform the required tasks according to the state of this flag.

bool GetShowFrontPlate ( ) const

Get the current state of the flag.

Returns:: true if show front plate is enabled, otherwise false.

Remarks:: It is the responsibility of the client application to perform the required tasks according to the state of this flag.

void SetFrontPlateFitImage ( bool pFrontPlateFitImage )

Change the front plate fit image flag.

Parameters:

pFrontPlateFitImage

New value for the FrontPlateFitImage property.

bool GetFrontPlateFitImage ( ) const

Get the current front plate fit image flag.

Returns:: The value of the BackPlateFitImage property.

void SetFrontPlateCrop ( bool pFrontPlateCrop )

Change the front plate crop flag.

Parameters:

pFrontPlateCrop

New value for the FrontPlateCrop property.

bool GetFrontPlateCrop ( ) const

Get the current front plate crop flag.

Returns:: The value of the FrontPlateCrop property.

void SetFrontPlateCenter ( bool pFrontPlateCenter )

Change the front plate center flag.

Parameters:

pFrontPlateCenter

New value for the FrontPlateCenter property.

bool GetFrontPlateCenter ( ) const

Get the current front plate center flag.

Returns:: The value of the FrontPlateCenter property.

void SetFrontPlateKeepRatio ( bool pFrontPlateKeepRatio )

Change the front plate keep ratio flag.

Parameters:

pFrontPlateKeepRatio

New value for the FrontPlateKeepRatio property.

bool GetFrontPlateKeepRatio ( ) const

Get the current front plate keep ratio flag.

Returns:: The value of the FrontPlateKeepRatio property.

void SetForegroundOpacity ( double pOpacity )

Set the front plate opacity value.

Parameters:

pOpacity

New value for the ForegroundOpacity property.

double GetForegroundOpacity ( ) const

Get the front plate opacity value.

Returns:: The value of the ForegroundOpacity property.

void SetForegroundTexture ( KFbxTexture * pTexture )

Attach the texture to the Front plate.

Parameters:

pTexture

New texture handle.

KFbxTexture* GetForegroundTexture ( ) const

Get the texture connected to the Front plate.

Returns:: KFbxTexture* The texture handle.

void SetBackPlaneDistance ( double pDistance )

Set the back plane distance from the camera.

The the absolute position of the plane must be calculated by taking into consideration the BackPlaneDistanceMode.

Parameters:

pDistance

The back plane distance value.

Remarks:: It it the responsability of the client application to ensure that this plane position is within the frustum boundaries.

double GetBackPlaneDistance ( ) const

Get the back plane distance value.

Returns:: The back plane distance value.

void SetBackPlaneDistanceMode ( ECameraFrontBackPlaneDistanceMode pMode )

Set the back plane distance mode flag.

Parameters:

pMode

The back plane distance mode flag.

ECameraFrontBackPlaneDistanceMode GetBackPlaneDistanceMode ( ) const

Get the back plane distance mode.

Returns:: Return the back plane distance mode identifier.

void SetFrontPlaneDistance ( double pDistance )

Set the front plane distance from the camera.

The the absolute position of the plane must be calculated by taking into consideration the FrontPlaneDistanceMode.

Parameters:

pDistance

The front plane distance value.

Remarks:: It it the responsability of the client application to ensure that this plane position is within the frustum boundaries.

double GetFrontPlaneDistance ( ) const

Get the front plane distance value.

Returns:: double The front plane distance value.

void SetFrontPlaneDistanceMode ( ECameraFrontBackPlaneDistanceMode pMode )

Set the front plane distance mode flag.

Parameters:

pMode

The front plane distance mode flag.

ECameraFrontBackPlaneDistanceMode GetFrontPlaneDistanceMode ( ) const

Get the front plane distance mode flag.

Returns:: ECameraFrontBackPlaneDistanceMode The front plane distance mode value.

void SetViewFrustumFrontPlaneMode ( ECameraFrontBackPlaneDisplayMode pMode )

Set the front plane display mode.

This mode can be used by the client application to decide under which circumstance the front plane should be drawn in the viewport.

Parameters:

pMode

The view frustum front plane display mode.

ECameraFrontBackPlaneDisplayMode GetViewFrustumFrontPlaneMode ( ) const

Get the front plane display mode.

Returns:: ECameraFrontBackPlaneDisplayMode The view frustum front plane display mode value.

void SetViewFrustumBackPlaneMode ( ECameraFrontBackPlaneDisplayMode pMode )

Set the back plane display mode.

This mode can be used by the client application to decide under which circumstance the back plane should be drawn in the viewport.

Parameters:

pMode

The view frustum back plane display mode.

ECameraFrontBackPlaneDisplayMode GetViewFrustumBackPlaneMode ( ) const

Get the back plane display mode.

Returns:: ECameraFrontBackPlaneDisplayMode The view frustum back plane display mode value.

void SetViewCameraInterest ( bool pEnable )

Change the camera interest visibility flag.

Parameters:

pEnable Set to true if the camera interest is shown.

bool GetViewCameraInterest ( ) const

Get current visibility state of the camera interest.

Returns:: true if the camera interest is shown, or false if hidden.

void SetViewNearFarPlanes ( bool pEnable )

Change the camera near and far planes visibility flag.

Parameters:

pEnable Set to true if the near and far planes are shown.

bool GetViewNearFarPlanes ( ) const

Get current visibility state of the camera near and far planes.

Returns:: true if the near and far planes are shown.

bool IsBoundingBoxInView	(	const KFbxMatrix &	pWorldToScreen,
		const KFbxMatrix &	pWorldToCamera,
		const KFbxVector4	pPoints[8]
	)			const

Determine if the given bounding box is in the camera's view.

The input points do not need to be ordered in any particular way.

Parameters:

	pWorldToScreen	The world to screen transformation. See ComputeWorldToScreen.
	pWorldToCamera	The world to camera transformation. Inverse matrix returned from KFbxNode::GetGlobalFromCurrentTake is suitable. See KFbxNodeAttribute::GetNode() and KFbxNode::GetGlobalFromCurrentTake().
	pPoints	8 corners of the bounding box.

Returns:: true if any of the given points are in the camera's view, false otherwise.

bool IsPointInView	(	const KFbxMatrix &	pWorldToScreen,
		const KFbxMatrix &	pWorldToCamera,
		const KFbxVector4 &	pPoint
	)			const

Determine if the given 3d point is in the camera's view.

Parameters:

	pWorldToScreen	The world to screen transformation. See ComputeWorldToScreen.
	pWorldToCamera	The world to camera transformation. Inverse matrix returned from KFbxNode::GetGlobalFromCurrentTake is suitable. See KFbxNodeAttribute::GetNode() and KFbxNode::GetGlobalFromCurrentTake().
	pPoint	World-space point to test.

Returns:: true if the given point is in the camera's view, false otherwise.

KFbxMatrix ComputeWorldToScreen	(	int	pPixelWidth,
		int	pPixelHeight,
		const KFbxXMatrix &	pWorldToCamera
	)			const

Compute world space to screen space transformation matrix.

Parameters:

	pPixelHeight	The pixel height of the output image.
	pPixelWidth	The pixel height of the output image.
	pWorldToCamera	The world to camera affine transformation matrix.

Returns:: The world to screen space matrix, or the identity matrix on error.

KFbxMatrix ComputePerspective	(	int	pPixelWidth,
		int	pPixelHeight,
		bool	pIncludePostPerspective
	)			const

Compute the perspective matrix for this camera.

Suitable for transforming camera space to normalized device coordinate space. Also suitable for use as an OpenGL projection matrix. Note this fails if the ProjectionType is not ePERSPECTIVE.

Parameters:

	pPixelHeight	The pixel height of the output image.
	pPixelWidth	The pixel width of the output image.
	pIncludePostPerspective	Indicate that post-projection transformations (offset, roll) be included in the output matrix.

Returns:: A perspective matrix, or the identity matrix on error.

Member Data Documentation

KFbxTypedProperty<fbxDouble3> Position

This property handles the camera position (XYZ coordinates).

To access this property do: Position.Get(). To set this property do: Position.Set(fbxDouble3).

Remarks:: Default Value is (0.0, 0.0, 0.0)

Definition at line 848 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble3> UpVector

This property handles the camera Up Vector (XYZ coordinates).

To access this property do: UpVector.Get(). To set this property do: UpVector.Set(fbxDouble3).

Remarks:: Default Value is (0.0, 1.0, 0.0)

Definition at line 857 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble3> InterestPosition

This property handles the default point (XYZ coordinates) the camera is looking at.

To access this property do: InterestPosition.Get(). To set this property do: InterestPosition.Set(fbxDouble3).

Remarks:: During the computations of the camera position and orientation, this property is overridden by the position of a valid target in the parent node.
Default Value is (0.0, 0.0, 0.0)

Definition at line 870 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> Roll

This property handles the camera roll angle in degree(s).

To access this property do: Roll.Get(). To set this property do: Roll.Set(fbxDouble1).

Default value is 0.

Definition at line 879 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> OpticalCenterX

This property handles the camera optical center X, in pixels.

It parameter sets the optical center horizontal offset when the camera aperture mode is set to eHORIZONTAL_AND_VERTICAL. It has no effect otherwise.

To access this property do: OpticalCenterX.Get(). To set this property do: OpticalCenterX.Set(fbxDouble1).

Default value is 0.

Definition at line 891 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> OpticalCenterY

This property handles the camera optical center Y, in pixels.

It sets the optical center horizontal offset when the camera aperture mode is set to eHORIZONTAL_AND_VERTICAL. This parameter has no effect otherwise.

To access this property do: OpticalCenterY.Get(). To set this property do: OpticalCenterY.Set(fbxDouble1).

Default value is 0.

Definition at line 903 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble3> BackgroundColor

This property handles the camera RGB values of the background color.

To access this property do: BackgroundColor.Get(). To set this property do: BackgroundColor.Set(fbxDouble3).

Default value is black (0, 0, 0)

Definition at line 912 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> TurnTable

This property handles the camera turn table angle in degree(s).

To access this property do: TurnTable.Get(). To set this property do: TurnTable.Set(fbxDouble1).

Default value is 0.

Definition at line 921 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> DisplayTurnTableIcon

This property handles a flags that indicates if the camera displays the Turn Table icon or not.

To access this property do: DisplayTurnTableIcon.Get(). To set this property do: DisplayTurnTableIcon.Set(fbxBool1).

Default value is false (no display).

Definition at line 931 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> UseMotionBlur

This property handles a flags that indicates if the camera uses motion blur or not.

To access this property do: UseMotionBlur.Get(). To set this property do: UseMotionBlur.Set(fbxBool1).

Default value is false (do not use motion blur).

Definition at line 945 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> UseRealTimeMotionBlur

This property handles a flags that indicates if the camera uses real time motion blur or not.

To access this property do: UseRealTimeMotionBlur.Get(). To set this property do: UseRealTimeMotionBlur.Set(fbxBool1).

Default value is false (use real time motion blur).

Definition at line 955 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> MotionBlurIntensity

This property handles the camera motion blur intensity (in pixels).

To access this property do: MotionBlurIntensity.Get(). To set this property do: MotionBlurIntensity.Set(fbxDouble1).

Default value is 1.

Definition at line 964 of file kfbxcamera.h.

KFbxTypedProperty<ECameraAspectRatioMode> AspectRatioMode

This property handles the camera aspect ratio mode.

Remarks:: This Property is in a Read Only mode.
Please use function SetAspect() if you want to change its value.

Default value is eWINDOW_SIZE.

Definition at line 978 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> AspectWidth

This property handles the camera aspect width.

Remarks:: This Property is in a Read Only mode.
Please use function SetAspect() if you want to change its value.

Default value is 320.

Definition at line 987 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> AspectHeight

This property handles the camera aspect height.

Remarks:: This Property is in a Read Only mode.
Please use function SetAspect() if you want to change its value.

Default value is 200.

Definition at line 996 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> PixelAspectRatio

This property handles the pixel aspect ratio.

Remarks:

This Property is in a Read Only mode.

Please use function SetPixelRatio() if you want to change its value. Default value is 1.

Value range is [0.050, 20.0].

Definition at line 1005 of file kfbxcamera.h.

KFbxTypedProperty<ECameraApertureMode> ApertureMode

This property handles the aperture mode.

Default value is eVERTICAL.

Definition at line 1011 of file kfbxcamera.h.

KFbxTypedProperty<ECameraGateFit> GateFit

This property handles the gate fit mode.

To access this property do: GateFit.Get(). To set this property do: GateFit.Set(ECameraGateFit).

Default value is eNO_FIT.

Definition at line 1020 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FieldOfView

This property handles the field of view in degrees.

To access this property do: FieldOfView.Get(). To set this property do: FieldOfView.Set(fbxDouble1).

Remarks:

This property has meaning only when property ApertureMode equals eHORIZONTAL or eVERTICAL.

Default value is 40.

Value range is [1.0, 179.0].

Definition at line 1033 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FieldOfViewX

This property handles the X (horizontal) field of view in degrees.

To access this property do: FieldOfViewX.Get(). To set this property do: FieldOfViewX.Set(fbxDouble1).

Remarks:: This property has meaning only when property ApertureMode equals eHORIZONTAL or eVERTICAL.

Default value is 1.

Remarks:: Value range is [1.0, 179.0].

Definition at line 1047 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FieldOfViewY

This property handles the Y (vertical) field of view in degrees.

To access this property do: FieldOfViewY.Get(). To set this property do: FieldOfViewY.Set(fbxDouble1).

Remarks:

This property has meaning only when property ApertureMode equals eHORIZONTAL or eVERTICAL.

Default value is 1.

Value range is [1.0, 179.0].

Definition at line 1060 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FocalLength

This property handles the focal length (in millimeters).

To access this property do: FocalLength.Get(). To set this property do: FocalLength.Set(fbxDouble1).

Default value is the result of ComputeFocalLength(40.0).

Definition at line 1069 of file kfbxcamera.h.

KFbxTypedProperty<ECameraFormat> CameraFormat

This property handles the camera format.

To access this property do: CameraFormat.Get(). To set this property do: CameraFormat.Set(ECameraFormat).

Remarks:: This Property is in a Read Only mode.
Please use function SetFormat() if you want to change its value. Default value is eCUSTOM_FORMAT.

Definition at line 1080 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> UseFrameColor

This property stores a flag that indicates to use or not a color for the frame.

To access this property do: UseFrameColor.Get(). To set this property do: UseFrameColor.Set(fbxBool1).

Default value is false.

Definition at line 1094 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble3> FrameColor

This property handles the frame color.

To access this property do: FrameColor.Get(). To set this property do: FrameColor.Set(fbxDouble3).

Default value is (0.3, 0.3, 0.3).

Definition at line 1103 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowName

This property handles the show name flag.

To access this property do: ShowName.Get(). To set this property do: ShowName.Set(fbxBool1).

Default value is true.

Definition at line 1116 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowInfoOnMoving

This property handles the show info on moving flag.

To access this property do: ShowInfoOnMoving.Get(). To set this property do: ShowInfoOnMoving.Set(fbxBool1).

Default value is true.

Definition at line 1125 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowGrid

This property handles the draw floor grid flag.

To access this property do: ShowGrid.Get(). To set this property do: ShowGrid.Set(fbxBool1).

Default value is true.

Definition at line 1134 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowOpticalCenter

This property handles the show optical center flag.

To access this property do: ShowOpticalCenter.Get(). To set this property do: ShowOpticalCenter.Set(fbxBool1).

Default value is false.

Definition at line 1143 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowAzimut

This property handles the show axis flag.

To access this property do: ShowAzimut.Get(). To set this property do: ShowAzimut.Set(fbxBool1).

Default value is true.

Definition at line 1152 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowTimeCode

This property handles the show time code flag.

To access this property do: ShowTimeCode.Get(). To set this property do: ShowTimeCode.Set(fbxBool1).

Default value is true.

Definition at line 1161 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowAudio

This property handles the show audio flag.

To access this property do: ShowAudio.Get(). To set this property do: ShowAudio.Set(fbxBool1).

Default value is false.

Definition at line 1170 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble3> AudioColor

This property handles the show audio flag.

To access this property do: AudioColor.Get(). To set this property do: AudioColor.Set(fbxDouble3).

Default value is (0.0, 1.0, 0.0)

Definition at line 1179 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> NearPlane

This property handles the near plane distance.

Remarks:

This Property is in a Read Only mode.

Please use function SetNearPlane() if you want to change its value. Default value is 10.

Value range is [0.001, 600000.0].

Definition at line 1192 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FarPlane

This property handles the far plane distance.

Remarks:

This Property is in a Read Only mode

Please use function SetFarPlane() if you want to change its value Default value is 4000

Value range is [0.001, 600000.0]

Definition at line 1201 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> AutoComputeClipPlanes

This property indicates that the clip planes should be automatically computed.

To access this property do: AutoComputeClipPlanes.Get(). To set this property do: AutoComputeClipPlanes.Set(fbxBool1).

When this property is set to true, the NearPlane and FarPlane values are ignored. Note that not all applications support this flag.

Definition at line 1212 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmWidth

This property handles the film aperture width (in inches).

Remarks:

This Property is in a Read Only mode

Please use function SetApertureWidth() or SetApertureFormat() if you want to change its value Default value is 0.8160

Value range is [0.0001, +inf]

Definition at line 1227 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmHeight

This property handles the film aperture height (in inches).

Remarks:

This Property is in a Read Only mode

Please use function SetApertureHeight() or SetApertureFormat() if you want to change its value Default value is 0.6120

Value range is [0.0001, +inf]

Definition at line 1237 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmAspectRatio

This property handles the film aperture aspect ratio.

Remarks:

This Property is in a Read Only mode

Please use function SetApertureFormat() if you want to change its value Default value is (FilmWidth / FilmHeight)

Value range is [0.0001, +inf]

Definition at line 1246 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmSqueezeRatio

This property handles the film aperture squeeze ratio.

Remarks:

This Property is in a Read Only mode

Please use function SetSqueezeRatio() or SetApertureFormat() if you want to change its value Default value is 1.0

Value range is [0.0001, +inf]

Definition at line 1256 of file kfbxcamera.h.

KFbxTypedProperty<ECameraApertureFormat> FilmFormat

This property handles the film aperture format.

Remarks:: This Property is in a Read Only mode
Please use function SetApertureFormat() if you want to change its value Default value is eCUSTOM_APERTURE_FORMAT

Definition at line 1265 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmOffsetX

This property handles the offset from the center of the film aperture, defined by the film height and film width.

The offset is measured in inches.

To access this property do: FilmOffset.Get(). To set this property do: FilmOffset.Set(fbxDouble2). This property handles the horizontal offset from the center of the film aperture, defined by the film height and film width. The offset is measured in inches.

To access this property do: FilmOffsetX.Get(). To set this property do: FilmOffsetX.Set(fbxDouble1).

Definition at line 1285 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmOffsetY

This property handles the vertical offset from the center of the film aperture, defined by the film height and film width.

The offset is measured in inches.

To access this property do: FilmOffsetY.Get(). To set this property do: FilmOffsetY.Set(fbxDouble1).

Definition at line 1295 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> PreScale

This property handles the pre-scale value.

The value is multiplied against the computed projection matrix. It is applied before the film roll. To access this property do: PreScale.Get(). To set this property do: PreScale.Set(fbxDouble1). Default value is 1.0

Definition at line 1304 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmTranslateX

This property handles the horizontal film horizontal translation.

To access this property do: FilmTranslateX.Get(). To set this property do: FilmTranslateX.Set(fbxDouble1). Default value is 0.0

Definition at line 1311 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmTranslateY

This property handles the vertical film translation.

To access this property do: FilmTranslateY.Get(). To set this property do: FilmTranslateY.Set(fbxDouble1). Default value is 0.0

Definition at line 1318 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmRollPivotX

This property handles the horizontal pivot point used for rotating the film back.

To access this property do: FilmRollPivotX.Get(). To set this property do: FilmRollPivotX.Set(fbxDouble1). Default value is 0.0

Remarks:: FilmRollPivot value is used to compute the film roll matrix, which is a component of the post projection matrix.

Definition at line 1326 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmRollPivotY

This property handles the vertical pivot point used for rotating the film back.

To access this property do: FilmRollPivotY.Get(). To set this property do: FilmRollPivotY.Set(fbxDouble1). Default value is 0.0

Remarks:: FilmRollPivot value is used to compute the film roll matrix, which is a component of the post projection matrix.

Definition at line 1334 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FilmRollValue

This property handles the amount of rotation around the film back The roll value is specified in degrees.

To access this property do: FilmRollValue.Get(). To set this property do: FilmRollValue.Set(fbxDouble1). Default value is 0.0

Remarks:: The rotation occurs around the specified pivot point, this value is used to compute a film roll matrix, which is a component of the post-projection matrix.

Definition at line 1344 of file kfbxcamera.h.

KFbxTypedProperty<ECameraFilmRollOrder> FilmRollOrder

This property handles how the roll is applied with respect to the pivot value.

eROTATE_TRANSLATE The film back is first rotated then translated by the pivot point value. eTRANSLATE_ROTATE The film back is first translated then rotated by the film roll value. To access this property do: FilmRollOrder.Get(). To set this property do: FilmRollOrder.Set(ECameraFilmRollOrder). Default value is eROTATE_TRANSLATE

Definition at line 1353 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ViewCameraToLookAt

This property handles the view camera to look at flag.

To access this property do: ViewCameraToLookAt.Get(). To set this property do: ViewCameraToLookAt.Set(fbxBool1).

Default value is true

Definition at line 1366 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ViewFrustumNearFarPlane

This property handles the view frustrum near and far plane display state.

To access this property do: ViewFrustumNearFarPlane.Get(). To set this property do: ViewFrustumNearFarPlane.Set(fbxBool1).

Default value is false

Definition at line 1375 of file kfbxcamera.h.

KFbxTypedProperty<ECameraFrontBackPlaneDisplayMode> ViewFrustumBackPlaneMode

This property handles the view frustrum back plane mode.

To access this property do: ViewFrustumBackPlaneMode.Get(). To set this property do: ViewFrustumBackPlaneMode.Set(ECameraFrontBackPlaneDisplayMode).

Default value is eWHEN_MEDIA

Definition at line 1384 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> BackPlaneDistance

This property handles the view frustrum back plane distance.

To access this property do: BackPlaneDistance.Get(). To set this property do: BackPlaneDistance.Set(fbxDouble1).

Default value is 100.0

Definition at line 1393 of file kfbxcamera.h.

KFbxTypedProperty<ECameraFrontBackPlaneDistanceMode> BackPlaneDistanceMode

This property handles the view frustrum back plane distance mode.

To access this property do: BackPlaneDistanceMode.Get(). To set this property do: BackPlaneDistanceMode.Set(ECameraFrontBackPlaneDistanceMode).

Default value is eRELATIVE_TO_INTEREST

Definition at line 1402 of file kfbxcamera.h.

KFbxTypedProperty<ECameraFrontBackPlaneDisplayMode> ViewFrustumFrontPlaneMode

This property handles the view frustrum front plane mode.

To access this property do: ViewFrustumFrontPlaneMode.Get(). To set this property do: ViewFrustumFrontPlaneMode.Set(ECameraFrontBackPlaneDisplayMode).

Default value is eWHEN_MEDIA

Definition at line 1411 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FrontPlaneDistance

This property handles the view frustrum front plane distance.

To access this property do: FrontPlaneDistance.Get(). To set this property do: FrontPlaneDistance.Set(fbxDouble1).

Default value is 100.0

Definition at line 1420 of file kfbxcamera.h.

KFbxTypedProperty<ECameraFrontBackPlaneDistanceMode> FrontPlaneDistanceMode

This property handles the view frustrum front plane distance mode.

To access this property do: FrontPlaneDistanceMode.Get(). To set this property do: FrontPlaneDistanceMode.Set(ECameraFrontBackPlaneDistanceMode).

Default value is eRELATIVE_TO_INTEREST

Definition at line 1429 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> LockMode

This property handles the lock mode.

To access this property do: LockMode.Get(). To set this property do: LockMode.Set(fbxBool1).

Default value is false

Definition at line 1442 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> LockInterestNavigation

This property handles the lock interest navigation flag.

To access this property do: LockInterestNavigation.Get(). To set this property do: LockInterestNavigation.Set(fbxBool1).

Default value is false

Definition at line 1451 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> FitImage

This property handles the fit image flag.

To access this property do: FitImage.Get(). To set this property do: FitImage.Set(fbxBool1).

Default value is false.

Definition at line 1464 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> Crop

This property handles the crop flag.

To access this property do: Crop.Get(). To set this property do: Crop.Set(fbxBool1).

Default value is false.

Definition at line 1473 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> Center

This property handles the center flag.

To access this property do: Center.Get(). To set this property do: Center.Set(fbxBool1).

Default value is true.

Definition at line 1482 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> KeepRatio

This property handles the keep ratio flag.

To access this property do: KeepRatio.Get(). To set this property do: KeepRatio.Set(fbxBool1).

Default value is true.

Definition at line 1491 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> BackgroundAlphaTreshold

This property handles the background alpha threshold value.

To access this property do: BackgroundAlphaTreshold.Get(). To set this property do: BackgroundAlphaTreshold.Set(fbxDouble1).

Default value is 0.5.

Definition at line 1500 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble2> BackPlaneOffset

This property handles the back plane offset.

To access this property do: BackPlaneOffset.Get() To set this property do: BackPlaneOffset.Set(fbxDouble2).

Default value is (0., 0.).

Definition at line 1509 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> BackPlaneRotation

This property handles the back plane rotation.

To access this property do: BackPlaneRotation.Get() To set this property do: BackPlaneRotation.Set(fbxDouble1).

Default value is 0.

Definition at line 1518 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble2> BackPlaneScale

This property handles the back plane scaling.

To access this property do: BackPlaneOffset.Get() To set this property do: BackPlaneScale.Set(fbxDouble2).

Default value is (1., 1.).

Remarks:: The application manipulating the camera has to take into consideration the KeepRatio value too.

Definition at line 1529 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowBackplate

This property handles the back plane show flag.

To access this property do: ShowBackPlate.Get(). To set this property do: ShowBackPlate.Set(fbxBool1).

Default value is false.

Remarks:: this replaces ForegroundTransparent

Definition at line 1539 of file kfbxcamera.h.

KFbxTypedProperty<fbxReference> BackgroundTexture

This property has the background textures connected to it.

To access this property do: BackgroundTexture.GetSrcObject(). To set this property do: BackgroundTexture.ConnectSrcObject(KFbxObject*).

Remarks:: they are connected as source objects

Definition at line 1548 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> FrontPlateFitImage

This property handles the fit image for front plate flag.

To access this property do: FrontPlateFitImage.Get(). To set this property do: FrontPlateFitImage.Set(fbxBool1).

Default value is false.

Definition at line 1562 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> FrontPlateCrop

This property handles the front plane crop flag.

To access this property do: FrontPlateCrop.Get(). To set this property do: FrontPlateCrop.Set(fbxBool1).

Default value is false.

Definition at line 1571 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> FrontPlateCenter

This property handles the front plane center flag.

To access this property do: FrontPlateCenter.Get(). To set this property do: FrontPlateCenter.Set(fbxBool1).

Default value is true.

Definition at line 1580 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> FrontPlateKeepRatio

This property handles the front plane keep ratio flag.

To access this property do: FrontPlateKeepRatio.Get(). To set this property do: FrontPlateKeepRatio.Set(fbxBool1).

Default value is true.

Definition at line 1589 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> ShowFrontplate

This property handles the front plane show flag.

To access this property do: ShowFrontplate.Get(). To set this property do: ShowFrontplate.Set(fbxBool1).

Default value is false.

Remarks:: this replaces ForegroundTransparent

Definition at line 1600 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble2> FrontPlaneOffset

This property handles the front plane offset.

To access this property do: FrontPlaneOffset.Get() To set this property do: FrontPlaneOffset.Set(fbxDouble2).

Default value is (0., 0.).

Definition at line 1610 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FrontPlaneRotation

This property handles the front plane rotation.

To access this property do: FrontPlaneRotation.Get() To set this property do: FrontPlaneRotation.Set(fbxDouble1).

Default value is 0.

Definition at line 1619 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble2> FrontPlaneScale

This property handles the front plane scaling.

To access this property do: FrontPlaneOffset.Get() To set this property do: FrontPlaneScale.Set(fbxDouble3).

Default value is (1., 1.).

Definition at line 1628 of file kfbxcamera.h.

KFbxTypedProperty<fbxReference> ForegroundTexture

This property has the foreground textures connected to it.

To access this property do: ForegroundTexture.GetSrcObject(). To set this property do: ForegroundTexture.ConnectSrcObject(KFbxObject*).

Remarks:: they are connected as source objects

Definition at line 1637 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> ForegroundOpacity

This property handles the foreground image opacity value.

To access this property do: ForegroundOpacity.Get(). To set this property do: ForegroundOpacity.Set(fbxDouble1).

Default value is 1.0.

Definition at line 1646 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> DisplaySafeArea

This property handles the display safe area flag.

To access this property do: DisplaySafeArea.Get(). To set this property do: DisplaySafeArea.Set(fbxBool1).

Default value is false

Definition at line 1659 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> DisplaySafeAreaOnRender

This property handles the display safe area on render flag.

To access this property do: DisplaySafeAreaOnRender.Get(). To set this property do: DisplaySafeAreaOnRender.Set(fbxBool1).

Default value is false

Definition at line 1668 of file kfbxcamera.h.

KFbxTypedProperty<ECameraSafeAreaStyle> SafeAreaDisplayStyle

This property handles the display safe area display style.

To access this property do: SafeAreaDisplayStyle.Get(). To set this property do: SafeAreaDisplayStyle.Set(ECameraSafeAreaStyle).

Default value is eSQUARE

Definition at line 1677 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> SafeAreaAspectRatio

This property handles the display safe area aspect ratio.

To access this property do: SafeAreaDisplayStyle.Get(). To set this property do: SafeAreaAspectRatio.Set(fbxDouble1).

Default value is 1.33333333333333

Definition at line 1686 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> Use2DMagnifierZoom

This property handles the use 2d magnifier zoom flag.

To access this property do: Use2DMagnifierZoom.Get(). To set this property do: Use2DMagnifierZoom.Set(fbxBool1).

Default value is false

Definition at line 1699 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> _2DMagnifierZoom

This property handles the 2d magnifier zoom value.

To access this property do: _2DMagnifierZoom.Get(). To set this property do: _2DMagnifierZoom.Set(fbxDouble1).

Default value is 100.0

Definition at line 1708 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> _2DMagnifierX

This property handles the 2d magnifier X value.

To access this property do: _2DMagnifierX.Get(). To set this property do: _2DMagnifierX.Set(fbxDouble1).

Default value is 50.0

Definition at line 1717 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> _2DMagnifierY

This property handles the 2d magnifier Y value.

To access this property do: _2DMagnifierY.Get(). To set this property do: _2DMagnifierY.Set(fbxDouble1).

Default value is 50.0

Definition at line 1726 of file kfbxcamera.h.

KFbxTypedProperty<ECameraProjectionType> ProjectionType

This property handles the projection type.

To access this property do: ProjectionType.Get(). To set this property do: ProjectionType.Set(ECameraProjectionType).

Default value is ePERSPECTIVE.

Definition at line 1739 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> OrthoZoom

This property handles the orthographic zoom.

To access this property do: OrthoZoom.Get(). To set this property do: OrthoZoom.Set(fbxDouble1).

Default value is 1.0.

Definition at line 1748 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> UseRealTimeDOFAndAA

This property handles the use real time DOF and AA flag.

To access this property do: UseRealTimeDOFAndAA.Get(). To set this property do: UseRealTimeDOFAndAA.Set(fbxBool1).

Default value is false.

Definition at line 1761 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> UseDepthOfField

This property handles the use depth of field flag.

To access this property do: UseDepthOfField.Get(). To set this property do: UseDepthOfField.Set(fbxBool1).

Default value is false

Definition at line 1770 of file kfbxcamera.h.

KFbxTypedProperty<ECameraFocusDistanceSource> FocusSource

This property handles the focus source.

To access this property do: FocusSource.Get(). To set this property do: FocusSource.Set(ECameraFocusDistanceSource).

Default value is eCAMERA_INTEREST

Definition at line 1779 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FocusAngle

This property handles the focus angle (in degrees).

To access this property do: FocusAngle.Get(). To set this property do: FocusAngle.Set(fbxDouble1).

Default value is 3.5

Definition at line 1788 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> FocusDistance

This property handles the focus distance.

To access this property do: FocusDistance.Get(). To set this property do: FocusDistance.Set(fbxDouble1).

Default value is 200.0

Definition at line 1797 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> UseAntialiasing

This property handles the use anti aliasing flag.

To access this property do: UseAntialiasing.Get(). To set this property do: UseAntialiasing.Set(fbxBool1).

Default value is false

Definition at line 1806 of file kfbxcamera.h.

KFbxTypedProperty<fbxDouble1> AntialiasingIntensity

This property handles the anti aliasing intensity.

To access this property do: AntialiasingIntensity.Get(). To set this property do: AntialiasingIntensity.Set(fbxDouble1).

Default value is 0.77777

Definition at line 1815 of file kfbxcamera.h.

KFbxTypedProperty<ECameraAntialiasingMethod> AntialiasingMethod

This property handles the anti aliasing method.

To access this property do: AntialiasingMethod.Get(). To set this property do: AntialiasingMethod.Set(ECameraAntialiasingMethod).

Default value is eOVERSAMPLING_ANTIALIASING

Definition at line 1824 of file kfbxcamera.h.

KFbxTypedProperty<fbxBool1> UseAccumulationBuffer

This property handles the use accumulation buffer flag.

To access this property do: UseAccumulationBuffer.Get(). To set this property do: UseAccumulationBuffer.Set(fbxBool1).

Default value is false

Definition at line 1837 of file kfbxcamera.h.

KFbxTypedProperty<fbxInteger1> FrameSamplingCount

This property handles the frame sampling count.

To access this property do: FrameSamplingCount.Get(). To set this property do: FrameSamplingCount.Set(fbxInteger1).

Default value is 7

Definition at line 1846 of file kfbxcamera.h.

KFbxTypedProperty<ECameraSamplingType> FrameSamplingType

This property handles the frame sampling type.

To access this property do: FrameSamplingType.Get(). To set this property do: FrameSamplingType.Set(ECameraSamplingType).

Default value is eSTOCHASTIC

Definition at line 1855 of file kfbxcamera.h.

KFbxCamera Class Reference

Detailed Description

Viewing Area Functions

Aperture and Film Functions

BackPlane/FrontPlane and Plate Functions

Camera View Functions

Render Functions

Utility Functions.

Public Types

Public Member Functions

Public Attributes

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation
