KFbxNurbsSurface Class Reference

#include <kfbxnurbssurface.h>

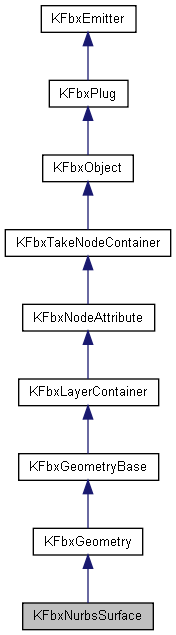

Inheritance diagram for KFbxNurbsSurface:

[legend]

List of all members.

---

Detailed Description

A Nurbs surface is a type of parametric geometry.

A Nurbs surface is defined by the degree, form, knot vector and control points in the U and V directions.

For more information on the meaning of the form, knot vector and control points, see the documentation for the KFbxNurbsCurve. The same concepts for Nurbs curves apply to Nurbs surfaces. Nurbs surfaces simply have two dimensions (U and V).

Definition at line 62 of file kfbxnurbssurface.h.

Nurb Properties
enum	ENurbType
	Nurb types. More...
void	SetSurfaceMode (KFbxGeometry::ESurfaceMode pMode)
	Set surface mode.
ESurfaceMode	GetSurfaceMode () const
	Get surface mode.
void	InitControlPoints (int pUCount, ENurbType pUType, int pVCount, ENurbType pVType)
	Allocate memory space for the array of control points as well as the knot and multiplicity vectors.
int	GetUCount () const
	Get number of control points in U direction.
int	GetVCount () const
	Get number of control points in V direction.
ENurbType	GetNurbUType () const
	Get nurb type in U direction.
ENurbType	GetNurbVType () const
	Get nurb type in V direction.
int	GetUKnotCount () const
	Get the number of elements in the knot vector in U direction.
double *	GetUKnotVector () const
	Get knot vector in U direction.
int	GetVKnotCount () const
	Get the number of elements in the knot vector in V direction.
double *	GetVKnotVector () const
	Get knot vector in V direction.
void	SetOrder (kUInt pUOrder, kUInt pVOrder)
	Get multiplicity control points in U direction.
int	GetUOrder () const
	Get nurb order in U direction.
int	GetVOrder () const
	Get nurb order in V direction.
void	SetStep (int pUStep, int pVStep)
	Set step.
int	GetUStep () const
	Get the number of divisions between adjacent control points in U direction.
int	GetVStep () const
	Get the number of divisions between adjacent control points in V direction.
int	GetUSpanCount () const
	Nurb types.
int	GetVSpanCount () const
	Nurb types.
Nurb Export Flags
void	SetApplyFlipUV (bool pFlag)
	Set the flag inducing UV flipping at export time.
bool	GetApplyFlipUV () const
	Get the flag inducing UV flipping at export time.
void	SetApplyFlipLinks (bool pFlag)
	Set the flag inducing link flipping at export time.
bool	GetApplyFlipLinks () const
	Get the flag inducing link flipping at export time.
bool	GetApplyFlip () const
	Get flip flags state.
void	AddCurveOnSurface (KFbxNode *pCurve)
	Add curve on surface Adds a 2d, parameter space curve to this surface.
KFbxNode *	GetCurveOnSurface (int pIndex)
	Retrieves a curve on this surface.
KFbxNode const *	GetCurveOnSurface (int pIndex) const
	Retrieves a curve on this surface.
int	GetCurveOnSurfaceCount () const
bool	RemoveCurveOnSurface (KFbxNode *pCurve)
	Removes a curve from this surface.
Public Member Functions
virtual EAttributeType	GetAttributeType () const
	Return the type of node attribute which is EAttributeType::eNURBS_SURFACE.
void	Reset ()
	Reset the nurb to default values.
bool	IsRational ()
	Check if the surface has all rational control points.

---

Member Enumeration Documentation

enum ENurbType

Nurb types.

• ePERIODIC
• eCLOSED
• eOPEN

Definition at line 92 of file kfbxnurbssurface.h.

---

Member Function Documentation

virtual EAttributeType GetAttributeType

(

)

const [inline, virtual]

Return the type of node attribute which is EAttributeType::eNURBS_SURFACE.

Reimplemented from KFbxGeometry.

Definition at line 67 of file kfbxnurbssurface.h.

void Reset

(

)

Reset the nurb to default values.

void SetSurfaceMode

(

KFbxGeometry::ESurfaceMode

pMode

)

Set surface mode.

Parameters:

pMode

Surface mode identifier (see class KfbxGeometry)

ESurfaceMode GetSurfaceMode

(

)

const [inline]

Get surface mode.

Returns:

Currently set surface mode identifier.

Definition at line 85 of file kfbxnurbssurface.h.

void InitControlPoints	(	int	pUCount,
		ENurbType	pUType,
		int	pVCount,
		ENurbType	pVType
	)

Allocate memory space for the array of control points as well as the knot and multiplicity vectors.

Parameters:

	pUCount	Number of control points in U direction.
	pUType	Nurb type in U direction.
	pVCount	Number of control points in V direction.
	pVType	Nurb type in V direction.

Remarks:

This function should always be called after KFbxNurb::SetOrder().

int GetUCount

(

)

const [inline]

Get number of control points in U direction.

Returns:

Number of control points in U.

Definition at line 112 of file kfbxnurbssurface.h.

int GetVCount

(

)

const [inline]

Get number of control points in V direction.

Returns:

Number of control points in V.

Definition at line 117 of file kfbxnurbssurface.h.

ENurbType GetNurbUType

(

)

const [inline]

Get nurb type in U direction.

Returns:

Nurb type identifier.

Definition at line 122 of file kfbxnurbssurface.h.

ENurbType GetNurbVType

(

)

const [inline]

Get nurb type in V direction.

Returns:

Nurb type identifier.

Definition at line 127 of file kfbxnurbssurface.h.

int GetUKnotCount

(

)

const

Get the number of elements in the knot vector in U direction.

See KFbxNurbsCurve for more information.

Returns:

The number of control points in U direction.

double* GetUKnotVector

(

)

const

Get knot vector in U direction.

Returns:

Pointer to the array of knots.

int GetVKnotCount

(

)

const

Get the number of elements in the knot vector in V direction.

See KFbxNurbsCurve for more information.

Returns:

The number of control points in V direction. Nurb order in V

double* GetVKnotVector

(

)

const

Get knot vector in V direction.

Returns:

Pointer to the array of knots.

void SetOrder	(	kUInt	pUOrder,
		kUInt	pVOrder
	)

Get multiplicity control points in U direction.

Returns:

Pointer to the array of multiplicity values.

Remarks:

The length of this vector is equal to U count and its elements are set to 1 by default. Get multiplicity control points in V.

Returns:

Pointer to the array of multiplicity values.

Remarks:

The length of this vector is equal to V count and its elements are set to 1 by default. Set order.

Parameters:

	pUOrder	Nurb order in U direction.
	pVOrder	Nurb order in V direction.

int GetUOrder

(

)

const [inline]

Get nurb order in U direction.

Returns:

U order value.

Definition at line 172 of file kfbxnurbssurface.h.

int GetVOrder

(

)

const [inline]

Get nurb order in V direction.

Returns:

V order value.

Definition at line 177 of file kfbxnurbssurface.h.

void SetStep	(	int	pUStep,
		int	pVStep
	)

Set step.

The step is the number of divisions between adjacent control points.

Parameters:

	pUStep	Steps in U direction.
	pVStep	Steps in V direction.

int GetUStep

(

)

const [inline]

Get the number of divisions between adjacent control points in U direction.

Returns:

Step value in U direction.

Definition at line 189 of file kfbxnurbssurface.h.

int GetVStep

(

)

const [inline]

Get the number of divisions between adjacent control points in V direction.

Returns:

Step value in V direction.

Definition at line 194 of file kfbxnurbssurface.h.

int GetUSpanCount

(

)

const

Nurb types.

• ePERIODIC
• eCLOSED
• eOPEN

int GetVSpanCount

(

)

const

Nurb types.

• ePERIODIC
• eCLOSED
• eOPEN

void SetApplyFlipUV

(

bool

pFlag

)

Set the flag inducing UV flipping at export time.

Parameters:

pFlag

If true UV flipping will occur.

bool GetApplyFlipUV

(

)

const

Get the flag inducing UV flipping at export time.

Returns:

Current state of the UV flip flag.

void SetApplyFlipLinks

(

bool

pFlag

)

Set the flag inducing link flipping at export time.

Parameters:

pFlag

If true the links control points indices will be flipped.

bool GetApplyFlipLinks

(

)

const

Get the flag inducing link flipping at export time.

Returns:

Current state of the link flip flag.

bool GetApplyFlip

(

)

const [inline]

Get flip flags state.

Returns:

true if we need to flip either the UV or the links.

Definition at line 238 of file kfbxnurbssurface.h.

void AddCurveOnSurface

(

KFbxNode *

pCurve

)

Add curve on surface Adds a 2d, parameter space curve to this surface.

Parameters:

pCurve

The curve to add to the surface

KFbxNode* GetCurveOnSurface

(

int

pIndex

)

Retrieves a curve on this surface.

Parameters:

pIndex

Index of the curve to retrieve. Valid range is 0 to GetCurveOnSurfaceCount() - 1

Returns:

The curve at the specified index, or NULL if pIndex is out of range.

KFbxNode const* GetCurveOnSurface

(

int

pIndex

)

const

Retrieves a curve on this surface.

Parameters:

pIndex

Index of the curve to retrieve. Valid range is 0 to GetCurveOnSurfaceCount() - 1

Returns:

The curve at the specified index, or NULL if pIndex is out of range.

int GetCurveOnSurfaceCount

(

)

const

Returns:

The number of curves on this surface

bool RemoveCurveOnSurface

(

KFbxNode *

pCurve

)

Removes a curve from this surface.

Parameters:

pCurve

The curve to remove

Returns:

True if the curve was removed, false otherwise.

bool IsRational

(

)

Check if the surface has all rational control points.

Returns:

true if rational, false otherwise
