KFbxNodeAttribute Class Reference

#include <kfbxnodeattribute.h>

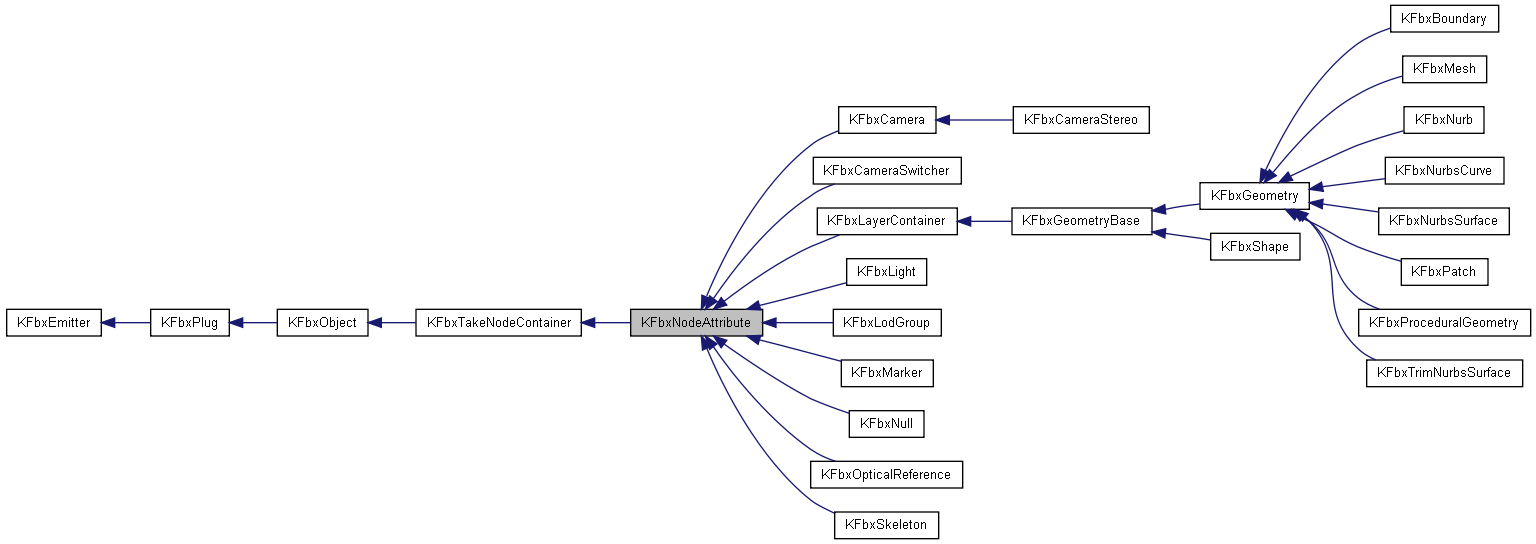

Inheritance diagram for KFbxNodeAttribute:

[legend]

List of all members.

---

Detailed Description

This class is the base class to all types of node attributes.

A node attribute is the content of a node. A NULL node attribute is set by calling function KFbxNode::SetNodeAttribute() with a NULL pointer.

Definition at line 59 of file kfbxnodeattribute.h.

Public Types
enum	EAttributeType
	Node attribute types. More...
Public Member Functions
virtual EAttributeType	GetAttributeType () const
	Return the type of node attribute.
KFbxNode *	GetNode () const
	Return the node this attribute is set to.
virtual KFbxObject *	Clone (KFbxObject *pContainer, KFbxObject::ECloneType pCloneType) const
	Creates a clone of this object.
Public Attributes
KFbxTypedProperty< fbxDouble3 >	Color
	This property handles the color.
Static Public Attributes
static const char *	sColor
	Property Names.
static const fbxDouble3	sDefaultColor
	Property Default Values.

---

Member Enumeration Documentation

enum EAttributeType

Node attribute types.

• eUNIDENTIFIED
• eNULL
• eMARKER
• eSKELETON
• eMESH
• eNURB
• ePATCH
• eCAMERA
• eCAMERA_STEREO,
• eCAMERA_SWITCHER
• eLIGHT
• eOPTICAL_REFERENCE
• eOPTICAL_MARKER
• eNURBS_CURVE
• eTRIM_NURBS_SURFACE
• eBOUNDARY
• eNURBS_SURFACE
• eSHAPE
• eLODGROUP
• eSUBDIV

Definition at line 104 of file kfbxnodeattribute.h.

---

Member Function Documentation

virtual EAttributeType GetAttributeType

(

)

const [inline, virtual]

Return the type of node attribute.

This class is pure virtual.

Reimplemented in KFbxCamera, KFbxCameraStereo, KFbxCameraSwitcher, KFbxGeometry, KFbxLayerContainer, KFbxLight, KFbxLodGroup, KFbxMarker, KFbxMesh, KFbxNull, KFbxNurb, KFbxNurbsCurve, KFbxNurbsSurface, KFbxOpticalReference, KFbxPatch, KFbxSkeleton, KFbxBoundary, and KFbxTrimNurbsSurface.

Definition at line 131 of file kfbxnodeattribute.h.

KFbxNode* GetNode

(

)

const

Return the node this attribute is set to.

Returns:

Pointer to the node, or NULL if the current attribute is not set to a node.

virtual KFbxObject* Clone	(	KFbxObject *	pContainer,
		KFbxObject::ECloneType	pCloneType
	)			const [virtual]

Creates a clone of this object.

Parameters:

	pContainer	The object, typically a document or a scene, that contains the new clone(can be NULL).
	pCloneType	The type of clone to be created.

Returns:

The new clone, or NULL (if the specified clone type is not supported).

Reimplemented from KFbxObject.

Reimplemented in KFbxGeometry, KFbxNurbsCurve, and KFbxProceduralGeometry.

---

Member Data Documentation

const char* sColor [static]

Property Names.

Reimplemented in KFbxLight.

Definition at line 65 of file kfbxnodeattribute.h.

const fbxDouble3 sDefaultColor [static]

Property Default Values.

Reimplemented in KFbxLight.

Definition at line 68 of file kfbxnodeattribute.h.

KFbxTypedProperty<fbxDouble3> Color

This property handles the color.

Default value is (0.8, 0.8, 0.8)

Reimplemented in KFbxLight.

Definition at line 80 of file kfbxnodeattribute.h.
