KFbxBoundary Class Reference
#include
<kfbxtrimnurbssurface.h>

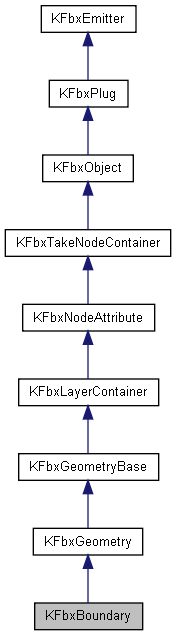

Inheritance diagram for KFbxBoundary:
Detailed Description
KFbxBoundary Describes a trimming boundary for a trimmed nurbs object.Note that outer boundaries run counter-clockwise in UV space and inner boundaries run clockwise. An outer boundary represents the outer edges of the trimmed surface whereas the inner boundaries define "holes" in the surface.
Definition at line 59 of file kfbxtrimnurbssurface.h.
Public Member Functions |
|
| void | AddCurve (KFbxNurbsCurve *pCurve) |
| Add an edge to this boundary. |
|
| int | GetCurveCount () const |
| KFbxNurbsCurve * | GetCurve (int pIndex) |
| Access the edge at index pIndex. |
|
| KFbxNurbsCurve const * | GetCurve (int pIndex) const |
| Access the edge at index pIndex. |
|
| virtual EAttributeType | GetAttributeType () const |
| Return the type of node attribute. |
|
| bool | IsPointInControlHull (KFbxVector4 &pPoint) |
| Detect if the point is in the boundary's
control hull. |
|
| KFbxVector4 | ComputePointInBoundary () |
| Compute point in boundary. |
|
Member Function Documentation
| void AddCurve | ( | KFbxNurbsCurve * | pCurve | ) |
Add an edge to this boundary.
- Parameters:
-
pCurve The curve to append to the end of this boundary
| int GetCurveCount | ( | ) | const |
- Returns:
- The number of edges in this boundary
| KFbxNurbsCurve* GetCurve | ( | int | pIndex | ) |
Access the edge at index pIndex.
- Parameters:
-
pIndex The index of the edge to return. No bounds checking is done
- Returns:
- The edge at index pIndex if pIndex is in the range [0, GetEdgeCount() ), otherwise the return value is undefined
| KFbxNurbsCurve const* GetCurve | ( | int | pIndex | ) | const |
Access the edge at index pIndex.
- Parameters:
-
pIndex The index of the edge to return. No bounds checking is done
- Returns:
- The edge at index pIndex if pIndex is in the range [0, GetEdgeCount() ), otherwise the return value is undefined
| virtual EAttributeType GetAttributeType | ( | ) | const [inline, virtual] |
Return the type of node attribute.
Reimplemented from KFbxGeometry.
Definition at line 95 of file kfbxtrimnurbssurface.h.
| bool IsPointInControlHull | ( | KFbxVector4 & | pPoint | ) |
Detect if the point is in the boundary's control hull.
- Parameters:
-
pPoint The point to detect.
- Returns:
- The state if the point is in the boundary' control hull.
| KFbxVector4 ComputePointInBoundary | ( | ) |
Compute point in boundary.
- Returns:
- The point.
