FBPlug Class Reference

#include <fbplug.h>

FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug FBPlug

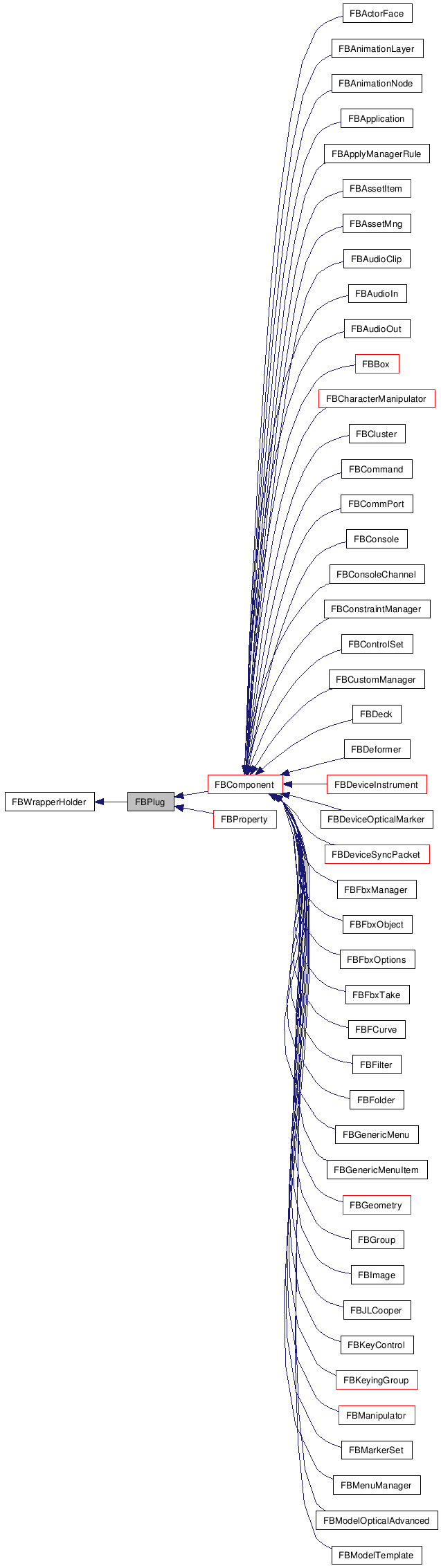

Inheritance diagram for FBPlug:

[legend]

List of all members.

---

Detailed Description

Connections Basic Open Reality SDK Element.

Most elements that are available in the SDK inherit from this base class since FBComponent and FBProperty inherit from FBPlug. Basically, all objects can be connected together because they are all "plugs". To simplify the graph, you can think of a "source" connection as a child, and a "destination" connection as a parent. Also, it is correct to assume that a source affect/work on its destination. For example, a shader applyed on an object would be seen as the source while the object is the destination. So FBPlug is a set of functions that enables you to control those connections with flexibility and ease.

Definition at line 137 of file fbplug.h.

Public Member Functions
	FBPlug (HIObject pObject)
	Constructor.
virtual	~FBPlug ()
	Destructor.
virtual HIObject	GetHIObject () const
	Return an internal pointer.
virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent)
	Assign component to an internal pointer.
bool	IsSDKComponent ()
	Return whether or not item is an SDK component.
bool	ConnectSrc (HFBPlug pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.
bool	ConnectDst (HFBPlug pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.
bool	ConnectSrcAt (int pDst_SrcIndex, HFBPlug pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.
bool	ConnectDstAt (int pSrc_DstIndex, HFBPlug pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.
K_DEPRECATED bool	ConnectAt (HFBPlug pSrc, int pSrc_DstIndex, HFBPlug pDst, int pDst_SrcIndex, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Make connection between to plug, specifying the connection index.
bool	DisconnectDst (HFBPlug pDst)
	Remove a destination connection.
bool	DisconnectSrc (HFBPlug pSrc)
	Remove a source connection.
void	DisconnectAllSrc ()
	Remove all source connections.
void	DisconnectAllDst ()
	Remove all destination connections.
bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specifyed index.
bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specifyed index.
bool	ReplaceDstAt (int pIndex, HFBPlug pDst)
	Replace a destination connection at a specifyed index.
bool	ReplaceSrcAt (int pIndex, HFBPlug pSrc)
	Replace a source connection at a specifyed index.
bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B.
bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex.
bool	MoveSrcAt (HFBPlug pSrc, HFBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc.
int	GetSrcCount ()
	Get source connection count.
HFBPlug	GetSrc (int pIndex)
	Get a source connection's plug at specifyed index.
FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specifyed index.
int	GetDstCount ()
	Get destination connection count.
HFBPlug	GetDst (int pIndex)
	Get a destination connection's plug at specifyed index.
FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specifyed index.
bool	BeginChange ()
	Begins a change on multiple plugs.
void	EndChange ()
	Ends a change on multiple plugs.
HFBPlug	GetOwner ()
	Get the owner of this plug.
int	GetOwnerCount ()
	Get the owner count of this plug.
HFBPlug	GetOwned (int pIndex)
	Get the owned plug at specifyed index.
int	GetOwnedCount ()
	Get the owned plug count.
virtual char *	ClassName ()
	internal System vars.
virtual bool	Is (int pTypeId)
	Is( int pTypeId ).
virtual int	GetTypeId ()
	GetTypeId( int pTypeId ).
virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only.
virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only.
virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug *pThis, int pIndex, FBPlug *pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only.
Public Attributes
bool	mAllocated
	Contain the Allocation State of the Component.
Static Public Attributes
static int	TypeInfo
	TypeInfo.
static int	mInternalClassId
	internal class Id
Protected Member Functions
virtual void	FBDelete ()
	Actual destructor for a FBPlug.
Protected Attributes
HIObject	mObject
	Handle on the Plug.
bool	mSDKComponent
	bool Plug is an SDK component.
Static Protected Attributes
static int	mGlobalTypeInfo
	Represente the Type Index.

---

Constructor & Destructor Documentation

FBPlug

(

HIObject

pObject

)

Constructor.

virtual ~FBPlug

(

)

[virtual]

Destructor.

---

Member Function Documentation

virtual HIObject GetHIObject

(

)

const [virtual]

Return an internal pointer.

virtual bool SetHIObject	(	HIObject	pObject,
		bool	pSDKComponent
	)			[virtual]

Assign component to an internal pointer.

Reimplemented in FBComponent.

bool IsSDKComponent

(

)

Return whether or not item is an SDK component.

bool ConnectSrc	(	HFBPlug	pSrc,
		FBConnectionType	pConnectionType = kFBConnectionTypeNone
	)

Add a source connection.

Parameters:

	pSrc	Source plug.
	pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns:

A boolean indicating success (True) or failure (False).

bool ConnectDst	(	HFBPlug	pDst,
		FBConnectionType	pConnectionType = kFBConnectionTypeNone
	)

Add a destination connection.

Parameters:

	pDst	Destination plug.
	pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns:

A boolean indicating success (True) or failure (False).

bool ConnectSrcAt	(	int	pDst_SrcIndex,
		HFBPlug	pSrc,
		FBConnectionType	pConnectionType = kFBConnectionTypeNone
	)

Add a source connection.

Parameters:

	pDst_SrcIndex	Index that tells where to add this source connection in the destination's connection list.
	pSrc	Source plug.
	pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns:

A boolean indicating success (True) or failure (False).

bool ConnectDstAt	(	int	pSrc_DstIndex,
		HFBPlug	pDst,
		FBConnectionType	pConnectionType = kFBConnectionTypeNone
	)

Add a destination connection.

Parameters:

	pSrc_DstIndex	Index that tells where to add this destination connection in the source's connection list.
	pDst	Destination plug.
	pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns:

A boolean indicating success (True) or failure (False).

K_DEPRECATED bool ConnectAt	(	HFBPlug	pSrc,
		int	pSrc_DstIndex,
		HFBPlug	pDst,
		int	pDst_SrcIndex,
		FBConnectionType	pConnectionType = kFBConnectionTypeNone
	)

Make connection between to plug, specifying the connection index.

(Deprecated)

Parameters:

	pSrc	Source plug.
	pSrc_DstIndex	Index that tells where to add this destination connection in the source's connection list.
	pDst	Destination plug.
	pDst_SrcIndex	Index that tells where to add this source connection in the destination's connection list.
	pConnectionType	Type of connection, taken from FBConnectionType. Default value should work in all cases.

Returns:

A boolean indicating success (True) or failure (False).

bool DisconnectDst

(

HFBPlug

pDst

)

Remove a destination connection.

Parameters:

pDst

Destination plug.

Returns:

A boolean indicating success (True) or failure (False).

bool DisconnectSrc

(

HFBPlug

pSrc

)

Remove a source connection.

Parameters:

pSrc

Source plug.

Returns:

A boolean indicating success (True) or failure (False).

void DisconnectAllSrc

(

)

Remove all source connections.

void DisconnectAllDst

(

)

Remove all destination connections.

bool DisconnectDstAt

(

int

pIndex

)

Remove a destination connection at a specifyed index.

Parameters:

pIndex

Destination plug index.

Returns:

A boolean indicating success (True) or failure (False).

bool DisconnectSrcAt

(

int

pIndex

)

Remove a source connection at a specifyed index.

Parameters:

pIndex

Source plug index.

Returns:

A boolean indicating success (True) or failure (False).

bool ReplaceDstAt	(	int	pIndex,
		HFBPlug	pDst
	)

Replace a destination connection at a specifyed index.

Parameters:

	pIndex	Destination plug index.
	pDst	Plug that will replace the other at index.

Returns:

A boolean indicating success (True) or failure (False).

bool ReplaceSrcAt	(	int	pIndex,
		HFBPlug	pSrc
	)

Replace a source connection at a specifyed index.

Parameters:

	pIndex	Source plug index.
	pSrc	Plug that will replace the other at index.

Returns:

A boolean indicating success (True) or failure (False).

bool SwapSrc	(	int	pIndexA,
		int	pIndexB
	)

Swap source connection at index A with source connection at index B.

Parameters:

	pIndexA	Plug index.
	pIndexB	Other plug index.

Returns:

A boolean indicating success (True) or failure (False).

bool MoveSrcAt	(	int	pIndex,
		int	pAtIndex
	)

Move source connection at pIndex to pAtIndex.

Parameters:

	pIndex	Plug current index.
	pAtIndex	Plug new index.

Returns:

A boolean indicating success (True) or failure (False).

Remarks:

This is not like the swap function since the connection at pAtIndex is untouched.

bool MoveSrcAt	(	HFBPlug	pSrc,
		HFBPlug	pAtSrc
	)

Move source connection pSrc to the position of pAtSrc.

Parameters:

	pSrc	Plug.
	pAtSrc	Plug that mark where we want to insert (will insert before this one).

Returns:

A boolean indicating success (True) or failure (False).

Remarks:

This is not like the swap function since the connection at pAtSrc is untouched.

int GetSrcCount

(

)

Get source connection count.

Returns:

Total sources connections count.

HFBPlug GetSrc

(

int

pIndex

)

Get a source connection's plug at specifyed index.

Parameters:

pIndex

Index of the source connection's plug.

Returns:

Source plug at specifyed index.

FBConnectionType GetSrcType

(

int

pIndex

)

Get a source connection's type at specifyed index.

Parameters:

pIndex

Index of the source connection's type.

Returns:

Source connection's type at specifyed index.

int GetDstCount

(

)

Get destination connection count.

Returns:

Total destinations connections count.

HFBPlug GetDst

(

int

pIndex

)

Get a destination connection's plug at specifyed index.

Parameters:

pIndex

Index of the destination connection's plug.

Returns:

Destination plug at specifyed index.

FBConnectionType GetDstType

(

int

pIndex

)

Get a destination connection's type at specifyed index.

Parameters:

pIndex

Index of the destination connection's type.

Returns:

Destination connection's type at specifyed index.

bool BeginChange

(

)

Begins a change on multiple plugs.

Returns:

A boolean indicating success (True) or failure (False).

void EndChange

(

)

Ends a change on multiple plugs.

HFBPlug GetOwner

(

)

Get the owner of this plug.

Very useful for properties since they are plugs too.

Returns:

The owner of this plug.

int GetOwnerCount

(

)

Get the owner count of this plug.

(Obsolete)

Returns:

The owner count of this plug (will always return 1).

HFBPlug GetOwned

(

int

pIndex

)

Get the owned plug at specifyed index.

Parameters:

pIndex

Index of the owned plug to get.

Returns:

The owned plug at specifyed index.

int GetOwnedCount

(

)

Get the owned plug count.

Returns:

The owned plug count.

virtual char* ClassName

(

)

[virtual]

internal System vars.

Reimplemented in FBComponent, and FBCustomManager.

virtual bool Is

(

int

pTypeId

)

[virtual]

Is( int pTypeId ).

Parameters:

pTypeId

Type Identifiant.

Returns:

True if Plug is a Instance of pTypeId.

Reimplemented in FBComponent, and FBCustomManager.

virtual int GetTypeId

(

)

[virtual]

GetTypeId( int pTypeId ).

Returns:

The TypeInfo of the object

Reimplemented in FBComponent, and FBCustomManager.

virtual bool PlugDataNotify	(	FBConnectionAction	pAction,
		FBPlug *	pThis,
		void *	pData = NULL,
		void *	pDataOld = NULL,
		int	pDataSize = 0
	)			[virtual]

PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only.

Parameters:

	pAction	Plug action, the event type.
	pThis	Plug concerned.
	pData	Current data, meaning depends of plug action.
	pDataOld	Previous data, meaning depends of plug action.
	pDataSize	Size of data.

Returns:

unused should return true

virtual bool PlugStateNotify	(	FBConnectionAction	pAction,
		FBPlug *	pThis,
		void *	pData = NULL,
		void *	pDataOld = NULL,
		int	pDataSize = 0
	)			[virtual]

PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only.

Parameters:

	pAction	Plug action, the event type.
	pThis	Plug concerned.
	pData	Current data, meaning depends of plug action.
	pDataOld	Previous data, meaning depends of plug action.
	pDataSize	Size of data.

Returns:

unused should return true except in the case of property rename kFBRename

virtual bool PlugNotify	(	FBConnectionAction	pAction,
		FBPlug *	pThis,
		int	pIndex,
		FBPlug *	pPlug = NULL,
		FBConnectionType	pConnectionType = kFBConnectionTypeNone,
		FBPlug *	pNewPlug = NULL
	)			[virtual]

PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only.

Parameters:

	pAction	Plug action, the event type.
	pThis	Plug concerned.
	pIndex	Index of the plug.
	pPlug	Other plug concerned.
	pConnectionType	Connection type between the plugs.
	pNewPlug	New plug (for the replace event).

Returns:

should by default return true except in the case of connection requests (kFBRequestConnectSrc or kFBRequestConnectDst)

virtual void FBDelete

(

)

[protected, virtual]

Actual destructor for a FBPlug.

It should never be called from client code. This is meant for internal use only!

Reimplemented in FBAudioClip, FBActor, FBCharacter, FBCharacterExtension, FBActorFace, FBCharacterFace, FBComponent, FBFCurve, FBAnimationLayer, FBTake, FBFolder, FBGroup, FBSet, FBImage, FBKeyingGroup, FBModel, FBTexture, FBLayeredTexture, FBMotionClip, FBScene, FBStoryFolder, FBStoryTrack, FBStoryClip, and FBVideoClip.

---

Member Data Documentation

int TypeInfo [static]

TypeInfo.

Reimplemented in FBComponent, FBCustomManager, and FBPropertyBaseComponent.

Definition at line 343 of file fbplug.h.

int mInternalClassId [static]

internal class Id

Reimplemented in FBComponent.

Definition at line 346 of file fbplug.h.

bool mAllocated

Contain the Allocation State of the Component.

Definition at line 349 of file fbplug.h.

int mGlobalTypeInfo [static, protected]

Represente the Type Index.

Definition at line 393 of file fbplug.h.

HIObject mObject [protected]

Handle on the Plug.

Definition at line 394 of file fbplug.h.

bool mSDKComponent [protected]

bool Plug is an SDK component.

Definition at line 395 of file fbplug.h.

---

Please send us your comments about this page.
