FBKeyingGroup Class Reference

#include <fbkeyinggroup.h>

FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup FBKeyingGroup

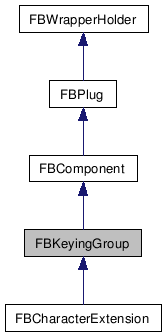

Inheritance diagram for FBKeyingGroup:

[legend]

List of all members.

---

Detailed Description

KeyingGroup class.

This class is an interface to manipulate which properties will be keyed when active. A derived class could control when the keying group should activate and what content it should have. For example, a derived class could activate based one that is selected in the scene.

To create a custom keying group, use the appropriate FBKeyingGroupType flag. Then, if it is a local keying group, call AddObjectDependency() to add an object to the keying group. You can then add properties belonging to the new object with AddProperty().

If you are creating an object type keying group, call SetObjectType() to specify what kind of object will be keyed by this keying group. Then, add a property from an object, the name of the property will be used by the keying group the find corresponding properties in selected object.

If you create a global keying group, simply properties from an object with AddProperty(). The name of the property will be used by the keying group to find corresponding properties in the selected object.

Definition at line 87 of file fbkeyinggroup.h.

Public Member Functions
	FBKeyingGroup (char *pName, FBKeyingGroupType pType, HIObject pObject=NULL)
	Constructor.
virtual void	FBDelete ()
	Virtual FBDelete function.
void	SetObjectType (HFBComponent pObject)
	Set the object type filter for and object type keying group.
void	AddProperty (HFBProperty pProp)
	Add property to be keyed when current keying group is active.
void	RemoveProperty (HFBProperty pProp)
	RemoveProperty from the keyinggroup list.
HFBProperty	GetProperty (int pIndex)
	GetProperty from the keyinggroup list.
int	GetPropertyCount ()
	GetPropertyCount.
int	FindPropertyIndex (HFBProperty pProp)
	FindPropertyIndex.
void	AddObjectDependency (HFBComponent pObj)
	AddObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).
void	RemoveObjectDependency (HFBComponent pObj)
	RemoveObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).
bool	IsObjectDependency (HFBComponent pObj)
	IsObjectDependency determine if the pObj is a dependency.
bool	IsObjectDependencySelected ()
	IsObjectDependencySelected.
void	RemoveAllProperties ()
	IsObjectDependencySelected empty the property list.
void	RemoveAllObjectDependency ()
	IsObjectDependencySelected empty the content list.
void	RemoveAllSubKeyingGroup ()
	RemoveAllSubKeyingGroup empty the child keying group.
int	GetParentKeyingGroupCount ()
	GetParentKeyingGroupCount.
HFBKeyingGroup	GetParentKeyingGroup (int pIndex)
	GetParentKeyingGroup.
int	GetSubKeyingGroupCount ()
	GetSubKeyingGroupCount.
HFBKeyingGroup	GetSubKeyingGroup (int pIndex)
	GetSubKeyingGroup.
int	GetSubObjectCount ()
	GetSubObjectCount.
HFBComponent	GetSubObject (int pIndex)
	GetSubObject.
int	GetCumulativePropertyCount (bool pStopAtVisible=false)
	GetCumulativePropertyCount Same as GetSubKeyingGroupCount but recursive in child keying group.
HFBProperty	GetCumulativeProperty (int pIndex, bool pStopAtVisible=false)
	GetCumulativeProperty Same as GetSubKeyingGroup but recursive in child keying group.
void	ClearAllItems ()
	ClearAllItems clear object dependency, properties and child keying group.
void	SetEnabled (bool pEnable)
	SetEnabled, makes the keying group available in keying group list of the key control UI.
void	SetActive (bool pActive)
	SetActive, activate the keying group.

---

Constructor & Destructor Documentation

FBKeyingGroup	(	char *	pName,
		FBKeyingGroupType	pType,
		HIObject	pObject = NULL
	)

Constructor.

Parameters:

	pName	Group name.
	pType	Keying group type.
	pObject	For internal use only.

---

Member Function Documentation

virtual void FBDelete

(

)

[virtual]

Virtual FBDelete function.

Reimplemented from FBComponent.

Reimplemented in FBCharacterExtension.

void SetObjectType

(

HFBComponent

pObject

)

Set the object type filter for and object type keying group.

Parameters:

pObject

Object that will be used to set the keying group object type. Use NULL to remove the filter.

void AddProperty

(

HFBProperty

pProp

)

Add property to be keyed when current keying group is active.

Parameters:

pProp

Property to be added.

void RemoveProperty

(

HFBProperty

pProp

)

RemoveProperty from the keyinggroup list.

Parameters:

pProp

Property to be removed.

HFBProperty GetProperty

(

int

pIndex

)

GetProperty from the keyinggroup list.

Parameters:

pIndex

index of the desired property.

Returns:

property coresponding to pIndex.

int GetPropertyCount

(

)

GetPropertyCount.

Returns:

the number of properties in the keying group.

int FindPropertyIndex

(

HFBProperty

pProp

)

FindPropertyIndex.

Parameters:

pProp

must be in the list (return -1 if not).

Returns:

the index of pProp in the keyinggroup property list.

void AddObjectDependency

(

HFBComponent

pObj

)

AddObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).

Parameters:

pObj

a Dependency of the keying group.

void RemoveObjectDependency

(

HFBComponent

pObj

)

RemoveObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).

Parameters:

pObj

a Dependency of the keying group.

bool IsObjectDependency

(

HFBComponent

pObj

)

IsObjectDependency determine if the pObj is a dependency.

Parameters:

pObj

an object to test the Dependency.

Returns:

true if it depend.

bool IsObjectDependencySelected

(

)

IsObjectDependencySelected.

Returns:

return true as soon as a Property Owner or another Object Dependency is selected.

void RemoveAllProperties

(

)

IsObjectDependencySelected empty the property list.

void RemoveAllObjectDependency

(

)

IsObjectDependencySelected empty the content list.

void RemoveAllSubKeyingGroup

(

)

RemoveAllSubKeyingGroup empty the child keying group.

int GetParentKeyingGroupCount

(

)

GetParentKeyingGroupCount.

Returns:

the number of parent.

HFBKeyingGroup GetParentKeyingGroup

(

int

pIndex

)

GetParentKeyingGroup.

Parameters:

pIndex

is the index of the parent list of the current keying group.

Returns:

the parent keying group.

int GetSubKeyingGroupCount

(

)

GetSubKeyingGroupCount.

Returns:

the number of child keying group.

HFBKeyingGroup GetSubKeyingGroup

(

int

pIndex

)

GetSubKeyingGroup.

Parameters:

pIndex

index of the desired keying group child.

Returns:

the the child at the index.

int GetSubObjectCount

(

)

GetSubObjectCount.

Returns:

the number of ObjectDependency of the keying group.

HFBComponent GetSubObject

(

int

pIndex

)

GetSubObject.

Parameters:

pIndex

index in the content Object Dependency list

Returns:

the desired object at pIndex.

int GetCumulativePropertyCount

(

bool

pStopAtVisible = false

)

GetCumulativePropertyCount Same as GetSubKeyingGroupCount but recursive in child keying group.

Parameters:

pStopAtVisible

consider all keying group and stop to the first visible keying group.

Returns:

he number of ObjectDependency of the keying group.

HFBProperty GetCumulativeProperty	(	int	pIndex,
		bool	pStopAtVisible = false
	)

GetCumulativeProperty Same as GetSubKeyingGroup but recursive in child keying group.

Parameters:

	pIndex	index in the content Object Dependency list
	pStopAtVisible	consider all keying group and stop to the first visible keying group.

Returns:

he number of ObjectDependency of the keying group.

void ClearAllItems

(

)

ClearAllItems clear object dependency, properties and child keying group.

void SetEnabled

(

bool

pEnable

)

SetEnabled, makes the keying group available in keying group list of the key control UI.

void SetActive

(

bool

pActive

)

SetActive, activate the keying group.

---
