FBCharacter Class Reference

#include
<fbcharacter.h>

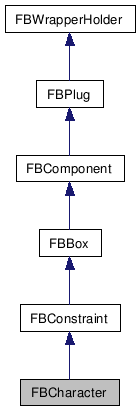

Inheritance diagram for FBCharacter:

[legend]

List of all members.

Detailed Description

Character class.

These classes are under development and may change dramatically between versions. This class exposes part of the functionality associated with a Character. A character can possess a number of potential sources at the same time, such as an actor and another character, but with only one active at any given time. Before setting the InputType to the desired value, one must make sure to have previously set either the InputCharacter or the InputActor.

To obtain the list of characters present in a scene, you need to create an instance of class FBSystem, to obtain the current scene. The FBScene object holds the list of characters in the property Characters.

       FBSystem lSystem;
       HFBScene lScene = lSystem.Scene;
       for( int lIdx = 0; lIdx < lScene->Characters.GetCount(); ++lIdx )
       {
           FBTrace( "Character[%d]: '%s'\n", lIdx, (char*)lScene->Characters[lIdx] );
       }

The current character selected in the Character tool can be obtained via the FBApplication object.

       FBApplication lApplication;
       HFBCharacter lCharacter = lApplication.CurrentCharacter;
       if( lCharacter )
       {
           FBTrace( "Current character is: '%s'\n", (char*)lCharacter->Name );
       }
       else
       {
           FBTrace( "No character currently selected\n" );
       }

Definition at line 1021 of file fbcharacter.h.


Public Member Functions
	FBCharacter (char *pName, HIObject pObject=NULL)
	Constructor.
virtual void	FBDelete ()
	Actual Character destructor.
FBCharacter *	Clone ()
	Clone the character.
void	AddCharacterExtension (HFBCharacterExtension pExt)
	AddCharacterExtension.
void	RemoveCharacterExtension (HFBCharacterExtension pExt)
	Get the model associated with each body part of the character.
HFBModel	GetModel (FBBodyNodeId pBodyNodeId)
	Get the model associated with each body part of the character.
FBBodyNodeId	GetIndexByModel (HFBModel pModel)
	Get the index associated with Given Model.
HFBModel	GetCtrlRigModel (FBBodyNodeId pBodyNodeId)
	Get the model associated with each body part in the Control Rig of the character.
FBBodyNodeId	GetCtrlRigIndexByModel (HFBModel pModel)
	Get the index of the model associated with each body part in the Control Rig of the character.
HFBModel	GetEffectorModel (FBEffectorId pEffectorId, FBEffectorSetID pEffectorSetID=FBEffectorSetDefault)
	Get the model associated with each effector in the Control Rig of the character.
HFBModel	GetFloorContactModel (FBFloorContactID pMemberIndex)
	Get the model associated with the floor contact ID.
virtual bool	PlotAnimation (FBCharacterPlotWhere pPlotWhere, FBPlotOptions *pPlotOptions)
	Plot the animation of the character.
bool	ReadyForRetarget ()
	Test if character is ready for the Retarget operation (basically, is it in character input ?).
void	Retarget (bool pOnBaseLayer)
	Retarget the animation from the input character to us.
void	CopyAnimation ()
	Copy the animation from the input character to us.
virtual void	ResetProperties (FBCharacterResetProperties pType)
	Reset the properties of the character.
void	SelectModels (bool pSelect, bool pApplyToCharacter, bool pApplyToRig, bool pApplyToExtensions)
	Select the objects that make a character.
void	GoToStancePose (bool pPushUndo=false, bool pIncludeCharacterExtensions=true)
	Set the character in stance pose.
bool	SetCharacterizeOn (bool pSetAsBiped)
	Set the Characterize flag on.
const char *	GetCharacterizeError ()
	Get error message for the previous SetCharacterizeOn operation.
void	SetCharacterizeOff ()
	Set Characterize flag off.
bool	GetCharacterize ()
	Get Characterize flag.
bool	CreateControlRig (bool pSetFKIK)
	Create the Control-Rig.
FBControlSet *	GetCurrentControlSet (bool pForce=false)
	Obtain Input ControlSet.
bool	IsParentNodeOffset (FBBodyNodeId pNodeId)
	Check if there is an offset on Parent.
FBCharacterSolver *	GetExternalSolver ()
	Get a pointer to the external solver of a character, or NULL is no external solver is used on the character.
void	SetExternalSolver (int pIndex)
	Set character external solver.
void	SetExternalSolver (FBCharacterSolver *pSolver)
	Set character solver.
void	GetActiveBodyPart (bool *pActivePart)
	Get the active body part array.
bool	IsRotationPin (FBEffectorId pEffectorIndex)
	Return true if the object is Pinned in Rotation (Manipulation).
bool	IsTranslationPin (FBEffectorId pEffectorIndex)
	Return true if the object is Pinned in Translation (Manipulation).
bool	IsCtrlSetReady ()
	Return true Ctrl Set is Ready to be used.
bool	IsPlottingActorToCtrlRig ()
	Return true if the Actor is currently being plot to the Control Rig.
Public Attributes
FBPropertyCharacterInputType	InputType
	Read Write Property: The input type for the character (ex: Actor).
FBPropertyCharacterKeyingMode	KeyingMode
	Read Write Property: The current keying mode.
FBPropertyActor	InputActor
	Read Write Property: The index of the actor used for the input.
FBPropertyCharacter	InputCharacter
	Read Write Property: The index of the character used for the input.
FBPropertyBool	ActiveInput
	Read Write Property: Is the character input active?
FBPropertyListCharacterExtension	CharacterExtensions
	List: Character Extensions in the character.
FBString	mCharacterizeError
	Used to store SetCharacterizeOn errors and warnings.
FBPropertyBool	MirrorMode
	Read Write Property: is in mirror mode.
FBPropertyAnimatableDouble	ShoulderCorrection
	Read Write Property: shoulder correction values.
FBPropertyBool	LeftKneeKillPitch
	Read Write Property: is Pitch used for Left knee.
FBPropertyBool	RightKneeKillPitch
	Read Write Property: is Pitch used for Right knee.
FBPropertyBool	LeftElbowKillPitch
	Read Write Property: is Pitch used for Left elbow.
FBPropertyBool	RightElbowKillPitch
	Read Write Property: is Pitch used for Right elbow.
FBPropertyCharacterHipsTranslationMode	HipsTranslationMode
	Read Write Property: Hips Translation Mode.
FBPropertyBool	WriteReference
	Read Write Property: are we writing back on reference.
FBPropertyBool	SyncMode
	Read Write Property: is character in sync mode.
FBPropertyBool	InverseLeftKnee
	Read Write Property: Is left knee inverted.
FBPropertyBool	InverseRightKnee
	Read Write Property: Is right knee inverted.
FBPropertyBool	InverseLeftElbow
	Read Write Property: Is left elbow inverted.
FBPropertyBool	InverseRightElbow
	Read Write Property: Is right elbow inverted.
FBPropertyCharacterRollSolver	RollSolver
	Read Write Property: Roll Solver selection.
FBPropertyCharacterContactBehaviour	ContactBehaviour
	Read Write Property: Contact Behavior selection.
FBPropertyAnimatableDouble	ScaleCompensation
FBPropertyAnimatableDouble	HipsHeightCompensation
FBPropertyAnimatableDouble	AnkleHeightCompensation
FBPropertyAnimatableDouble	AnkleProximityCompensation

Constructor & Destructor Documentation

FBCharacter	(	char *	pName,
		HIObject	pObject = `NULL`
	)

Constructor.

Parameters:

	pName	Name of new character.
	pObject	For internal use only. This parameter does not need to be specified by the developer.

Member Function Documentation

virtual void FBDelete ( ) [virtual]

Actual Character destructor.

This method is used to delete the actual character object represented by an instance of FBCharacter.

Reimplemented from FBComponent.

FBCharacter* Clone ( ) [virtual]

Clone the character.

Reimplemented from FBConstraint.

void AddCharacterExtension ( HFBCharacterExtension pExt )

AddCharacterExtension.

Parameters:

pExt

extension to be added to the character.

void RemoveCharacterExtension ( HFBCharacterExtension pExt )

Get the model associated with each body part of the character.

Parameters:

pExt

extension to be removed to the character.

HFBModel GetModel ( FBBodyNodeId pBodyNodeId )

Get the model associated with each body part of the character.

Returns:: The model linked to the specified body part.

FBBodyNodeId GetIndexByModel ( HFBModel pModel )

Get the index associated with Given Model.

Returns:: The model linked to the specified body part.

HFBModel GetCtrlRigModel ( FBBodyNodeId pBodyNodeId )

Get the model associated with each body part in the Control Rig of the character.

Returns:: The model in the Control Rig corresponding to the specified body part.

FBBodyNodeId GetCtrlRigIndexByModel ( HFBModel pModel )

Get the index of the model associated with each body part in the Control Rig of the character.

Returns:: The Index if the model in the Control Rig corresponding to the specified body part.

HFBModel GetEffectorModel	(	FBEffectorId	pEffectorId,
		FBEffectorSetID	pEffectorSetID = `FBEffectorSetDefault`
	)

Get the model associated with each effector in the Control Rig of the character.

Parameters:

	pEffectorId	The effector ID.
	pEffectorSetID	Id of the ControlSet to obtain, if not specified the current one is taken.

Returns:: The model in the Control Rig corresponding to the specified Effector.

HFBModel GetFloorContactModel ( FBFloorContactID pMemberIndex )

Get the model associated with the floor contact ID.

Parameters:

pMemberIndex

Id of the floor contact

Returns:: The model associated with the floor contact ID

virtual bool PlotAnimation	(	FBCharacterPlotWhere	pPlotWhere,
		FBPlotOptions *	pPlotOptions
	)			`[virtual]`

Plot the animation of the character.

Returns:: True if the operation completed successfully.

bool ReadyForRetarget ( )

Test if character is ready for the Retarget operation (basically, is it in character input ?).

Returns:: True if the character is ready.

void Retarget ( bool pOnBaseLayer )

Retarget the animation from the input character to us.

Parameters:

pOnBaseLayer

if true, keys corrections will be made on base layer; else they will be made on another layer.

void CopyAnimation ( )

Copy the animation from the input character to us.

virtual void ResetProperties ( FBCharacterResetProperties pType ) [virtual]

Reset the properties of the character.

Parameters:

pType

Speficy which properties will be reset.

void SelectModels	(	bool	pSelect,
		bool	pApplyToCharacter,
		bool	pApplyToRig,
		bool	pApplyToExtensions
	)

Select the objects that make a character.

Parameters:

	pSelect	True to select, false to deselect.
	pApplyToCharacter	TSould the character contraint be selected ?
	pApplyToRig	should The rig (and its children) be selected ?
	pApplyToExtensions	Should the character extensions (and their children) be selected ?

void GoToStancePose	(	bool	pPushUndo = `false`,
		bool	pIncludeCharacterExtensions = `true`
	)

Set the character in stance pose.

Parameters:

	pPushUndo	Should we push an undo transaction on the undo stack? Don't push undo in non UI thread.
	pIncludeCharacterExtensions	Should the character extensions go to stance pose too?

bool SetCharacterizeOn ( bool pSetAsBiped )

Set the Characterize flag on.

Parameters:

pSetAsBiped

true to use biped characterization or false to use quadruped.

Returns:: current state of the flag after the operation (true if it did succeed).

const char* GetCharacterizeError ( )

Get error message for the previous SetCharacterizeOn operation.

Returns:: The string containing all errors and warnings.

void SetCharacterizeOff ( )

Set Characterize flag off.

bool GetCharacterize ( )

Get Characterize flag.

Returns:: Current state of the Characterize flag.

bool CreateControlRig ( bool pSetFKIK )

Create the Control-Rig.

Parameters:

pSetFKIK

true to use FK/IK or false to use IK only.

Returns:: current state of the flag after the operation (true if it did succeed).

FBControlSet* GetCurrentControlSet ( bool pForce = false )

Obtain Input ControlSet.

Parameters:

pForce

If True, will return the current ControlSet even if the character is not in ControlSet Input.

Returns:: Return current Active ControlSet, NULL if none.

bool IsParentNodeOffset ( FBBodyNodeId pNodeId )

Check if there is an offset on Parent.

Parameters:

pNodeId

Node Id to Check.

Returns:: True if there is an offset on Parent.

FBCharacterSolver* GetExternalSolver ( )

Get a pointer to the external solver of a character, or NULL is no external solver is used on the character.

Returns:: The pointer of the current External Solver, NULL if it's the internal solver.

void SetExternalSolver ( int pIndex )

Set character external solver.

Parameters:

pIndex

Index of external solver.

void SetExternalSolver ( FBCharacterSolver * pSolver )

Set character solver.

Parameters:

pSolver

Character solver that will be used by the character.

void GetActiveBodyPart ( bool * pActivePart )

Get the active body part array.

Parameters:

pActivePart

A pointer to an array of bool. On return, the index with a "true" value are active part.

bool IsRotationPin ( FBEffectorId pEffectorIndex )

Return true if the object is Pinned in Rotation (Manipulation).

Parameters:

pEffectorIndex

Given Index to obtain Model

Returns:: True if the effector is pinned in Rotation

bool IsTranslationPin ( FBEffectorId pEffectorIndex )

Return true if the object is Pinned in Translation (Manipulation).

Parameters:

pEffectorIndex

Given Index to obtain Model

Returns:: True if the effector is pinned in Translation

bool IsCtrlSetReady ( )

Return true Ctrl Set is Ready to be used.

Returns:: return true if character is active, characterized and is in input control rig

bool IsPlottingActorToCtrlRig ( )

Return true if the Actor is currently being plot to the Control Rig.

Returns:: return true if the Actor is currently being plot to the Control Rig.

Member Data Documentation

FBPropertyCharacterInputType InputType

Read Write Property: The input type for the character (ex: Actor).

Definition at line 1043 of file fbcharacter.h.

FBPropertyCharacterKeyingMode KeyingMode

Read Write Property: The current keying mode.

Definition at line 1044 of file fbcharacter.h.

FBPropertyActor InputActor

Read Write Property: The index of the actor used for the input.

Definition at line 1045 of file fbcharacter.h.

FBPropertyCharacter InputCharacter

Read Write Property: The index of the character used for the input.

Definition at line 1046 of file fbcharacter.h.

FBPropertyBool ActiveInput

Read Write Property: Is the character input active?

Definition at line 1047 of file fbcharacter.h.

FBPropertyListCharacterExtension CharacterExtensions

List: Character Extensions in the character.

Definition at line 1049 of file fbcharacter.h.

FBString mCharacterizeError

Used to store SetCharacterizeOn errors and warnings.

Definition at line 1237 of file fbcharacter.h.

FBPropertyBool MirrorMode

Read Write Property: is in mirror mode.

Definition at line 1241 of file fbcharacter.h.

FBPropertyAnimatableDouble ShoulderCorrection

Read Write Property: shoulder correction values.

Definition at line 1242 of file fbcharacter.h.

FBPropertyBool LeftKneeKillPitch

Read Write Property: is Pitch used for Left knee.

Definition at line 1243 of file fbcharacter.h.

FBPropertyBool RightKneeKillPitch

Read Write Property: is Pitch used for Right knee.

Definition at line 1244 of file fbcharacter.h.

FBPropertyBool LeftElbowKillPitch

Read Write Property: is Pitch used for Left elbow.

Definition at line 1245 of file fbcharacter.h.

FBPropertyBool RightElbowKillPitch

Read Write Property: is Pitch used for Right elbow.

Definition at line 1246 of file fbcharacter.h.

FBPropertyCharacterHipsTranslationMode HipsTranslationMode

Read Write Property: Hips Translation Mode.

Definition at line 1247 of file fbcharacter.h.

FBPropertyBool WriteReference

Read Write Property: are we writing back on reference.

Definition at line 1248 of file fbcharacter.h.

FBPropertyBool SyncMode

Read Write Property: is character in sync mode.

Definition at line 1249 of file fbcharacter.h.

FBPropertyBool InverseLeftKnee

Read Write Property: Is left knee inverted.

Definition at line 1250 of file fbcharacter.h.

FBPropertyBool InverseRightKnee

Read Write Property: Is right knee inverted.

Definition at line 1251 of file fbcharacter.h.

FBPropertyBool InverseLeftElbow

Read Write Property: Is left elbow inverted.

Definition at line 1252 of file fbcharacter.h.

FBPropertyBool InverseRightElbow

Read Write Property: Is right elbow inverted.

Definition at line 1253 of file fbcharacter.h.

FBPropertyCharacterRollSolver RollSolver

Read Write Property: Roll Solver selection.

Definition at line 1254 of file fbcharacter.h.

FBPropertyCharacterContactBehaviour ContactBehaviour

Read Write Property: Contact Behavior selection.

Definition at line 1255 of file fbcharacter.h.

Please send us your comments about this page.

FBCharacter Class Reference

Detailed Description

Public Member Functions

Public Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
