FBModel Class Reference

#include <fbmodel.h>

FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel FBModel

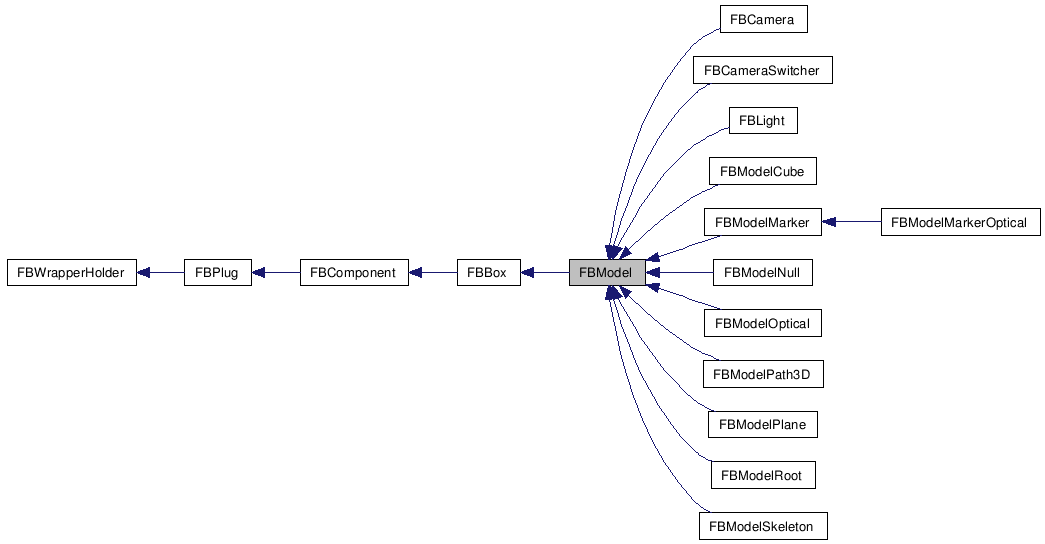

Inheritance diagram for FBModel:

[legend]

List of all members.

---

Detailed Description

Model class.

In the MotionBuilder UI, a model can be any object in a scene, created using geometry. Models can represent simple objects like cubes, or complex objects like characters.

FBModel is a base class which is not used so much directly, but is the parent of well-used classes like FBCamera, FBLight, and FBModelMarker.

It also implements a number of widely-implemented functions and attributes, such as:

• Clone(), FBDelete()
• UI attributes such as Show, Pickable, and Visibility
• Positional atributes such as Rotation, Scaling, and Translation The following Python snippet shows how to create, show, rotate, and delete a cube

      from pyfbsdk import *
      myCube = FBModelCube("cube")
      myCube.Show = True
      myCube.Rotation = FBVector3d(45, 45, 45)
      myCube.FBDelete()


There is a few ways to get a handle on existing models in a scene:

• FBFindObjectsByName and FBFindObjectsByNamespace return a list of objects matching a pattern (can contain *). For usage, see: FindObjectsWithWildcard.py
• If you know the name of the model, use FBFindModelByName, as demonstrated in FBComponent.py.
• FBGetSelectedModels can get a handle to an object which is derived from FBModel. It searches the scene for a model, based on the model's unique name and returns a list of all the selected things in the scene.
• FBSelectObjectsByNamespace selects (or deselects) objects in the current scene.

Definition at line 258 of file fbmodel.h.

Public Member Functions
	FBModel (char *pName, HIObject pObject=NULL)
	Constructor.
virtual void	FBDelete ()
	Open Reality deletion function.
virtual HFBModel	Clone ()
	Clone the model.
void	SetMatrix (FBMatrix pMatrix, int pWhat=kModelTransformation, bool pGlobalInfo=true, bool pPushUndo=false, HFBEvaluateInfo pEvaluateInfo=NULL)
	Set a matrix for the model.
void	GetMatrix (FBMatrix &pMatrix, int pWhat=kModelTransformation, bool pGlobalInfo=true, HFBEvaluateInfo pEvaluateInfo=NULL)
	Get a matrix from the model.
void	SetVector (FBVector3d pVector, int pWhat=kModelTranslation, bool pGlobalInfo=true, bool pPushUndo=false, HFBEvaluateInfo pEvaluateInfo=NULL)
	Set a vector for the model.
void	GetVector (FBVector3d &pVector, int pWhat=kModelTranslation, bool pGlobalInfo=true, HFBEvaluateInfo pEvaluateInfo=NULL)
	Get a vector from the model.
void	GetBoundingBox (FBVector3d &pMin, FBVector3d &pMax)
	Get the bounding box of the model.
virtual bool	HasCustomDisplay ()
	Function to overload to handle custom display.
virtual void	CustomModelDisplay (FBCamera *pCamera, FBModelShadingMode pShadingMode, FBModelRenderPass pRenderPass, float pPickingAreaWidth, float pPickingAreaHeight)
	Custom display function called when HasCustomDisplay returns true;.
virtual bool	CustomModelPicking (int pNbHits, unsigned int *pSelectBuffer, FBCamera *pCamera, int pMouseX, int pMouseY, FBTVector *pLocalRaySrc, FBTVector *pLocalRayDir, FBTVector *pWorldRaySrc, FBTVector *pWorldRayDir, FBMatrix *pGlobalInverseMatrix, FBTVector *pOutPickedPoint)
	Custom picking for selection.
unsigned char *	GetSelectedPoints ()
	Get the list of the points selection state.
int	GetSelectedPointsCount ()
	Get the number of selected points in the model.
virtual bool	FbxStore (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat)
	Store and Retrieve function that can be overloaded.
virtual bool	FbxRetrieve (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat)
	Storage/Retrieval of information into the FBX file format.
void	SetupPropertiesForShapes ()
	Setup Shape Properties.
virtual char *	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Model'.
virtual char *	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'.
Public Attributes
FBPropertyListModel	Children
	List: Children for model.
FBPropertyListShader	Shaders
	List: Shaders for model.
FBPropertyListMaterial	Materials
	List: Materials for model.
FBPropertyListTexture	Textures
	List: Textures with Special UseType (Other than "Color" which should connect to materials).
FBPropertyBool	Icon3D
	Read Write Property: Is model a 3D icon?
FBPropertyBool	SoftSelected
	Read Write Property: Is model Soft selected?
FBPropertyBool	IsDeformable
	Read Write Property: Is model deformable (weights)?
FBPropertyBool	IsConstrained
	Read Only Property: Is model constrained?
FBPropertyModel	Parent
	Read Write Property: Parent model.
FBPropertyModel	LookAt
	Read Write Property: Look at model (interest point).
FBPropertyModel	UpVector
	Read Write Property: UpVector model.
FBPropertyGeometry	Geometry
	Read Write Property: Geometry for the model.
FBPropertyMesh	TessellatedMesh
	Read Only Property: Tessellated Mesh for the model.
FBPropertyModelVertexData	ModelVertexData
	Read Only Property: ModelVertexData for the model.
FBPropertyCluster	Cluster
	Read Only Property: Link Cluster for the model.
FBPropertyScene	Scene
	Read Only Property: Scene containing the model.
FBPropertyModelShadingMode	ShadingMode
	Read Write Property: Shading mode for the model.
FBPropertyAnimationNode	AnimationNode
	Read Only Property: Animation node of the model.
FBPropertyModelRotationOrder	RotationOrder
	Read Write Property: Rotation order.
FBPropertyBool	RotationSpaceForLimitOnly
	Read Write Property: Apply Post Rotation Matrix only for Limits?
FBPropertyBool	RotationActive
	Read Write Property: Is model using Rotation Limits?
FBPropertyVector3d	PreRotation
	Read Write Property: Pre Rotation (considered if RotationActive is true)
FBPropertyVector3d	PostRotation
	Read Write Property: Post Rotation (considered if RotationActive is true)
FBPropertyVector3d	RotationMin
	Read Write Property: Min Rotation Limit (considered if RotationActive is true)
FBPropertyVector3d	RotationMax
	Read Write Property: Max Rotation Limit (considered if RotationActive is true)
FBPropertyBool	RotationMinX
	Read Write Property: Is model using Minimum Rotation Limits On X?
FBPropertyBool	RotationMinY
	Read Write Property: Is model using Minimum Rotation Limits On Y?
FBPropertyBool	RotationMinZ
	Read Write Property: Is model using Minimum Rotation Limits On Z?
FBPropertyBool	RotationMaxX
	Read Write Property: Is model using Maximum Rotation Limits On X?
FBPropertyBool	RotationMaxY
	Read Write Property: Is model using Maximum Rotation Limits On Y?
FBPropertyBool	RotationMaxZ
	Read Write Property: Is model using Maximum Rotation Limits On Z?
FBPropertyAnimatableDouble	Visibility
	Read Write Property: Visibility of model. This can be overriden by the 'Show' property.
FBPropertyAnimatableVector3d	Translation
	Read Write Property: Lcl translation.
FBPropertyAnimatableVector3d	Rotation
	Read Write Property: Lcl rotation.
FBPropertyAnimatableVector3d	Scaling
	Read Write Property: Lcl scaling.
FBPropertyVector3d	GeometricTranslation
	Read Write Property: Geometric translation.
FBPropertyVector3d	GeometricRotation
	Read Write Property: Geometric rotation.
FBPropertyVector3d	GeometricScaling
	Read Write Property: Geometric scaling.
FBPropertyBool	QuaternionInterpolate
	Read Write Property: Use quaternion interpolation.
FBPropertyBool	Show
	Read Write Property: Indicate if the viewer should show the object, according to its visibility value. This has a default value of 'false'.
FBPropertyBool	Pickable
	Read Write Property: Indicate if a model can be picked in the viewer. This has a default value of 'true'.

---

Constructor & Destructor Documentation

FBModel	(	char *	pName,
		HIObject	pObject = NULL
	)

Constructor.

Parameters:

	pName	Name of model.
	pObject	For internal use only(default=NULL).

---

Member Function Documentation

virtual void FBDelete

(

)

[virtual]

Open Reality deletion function.

Reimplemented from FBComponent.

virtual HFBModel Clone

(

)

[virtual]

Clone the model.

This will duplicate the current model.

Returns:

Newly created model.

void SetMatrix	(	FBMatrix	pMatrix,
		int	pWhat = kModelTransformation,
		bool	pGlobalInfo = true,
		bool	pPushUndo = false,
		HFBEvaluateInfo	pEvaluateInfo = NULL
	)

Set a matrix for the model.

Parameters:

	pMatrix	Information to use to set the model's matrix.
	pWhat	Type of matrix to set (default=transformation).
	pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
	pPushUndo	true if this operation is undoable, don't push undo in non UI thread.
	pEvaluateInfo	EvaluateInfo, Take Display if none specified

void GetMatrix	(	FBMatrix &	pMatrix,
		int	pWhat = kModelTransformation,
		bool	pGlobalInfo = true,
		HFBEvaluateInfo	pEvaluateInfo = NULL
	)

Get a matrix from the model.

Parameters:

	pWhat	Type of information requested (default=transformation).
	pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).

Return values:

pMatrix

Matrix to fill with requested information.

Parameters:

pEvaluateInfo

EvaluateInfo, Take Display if none specified.

void SetVector	(	FBVector3d	pVector,
		int	pWhat = kModelTranslation,
		bool	pGlobalInfo = true,
		bool	pPushUndo = false,
		HFBEvaluateInfo	pEvaluateInfo = NULL
	)

Set a vector for the model.

Parameters:

	pVector	Vector to use to set values.
	pWhat	Type of information to set (default=translation, inverses not supported).
	pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
	pPushUndo	true if this operation is undoable, don't push undo in non UI thread.
	pEvaluateInfo	EvaluateInfo, Take Display if none specified

void GetVector	(	FBVector3d &	pVector,
		int	pWhat = kModelTranslation,
		bool	pGlobalInfo = true,
		HFBEvaluateInfo	pEvaluateInfo = NULL
	)

Get a vector from the model.

Parameters:

	pWhat	Type of information requested (default=translation, inverses not supported).
	pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).

Return values:

pVector

Vector to fill with requested values.

Parameters:

pEvaluateInfo

EvaluateInfo, Take Display if none specified

void GetBoundingBox	(	FBVector3d &	pMin,
		FBVector3d &	pMax
	)

Get the bounding box of the model.

Return values:

	pMin	Minimum value of the bounding box.
	pMax	Maximum value of the bounding box.

virtual bool HasCustomDisplay

(

)

[inline, virtual]

Function to overload to handle custom display.

Returns:

True is this model class has custom display function ModelDisplay

Definition at line 372 of file fbmodel.h.

virtual void CustomModelDisplay	(	FBCamera *	pCamera,
		FBModelShadingMode	pShadingMode,
		FBModelRenderPass	pRenderPass,
		float	pPickingAreaWidth,
		float	pPickingAreaHeight
	)			[inline, virtual]

Custom display function called when HasCustomDisplay returns true;.

Parameters:

	pCamera	Current camera for display.
	pShadingMode	Shading mode to render see FBModelShadingMode.
	pRenderPass	Actual rendering pass, see FBModelRenderPass.
	pPickingAreaWidth	Width of picking area.
	pPickingAreaHeight	Height of picking area.

Definition at line 381 of file fbmodel.h.

virtual bool CustomModelPicking	(	int	pNbHits,
		unsigned int *	pSelectBuffer,
		FBCamera *	pCamera,
		int	pMouseX,
		int	pMouseY,
		FBTVector *	pLocalRaySrc,
		FBTVector *	pLocalRayDir,
		FBTVector *	pWorldRaySrc,
		FBTVector *	pWorldRayDir,
		FBMatrix *	pGlobalInverseMatrix,
		FBTVector *	pOutPickedPoint
	)			[inline, virtual]

Custom picking for selection.

Parameters:

	pNbHits	Number of hits.
	pSelectBuffer	OpenGL hit buffer.
	pCamera	Current camera for rendering.
	pMouseX	Mouse X position.
	pMouseY	Mouse Y position.
	pLocalRaySrc	Local picking ray source.
	pLocalRayDir	Local picking ray direction.
	pWorldRaySrc	World coordinate picking ray source.
	pWorldRayDir	World coordinate picking ray direction.
	pGlobalInverseMatrix	Inverse transformation matrix of the model.
	pOutPickedPoint	Picked position.

Definition at line 396 of file fbmodel.h.

unsigned char* GetSelectedPoints

(

)

Get the list of the points selection state.

Returns:

Pointer to the list of the points selection state.

int GetSelectedPointsCount

(

)

Get the number of selected points in the model.

Returns:

Number of selected points.

virtual bool FbxStore	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)			[virtual]

Store and Retrieve function that can be overloaded.

Parameters:

	pFbxObject	FBX Object that is used to communicate I/O operations.
	pStoreWhat	Which attributes are currently stored/retrieved.

Reimplemented from FBBox.

virtual bool FbxRetrieve	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)			[virtual]

Storage/Retrieval of information into the FBX file format.

Parameters:

	pFbxObject	Object to interface with FBX file format.
	pStoreWhat	Attributes to store in FBX file.

Returns:

true if successful.

Reimplemented from FBBox.

void SetupPropertiesForShapes

(

)

Setup Shape Properties.

Normally this function is called automatically at the next global synchronization point after the geometry has been updated. However you must call it explicitly to access the shape properties immediately after shapes adding/removing before next global synchronization point.

virtual char* FbxGetObjectType

(

)

[virtual]

Returns the class type inherited by the class of an object, for example: 'Model'.

Reimplemented from FBBox.

virtual char* FbxGetObjectSubType

(

)

[virtual]

Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'.

Reimplemented from FBBox.

---

Member Data Documentation

FBPropertyListModel Children

List: Children for model.

Definition at line 272 of file fbmodel.h.

FBPropertyListShader Shaders

List: Shaders for model.

Definition at line 274 of file fbmodel.h.

FBPropertyListMaterial Materials

List: Materials for model.

Definition at line 275 of file fbmodel.h.

FBPropertyListTexture Textures

List: Textures with Special UseType (Other than "Color" which should connect to materials).

Definition at line 276 of file fbmodel.h.

FBPropertyBool Icon3D

Read Write Property: Is model a 3D icon?

Definition at line 277 of file fbmodel.h.

FBPropertyBool SoftSelected

Read Write Property: Is model Soft selected?

Definition at line 278 of file fbmodel.h.

FBPropertyBool IsDeformable

Read Write Property: Is model deformable (weights)?

Definition at line 279 of file fbmodel.h.

FBPropertyBool IsConstrained

Read Only Property: Is model constrained?

Definition at line 280 of file fbmodel.h.

FBPropertyModel Parent

Read Write Property: Parent model.

Definition at line 281 of file fbmodel.h.

FBPropertyModel LookAt

Read Write Property: Look at model (interest point).

Definition at line 282 of file fbmodel.h.

FBPropertyModel UpVector

Read Write Property: UpVector model.

Definition at line 283 of file fbmodel.h.

FBPropertyGeometry Geometry

Read Write Property: Geometry for the model.

Definition at line 284 of file fbmodel.h.

FBPropertyMesh TessellatedMesh

Read Only Property: Tessellated Mesh for the model.

Definition at line 285 of file fbmodel.h.

FBPropertyModelVertexData ModelVertexData

Read Only Property: ModelVertexData for the model.

Definition at line 286 of file fbmodel.h.

FBPropertyCluster Cluster

Read Only Property: Link Cluster for the model.

Definition at line 287 of file fbmodel.h.

FBPropertyScene Scene

Read Only Property: Scene containing the model.

Definition at line 288 of file fbmodel.h.

FBPropertyModelShadingMode ShadingMode

Read Write Property: Shading mode for the model.

Definition at line 289 of file fbmodel.h.

FBPropertyAnimationNode AnimationNode

Read Only Property: Animation node of the model.

Definition at line 290 of file fbmodel.h.

FBPropertyModelRotationOrder RotationOrder

Read Write Property: Rotation order.

Definition at line 292 of file fbmodel.h.

FBPropertyBool RotationSpaceForLimitOnly

Read Write Property: Apply Post Rotation Matrix only for Limits?

Definition at line 295 of file fbmodel.h.

FBPropertyBool RotationActive

Read Write Property: Is model using Rotation Limits?

Definition at line 296 of file fbmodel.h.

FBPropertyVector3d PreRotation

Read Write Property: Pre Rotation (considered if RotationActive is true)

Definition at line 297 of file fbmodel.h.

FBPropertyVector3d PostRotation

Read Write Property: Post Rotation (considered if RotationActive is true)

Definition at line 298 of file fbmodel.h.

FBPropertyVector3d RotationMin

Read Write Property: Min Rotation Limit (considered if RotationActive is true)

Definition at line 299 of file fbmodel.h.

FBPropertyVector3d RotationMax

Read Write Property: Max Rotation Limit (considered if RotationActive is true)

Definition at line 300 of file fbmodel.h.

FBPropertyBool RotationMinX

Read Write Property: Is model using Minimum Rotation Limits On X?

Definition at line 301 of file fbmodel.h.

FBPropertyBool RotationMinY

Read Write Property: Is model using Minimum Rotation Limits On Y?

Definition at line 302 of file fbmodel.h.

FBPropertyBool RotationMinZ

Read Write Property: Is model using Minimum Rotation Limits On Z?

Definition at line 303 of file fbmodel.h.

FBPropertyBool RotationMaxX

Read Write Property: Is model using Maximum Rotation Limits On X?

Definition at line 304 of file fbmodel.h.

FBPropertyBool RotationMaxY

Read Write Property: Is model using Maximum Rotation Limits On Y?

Definition at line 305 of file fbmodel.h.

FBPropertyBool RotationMaxZ

Read Write Property: Is model using Maximum Rotation Limits On Z?

Definition at line 306 of file fbmodel.h.

FBPropertyAnimatableDouble Visibility

Read Write Property: Visibility of model. This can be overriden by the 'Show' property.

Definition at line 309 of file fbmodel.h.

FBPropertyAnimatableVector3d Translation

Read Write Property: Lcl translation.

Definition at line 310 of file fbmodel.h.

FBPropertyAnimatableVector3d Rotation

Read Write Property: Lcl rotation.

Definition at line 311 of file fbmodel.h.

FBPropertyAnimatableVector3d Scaling

Read Write Property: Lcl scaling.

Definition at line 312 of file fbmodel.h.

FBPropertyVector3d GeometricTranslation

Read Write Property: Geometric translation.

Definition at line 314 of file fbmodel.h.

FBPropertyVector3d GeometricRotation

Read Write Property: Geometric rotation.

Definition at line 315 of file fbmodel.h.

FBPropertyVector3d GeometricScaling

Read Write Property: Geometric scaling.

Definition at line 316 of file fbmodel.h.

FBPropertyBool QuaternionInterpolate

Read Write Property: Use quaternion interpolation.

Definition at line 318 of file fbmodel.h.

FBPropertyBool Show

Read Write Property: Indicate if the viewer should show the object, according to its visibility value. This has a default value of 'false'.

Definition at line 320 of file fbmodel.h.

FBPropertyBool Pickable

Read Write Property: Indicate if a model can be picked in the viewer. This has a default value of 'true'.

Definition at line 321 of file fbmodel.h.

---

Please send us your comments about this page.
