FBCharacterFace Class Reference

#include <fbcharacterface.h>

FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace FBCharacterFace

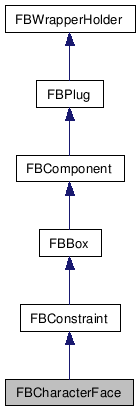

Inheritance diagram for FBCharacterFace:

[legend]

List of all members.

---

Detailed Description

Character class.

These classes are under development and may change dramatically between versions.

Definition at line 109 of file fbcharacterface.h.

Public Member Functions
	FBCharacterFace (char *pName, HIObject pObject=NULL)
	Constructor.
virtual bool	PlotAnimation ()
	Plot the animation of the character face.
virtual void	FBDelete ()
	Actual Character Face destructor.
void	GotoRest ()
	Set the character face back to its rest shape.
bool	ShapeGroupAdd (FBModelList *pList, char *pName=NULL)
	Add a blendshape model group containing models.
bool	ShapeGroupRemove (int pShapeGrpId)
	Remove a blendshape model group.
int	ShapeGroupFindByName (char *pName)
	Find a blendshape group by name.
int	ShapeGroupGetCount ()
	Retrieve the total number of blendshape groups on this character face.
char *	ShapeGroupGetName (int pShapeGrpId)
	Retrieve the name of a blendshape group.
bool	ShapeGroupSetName (int pShapeGrpId, char *pName)
	Set the name of a blendshape group.
int	ShapeFindByName (int pShapeGrpId, char *pName)
	Find a shape in a blendshape group by name.
int	ShapeGetCount (int pShapeGrpId)
	Retrieve the total number of shapes in a blendshape group.
char *	ShapeGetName (int pShapeGrpId, int pShapeId)
	Retrieve the name of the shape in a blendshape group.
bool	ShapeSetName (int pShapeGrpId, int pShapeId, char *pName)
	Set the name of the shape in a blendshape group.
int	ClusterGroupAdd (FBModelList *pList, char *pName=NULL)
	Add a cluster group to the character face.
bool	ClusterGroupRemove (int pClusterGrpId)
	Remove a cluster group from the character face.
int	ClusterGroupFindByName (char *pName)
	Find a cluster group by name.
int	ClusterGroupGetCount ()
	Retrieve the total number of cluster groups.
char *	ClusterGroupGetName (int pClusterGrpId)
	Retrieve the name of a cluster group.
bool	ClusterGroupSetName (int pClusterGrpId, char *pName)
	Set the name of a cluster group.
bool	ClusterGroupSnapRest (int pClusterGrpId)
	Set a cluster group's rest pose to the current pose.
int	ClusterShapeAdd (int pClusterGrpId, char *pName=NULL)
	Add a cluster shape to a cluster group.
bool	ClusterShapeRemove (int pClusterGrpId, int pClusterShapeId)
	Remove a cluster shape from a cluster group.
int	ClusterShapeFindByName (int pClusterGrpId, char *pName)
	Find a cluster shape in a cluster group by name.
int	ClusterShapeGetCount (int pClusterGrpId)
	Retrieve the total number of shapes in a cluster group.
char *	ClusterShapeGetName (int pClusterGrpId, int pClusterShapeId)
	Retrieve the name of a shape in a cluster group.
bool	ClusterShapeSetName (int pClusterGrpId, int pClusterShapeId, char *pName)
	Set the name of a shape in a cluster group.
bool	ClusterShapeSnap (int pClusterGrpId, int pClusterShapeId)
	Record the current pose of the cluster group to a cluster shape.
int	ExpressionAdd (char *pName)
	Add an expression to the face.
bool	ExpressionRemove (int pExpressionId)
	Remove an expression from the face.
int	ExpressionFindByName (char *pName)
	Find an expression on the face by name.
int	ExpressionGetCount ()
	Retrieve the total number of expressions on the face.
char *	ExpressionGetName (int pExpressionId)
	Retrieve the name of an expression.
bool	ExpressionSetName (int pExpressionId, char *pName)
	Set the name of an expression.
bool	ExpressionSetShapeWeight (int pExpressionId, int pGrpId, int pShapeId, float pValue=0.0f)
	Assign the weight of a shape to an expression.
Public Attributes
FBPropertyActorFace	InputActorFace
	Read Write Property: The index of the actor used for the input.
FBPropertyBool	ActiveInput
	Read Write Property: Is the character input active?

---

Constructor & Destructor Documentation

FBCharacterFace	(	char *	pName,
		HIObject	pObject = NULL
	)

Constructor.

Parameters:

	pName	Name of new character.
	pObject	For internal use only. This parameter does not need to be specified by the developer.

---

Member Function Documentation

virtual bool PlotAnimation

(

)

[virtual]

Plot the animation of the character face.

Returns:

True if the operation completed successfully.

virtual void FBDelete

(

)

[virtual]

Actual Character Face destructor.

This method is used to delete the actual character face object represented by an instance of FBCharacterFace.

Reimplemented from FBComponent.

void GotoRest

(

)

Set the character face back to its rest shape.

bool ShapeGroupAdd	(	FBModelList *	pList,
		char *	pName = NULL
	)

Add a blendshape model group containing models.

Parameters:

	pList	List of models to be associated with this blendshape group.
	pName	Optional name for this model group.

Returns:

True if the operation completed successfully.

bool ShapeGroupRemove

(

int

pShapeGrpId

)

Remove a blendshape model group.

Parameters:

pShapeGrpId

Index of the blendshape group to remove.

Returns:

True if the operation completed successfully.

int ShapeGroupFindByName

(

char *

pName

)

Find a blendshape group by name.

Parameters:

pName

Name to search for.

Returns:

Index of the blendshape group, -1 if not found.

int ShapeGroupGetCount

(

)

Retrieve the total number of blendshape groups on this character face.

Returns:

Number of blendshape groups on this character face.

char* ShapeGroupGetName

(

int

pShapeGrpId

)

Retrieve the name of a blendshape group.

Parameters:

pShapeGrpId

Index of the blendshape group to query.

Returns:

Name of the blendshape group.

bool ShapeGroupSetName	(	int	pShapeGrpId,
		char *	pName
	)

Set the name of a blendshape group.

Parameters:

	pShapeGrpId	Index of the blendshape group to modify.
	pName	Name to set on the blendshape group.

Returns:

True if the operation completed successfully.

int ShapeFindByName	(	int	pShapeGrpId,
		char *	pName
	)

Find a shape in a blendshape group by name.

Parameters:

	pShapeGrpId	Index of the blendshape group to search.
	pName	Name to search for.

Returns:

Index of the shape, -1 if not found.

int ShapeGetCount

(

int

pShapeGrpId

)

Retrieve the total number of shapes in a blendshape group.

Parameters:

pShapeGrpId

Index of the blendshape group to query.

Returns:

Number of shapes in the specified blendshape group.

char* ShapeGetName	(	int	pShapeGrpId,
		int	pShapeId
	)

Retrieve the name of the shape in a blendshape group.

Parameters:

	pShapeGrpId	Index of the blendshape group to query.
	pShapeId	Index of the shape in the blendshape group to query.

Returns:

Name of the specified shape.

bool ShapeSetName	(	int	pShapeGrpId,
		int	pShapeId,
		char *	pName
	)

Set the name of the shape in a blendshape group.

Parameters:

	pShapeGrpId	Index of the blendshape group to query.
	pShapeId	Index of the shape in the blendshape group to set.
	pName	Name to set on the shape.

Returns:

True if the operation completed successfully.

int ClusterGroupAdd	(	FBModelList *	pList,
		char *	pName = NULL
	)

Add a cluster group to the character face.

Parameters:

	pList	List of clusters to add to this group.
	pName	Optional name to assign to this cluster group.

Returns:

Index of the new cluster group -1 if the operation failed to complete.

bool ClusterGroupRemove

(

int

pClusterGrpId

)

Remove a cluster group from the character face.

Parameters:

pClusterGrpId

Index of the cluster group to remove.

Returns:

True if the operation completed successfully.

int ClusterGroupFindByName

(

char *

pName

)

Find a cluster group by name.

Parameters:

pName

Name to search for on the face.

Returns:

Index of the matching cluster group. -1 if not found.

int ClusterGroupGetCount

(

)

Retrieve the total number of cluster groups.

Returns:

Number of cluster groups on the face.

char* ClusterGroupGetName

(

int

pClusterGrpId

)

Retrieve the name of a cluster group.

Parameters:

pClusterGrpId

Index of the cluster group to query.

Returns:

Name of the specified cluster group.

bool ClusterGroupSetName	(	int	pClusterGrpId,
		char *	pName
	)

Set the name of a cluster group.

Parameters:

	pClusterGrpId	Index of the cluster group to modify.
	pName	New name for the cluster group.

Returns:

True of the operation completed successfully.

bool ClusterGroupSnapRest

(

int

pClusterGrpId

)

Set a cluster group's rest pose to the current pose.

Parameters:

pClusterGrpId

Index of the cluster group to modify.

Returns:

True if the operation completed succesfully.

int ClusterShapeAdd	(	int	pClusterGrpId,
		char *	pName = NULL
	)

Add a cluster shape to a cluster group.

Parameters:

	pClusterGrpId	Index of the cluster group to modify.
	pName	Optional name to assign to the shape.

Returns:

Index of the new shape. -1 if the operation failed to complete.

bool ClusterShapeRemove	(	int	pClusterGrpId,
		int	pClusterShapeId
	)

Remove a cluster shape from a cluster group.

Parameters:

	pClusterGrpId	Index of the cluster group to modify.
	pClusterShapeId	Index of the shape in the cluster group to remove.

Returns:

True of the operation completed succesfully.

int ClusterShapeFindByName	(	int	pClusterGrpId,
		char *	pName
	)

Find a cluster shape in a cluster group by name.

Parameters:

	pClusterGrpId	Index of the cluster group to search.
	pName	Name to search for in the cluster group.

Returns:

Index of the matching shape. -1 if not found.

int ClusterShapeGetCount

(

int

pClusterGrpId

)

Retrieve the total number of shapes in a cluster group.

Parameters:

pClusterGrpId

Index of the cluster group to query.

Returns:

Number of shapes in the specified cluster group.

char* ClusterShapeGetName	(	int	pClusterGrpId,
		int	pClusterShapeId
	)

Retrieve the name of a shape in a cluster group.

Parameters:

	pClusterGrpId	Index of the cluster group to query.
	pClusterShapeId	Index of the cluster shape to query.

Returns:

Name of the specified shape.

bool ClusterShapeSetName	(	int	pClusterGrpId,
		int	pClusterShapeId,
		char *	pName
	)

Set the name of a shape in a cluster group.

Parameters:

	pClusterGrpId	Index of the cluster group to modify.
	pClusterShapeId	Index of the cluster shape to modify.
	pName	Name to assign to the cluster shape.

Returns:

True if the operation completed successfully.

bool ClusterShapeSnap	(	int	pClusterGrpId,
		int	pClusterShapeId
	)

Record the current pose of the cluster group to a cluster shape.

Parameters:

	pClusterGrpId	Index of the cluster group to record.
	pClusterShapeId	Index of the cluster shape to record the pose.

Returns:

True if the operation completed successfully.

int ExpressionAdd

(

char *

pName

)

Add an expression to the face.

Parameters:

pName

Optional name to assign to the new expression.

Returns:

Index of the new expression. -1 if the operation failed to complete.

bool ExpressionRemove

(

int

pExpressionId

)

Remove an expression from the face.

Parameters:

pExpressionId

Index of the expression to remove.

Returns:

True if the operation completed successfully.

int ExpressionFindByName

(

char *

pName

)

Find an expression on the face by name.

Parameters:

pName

Name of the expression to search for.

Returns:

Index of the matching expression. -1 if not found.

int ExpressionGetCount

(

)

Retrieve the total number of expressions on the face.

Returns:

Number of expressions on the face.

char* ExpressionGetName

(

int

pExpressionId

)

Retrieve the name of an expression.

Parameters:

pExpressionId

Index of the expression to query.

Returns:

Name of the specified expression.

bool ExpressionSetName	(	int	pExpressionId,
		char *	pName
	)

Set the name of an expression.

Parameters:

	pExpressionId	Index of the expression to modify.
	pName	Name to assign to the expression.

Returns:

True if the operation completed successfully.

bool ExpressionSetShapeWeight	(	int	pExpressionId,
		int	pGrpId,
		int	pShapeId,
		float	pValue = 0.0f
	)

Assign the weight of a shape to an expression.

Parameters:

	pExpressionId	Index of the expression to modify.
	pGrpId	Index of the blendshape or cluster group containing the shape of interest.
	pShapeId	Index of the blendshape or cluster shape to weight.
	pValue	Weight of the shape to assign to this expression. Valid range of [0.0, 1.0].

Returns:

True if the operation completed successfully.

---

Member Data Documentation

FBPropertyActorFace InputActorFace

Read Write Property: The index of the actor used for the input.

Definition at line 123 of file fbcharacterface.h.

FBPropertyBool ActiveInput

Read Write Property: Is the character input active?

Definition at line 124 of file fbcharacterface.h.

---

Please send us your comments about this page.
