fbcontrols.h File Reference

Detailed Description

Contains the user interface components for the SDK.

All of the user interface elements available for use with the SDK are defined in this file. These elements (for the most part) derive from the FBVisualComponent base class and provide the functionality required to develop an interface for a plugin.

Definition in file fbcontrols.h.

#include <kaydaradef.h>
#include <fbsdk/fbcomponent.h>

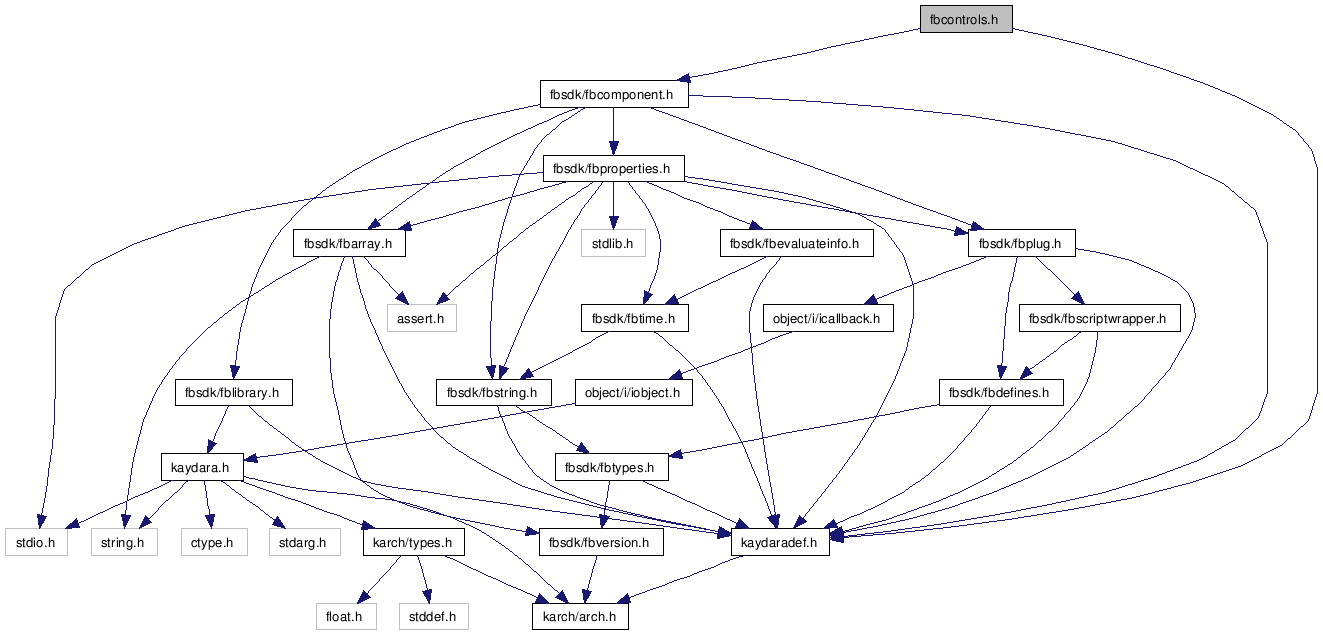

Include dependency graph for fbcontrols.h:

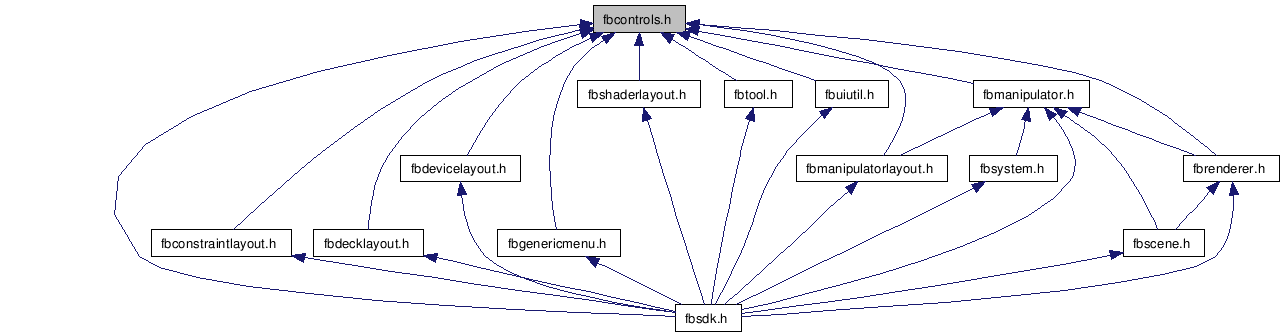

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


Classes
class	FBVisualComponent
	Visual Component base class. More...
struct	FBVisualComponent::__Region
	Region information structure. More...
struct	FBVisualComponent::__Region::__Ratio
	Structure for attachment ratio. More...
struct	FBVisualComponent::__Region::__AttachType
	Structure for attachment types. More...
struct	FBVisualComponent::__Region::__AttachTo
	Structure for attachment components. More...
struct	FBVisualComponent::__Region::__Pos
	Structure for absolute positions. More...
struct	FBVisualComponent::__Border
	Border information structure. More...
class	FBEventInput
	Input event class. More...
class	FBEventTransaction
	Transaction event. More...
class	FBEventDragAndDrop
	Drag and drop interface. More...
class	FBEventShow
	Show event class. More...
class	FBEventActivate
	Activation event. More...
class	FBEventExpose
	Event sent when a control needs to be displayed. More...
class	FBEventResize
	Event sent to a control that resizes. More...
class	FBEventMenu
	Menu event. More...
class	FBMenuItem
	Menu Item. More...
class	FBLayout
	Used to build the user interface. More...
class	FBTabPanel
	Tab panel. More...
class	FBButton
	Used to create and manage buttons in a user interface. More...
class	FBArrowButton
	Arrow Button. More...
class	FBScrollBox
	Scroll Box. More...
class	FBLabel
	Text label. More...
class	FBImageContainer
	Image. More...
class	FBEdit
	Text edit box. More...
class	FBEditNumber
	Number edit box. More...
class	FBEditColor
	Color edit widget. More...
class	FBEditVector
	Vector edit widget. More...
class	FBEventDblClick
	Input event class. More...
class	FBList
	List of items. More...
class	FBSlider
	Slider. More...
class	FBLayoutRegion
	Layout region. More...
class	FBThermometer
	Thermometer. More...
class	FBSpreadPart
	Spreadsheet part. More...
class	FBSpreadCell
	Spreadsheet cell. More...
class	FBSpreadRow
	Spreadsheet row. More...
class	FBSpreadColumn
	Spreadsheet column. More...
class	FBSpread
	Base spreadsheet class. More...
class	FBEventSpread
	Spreadsheet event. More...
class	FBContainer
	Container. More...
class	FBTimeCode
class	FBEventTree
	FBTree node event. More...
class	FBEventTreeSelect
	FBTree selection event. More...
class	FBTreeNode
	A node in the tree view. More...
class	FBTree
	Tree list view. More...
class	FBView
	Generic view. More...
class	FBProgress
	Progress bar. More...
class	FBPopup
	Popup window. More...
class	FBFilePopup
	File Popup (for open/save). More...
class	FBFolderPopup
	Folder Popup (for selecting a directory). More...
class	FBMemo
	Multi-line text input. More...
class	FBFCurveEditor
	FCurve editor. More...
class	FBPropertyConnectionEditor
	Property Connection Editor. More...
class	FBEditProperty
	Property editor widget. More...
class	FBEditPropertyModern
	Property editor widget. More...
class	FBBrowsingProperty
	Property browsing. More...
class	FBWidgetHolder
	Native Widget Holder (can be used to embed QWidget on Qt). More...
class	FBPlotPopup
	Plot Popup (for setting options only). More...
Defines
#define	FBSDK_DLL K_DLLEXPORT
	FBSDKDLL_ K_DLLEXPORT.
#define	SPLIT_WIDTH 10
	SPLIT_WIDTH.
#define	FBRegisterControl(ClassName, Path, Label, Description, IconFilename)
	Register a control.
#define	FBMenuItemDeclare(ClassName, Parent)
	Menu Item class declaration.
#define	FBMenuItemImplementation(ThisComponent) FBClassImplementation( ThisComponent )
	Menu item class implementation.
#define	FBRegisterMenuItem(ClassName)
	Menu item registration.
#define	FBMenuItemActivation(ClassName)
	Menu item activation.
#define	FBMenuItemHandle(ClassName, Handle)
	Get the handle of a menu item.
Enumerations
enum	FBOrientation { kFBHorizontal, kFBVertical }
	General directions for UI components. More...
enum	FBInputType { kFBKeyPress, kFBKeyRelease, kFBButtonPress, kFBButtonRelease, kFBMotionNotify, kFBButtonDoubleClick, kFBMouseEnter, kFBMouseLeave, kFBMouseWheelNotify, kFBDragging, kFBDropping, kFBKeyPressRaw, kFBKeyReleaseRaw, kFBUnknownInput }
	Types of input events. More...
enum	FBInputModifier { kFBKeyNone = 0, kFBKeyShift = 1 << 0, kFBKeyCtrl = 1 << 1, kFBKeyAlt = 1 << 2 }
	Input Modifiers (Ctrl, Alt, Shift). More...
enum	FBInputKey { kFBKeyReturn = 0x0D, kFBKeyBackSpace = 0x08, kFBKeyTab = 0x09, kFBKeyEscape = 0x1B, kFBKeyPageUp = 0x121, kFBKeyPageDown = 0x122, kFBKeyEnd = 0x123, kFBKeyHome = 0x124, kFBKeyLeft = 0x125, kFBKeyUp = 0x126, kFBKeyRight = 0x127, kFBKeyDown = 0x128, kFBKeyIns = 0x12D, kFBKeyDel = 0x12E, kFBKeyF1 = 0x170, kFBKeyF2 = 0x171, kFBKeyF3 = 0x172, kFBKeyF4 = 0x173, kFBKeyF5 = 0x174, kFBKeyF6 = 0x175, kFBKeyF7 = 0x176, kFBKeyF8 = 0x177, kFBKeyF9 = 0x178, kFBKeyF10 = 0x179, kFBKeyF11 = 0x17A, kFBKeyF12 = 0x17B }
	Keyboard inputs. More...
enum	FBColorIndex { kFBColorIndexBackground, kFBColorIndexBackground1, kFBColorIndexForeground, kFBColorIndexForeground1, kFBColorIndexForeground2, kFBColorIndexAlternate1, kFBColorIndexAlternate2, kFBColorIndexHighlight, kFBColorIndexShadow, kFBColorIndexWhite, kFBColorIndexBlack, kFBColorIndexLtGray, kFBColorIndexGray, kFBColorIndexDkGray, kFBColorIndexRed, kFBColorIndexGreen, kFBColorIndexBlue, kFBColorIndexStdButton1, kFBColorIndexStdButton2, kFBColorIndexFlatButtonActive1, kFBColorIndexFlatButtonActive2, kFBColorIndexFlatButtonPassive1, kFBColorIndexFlatButtonPassive2, kFBColorIndexStdCheckboxClear1, kFBColorIndexStdCheckboxClear2, kFBColorIndexStdCheckboxAmbig1, kFBColorIndexStdCheckboxAmbig2, kFBColorIndexStdCheckboxDisabled1, kFBColorIndexStdCheckboxDisabled2, kFBColorIndexStdField1, kFBColorIndexStdField2, kFBColorIndexStdScrollActive1, kFBColorIndexStdScrollActive2, kFBColorIndexStdScrollPassive1, kFBColorIndexStdScrollPassive2, kFBColorIndexStdScrollCursor, kFBColorIndexStdListBg1, kFBColorIndexStdListBgSelected1, kFBColorIndexStdListBgSelected2, kFBColorIndexStdListBgFocusSelected1, kFBColorIndexStdListText, kFBColorIndexStdListTextSelected, kFBColorIndexStdListTextDragover, kFBColorIndexStdListLine, kFBColorIndexStdTabActive1, kFBColorIndexStdTabActive2, kFBColorIndexStdTabPassive1, kFBColorIndexStdTabPassive2, kFBColorIndexFlatTabBg1, kFBColorIndexFlatTabTextSelected, kFBColorIndexDisabled1, kFBColorIndexDisabled2, kFBColorIndexSelected, kFBColorIndexTimelineOutside, kFBColorIndexTimelineOutside1, kFBColorIndexTimelineCenter, kFBColorIndexTimelineCenter1, kFBColorIndexTimelineCenter2, kFBColorIndexTimelineShadow, kFBColorIndexTimelineHighlight, kFBColorIndexTimelineManipulator, kFBColorIndexStdListBgFocusSelected2, kFBColorIndexTreeBgTitle, kFBColorIndexTreeBgSubtitle, kFBColorIndexTreeBgSubtitleLine, kFBColorIndexTreeBgNode, kFBColorIndexTreeEditboxBg, kFBColorIndexTreeSplitter, kFBColorIndexTreeKeyingGroup, kFBColorIndexTreeOddRow, kFBColorIndexTreeSelect, kFBColorIndexTreeKeyingSelect, kFBColorIndexDkGreen, kFBColorIndexSize }
	FBColor. More...
enum	FBAttachType { kFBAttachLeft, kFBAttachRight, kFBAttachTop, kFBAttachBottom, kFBAttachWidth, kFBAttachHeight, kFBAttachCenter, kFBAttachNone }
	Types of attachments between UI regions. More...
enum	FBBorderStyle { kFBNoBorder, kFBStandardBorder, kFBEmbossBorder, kFBEmbossSmoothBorder, kFBEmbossEdgeSmoothBorder, kFBEmbossSmoothEdgeBorder, kFBStandardSmoothBorder, kFBStandardEdgeSmoothBorder, kFBStandardSmoothEdgeBorder, kFBHighlightBorder, kFBPickingBorder }
	Different border types available. More...
enum	FBDragAndDropState { kFBDragAndDropBegin, kFBDragAndDropDrag, kFBDragAndDropDrop, kFBDragAndDropEnd, kFBDragOnEmpty, kFBDragOnEmptyDrop }
	State of Drag and Drop. More...
enum	FBMenuItemType { kFBMenuItemMotionImport, kFBMenuItemSceneImport, kFBMenuItemMotionExport, kFBMenuItemSceneExport }
	Types of menu items available. More...
enum	FBButtonStyle { kFBPushButton, kFBBitmapButton, kFBRadioButton, kFB2States, kFBCheckbox = kFB2States, kFBBitmap2States }
	Style of buttons. More...
enum	FBButtonState { kFBButtonState0, kFBButtonState1 }
	Possible button states. More...
enum	FBTextJustify { kFBTextJustifyLeft, kFBTextJustifyRight, kFBTextJustifyCenter }
	Text justification styles. More...
enum	FBTextStyle { kFBTextStyleNone = 0, kFBTextStyleBold = 1 << 0, kFBTextStyleItalic = 1 << 1, kFBTextStyleUnderlined = 1 << 2 }
	Text appearance styles. More...
enum	FBButtonLook { kFBLookNormal, kFBLookColorChange, kFBLookPush, kFBLookFlat, kFBLookAlphaBackground = 99 }
	Button look. More...
enum	FBListStyle { kFBDropDownList, kFBVerticalList }
	List style or direction. More...
enum	FBCellStyle { kFBCellStyleDefault, kFBCellStyleString, kFBCellStyleDouble, kFBCellStyleInteger, kFBCellStyleButton, kFBCellStyle2StatesButton, kFBCellStyle3StatesButton, kFBCellStyleMenu, kFBCellStyleVoid, kFBCellStyleView, kFBCellStyleTime }
	Different styles of spreadsheet cell styles. More...
enum	FBIconPosition { kFBIconLeft, kFBIconTop }
	Different icon positions possible. More...
enum	FBEventTreeWhy { kFBEventTreeExpand, kFBEventTreeCollapse, kFBEventTreeHideNode, kFBEventTreeUnhideNode }
	Tree node different event type. More...
enum	FBFilePopupStyle { kFBFilePopupOpen, kFBFilePopupSave }
	Different types of file popup windows. More...
enum	FBPopupInputType { kFBPopupBool, kFBPopupChar, kFBPopupString, kFBPopupInt, kFBPopupFloat, kFBPopupDouble, kFBPopupPassword }
	User input types for a popup. More...
Functions
K_DLLEXPORT int	FBMessageBox (char pBoxTitle, char pMessage, char pButton1Str, char pButton2Str=NULL, char *pButton3Str=NULL, int pDefaultButton=0, int pScrolledMessage=0)
	Dialog popup box.
K_DLLEXPORT int	FBMessageBoxWithCheck (char pBoxTitle, char pMessage, char pButton1Str, char pButton2Str, char pButton3Str, char pCheckBoxStr, bool &pCheckBoxValue, int pDefaultButton=0, int pScrolledMessage=0)
	Dialog popup box with a check box.
K_DLLEXPORT int	FBMessageBoxGetUserValue (char pBoxTitle, char pMessage, void pValue, FBPopupInputType pValueType, char pButton1Str, char pButton2Str=NULL, char pButton3Str=NULL, int pDefaultButton=0, bool pLastButtonCancel=true)
	Dialog popup box to get user input.

Define Documentation

#define FBMenuItemActivation ( ClassName )

Value:

extern ClassName* g##ClassName;         \
    g##ClassName = new ClassName;           \
    g##ClassName->Activate();

Menu item activation.

Parameters:

ClassName

Menu item class to activate.

Definition at line 644 of file fbcontrols.h.

#define FBMenuItemDeclare	(	ClassName,
		Parent		)

Value:

FBClassDeclare( ClassName,Parent ); \
    public: \
        ClassName():Parent() { FBClassInit; FBCreate(); } \
    private:

Menu Item class declaration.

Parameters:

	ClassName	Name of menu item class to declare.
	Parent	Name of menu item class's parent class.

Definition at line 616 of file fbcontrols.h.

#define FBMenuItemHandle	(	ClassName,
		Handle		)

Value:

extern ClassName* g##ClassName;             \
    Handle = g##ClassName;

Get the handle of a menu item.

Parameters:

ClassName

Menu item class to get a handle for.

Return values:

Handle

Handle to the menu item.

Definition at line 653 of file fbcontrols.h.

#define FBMenuItemImplementation ( ThisComponent ) FBClassImplementation( ThisComponent )

Menu item class implementation.

Parameters:

ThisComponent

Menu item class to implement.

Definition at line 625 of file fbcontrols.h.

#define FBRegisterControl	(	ClassName,
		Path,
		Label,
		Description,
		IconFilename	)

Value:

HIObject RegisterControl##ClassName( HIObject /*pOwner*/,char * /*pName*/,void * /*pData*/) \
    {\
        ClassName *Class = new ClassName; \
        return Class->GetHIObject(); \
    } \
    FBLibraryModule( ClassName )\
    {\
        FBRegisterObject( ClassName,Path,Label,Description,RegisterControl##ClassName, true, IconFilename );\
        FBRegisterObject( ClassName##1,"FBSDK",Label,Description,RegisterControl##ClassName, true, IconFilename );\
    }

Parameters:

	ClassName	Control class name to register.
	Path	Internal path to store control.
	Label	Short description of control.
	Description	Long description of control.
	IconFilename	Filename of associated icon.

Warning:: The application path to specify is not a directory structure path.

Definition at line 84 of file fbcontrols.h.

#define FBRegisterMenuItem ( ClassName )

Value:

HIObject RegisterMenuItem##ClassName( HIObject /*pOwner*/,char * /*pName*/,void * /*pData*/) \
    {\
        return NULL;\
    }\
    FBLibraryModule( ClassName )    \
    {   \
    }   \
    ClassName* g##ClassName;

Menu item registration.

Parameters:

ClassName

Menu item class to register.

Definition at line 631 of file fbcontrols.h.

#define FBSDK_DLL K_DLLEXPORT

FBSDKDLL_ K_DLLEXPORT.

Definition at line 50 of file fbcontrols.h.

#define SPLIT_WIDTH 10

SPLIT_WIDTH.

Definition at line 74 of file fbcontrols.h.

Enumeration Type Documentation

enum FBAttachType

Types of attachments between UI regions.

Enumerator:

kFBAttachLeft	Attach to left [min(x1,x2)].
kFBAttachRight	Attach to right [max(x1,x2)].
kFBAttachTop	Attach to top [min(y1,y2)].
kFBAttachBottom	Attach to bottom [max(y1,y2)].
kFBAttachWidth	Attach to width [abs(x2-x1)].
kFBAttachHeight	Attach to height [abs(y2-y1)].
kFBAttachCenter	Attach to center [center(x1,y1,x2,y2)].
kFBAttachNone	No attachment.

Definition at line 273 of file fbcontrols.h.

enum FBBorderStyle

Different border types available.

Enumerator:

kFBNoBorder	No border.
kFBStandardBorder	Standard border.
kFBEmbossBorder	Embossed border.
kFBEmbossSmoothBorder	Smooth border.
kFBEmbossEdgeSmoothBorder	Edged smooth border.
kFBEmbossSmoothEdgeBorder	Smoothed edges border.
kFBStandardSmoothBorder	Standard smooth border.
kFBStandardEdgeSmoothBorder	Standard edged smooth border.
kFBStandardSmoothEdgeBorder	Standard smoothed edges border.
kFBHighlightBorder	Highlight border.
kFBPickingBorder	Picking border.

Definition at line 286 of file fbcontrols.h.

enum FBButtonLook

Button look.

Enumerator:

kFBLookNormal
kFBLookColorChange
kFBLookPush
kFBLookFlat
kFBLookAlphaBackground

Definition at line 1033 of file fbcontrols.h.

enum FBButtonState

Possible button states.

Currently, only two button states are possible.

Enumerator:

kFBButtonState0	State is 0, usually meaning not active.
kFBButtonState1	State is 1, usually meaning active.

Definition at line 1006 of file fbcontrols.h.

enum FBButtonStyle

Style of buttons.

Warning:: Not all button styles are completely functional.

Enumerator:

kFBPushButton	Normal button.
kFBBitmapButton	Button with bitmap on it.
kFBRadioButton	Radio button.
kFB2States	2 state button (2 colors).
kFBCheckbox	Check box.
kFBBitmap2States	2 state button with 2 bitmaps.

Definition at line 994 of file fbcontrols.h.

enum FBCellStyle

Different styles of spreadsheet cell styles.

Enumerator:

kFBCellStyleDefault	Default cell style.
kFBCellStyleString	String.
kFBCellStyleDouble	Double.
kFBCellStyleInteger	Integer.
kFBCellStyleButton	Button.
kFBCellStyle2StatesButton	2 state button.
kFBCellStyle3StatesButton	3 state button.
kFBCellStyleMenu	Menu.
kFBCellStyleVoid	Void (no value).
kFBCellStyleView	View (user definable, you need to specify the view using FBSpread::SetCellView()).
kFBCellStyleTime	Time.

Definition at line 1398 of file fbcontrols.h.

enum FBColorIndex

FBColor.

Enumerator:

kFBColorIndexBackground	Background color.
kFBColorIndexBackground1	Background 1 color.
kFBColorIndexForeground	Foreground color.
kFBColorIndexForeground1	Foreground 1 color.
kFBColorIndexForeground2	Foreground 2 color.
kFBColorIndexAlternate1	Alternate 1 color.
kFBColorIndexAlternate2	Alternate 2 color.
kFBColorIndexHighlight	Highlight color.
kFBColorIndexShadow	Shadow color.
kFBColorIndexWhite	White color.
kFBColorIndexBlack	Black color.
kFBColorIndexLtGray	Light Gray color.
kFBColorIndexGray	Gray color.
kFBColorIndexDkGray	Dark Gray color.
kFBColorIndexRed	Red color.
kFBColorIndexGreen	Green color.
kFBColorIndexBlue	Blue color.
kFBColorIndexStdButton1	Standard Button 1 color.
kFBColorIndexStdButton2	Standard Button 2 color.
kFBColorIndexFlatButtonActive1	Flat Button Active 1 color.
kFBColorIndexFlatButtonActive2	Flat Button Active 2 color.
kFBColorIndexFlatButtonPassive1	Flat Button Passive 1 color.
kFBColorIndexFlatButtonPassive2	Flat Button Passive 2 color.
kFBColorIndexStdCheckboxClear1	Standard Checkbox Clear 1 color.
kFBColorIndexStdCheckboxClear2	Standard Checkbox Clear 2 color.
kFBColorIndexStdCheckboxAmbig1	Standard Checkbox Ambig 1 color.
kFBColorIndexStdCheckboxAmbig2	Standard Checkbox Ambig 2 color.
kFBColorIndexStdCheckboxDisabled1	Standard Checkbox Disabled 1 color.
kFBColorIndexStdCheckboxDisabled2	Standard Checkbox Disabled 2 color.
kFBColorIndexStdField1	Standard Field 1 color.
kFBColorIndexStdField2	Standard Field 2 color.
kFBColorIndexStdScrollActive1	Standard Scroll Active 1 color.
kFBColorIndexStdScrollActive2	Standard Scroll Active 2 color.
kFBColorIndexStdScrollPassive1	Standard Scroll Passive 1 color.
kFBColorIndexStdScrollPassive2	Standard Scroll Passive 2 color.
kFBColorIndexStdScrollCursor	Standard Scroll Cursor color.
kFBColorIndexStdListBg1	Standard List Background 1 color.
kFBColorIndexStdListBgSelected1	Standard List Background Selected 1 color.
kFBColorIndexStdListBgSelected2	Standard List Background Selected 2 color.
kFBColorIndexStdListBgFocusSelected1	Standard List Background Focus Selected 1 color.
kFBColorIndexStdListText	Standard List Text color.
kFBColorIndexStdListTextSelected	Standard List Text Selected color.
kFBColorIndexStdListTextDragover	Standard List Text Dragover color.
kFBColorIndexStdListLine	Standard List Line color.
kFBColorIndexStdTabActive1	Standard Tab Active 1 color.
kFBColorIndexStdTabActive2	Standard Tab Active 1 color.
kFBColorIndexStdTabPassive1	Standard Tab Passive 1 color.
kFBColorIndexStdTabPassive2	Standard Tab Passive 1 color.
kFBColorIndexFlatTabBg1	Flat Tab Background 1 color.
kFBColorIndexFlatTabTextSelected	Flat Tab Text Selected color.
kFBColorIndexDisabled1	Disabled 1 color.
kFBColorIndexDisabled2	Disabled 2 color.
kFBColorIndexSelected	Selected color.
kFBColorIndexTimelineOutside	Timeline Outside color.
kFBColorIndexTimelineOutside1	Timeline Outside 1 color.
kFBColorIndexTimelineCenter	Timeline Center color.
kFBColorIndexTimelineCenter1	Timeline Center 1 color.
kFBColorIndexTimelineCenter2	Timeline Center 2 color.
kFBColorIndexTimelineShadow	Timeline Shadow color.
kFBColorIndexTimelineHighlight	Timeline Highlight color.
kFBColorIndexTimelineManipulator	Timeline Manipulator color.
kFBColorIndexStdListBgFocusSelected2
kFBColorIndexTreeBgTitle	Tree Background Title color.
kFBColorIndexTreeBgSubtitle	Tree Background Subtitle color.
kFBColorIndexTreeBgSubtitleLine	Tree Background SubtitleLine color.
kFBColorIndexTreeBgNode	Tree Background Node color.
kFBColorIndexTreeEditboxBg	Tree Editbox Background color.
kFBColorIndexTreeSplitter	Tree Splitter color.
kFBColorIndexTreeKeyingGroup	Tree Keying Group color.
kFBColorIndexTreeOddRow	Tree Odd Row color.
kFBColorIndexTreeSelect	Tree Select color.
kFBColorIndexTreeKeyingSelect	Tree Keying Select color.
kFBColorIndexDkGreen	Dark Green color.
kFBColorIndexSize	Color Index Size color.

Definition at line 178 of file fbcontrols.h.

enum FBDragAndDropState

State of Drag and Drop.

Enumerator:

kFBDragAndDropBegin	Begin a drag and drop sequence.
kFBDragAndDropDrag	Dragging.
kFBDragAndDropDrop	Dropping.
kFBDragAndDropEnd	End of drag and drop.
kFBDragOnEmpty	Empty the drag and drop stack.
kFBDragOnEmptyDrop	Dropping empty stack.

Definition at line 484 of file fbcontrols.h.

enum FBEventTreeWhy

Tree node different event type.

Enumerator:

kFBEventTreeExpand
kFBEventTreeCollapse
kFBEventTreeHideNode
kFBEventTreeUnhideNode

Definition at line 1725 of file fbcontrols.h.

enum FBFilePopupStyle

Different types of file popup windows.

Enumerator:

kFBFilePopupOpen	Open file popup (Shows 'Open Directory').
kFBFilePopupSave	Save file popup (Shows 'Save Directory').

Definition at line 1948 of file fbcontrols.h.

enum FBIconPosition

Different icon positions possible.

Enumerator:

kFBIconLeft	Icon on left of text.
kFBIconTop	Icon on top of text.

Definition at line 1641 of file fbcontrols.h.

enum FBInputKey

Keyboard inputs.

Enumerator:

kFBKeyReturn	Return.
kFBKeyBackSpace	Backspace.
kFBKeyTab	Tab.
kFBKeyEscape	Escape.
kFBKeyPageUp	Page Up.
kFBKeyPageDown	Page Down.
kFBKeyEnd	End.
kFBKeyHome	Home.
kFBKeyLeft	Left.
kFBKeyUp	Up.
kFBKeyRight	Right.
kFBKeyDown	Down.
kFBKeyIns	Insert.
kFBKeyDel	Delete.
kFBKeyF1	F1.
kFBKeyF2	F2.
kFBKeyF3	F3.
kFBKeyF4	F4.
kFBKeyF5	F5.
kFBKeyF6	F6.
kFBKeyF7	F7.
kFBKeyF8	F8.
kFBKeyF9	F9.
kFBKeyF10	F10.
kFBKeyF11	F11.
kFBKeyF12	F12.

Definition at line 141 of file fbcontrols.h.

enum FBInputModifier

Input Modifiers (Ctrl, Alt, Shift).

Enumerator:

kFBKeyNone	No modifier.
kFBKeyShift	Shift was pressed.
kFBKeyCtrl	Control was pressed.
kFBKeyAlt	Alt was pressed.

Definition at line 133 of file fbcontrols.h.

enum FBInputType

Types of input events.

Enumerator:

kFBKeyPress	A keyboard key was pressed.
kFBKeyRelease	A keyboard key was released.
kFBButtonPress	A mouse button was pressed.
kFBButtonRelease	A mouse button was released.
kFBMotionNotify	The mouse has been moved.
kFBButtonDoubleClick	A mouse button was double clicked.
kFBMouseEnter	The mouse pointer is entering the window.
kFBMouseLeave	The mouse pointer is leaving the window.
kFBMouseWheelNotify	The mouse wheel has moved.
kFBDragging	The mouse is dragging items.
kFBDropping	The mouse is dropping items.
kFBKeyPressRaw	A keyboard key was pressed.
kFBKeyReleaseRaw	A keyboard key was released.
kFBUnknownInput	The internal event could not be translated.

Definition at line 115 of file fbcontrols.h.

enum FBListStyle

List style or direction.

Enumerator:

kFBDropDownList	Drop down list.
kFBVerticalList	Vertical list.

Definition at line 1297 of file fbcontrols.h.

enum FBMenuItemType

Types of menu items available.

Enumerator:

kFBMenuItemMotionImport	Motion Files->Import.
kFBMenuItemSceneImport	Scenes->Import.
kFBMenuItemMotionExport	Motion Files->Export.
kFBMenuItemSceneExport	Scenes->Export.

Definition at line 658 of file fbcontrols.h.

enum FBOrientation

General directions for UI components.

Enumerator:

kFBHorizontal	Horizontal.
kFBVertical	Vertical.

Definition at line 101 of file fbcontrols.h.

enum FBPopupInputType

User input types for a popup.

Enumerator:

kFBPopupBool	Boolean input.
kFBPopupChar	Character input.
kFBPopupString	String input.
kFBPopupInt	Integer input.
kFBPopupFloat	Float input.
kFBPopupDouble	Double input.
kFBPopupPassword	Password input (String with '*'s).

Definition at line 2029 of file fbcontrols.h.

enum FBTextJustify

Text justification styles.

Enumerator:

kFBTextJustifyLeft	Left justify.
kFBTextJustifyRight	Right justify.
kFBTextJustifyCenter	Center alignment.

Definition at line 1014 of file fbcontrols.h.

enum FBTextStyle

Text appearance styles.

Enumerator:

kFBTextStyleNone	Normal.
kFBTextStyleBold	Bold.
kFBTextStyleItalic	Italic.
kFBTextStyleUnderlined	Underlined.

Definition at line 1023 of file fbcontrols.h.

Function Documentation

K_DLLEXPORT int FBMessageBox	(	char *	pBoxTitle,
		char *	pMessage,
		char *	pButton1Str,
		char *	pButton2Str = `NULL`,
		char *	pButton3Str = `NULL`,
		int	pDefaultButton = `0`,
		int	pScrolledMessage = `0`
	)

Dialog popup box.

Opens a message box containing a message and up to three buttons. Waits for the user to click a button.

Parameters:

	pBoxTitle	Title of message box.
	pMessage	Message to place in box.
	pButton1Str	String for first button (Cannot be NULL).
	pButton2Str	String for second button (NULL will not create a button).
	pButton3Str	String for third button (NULL will not create a button).
	pDefaultButton	Indicates the default (pre-selected) button (default is 0).
	pScrolledMessage	Scroll message (default is 0).

Returns:: The number of the button selected.

K_DLLEXPORT int FBMessageBoxGetUserValue	(	char *	pBoxTitle,
		char *	pMessage,
		void *	pValue,
		FBPopupInputType	pValueType,
		char *	pButton1Str,
		char *	pButton2Str = `NULL`,
		char *	pButton3Str = `NULL`,
		int	pDefaultButton = `0`,
		bool	pLastButtonCancel = `true`
	)

Dialog popup box to get user input.

Opens a message box, with up to three buttons, asking the user to enter data. The type of data to be entered is specified by the pValue and pValueType parameters.

Parameters:

	pBoxTitle	Title of message box.
	pMessage	Message to place in box.

Return values:

pValue

Value entered by user (must correspond with pValueType).

Parameters:

	pValueType	Type of pointer specified in pValue.
	pButton1Str	String for first button (Cannot be NULL).
	pButton2Str	String for second button (NULL will not create a button).
	pButton3Str	String for third button (NULL will not create a button).
	pDefaultButton	Indicates the default (pre-selected) button(default=0).
	pLastButtonCancel	Indicates the last button is Cancel (if more than one button) so pValue won't be updated if the last button is clicked.

Returns:: The number of the button selected.

K_DLLEXPORT int FBMessageBoxWithCheck	(	char *	pBoxTitle,
		char *	pMessage,
		char *	pButton1Str,
		char *	pButton2Str,
		char *	pButton3Str,
		char *	pCheckBoxStr,
		bool &	pCheckBoxValue,
		int	pDefaultButton = `0`,
		int	pScrolledMessage = `0`
	)

Dialog popup box with a check box.

Opens a message box containing a message, up to three buttons and a check box. Waits for the user to click a button.

Parameters:

	pBoxTitle	Title of message box.
	pMessage	Message to place in box.
	pButton1Str	String for first button (Cannot be NULL).
	pButton2Str	String for second button (NULL will not create a button).
	pButton3Str	String for third button (NULL will not create a button).
	pCheckBoxStr	Check box string (Cannot be NULL).

Return values:

pCheckBoxValue

Check box value.

Parameters:

	pDefaultButton	Indicates the default (pre-selected) button (default is 0).
	pScrolledMessage	Scroll message (default is 0).

Returns:: The number of the button selected.

Please send us your comments about this page.

fbcontrols.h File Reference

Detailed Description

Classes

Defines

Enumerations

Functions

Define Documentation

Enumeration Type Documentation

Function Documentation
