FBButton Class Reference

#include <fbcontrols.h>

FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton FBButton

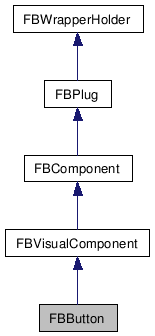

Inheritance diagram for FBButton:

[legend]

List of all members.

---

Detailed Description

Used to create and manage buttons in a user interface.

This class includes functionality to create buttons in a user interface and add a callback. In MotionBuilder, buttons are created within regions, which are in turn created in layouts with FBLayout. For usage, see the Python sample Button.py. See also: FBButtonStyle, FBTextJustify, FBButtonLook.

Definition at line 1049 of file fbcontrols.h.

Public Member Functions
	FBButton ()
	Constructor.
FBColor	GetStateColor (FBButtonState pState)
	Queries the color associated with a button state.
void	SetStateColor (FBButtonState pState, const FBColor &pColor)
	Returns whether or not the item pIndex is currently selected.
void	SetImageFileNames (const char *pUpImage, const char *pDownImage=0, const char *pThirdImage=0)
	Sets the image used to generate a kFBBitmap2States.
void	HookToButton (FBButton *pButton)
	Sets a link to another button.
Public Attributes
FBPropertyInt	State
	Read Write Property: Current state of button.
FBPropertyButtonStyle	Style
	Read Write Property: Button style.
FBPropertyTextJustify	Justify
	Read Write Property: Current state of button.
FBPropertyButtonLook	Look
	Read Write Property: Current state of button.
FBPropertyEvent	OnClick
	Event: Button clicked.
FBPropertyEvent	OnDragAndDrop
	Event: Something was dragged.

---

Constructor & Destructor Documentation

FBButton

(

)

Constructor.

---

Member Function Documentation

FBColor GetStateColor

(

FBButtonState

pState

)

Queries the color associated with a button state.

This method is only useful for buttons of style kFB2States.

Parameters:

pState

The state to be queried.

Returns:

The color vector.

void SetStateColor	(	FBButtonState	pState,
		const FBColor &	pColor
	)

Returns whether or not the item pIndex is currently selected.

Parameters:

	pState	The state to be set.
	pColor	The desired color vector.

void SetImageFileNames	(	const char *	pUpImage,
		const char *	pDownImage = 0,
		const char *	pThirdImage = 0
	)

Sets the image used to generate a kFBBitmap2States.

Parameters:

	pUpImage	The image used when button is unpushed
	pDownImage	The image used when button is pushed
	pThirdImage

void HookToButton

(

FBButton *

pButton

)

Sets a link to another button.

Parameters:

pButton

Target button

---

Member Data Documentation

FBPropertyInt State

Read Write Property: Current state of button.

Definition at line 1080 of file fbcontrols.h.

FBPropertyButtonStyle Style

Read Write Property: Button style.

Definition at line 1081 of file fbcontrols.h.

FBPropertyTextJustify Justify

Read Write Property: Current state of button.

Definition at line 1082 of file fbcontrols.h.

FBPropertyButtonLook Look

Read Write Property: Current state of button.

Definition at line 1083 of file fbcontrols.h.

FBPropertyEvent OnClick

Event: Button clicked.

Definition at line 1085 of file fbcontrols.h.

FBPropertyEvent OnDragAndDrop

Event: Something was dragged.

Definition at line 1086 of file fbcontrols.h.

---
