FBEditPropertyModern Class Reference

#include <fbcontrols.h>

FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern FBEditPropertyModern

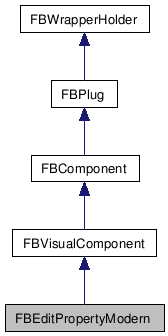

Inheritance diagram for FBEditPropertyModern:

[legend]

List of all members.

---

Detailed Description

Property editor widget.

This is a more modern version of the widget FBEditProperty which is used in the property editor tool of the application.

See class FBEditProperty for more details.

Definition at line 2213 of file fbcontrols.h.

Public Member Functions
	FBEditPropertyModern ()
	Constructor.
void	SetBackgroundColorIndex (FBColorIndex pIndex)
	Set the background color index.
Public Attributes
FBPropertyReference	Property
	Read Write Property: Property to edit. Set to NULL to disable.
FBPropertyDouble	SliderMin
	Read Write Property: Should the property be editable using a slider, set the minimum value atainable with the slider.
FBPropertyDouble	SliderMax
	Read Write Property: Should the property be editable using a slider, set the maximum value atainable with the slider.
FBPropertyDouble	SmallInc
	Read Write Property: Indicate the small increment applied when click-draging on the property value (usually right-click-dragging)
FBPropertyDouble	LargeInc
	Read Write Property: Indicate the large increment applied when click-draging on the property value (usually left-click-dragging)
FBPropertyDouble	Precision
	Read Write Property: Used to specify the width and precision of the value shown. A value of 7.2 indicates to show at minimum 7 numbers, with 2 decimals.

---

Constructor & Destructor Documentation

FBEditPropertyModern

(

)

Constructor.

---

Member Function Documentation

void SetBackgroundColorIndex

(

FBColorIndex

pIndex

)

Set the background color index.

Use the system-defined color palette to set the backgound color. By default the color used is kFBColorIndexStdListBg1

---

Member Data Documentation

FBPropertyReference Property

Read Write Property: Property to edit. Set to NULL to disable.

Definition at line 2225 of file fbcontrols.h.

FBPropertyDouble SliderMin

Read Write Property: Should the property be editable using a slider, set the minimum value atainable with the slider.

Definition at line 2227 of file fbcontrols.h.

FBPropertyDouble SliderMax

Read Write Property: Should the property be editable using a slider, set the maximum value atainable with the slider.

Definition at line 2228 of file fbcontrols.h.

FBPropertyDouble SmallInc

Read Write Property: Indicate the small increment applied when click-draging on the property value (usually right-click-dragging)

Definition at line 2229 of file fbcontrols.h.

FBPropertyDouble LargeInc

Read Write Property: Indicate the large increment applied when click-draging on the property value (usually left-click-dragging)

Definition at line 2230 of file fbcontrols.h.

FBPropertyDouble Precision

Read Write Property: Used to specify the width and precision of the value shown. A value of 7.2 indicates to show at minimum 7 numbers, with 2 decimals.

Definition at line 2231 of file fbcontrols.h.

---
