fbcomponent.h File Reference

Detailed Description

fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h fbcomponent.h
Basic class definitions.

Contains the basic classes that most SDK objects will derive from. These classes form the base of many functionalities of the SDK. The file also contains the base macros used in the definition/registration of the SDK classes.

Definition in file fbcomponent.h.

#include <kaydaradef.h>
#include <fbsdk/fblibrary.h>
#include <fbsdk/fbplug.h>
#include <fbsdk/fbarray.h>
#include <fbsdk/fbstring.h>
#include <fbsdk/fbproperties.h>

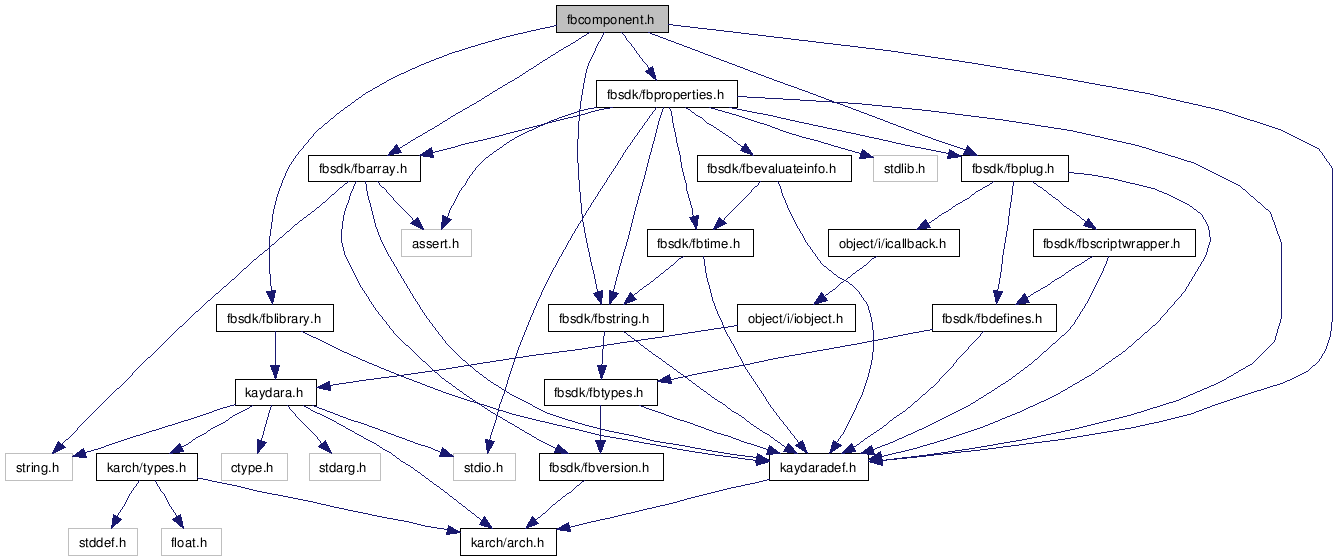

Include dependency graph for fbcomponent.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


Classes
class   FBPropertyListComponentBase
  PropertyList: Component. More...
class   FBPropertyListComponent
  PropertyList: Concrete class for PropertyList of component More...
class   FBPropertyListObject
  List of scene objects. More...
class   FBComponent
  MotionBuilder SDK base class. More...
class   FBEvent
  Base Event class. More...
class   FBEventConnectionNotify
  Connection notify event class. More...
class   FBEventConnectionDataNotify
  Connection notify event class. More...
class   FBEventConnectionStateNotify
  Connection notify event class. More...
class   FBLibraryBase
  Library class for DLL registration. More...
class   FBLibrary
  Library class for DLL registration. More...
class   FBCustomManager
  Custom manager class for user controlled observer objects. More...

Defines
#define  FBSDK_DLL   K_DLLIMPORT
  Be sure that FBSDK_DLL is defined only once.
#define  FB_DEFAULT_SDK_ICON   "openreality_noicon.tif"
  Define SDK icon filename.
#define  __FBClassInit   mLocalPtr = NULL;
  For internal use only.
#define  __FBClassInitSDKComponent(pObjectToWrappedIsAllocated)
  For internal use onlyL decide if we need to delete the corresponding KObject.
#define  __FBClassImplementation(ThisComponent, pInternalClassId)
  For internal use only.
#define  __FBClassDeclare(Name, Parent)
  For internal use only.
#define  FBStorableClassImplementation(ClassName, Type)
  Storable Class implementation.
#define  FBElementClassImplementation(ClassName, IconFileName)
  Element Class implementation.
#define  FBStorableClassDeclare(Name, Parent)
  Storable Class declaration.
#define  FBPropertyInitComponent(Param, Type, PropName, Get, Set)
  Initialize a property: component.
#define  FBIS(Component, ComponentType)   ((Component) && (Component)->Is( ComponentType::TypeInfo ))
  Macro to verify the type of a component.
#define  FBRegisterEvent   ( Object, EventId, EventProc ) IQ( Object,IRegister)->Register ( EventId,(HICallback)this,(kICallbackHandler)EventProc );
  Event registration/unregistration.
#define  FBUnregisterEvent   ( Object, EventId, EventProc ) IQ( Object,IRegister)->Unregister ( EventId,(HICallback)this,(kICallbackHandler)EventProc );
  Event registration/unregistration.
#define  FBRegisterObject(LocalId, Path, Name, Description, Constructor, IsMultipleAllowed, IconFilename)   static int __R##LocalId = FBObject_Register( Path,Name,Description,Constructor,IsMultipleAllowed,IconFilename )
  Event registration/unregistration.
#define  FBDeclareUserObject(ClassName)
  Event registration/unregistration.
#define  FBLibraryDeclare(LibName)
  Declare the library for the application.
#define  FBLibraryModule(Name)   void FBModule##Name()
  FBLibraryModule Define a module registration call.
#define  FBLibraryRegister(ClassName)
  FBLibraryRegister Declare the module's registration functions.
#define  FBLibraryRegisterStorable(ClassName)
  FBLibraryRegisterStorable Declare the module's registration functions for storable classes.
#define  FBLibraryRegisterElement(ClassName)
  FBLibraryRegisterElement Declare the module's registration functions for element classes.
#define  FBLibraryDeclareEnd
  Finish library declaration.
#define  FBCustomManagerImplementation(ThisComponent)   FBClassImplementation( ThisComponent ) \
  FBCustomManagerImplementation.
#define  FBRegisterCustomManager(ClassName)
  FBRegisterCustomManager.
#define  FBCustomManagerDeclare(ClassName)
  FBRegisterCustomDeclare.

Typedefs
typedef
FBArrayTemplate
< FBComponent * > 		 FBComponentList
  typedef FBArrayTemplate<FBComponent*> FBComponentList;
typedef HIRegister  HISender
  HISender.
typedef HKEventBase  HKEvent
  HKEvent.
typedef void(ICallback::*  FBCallback )(HISender pSender, HKEvent pEvent)
  FBCallback.
typedef FBComponent  FBObject
  Equivalent to FBComponent for gradual transition.

Enumerations
enum   FBObjectFlag {
   kFBFlagSelectable = (1 << 0),
   kFBFlagDeletable = (1 << 1),
   kFBFlagSavable = (1 << 2),
   kFBFlagVisible = (1 << 3),
   kFBFlagClonable = (1 << 4),
   kFBFlagSystem = (1 << 5),
   kFBFlagNewable = (1 << 6),
   kFBFlagRenamable = (1 << 7),
   kFBFlagMergeable = (1 << 8),
   kFBFlagBrowsable = (1 << 9),
   kFBFlagDetachable = (1 << 10),
   kFBFlagUndoable = (1 << 11),
   kFBFlagKeyable = (1 << 12),
   kFBFlagAllocated = (1 << 13),
   kFBFlagStory = (1 << 14),
   kFBFlagStorable6 = (1 << 15),
   kFBFlagStorableData6 = (1 << 16),
   kFBFlagStorableBlindData = (1 << 17),
   kFBFlagUniqueName = (1 << 18)
}
  Available flags for any component. More...
enum   FBObjectStatus {
   kFBStatusNone = 0,
   kFBStatusCreating = (1 << 0),
   kFBStatusStoring = (1 << 1),
   kFBStatusRetrieving = (1 << 2),
   kFBStatusMerging = (1 << 3),
   kFBStatusDestroying = (1 << 4),
   kFBStatusOwnedByUndo = (1 << 5)
}
  Available lifetime status for any component. More...
enum   FBNamespaceAction {
   kFBConcatNamespace,
   kFBReplaceNamespace,
   kFBRemoveAllNamespace
}
  Namespace flags. More...

Functions
K_DLLIMPORT FBComponent *  GetFBComponent (const HIObject Object)
  Get a handle to the FBComponent belonging to an HIObject.
K_DLLIMPORT
FBVisualComponent * 		 FBGetFBVisualComponent (HIKtView pObject, bool pAutoCreate=true)
  Get the FBComponent from an Internal Object.
K_DLLIMPORT FBComponent *  FBGetFBComponent (HIObject pObject, bool pAutoCreate=true)
  Get the FBComponent from an Internal Object.
K_DLLIMPORT FBPlug *  FBGetFBPlug (HIObject pObject, bool pAutoCreate=true)
  Get the FBPlug from an Internal Object.
K_DLLIMPORT
FBArrayTemplate
< FBComponent * > & 		 FBGetComponentArray ()
  Get the Root FBComponent.
K_DLLIMPORT FBComponent *  FBCreateObject (char *pGroupName, char *pEntryName, char *pName, void *pData=NULL, int nth=0)
  FBCreateObject.
bool  FBUnregisterObject (char *pGroupName, char *pEntryName, int nth=0)
  FBUnregisterObject.

Define Documentation

#define __FBClassDeclare ( Name,
Parent   )

For internal use only.

Definition at line 117 of file fbcomponent.h.

#define __FBClassImplementation ( ThisComponent,
pInternalClassId   )

Value:

int ThisComponent::TypeInfo=FBPlug::mGlobalTypeInfo++; \
        int ThisComponent::mInternalClassId=pInternalClassId
For internal use only.

Definition at line 110 of file fbcomponent.h.

#define __FBClassInit   mLocalPtr = NULL;

For internal use only.

Definition at line 96 of file fbcomponent.h.

#define __FBClassInitSDKComponent ( pObjectToWrappedIsAllocated   )

Value:

__FBClassInit; \
    mSDKComponent = pObjectToWrappedIsAllocated;
For internal use onlyL decide if we need to delete the corresponding KObject.

Definition at line 102 of file fbcomponent.h.

#define FB_DEFAULT_SDK_ICON   "openreality_noicon.tif"

Define SDK icon filename.

Definition at line 90 of file fbcomponent.h.

#define FBCustomManagerDeclare ( ClassName   )

Value:

FBClassDeclare( ClassName, FBCustomManager );           \
    public:                                             \
    ClassName() : FBCustomManager() { FBClassInit; }    \
    private:                                            \
FBRegisterCustomDeclare.
Parameters:
ClassName  Class to declare registration functions for.

Definition at line 1009 of file fbcomponent.h.

#define FBCustomManagerImplementation ( ThisComponent   )     FBClassImplementation( ThisComponent ) \

FBCustomManagerImplementation.

Parameters:
ThisComponent  Component to customize

Definition at line 992 of file fbcomponent.h.

#define FBDeclareUserObject ( ClassName   )

Value:

public:\
    static int      ClassId;\
    virtual int     GetUserClassId();\
    virtual char*   FbxGetObjectSubType()
Event registration/unregistration.

For internal use only.

Definition at line 302 of file fbcomponent.h.

#define FBElementClassImplementation ( ClassName,
IconFileName   )

Value:

HIObject RegisterElement##ClassName##Create(HIObject /*pOwner*/, char* pName, void* /*pData*/){\
        ClassName* Class = new ClassName(pName);\
        Class->mAllocated = true;\
        if( Class->FBCreate() ){\
            return Class->GetHIObject();\
        } else {\
            delete Class;\
            return NULL;}}\
    FBLibraryModule(ClassName##Element){\
        FBRegisterObject(ClassName##R2, "Browsing/Templates/Elements", #ClassName, "", RegisterElement##ClassName##Create, true, IconFileName);}
Element Class implementation.

This should be placed in the source code file for a class.

Definition at line 158 of file fbcomponent.h.

#define FBIS ( Component,
ComponentType   )     ((Component) && (Component)->Is( ComponentType::TypeInfo ))

Macro to verify the type of a component.

Used to compare a component to another, by verifying their Class::TypeInfo values.

Parameters:
Component  Component to verify.
ComponentType  Type to verify Component with.
Returns:
true if object is of type ComponentType.

Definition at line 202 of file fbcomponent.h.

#define FBLibraryDeclare ( LibName   )

Value:

static FBLibrary LibName##GlobalFBLibrary; \
extern "C" {    \
    K_DLLEXPORT bool LIBRARY_INIT(HIError /*Error*/) \
    { \
        FB_EXT_INIT( LibName ); if (LibName##GlobalFBLibrary.LibInit()) return true; return false; \
    } \
} \
FB_DLL_INIT( LibName, Operation )               \
{                                               \
    switch( Operation )                         \
    {                                           \
        case kFBDllLoad:                        \
        {
Declare the library for the application.

Creates the FBLibrary object and generic interface functions for DLL access.

Definition at line 932 of file fbcomponent.h.

#define FBLibraryDeclareEnd

Value:

}                                       \
        break;                                  \
        default:                                \
        break;                                  \
    }                                           \
}
Finish library declaration.

Definition at line 979 of file fbcomponent.h.

#define FBLibraryModule ( Name   )     void FBModule##Name()

FBLibraryModule Define a module registration call.

Parameters:
Name  Module to register.

Definition at line 951 of file fbcomponent.h.

#define FBLibraryRegister ( ClassName   )

Value:

extern void FBModule##ClassName( );         \
    FBModule##ClassName( );
FBLibraryRegister Declare the module's registration functions.
Parameters:
ClassName  Class to declare registration functions for.

Definition at line 958 of file fbcomponent.h.

#define FBLibraryRegisterElement ( ClassName   )

Value:

extern void FBModule##ClassName##Element( );            \
    FBModule##ClassName##Element( );
FBLibraryRegisterElement Declare the module's registration functions for element classes.
Parameters:
ClassName  Class to declare registration functions for.

Definition at line 974 of file fbcomponent.h.

#define FBLibraryRegisterStorable ( ClassName   )

Value:

extern void FBModule##ClassName##Storable( );           \
    FBModule##ClassName##Storable( );
FBLibraryRegisterStorable Declare the module's registration functions for storable classes.
Parameters:
ClassName  Class to declare registration functions for.

Definition at line 966 of file fbcomponent.h.

#define FBPropertyInitComponent ( Param,
Type,
PropName,
Get,
Set   )

Value:

{ \
        PropertyAdd(PropName.Init( (void *)Param,#PropName,(H##Type (*)(void *))Get,(void (*)(void *,H##Type))Set )); \
        PropName.TypeInfo = &Type::TypeInfo; \
    }
Initialize a property: component.
Parameters:
Param  Owner name.
Type  Type of variable.
PropName  Component name.
Get  Get function pointer.
Set  Set function pointer.

Definition at line 189 of file fbcomponent.h.

#define FBRegisterCustomManager ( ClassName   )

Value:

FBLibraryModule( ClassName )                        \
    {                                                   \
        static ClassName g##ClassName;                  \
        g##ClassName.FBCreate();                        \
        g##ClassName.RegisterManager();                 \
    }                                                   \
FBRegisterCustomManager.
Parameters:
ClassName  Class to declare registration functions for.

Definition at line 998 of file fbcomponent.h.

#define FBRegisterEvent   ( Object, EventId, EventProc ) IQ( Object,IRegister)->Register ( EventId,(HICallback)this,(kICallbackHandler)EventProc );

Event registration/unregistration.

For internal use only.

Definition at line 257 of file fbcomponent.h.

#define FBRegisterObject ( LocalId,
Path,
Name,
Description,
Constructor,
IsMultipleAllowed,
IconFilename   )     static int __R##LocalId = FBObject_Register( Path,Name,Description,Constructor,IsMultipleAllowed,IconFilename )

Event registration/unregistration.

For internal use only.

Definition at line 285 of file fbcomponent.h.

#define FBSDK_DLL   K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

..

Definition at line 57 of file fbcomponent.h.

#define FBStorableClassDeclare ( Name,
Parent   )

Value:

FBClassDeclare(Name, Parent);\
public:\
    virtual char* FbxGetObjectSubType();
Storable Class declaration.

Overloads the necessary functions when a class inherits from FBComponent (or its derivatives) and that you want it to be persistent.

Parameters:
Name  Name of class to declare.
Parent  Parent class to associate with Name.

Definition at line 176 of file fbcomponent.h.

#define FBStorableClassImplementation ( ClassName,
Type   )

Value:

char* ClassName::FbxGetObjectSubType(){ return #ClassName; }\
    HIObject RegisterStorable##ClassName##Create(HIObject /*pOwner*/, char* pName, void* /*pData*/){\
        ClassName* Class = new ClassName(pName);\
        Class->mAllocated = true;\
        if( Class->FBCreate() ){\
            return Class->GetHIObject();\
        } else {\
            delete Class;\
            return NULL;}}\
    FBLibraryModule(ClassName##Storable){\
        FBString lGroup = "FbxStorable/";\
        lGroup += #Type;\
        FBRegisterObject(ClassName##R2, lGroup, #ClassName, "", RegisterStorable##ClassName##Create, true, NULL);}
Storable Class implementation.

This should be placed in the source code file for a class.

Definition at line 140 of file fbcomponent.h.

#define FBUnregisterEvent   ( Object, EventId, EventProc ) IQ( Object,IRegister)->Unregister ( EventId,(HICallback)this,(kICallbackHandler)EventProc );

Event registration/unregistration.

For internal use only.

Definition at line 262 of file fbcomponent.h.

Typedef Documentation

typedef void(ICallback::* FBCallback)(HISender pSender, HKEvent pEvent)

FBCallback.

Parameters:
pSender  Set the sender
pEvent  Set the event

Definition at line 295 of file fbcomponent.h.

typedef FBArrayTemplate<FBComponent*> FBComponentList

typedef FBArrayTemplate<FBComponent*> FBComponentList;

Definition at line 244 of file fbcomponent.h.

typedef FBComponent FBObject

Equivalent to FBComponent for gradual transition.

Definition at line 736 of file fbcomponent.h.

typedef HIRegister HISender

HISender.

Definition at line 288 of file fbcomponent.h.

typedef HKEventBase HKEvent

HKEvent.

Definition at line 290 of file fbcomponent.h.

Enumeration Type Documentation

enum FBNamespaceAction

Namespace flags.

Enumerator:
kFBConcatNamespace  Use to add a namespace name to object.
kFBReplaceNamespace  Use to replace a define namespace.
kFBRemoveAllNamespace  Remove all the namespace name.

Definition at line 367 of file fbcomponent.h.

enum FBObjectFlag

Available flags for any component.

Enumerator:
kFBFlagSelectable  Can be selected.
kFBFlagDeletable  Can be deleted.
kFBFlagSavable  Can be saved.
kFBFlagVisible  Can be visible.
kFBFlagClonable  Can be cloned.
kFBFlagSystem  Created from System (not from user).
kFBFlagNewable  Deleted on File->New.
kFBFlagRenamable  Can be renamed.
kFBFlagMergeable  Can be merged.
kFBFlagBrowsable  Visible in the Scene Navigator/Schematic View/Property View/Model View.
kFBFlagDetachable  Object can be "detached". Used by the apply manager contextual menu.
kFBFlagUndoable  Object can undo its actions and states.
kFBFlagKeyable  Object can Key his property. (System Camera can't).
kFBFlagAllocated  Object is allocated, so it must call 'delete this' on destroy.
kFBFlagStory  Object created/used by the Story tool. Useful flag for filtering Story objects.
kFBFlagStorable6  System/Obsolete.
kFBFlagStorableData6  System/Obsolete.
kFBFlagStorableBlindData  Used in FBX SDK native IO.
kFBFlagUniqueName  Object unique name can be added to the unique name list (at first, only RootNode have this flag).

Definition at line 330 of file fbcomponent.h.

enum FBObjectStatus

Available lifetime status for any component.

Enumerator:
kFBStatusNone  No special status, default value.
kFBStatusCreating  Object is in creation operations.
kFBStatusStoring  Object is in storing operations.
kFBStatusRetrieving  Object is in retrieving operations.
kFBStatusMerging  Object is in Merging operations.
kFBStatusDestroying  Object is in destruction operations.
kFBStatusOwnedByUndo  Object is owned by undo framework.

Definition at line 356 of file fbcomponent.h.

Function Documentation

K_DLLIMPORT FBComponent* FBCreateObject ( char *  pGroupName,
char *  pEntryName,
char *  pName,
void *  pData = NULL,
int  nth = 0
)

FBCreateObject.

Parameters:
pGroupName  Set the name of the Group.
pEntryName  Set the name of the Entry.
pName  Set the name of the Object to create.
pData  Data to pass to object creator function.
nth  Set the occurence of the object to remove.

K_DLLIMPORT FBArrayTemplate<FBComponent*>& FBGetComponentArray (  )

Get the Root FBComponent.

K_DLLIMPORT FBComponent* FBGetFBComponent ( HIObject  pObject,
bool  pAutoCreate = true
)

Get the FBComponent from an Internal Object.

Parameters:
pObject  Object to get SDK object for.
pAutoCreate  Create object if it doesn't exist? (default is true)
Returns:
FBComponent for pObject.

K_DLLIMPORT FBPlug* FBGetFBPlug ( HIObject  pObject,
bool  pAutoCreate = true
)

Get the FBPlug from an Internal Object.

Parameters:
pObject  Object to get SDK object for.
pAutoCreate  Create object if it doesn't exist? (default is true)
Returns:
FBComponent for pObject.

K_DLLIMPORT FBVisualComponent* FBGetFBVisualComponent ( HIKtView  pObject,
bool  pAutoCreate = true
)

Get the FBComponent from an Internal Object.

Parameters:
pObject  Object to get SDK object for.
pAutoCreate  Create object if it doesn't exist? (default is true)
Returns:
FBComponent for pObject.

bool FBUnregisterObject ( char *  pGroupName,
char *  pEntryName,
int  nth = 0
) [inline]

FBUnregisterObject.

Parameters:
pGroupName  Set the Name of the Group from which unregister an object.
pEntryName  Set the name of the Object to unregister.
nth  Set the occurence of the object to remove.

Definition at line 280 of file fbcomponent.h.

K_DLLIMPORT FBComponent* GetFBComponent ( const HIObject  Object  )

Get a handle to the FBComponent belonging to an HIObject.

This will not create the internal SDK object, and will return NULL if the SDK object has not been initialized.

Parameters:
Object  Internal object for which the FBComponent is required.
Returns:
Handle to FBComponent belonging to Object.
Please send us your comments about this page.
