FBLayout Class Reference

#include <fbcontrols.h>
FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout FBLayout

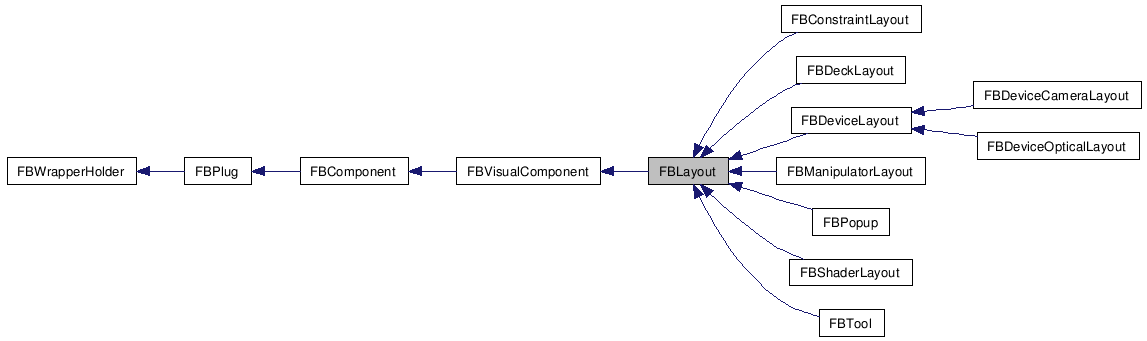

Inheritance diagram for FBLayout:
Inheritance graph
[legend]

List of all members.

Detailed Description

Used to build the user interface.

Layouts manage areas of the screen called regions. Regions contain UI components such as buttons, viewers, and edit boxes. Regions are added to layouts. When a UI component is bound to a region, the region defines how big it is and how it behaves when the layout is resized.

Types of Layouts

A region is first defined using the FBLayout::AddRegion() function. Once a region is defined and the corresponding UI component is created, and the component is bound to its region with FBLayout::SetControl(). You can use the FBSystem::OnUIIdle() in your layout to update real-time UI components such as guages and status indicators. In Python, BoxLayout and GridLayout take care of most of the region handling. They are used to create basic control layouts for simple tools. If you have a lot of content you can use FBScrollBox to manage it. For an example, see the Python sample Scrollbox.py.* Also see the Python sample Layout.py, and the C++ sample ortooluidemo.

Definition at line 765 of file fbcontrols.h.


Public Types
enum   FBSplitStyle {
   kFBNoSplit = 0,
   kFBHSplit = 1,
   kFBVSplit = 2,
   kFBHVSplit = 3
}
  Type of split style (sub-division) for layout. More...

Public Member Functions
  FBLayout (HIObject pObject=NULL)
  Constructor.
virtual bool  AddRegion (char *pName, char *pTitle, int pX, FBAttachType pXType, char *pXRelative, float pMultX, int pY, FBAttachType pYType, char *pYRelative, float pMultY, int pW, FBAttachType pWType, char *pWRelative, float pMultW, int pH, FBAttachType pHType, char *pHRelative, float pMultH)
  Add a region to the layout.
virtual bool  MoveRegion (char *pName, int pX, int pY)
  Move a region.
virtual bool  SizeRegion (char *pName, int pW, int pH)
  Change a region's size.
virtual bool  RemoveRegion (char *pName)
  Remove a region.
virtual bool  RenameRegion (char *pOldName, char *pNewName)
  Rename a region.
virtual bool  GetRegion (char *pName)
  Verify if a region with pName exists.
virtual bool  GetRegionPositions (char *pName, bool pComputed, int *pX, int *pY, int *pW=NULL, int *pH=NULL)
  Get region pName information (position and size).
virtual void  ClearControl (char *pName)
  Remove a control from a region in a visual component.
virtual
FBVisualComponent * 		 GetControl (char *pName)
  Get control of a region in a visual component.
virtual HIKtObject  GetHIKtObject (char *pName)
  Set or Get internal toolkit: object.
virtual bool  SetHIKtView (char *pName, HIKtView pView)
  Set internal toolkit view.
virtual HIKtView  GetHIKtView (char *pName)
  Get internal toolkit view.
virtual bool  SetBorder (char *pName, FBBorderStyle pType, bool pShowTitle, bool pInSet, int pWidth, int pSpacing, float pMaxAngle, int pCornerRadius)
  Set border properties for a region.
virtual bool  SetSplitStyle (char *pName, FBSplitStyle pRegionType)
  Set a region's splitstyle.
virtual FBSplitStyle  GetSplitStyle (char *pName)
  Get a region's splitstyle.
virtual bool  SetRegionTitle (char *pName, char *pTitle)
  Set a region's title.
void  SetAutoRestructure (bool pAutoRestructure)
  Suspend all automatic layout recomputation.
void  Restructure (bool pNoMove)
  Force a recomputation of all region placements in the layout.
virtual bool  SetControl (char *pName, HFBVisualComponent pComponent)
  Set control of a region to a visual component.
virtual bool  SetControl (char *pName, FBVisualComponent &pComponent)
  Set control of a region to a visual component.
virtual bool  SetView (char *pName, HFBVisualComponent pComponent)
  Set view.
virtual bool  SetView (char *pName, FBVisualComponent &pComponent)
  Set view.

Public Attributes
FBPropertyEvent  OnInput
  Event: Input.
FBPropertyEvent  OnPaint
  Event: Paint layout.
FBPropertyEvent  OnIdle
  Event: Idle.
FBPropertyEvent  OnShow
  Event: Show layout.
FBPropertyEvent  OnResize
  Event: Resize layout.

Member Enumeration Documentation

enum FBSplitStyle

Type of split style (sub-division) for layout.

Enumerator:
kFBNoSplit  No split.
kFBHSplit  Horizontal split.
kFBVSplit  Vertical split.
kFBHVSplit  Horizontal and Vertical split.

Definition at line 770 of file fbcontrols.h.

Constructor & Destructor Documentation

FBLayout ( HIObject  pObject = NULL  )

Constructor.

Member Function Documentation

virtual bool AddRegion ( char *  pName,
char *  pTitle,
int  pX,
FBAttachType  pXType,
char *  pXRelative,
float  pMultX,
int  pY,
FBAttachType  pYType,
char *  pYRelative,
float  pMultY,
int  pW,
FBAttachType  pWType,
char *  pWRelative,
float  pMultW,
int  pH,
FBAttachType  pHType,
char *  pHRelative,
float  pMultH
) [virtual]

Add a region to the layout.

Parameters:
pName  Name of region.
pTitle  Title to display.
pX  X: Position.
pXType  X: Type of attachment.
pXRelative  X: Item to attach to.
pMultX  X: Multiplier of relative value.
pY  Y: Position.
pYType  Y: Type of attachment.
pYRelative  Y: Item to attach to.
pMultY  Y: Multiplier of relative value.
pW  W: Width of region.
pWType  W: Type of attachment.
pWRelative  W: Item to attach to.
pMultW  W: Multiplier of relative value.
pH  H: Height of region.
pHType  H: Type of attachment.
pHRelative  H: Item to attach to.
pMultH  H: Multiplier of relative value.
Returns:
Operation was successful (true or false).

virtual bool MoveRegion ( char *  pName,
int  pX,
int  pY
) [virtual]

Move a region.

Parameters:
pName  Name of region to move.
pX  New X position.
pY  New Y position.
Returns:
Operation was successful (true or false).

virtual bool SizeRegion ( char *  pName,
int  pW,
int  pH
) [virtual]

Change a region's size.

Parameters:
pName  Name of region to resize.
pW  New region width.
pH  New region height.
Returns:
Operation was successful (true or false).

virtual bool RemoveRegion ( char *  pName  )  [virtual]

Remove a region.

Parameters:
pName  Name of region to remove.
Returns:
Operation was successful (true or false).

virtual bool RenameRegion ( char *  pOldName,
char *  pNewName
) [virtual]

Rename a region.

Parameters:
pOldName  Region's old name.
pNewName  Region's new name.
Returns:
Operation was successful (true or false).

virtual bool GetRegion ( char *  pName  )  [virtual]

Verify if a region with pName exists.

Parameters:
pName  Name of region to check.
Returns:
Operation was successful (true or false).

virtual bool GetRegionPositions ( char *  pName,
bool  pComputed,
int *  pX,
int *  pY,
int *  pW = NULL,
int *  pH = NULL
) [virtual]

Get region pName information (position and size).

Parameters:
pName  Name of region.
pComputed  Is the information retrieved relative or absolute?
Return values:
pX  Position in X of the region.
pY  Position in Y of the region.
pW  Width of the region.
pH  Height of the region.
Returns:
Operation was successful (true or false).

virtual bool SetControl ( char *  pName,
HFBVisualComponent  pComponent
) [virtual]

Set control of a region to a visual component.

Parameters:
pName  Name of region to affect.
pComponent  Component to control region.
Returns:
Operation was successful (true or false).

virtual bool SetControl ( char *  pName,
FBVisualComponent &  pComponent
) [virtual]

Set control of a region to a visual component.

Parameters:
pName  Name of region to affect.
pComponent  Component to control region.
Returns:
Operation was successful (true or false).

virtual void ClearControl ( char *  pName  )  [virtual]

Remove a control from a region in a visual component.

Parameters:
pName  Name of region to remove control.

virtual FBVisualComponent* GetControl ( char *  pName  )  [virtual]

Get control of a region in a visual component.

Parameters:
pName  Name of region to find.
Returns:
The component if it is found.

virtual HIKtObject GetHIKtObject ( char *  pName  )  [virtual]

Set or Get internal toolkit: object.

Parameters:
pName  Name of region.
Returns:
Handle to internal toolkit object.

virtual bool SetHIKtView ( char *  pName,
HIKtView  pView
) [virtual]

Set internal toolkit view.

Parameters:
pName  Name of region.
pView  View to set as view for region.
Returns:
Operation was successful (true or false).

virtual HIKtView GetHIKtView ( char *  pName  )  [virtual]

Get internal toolkit view.

virtual bool SetView ( char *  pName,
HFBVisualComponent  pComponent
) [virtual]

Set view.

Parameters:
pName  Name of Region.
pComponent  Component to set as view.
Returns:
Operation was successful (true or false).

virtual bool SetView ( char *  pName,
FBVisualComponent &  pComponent
) [virtual]

Set view.

Parameters:
pName  Name of Region.
pComponent  Component to set as view.
Returns:
Operation was successful (true or false).

virtual bool SetBorder ( char *  pName,
FBBorderStyle  pType,
bool  pShowTitle,
bool  pInSet,
int  pWidth,
int  pSpacing,
float  pMaxAngle,
int  pCornerRadius
) [virtual]

Set border properties for a region.

Parameters:
pName  Name of Region to change border properties.
pType  Border style to use.
pShowTitle  Show region title?
pInSet  Is region inset?
pWidth  Border width.
pSpacing  Border spacing.
pMaxAngle  Max angle for rounding.
pCornerRadius  Corner radius for rounding.
Returns:
Operation was successful (true or false).

virtual bool SetSplitStyle ( char *  pName,
FBSplitStyle  pRegionType
) [virtual]

Set a region's splitstyle.

Parameters:
pName  Name of Region to set splitstyle.
pRegionType  Split style give to region.
Returns:
Operation was successful (true or false).

virtual FBSplitStyle GetSplitStyle ( char *  pName  )  [virtual]

Get a region's splitstyle.

Parameters:
pName  Name of Region to get splitstyle from.
Returns:
Split style of specified region.

virtual bool SetRegionTitle ( char *  pName,
char *  pTitle
) [virtual]

Set a region's title.

Parameters:
pName  Name of region to change title.
pTitle  New title for region.
Returns:
Operation was successful (true or false).

void SetAutoRestructure ( bool  pAutoRestructure  )

Suspend all automatic layout recomputation.

Parameters:
pAutoRestructure  If true, Suspend all automatic layout recomputation, else restore it.

void Restructure ( bool  pNoMove  )

Force a recomputation of all region placements in the layout.

Member Data Documentation

FBPropertyEvent OnInput

Event: Input.

Definition at line 960 of file fbcontrols.h.

FBPropertyEvent OnPaint

Event: Paint layout.

Definition at line 961 of file fbcontrols.h.

FBPropertyEvent OnIdle

Event: Idle.

Definition at line 962 of file fbcontrols.h.

FBPropertyEvent OnShow

Event: Show layout.

Definition at line 963 of file fbcontrols.h.

FBPropertyEvent OnResize

Event: Resize layout.

Definition at line 964 of file fbcontrols.h.
