FBTree Class Reference

#include
<fbcontrols.h>

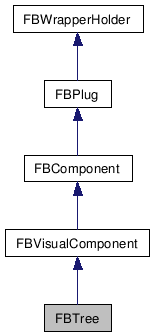

Inheritance diagram for FBTree:

[legend]

List of all members.

Detailed Description

Tree list view.

Definition at line 1776 of file fbcontrols.h.


Public Member Functions
	FBTree ()
	Constructor.
HFBTreeNode	GetRoot ()
	Get the root node.
void	Clear ()
	Clear the tree (remove all nodes).
HFBTreeNode	InsertLast (HFBTreeNode pNode, char *pName)
	Insert node at the end.
Public Attributes
FBPropertyEvent	OnSelect
	Event: A node was selected.
FBPropertyEvent	OnClick
	Event: Click on a node of the tree.
FBPropertyEvent	OnDblClick
	Event: Double-Click on a node of the tree.
FBPropertyEvent	OnDeselect
	Event: Deselection on a node of the tree.
FBPropertyEvent	OnExpanded
	Event: Click on the "+" sign before a non-leaf node
FBPropertyEvent	OnExpanding
	Event: Is fired before the node expand. To refuse expanding set AllowExpansion to false.
FBPropertyEvent	OnCollapsed
	Event: Click on the "-" sign before a non-leaf node.
FBPropertyEvent	OnCollapsing
	Event: Fired before the node collapse. To refuse collapsing, set AllowCollapse to false.
FBPropertyEvent	OnChange
	Event: Change of the selection.
FBPropertyEvent	OnDragAndDrop
	Event: Drag and drop of an element.
FBPropertyEvent	OnEditNode
	Event: Called upon node edition.
FBPropertyInt	SelectedCount
	Read Only Property: Count of selected items.
FBPropertyInt	VisibleItemCount
	Read Only Property: Count of visible items.
FBPropertyBool	AllowExpansion
	Read Write Property: When OnExpanding occurs, set this to true to allow expansion.
FBPropertyBool	AllowCollapse
	Read Write Property: When OnCollapsing occurs, set this to true to allow collapse.
FBPropertyBool	MultiDrag
	Read Write Property: Tells whether multiple drag/drop is allowed or not.
FBPropertyBool	AutoScroll
	Read Write Property: If AutoScroll property is True then the tree window will be automatically scrolled when the user drags item(s) over the boundaries of the tree.
FBPropertyInt	Indent
	Read Write Property: Use Indent to determine how far child nodes are indented from their parent nodes when the parent is expanded.
FBPropertyBool	CheckBoxes
	Read Write Property: Draw check boxe for each node.
FBPropertyBool	ShowLines
	Read Write Property: On node selection, will draw entire line selected
FBPropertyInt	ItemHeight
	Read Write Property: Height of an item.
FBPropertyBool	MultiSelect
	Read Write Property: Tells whether multiple selection is allowed or not.
FBPropertyBool	EditNodeOn2Select
	Read Write Property: Set to true, to allow automatic node editing on second select.
FBPropertyInt	TreeHeight
	Read Only Property: Height of the tree.
FBPropertyInt	TreeWidth
	Read Only Property: Width of the tree.
FBPropertyBool	SelectionActive
	Read Write Property: Tells whether selection is allowed or not.
FBPropertyBool	DeselectOnCollapse
	Read Write Property: Tells whether node are deselected if parent node is collapsed.
FBPropertyBool	NoSelectOnDrag
	Read Write Property: Tells whether node are selected if drag is start and node is not already selected.
FBPropertyBool	NoSelectOnRightClick
	Read Write Property: Tells whether node are selected if right click on node.
FBPropertyBool	HighlightOnRightClick
	Read Write Property: Hightlight node on right click.
FBPropertyBool	AutoScrollOnExpand
	Read Write Property: Allow automatic scroll on expand, default is true.
FBPropertyBool	AutoExpandOnDragOver
	Read Write Property: Allow automatic expand on drag over, default is false.
FBPropertyBool	AutoExpandOnDblClick
	Read Write Property: Allow automatic expand on double click, default is false.

Constructor & Destructor Documentation

FBTree ( )

Constructor.

Member Function Documentation

HFBTreeNode GetRoot ( )

Get the root node.

Returns:: the root node of the tree.

void Clear ( )

Clear the tree (remove all nodes).

HFBTreeNode InsertLast	(	HFBTreeNode	pNode,
		char *	pName
	)

Insert node at the end.

Parameters:

	pNode	Node under which the new node will appear.
	pName	Text to display for this node.

Returns:: the newly created node.

Member Data Documentation

FBPropertyEvent OnSelect

Event: A node was selected.

Definition at line 1799 of file fbcontrols.h.

FBPropertyEvent OnClick

Event: Click on a node of the tree.

Definition at line 1801 of file fbcontrols.h.

FBPropertyEvent OnDblClick

Event: Double-Click on a node of the tree.

Definition at line 1802 of file fbcontrols.h.

FBPropertyEvent OnDeselect

Event: Deselection on a node of the tree.

Definition at line 1803 of file fbcontrols.h.

FBPropertyEvent OnExpanded

Event: Click on the "+" sign before a non-leaf node

Definition at line 1804 of file fbcontrols.h.

FBPropertyEvent OnExpanding

Event: Is fired before the node expand. To refuse expanding set AllowExpansion to false.

Definition at line 1805 of file fbcontrols.h.

FBPropertyEvent OnCollapsed

Event: Click on the "-" sign before a non-leaf node.

Definition at line 1806 of file fbcontrols.h.

FBPropertyEvent OnCollapsing

Event: Fired before the node collapse. To refuse collapsing, set AllowCollapse to false.

Definition at line 1807 of file fbcontrols.h.

FBPropertyEvent OnChange

Event: Change of the selection.

Definition at line 1808 of file fbcontrols.h.

FBPropertyEvent OnDragAndDrop

Event: Drag and drop of an element.

Definition at line 1809 of file fbcontrols.h.

FBPropertyEvent OnEditNode

Event: Called upon node edition.

Definition at line 1810 of file fbcontrols.h.

FBPropertyInt SelectedCount

Read Only Property: Count of selected items.

Definition at line 1812 of file fbcontrols.h.

FBPropertyInt VisibleItemCount

Read Only Property: Count of visible items.

Definition at line 1813 of file fbcontrols.h.

FBPropertyBool AllowExpansion

Read Write Property: When OnExpanding occurs, set this to true to allow expansion.

Definition at line 1814 of file fbcontrols.h.

FBPropertyBool AllowCollapse

Read Write Property: When OnCollapsing occurs, set this to true to allow collapse.

Definition at line 1815 of file fbcontrols.h.

FBPropertyBool MultiDrag

Read Write Property: Tells whether multiple drag/drop is allowed or not.

Definition at line 1816 of file fbcontrols.h.

FBPropertyBool AutoScroll

Read Write Property: If AutoScroll property is True then the tree window will be automatically scrolled when the user drags item(s) over the boundaries of the tree.

Definition at line 1817 of file fbcontrols.h.

FBPropertyInt Indent

Read Write Property: Use Indent to determine how far child nodes are indented from their parent nodes when the parent is expanded.

Definition at line 1818 of file fbcontrols.h.

FBPropertyBool CheckBoxes

Read Write Property: Draw check boxe for each node.

Definition at line 1819 of file fbcontrols.h.

FBPropertyBool ShowLines

Read Write Property: On node selection, will draw entire line selected

Definition at line 1820 of file fbcontrols.h.

FBPropertyInt ItemHeight

Read Write Property: Height of an item.
