Windows



Command entry: Create panel (Geometry) Windows
Command entry:Create menu AEC Objects

The window object lets you control details of a window's appearance. You can also set the window to be open, partially open, or closed, and you can animate the opening over time.

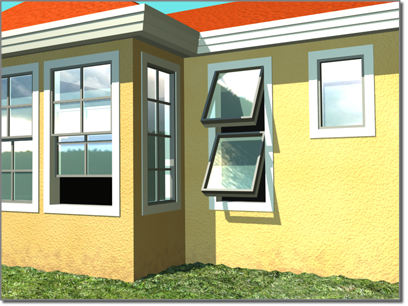

Different types of windows in a model of a house

3ds Max offers six kinds of windows:

Windows and Materials

By default, 3ds Max assigns five different material IDs to windows. The aectemplates.mat material library includes Window-Template, a multi/sub-object material designed to be used with windows. Each component of the window/material is listed below along with its corresponding Material ID.

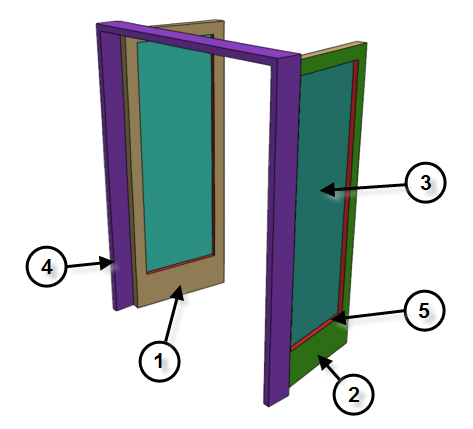

Material IDs for a door or window

Material ID Window/Material Component
1 Front Rails
2 Back Rails
3 Panels (glazing), with 50% opacity
4 Front Frame
5 Back Frame
Note 3ds Max does not automatically assign a material to the window object. To use the included material, open the library and then assign the material to your object.

Making an Opening for a Window

To make an opening in a wall, you can perform a Boolean operation with the wall as Operand A, and another object, such as a box, as Operand B. Then, you can create and add a window in the opening, and link it, if you choose, as a child of the wall.

NoteUsing snaps, you can insert a window in a wall object, automatically linking the two and creating a cutout for the window. See the procedure To create and place a window or door in a wall:.

Procedures

To create a window:

  1. On the Object Type rollout, click the button for the type of window you want to create.
  2. Choose options as needed, such as changing the default creation method. Turn on Allow Non-vertical Jambs if you want an inclined window.
  3. Drag the mouse in the viewport to create the first two points, defining the width and angle of the base of the window.
  4. Release the mouse and move to adjust the depth of the window (default creation method), and then click to set.

    By default, the depth is perpendicular to the line between the first two points and parallel to the active grid.

  5. Move the mouse to adjust the height, and then click to finish.

    The height is perpendicular to the plane defined by the first three points and perpendicular to the active grid.

    You can adjust the height, width, and depth values on the Parameters rollout.

In the Creation Method rollout, you can change the creation order to width-height-depth instead of width-depth-height.

To create a window material:

  1. Create a window or select an existing window.
  2. Open the Material Editor, and select a slot for the material.
  3. Click the Type button below the Material Editor toolbar.

    The Material/Map Browser dialog opens.

  4. In the Material list, double-click the Multi/Sub-Object item, and then on the Replace Material dialog that appears, choose either option and click OK.
  5. On the Multi/Sub-Object Basic Parameters rollout, click Set Number and change Number Of Materials to 5. Click OK.
  6. Optionally, change the sub-material names to those specified in the above table.
  7. Edit the material as you would any Multi/Sub-Object material.

To animate a window:

You can animate a window opening and closing by keyframing the Open setting.

  1. Create a window or select an existing window.
  2. If using an existing window, also access the Modify panel.
  3. Set the Parameters rollout Open parameter to the amount you want the window to be open at the start of the animation. If you want it to be closed, set it to 0.
  4. Click the Auto Key button to turn it on, and advance to the first keyframe.
  5. Change the Open setting.
  6. Continue moving to any additional keyframes and changing the Open setting as necessary.
  7. Play the animation.

Interface

Most window parameters are common to all kinds of windows, and are described here. The topic for each window type describes its unique controls and behavior.

Object Type rollout

Six types of window are available in 3ds Max:

Awning

Has a sash that is hinged at the top. See Awning.

Casement

Has one or two door-like sashes that swing inward or outward. See Casement.

Fixed

Doesn't open. See Fixed.

Pivoted

Pivots at the center of its sash, either vertically or horizontally. See Pivoted.

Projected

Has three sashes, two of which open like awnings in opposite directions. See Projected.

Sliding

Has two sashes, one of which slides vertically or horizontally. See Sliding.

Name and Color rollout

See Object Name and Wireframe Color.

Creation Method rollout

You define each type of window with four points: Drag the first two, followed by two move-click sequences. The Creation Method setting determines the order in which these actions define the window's dimensions.

Width/Depth/Height

The first two points define the width and angle of the base of the window. You set these points by dragging in a viewport, as the first step in creating a window. This lets you align the window with a wall or opening when you place it. The third point, where you click after moving the mouse, specifies the depth of the window, and the fourth click, where you click after moving the mouse again, specifies the height.

Width/Height/Depth

Works like the Width/Depth/Height option, except that the last two points create first the height and then the depth.

NoteWith this method, the depth is perpendicular to the plane set by the first three points. Thus, if you draw the window in the Top or Perspective viewport, the door lies flat on the active grid.
Allow Non-vertical Jambs

Select to create tilted windows. Set snaps to define points off the construction plane. Default=off.

Parameters rollout

Height/Width/Depth

Specifies the overall dimensions of the window.

Frame group

Horiz. Width

Sets the width of the horizontal part of the window frame (at the top and bottom). This setting also affects the glazed portion of the window's width.

Vert. Width

Sets the width of the vertical part of the window frame (at the sides). This setting also affects the glazed portion of the window's height.

Thickness

Sets the thickness of the frame. This also controls the thickness of casements or railings on the window's sashes.

Glazing group

Thickness

Specifies the thickness of the glass.

Generate Mapping Coordinates

Creates the object with the appropriate mapping coordinates already applied.

Real-World Map Size

Controls the scaling method used for texture mapped materials that are applied to the object. The scaling values are controlled by the Use Real-World Scale settings found in the applied material's Coordinates rollout. Default=off.

  • Awning Window

    The Awning window has one or more sashes that are hinged at the top.

  • Casement Window

    The Casement window has one or two sashes that are hinged on the side, like a door.

  • Fixed Window

    Fixed windows do not open, thus have no Open Window control. In addition to the standard window object parameters, the Fixed window provides the Rails And Panels group of settings for subdividing the window.

  • Pivoted Window

    A pivoted window has one sash only, hinged midway through the side of the sash. It can swing open either vertically or horizontally.

  • Projected Window

    Projected windows have three sashes: The top sash doesn't move, while the bottom two sashes swing open like awning windows, but in opposite directions.

  • Sliding Window

    Sliding windows have two sashes: one fixed, one movable. The sliding part can move either vertically or horizontally.
