BiFold Door

Command entry:

Create panel

(Geometry)

Doors

BiFold button

Command entry:Create menu

AEC Objects

BiFold Door

The BiFold door is hinged in the middle as well as on the side. It has two door elements. You can also make the door a double door, with four door elements.

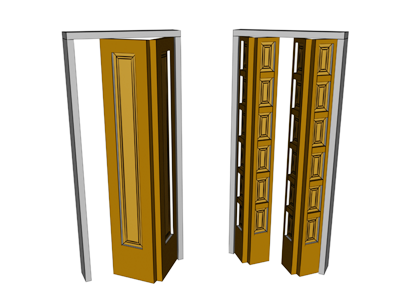

Single and double bifold doors

This topic describes only controls and behavior unique to the BiFold door. Most door parameters are common to all kinds of doors; see Doors.

Interface

Parameters rollout

The Parameters rollout contains three check boxes specific to BiFold doors.

Double Doors: Makes the door a double door, with four door elements, meeting in the center.
Flip Swing: Makes the door swing in the opposite direction from the default.
Flip Hinge: Makes the door hinged on the opposite side from the default. Flip Hinge is unavailable when Double Doors is on.
