Command entry:
Create panel
(Geometry)
Windows
Pivoted button
Command entry:Create menu
AEC Objects
Pivoted Window

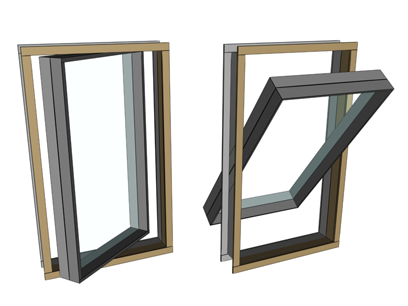

A pivoted window has one sash only, hinged midway through the side of the sash. It can swing open either vertically or horizontally.
Interface

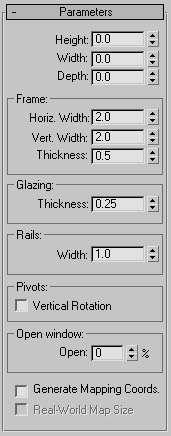

Parameters rollout
The topic for each kind of Window describes its unique controls and behavior. Most Window parameters are common to all kinds
of Windows; see Windows.
Rails group
- Width
-
Sets the width of the rails in the sash.
Pivots group
- Vertical Rotation
-
Switches the pivot axis from horizontal to vertical.
Open Window group
- Open
-
Specifies the percent that the window is open. This control is animatable.
