Awning Window

Command entry:

Create panel

(Geometry)

Windows

Awning button

Command entry:Create menu

AEC Objects

Awning Window

The Awning window has one or more sashes that are hinged at the top.

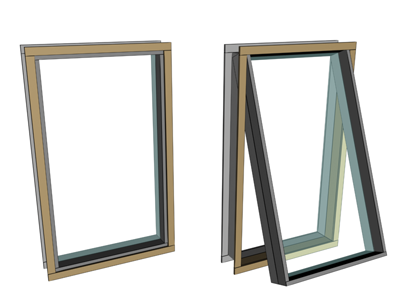

Awning window

Interface

Parameters rollout

The topic for each kind of window describes its unique controls and behavior. Some window parameters are common to all kinds of windows; see Windows.

Rails and Panels group

Width: Sets the width (depth) of the rails in the sashes.
Panel Count: Sets the number of sashes in the window. If you use more than one sash, each is hinged at its top edge. Range=1 to 10.

Open Window group
