Paint Push

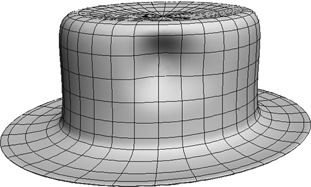

You can push points out or in along their normals using the Paint Push tool. This lets you sculpt an object by painting.

What the Paint Push tool actually does under the hood is:

See Deformations for more information about Push and other deformations in general, and see Weight Maps [Scene Elements] for more information about weight maps and painting weights.

As an alternative to using Paint Push, you can use the ICE-based Sculpt deformation. See Sculpt [ICE Deformations].

Applying Paint Push

To apply paint push

  1. Select the element that you wish to sculpt:

    • If you select a cluster, the weight map will be applied to it.

    • If you select an object, a cluster will be created for all the points on the object and the weight map will be applied to the cluster.

    • If you tag (select) points, a cluster will be created and the weight map will be applied to the cluster.

  2. Choose Get Property Map Paint Tools Paint Push Tool.

    A weight map is created and its property editor is displayed. A Push deformation is applied and the Paint tool is automatically activated.

  3. In a 3D view, click and drag to push points. In normal (additive) paint mode:

    • To push points out, use the left mouse button.

    • To push points in, either use the right mouse button or press Shift while using the left mouse button.

    • To smooth, press Alt while using the left mouse button.

    • To change the brush radius, press R while dragging with the left mouse button.

    • To change the opacity, press E while dragging with the left mouse button. The opacity controls the amount of weight added or removed with each brush stamp.

    • To change other brush properties, display the Brush Properties Property Editor [Properties Reference] by choosing Get Property Map Paint Tools Brush Properties or pressing Ctrl+W.

    For more information about painting, see Using Brush-based Tools [Commands and Tools].

    TipWhen painting on NURBS surfaces, you can increase performance by reducing the geometry-approximation settings. The Paint tool uses the triangulation of the object to follow its surface. For more information, see Geometry Approximation on NURBS [Surface and Curve Modeling].

Modifying Paint Push

After you have used Paint Push, you can modify the effect by painting more strokes at a later time or by changing the default parameters of the underlying Push operator.

Painting More Strokes

If you want to resculpt the object at a later time, you can select the original weight map and reactivate the Paint tool.

To paint again later

  1. Select the deformed object.

  2. On the Select Panel, choose Explore Property Maps and pick the associated weight map (by default, named PushMap).

  3. Activate the Paint tool by pressing W or by choosing Get Property Map Paint Tools Paint Tool.

Setting Push Parameters

To change the default parameters of the Push operator

  1. Select the deformed object.

  2. On the Select Panel, choose Selection and then click the Push Op icon. The Push Op property editor opens.

  3. Modify the parameters as desired. See Push Op Property Editor [Properties Reference] for specific information about each parameter.
