fbmodel.h File Reference

---

Detailed Description

fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h fbmodel.h

Base class for models.

Definition in file fbmodel.h.

#include <kaydaradef.h>
#include <fbsdk/fbcore.h>
#include <fbsdk/fbcomponent.h>
#include <fbsdk/fbshader.h>

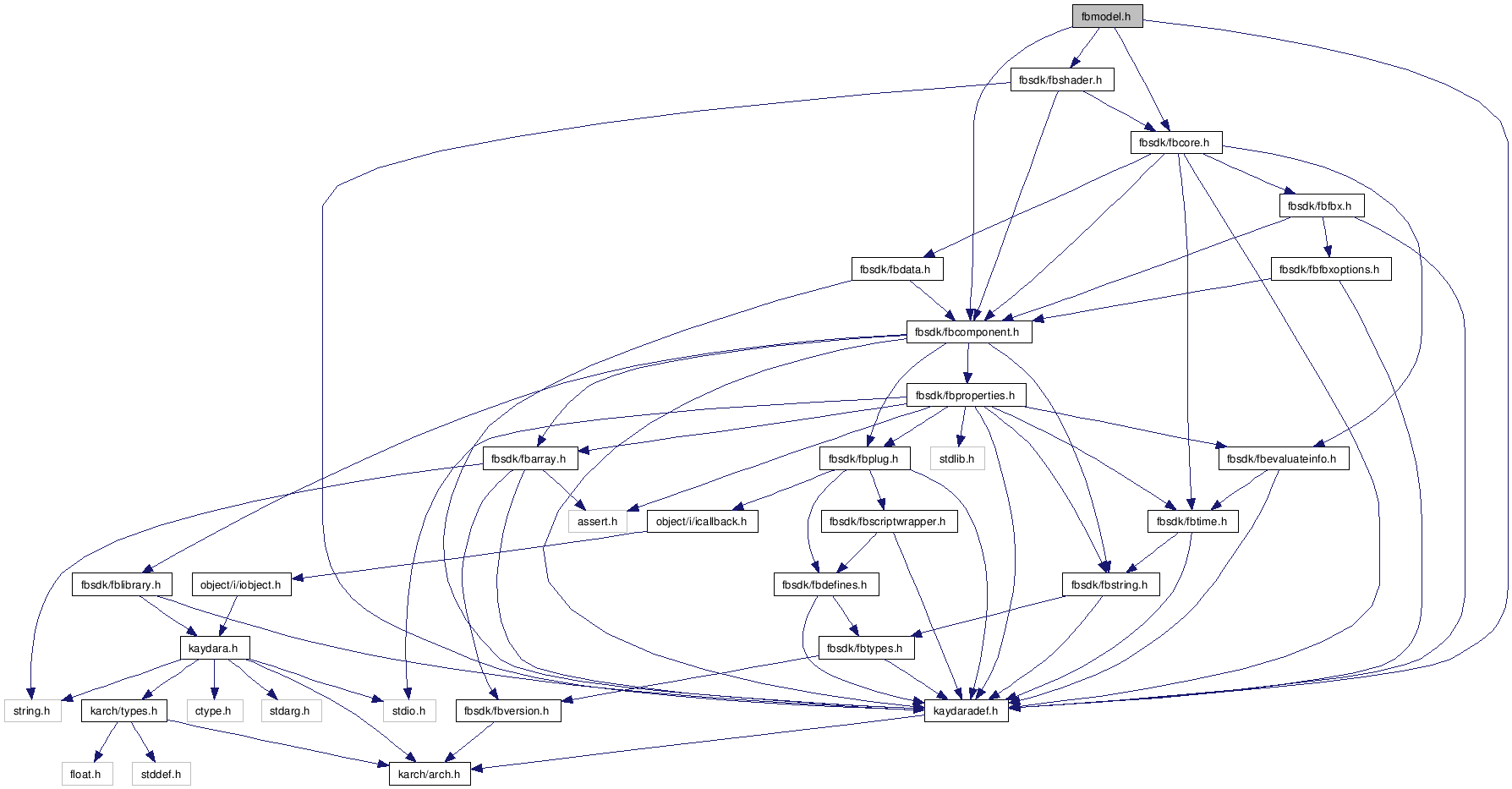

Include dependency graph for fbmodel.h:

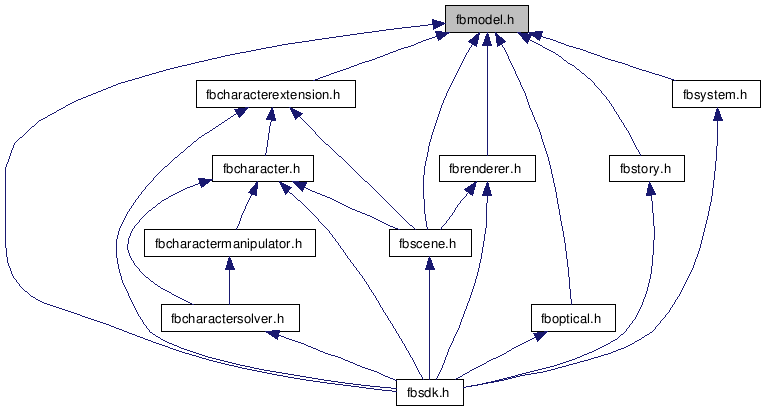

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	FBPropertyListModel
	List: Model More...
class	FBPropertyListMaterial
class	FBPropertyListTexture
class	FBModel
	Model class. More...
class	FBModelNull
	Null object class. More...
class	FBModelRoot
	Root object class. More...
class	FBModelMarker
	Model marker class. More...
class	FBModelSkeleton
	Root object class. More...
class	FBModelCube
	Cube model class. More...
class	FBModelPlane
	Plane model class. More...
class	FBModelPath3D
	Path 3D model class. More...
class	FBTexture
	Texture class. More...
class	FBLayeredTexture
	LayeredTexture class. More...
class	FBMaterial
	Material class. More...
class	FBCluster
	Cluster. More...
class	FBCamera
	Creates custom cameras and manages system cameras. More...
class	FBPropertyListCamera
	PropertyList: Camera More...
class	FBCameraSwitcher
	Camera switcher. More...
class	FBGlobalLight
	Global light class. More...
class	FBLight
	Light class. More...
class	FBPropertyListLight
	PropertyList: Light More...
class	FBModelVertexData
class	FBGeometry
	Geometry class. More...
class	FBMesh
	Mesh class. More...
class	FBSurface
	Surface class. More...
class	FBNurbs
	Nurbs class. More...
class	FBPatch
	Patch class. More...
class	FBDeformer
	Base Model deformer class. More...
Defines
#define	FBSDK_DLL   K_DLLIMPORT
	Be sure that FBSDK_DLL is defined only once.
Typedefs
typedef class K_DLLIMPORT FBArrayTemplate < HFBModel >	FBModelList
	typedef class FBSDK_DLL
Enumerations
enum	FBModelTransformationMatrix {    kModelTransformation = 1<<0,    kModelRotation = 1<<1,    kModelTranslation = 1<<2,    kModelScaling = 1<<3,    kModelInverse_Transformation = 1<<4,    kModelInverse_Rotation = 1<<5,    kModelInverse_Translation = 1<<6,    kModelInverse_Scaling = 1<<7,    kModelCenter = 1<<8,    kModelAll = (kModelCenter<<1)-1 }
	Types of transformation vector/matrices possible. More...
enum	FBModelShadingMode {    kFBModelShadingDefault,    kFBModelShadingWire,    kFBModelShadingFlat,    kFBModelShadingLight,    kFBModelShadingHard,    kFBModelShadingTexture,    kFBModelShadingAll }
	Modes for model shading. More...
enum	FBModelRenderPass {    kFBModelRenderPassStandard,    kFBModelRenderPassTransparency,    kFBModelRenderPassPick }
	Model Render pass. More...
enum	FBModelRotationOrder {    kFBEulerXYZ = 0,    kFBEulerXZY,    kFBEulerYZX,    kFBEulerYXZ,    kFBEulerZXY,    kFBEulerZYX,    kFBSphericXYZ }
	Ways to apply Rotation. More...
enum	FBMarkerResolutionLevel {    kFBMarkerLowResolution,    kFBMarkerMediumResolution,    kFBMarkerHighResolution }
	Resolution of marker mesh sphere and capsule (Quality). More...
enum	FBMarkerLook {    kFBMarkerLookCube,    kFBMarkerLookHardCross,    kFBMarkerLookLightCross,    kFBMarkerLookSphere,    kFBMarkerLookCapsule }
	Look of the marker. More...
enum	FBMarkerType {    kFBMarkerTypeStandard,    kFBMarkerTypeOptical,    kFBMarkerTypeFKEffector,    kFBMarkerTypeIKEffector }
	Type of the marker. More...
enum	FBPathTangeantMode {    kFBPathTangeantInvalid,    kFBPathTangeantLinear,    kFBPathTangeantCubic,    kFBPathTangeantAuto,    kFBPathTangeantUser }
	Tangeant modes available for path keys. More...
enum	FBTextureUseType {    kFBTextureUseColor = 1,    kFBTextureUseShadowMap = 2,    kFBTextureUseLightMap = 3,    kFBTextureUseSphericalReflexionMap = 4,    kFBTextureUseSphereReflexionMap = 5,    kFBTextureUseBumpNormalMap = 6 }
	Texture Use Type. More...
enum	FBTextureMapping {    kFBTextureMappingUV = 1,    kFBTextureMappingXY = 2,    kFBTextureMappingYZ = 3,    kFBTextureMappingXZ = 4,    kFBTextureMappingSpherical = 5,    kFBTextureMappingCylindrical = 6,    kFBTextureMappingEnvironment = 7,    kFBTextureMappingProjection = 8 }
	Texture mapping modes. More...
enum	FBTextureBlendMode {    kFBTextureBlendTranslucent,    kFBTextureBlendAdditive,    kFBTextureBlendModulate,    kFBTextureBlendModulate2 }
	Texture blend modes. More...
enum	FBMaterialTextureType {    kFBMaterialTextureEmissive,    kFBMaterialTextureEmissiveFactor,    kFBMaterialTextureAmbient,    kFBMaterialTextureAmbientFactor,    kFBMaterialTextureDiffuse,    kFBMaterialTextureDiffuseFactor,    kFBMaterialTextureSpecular,    kFBMaterialTextureSpecularFactor,    kFBMaterialTextureShiness,    kFBMaterialTextureBump,    kFBMaterialTextureNormalMap,    kFBMaterialTextureTransparent,    kFBMaterialTextureTransparentFactor,    kFBMaterialTextureReflection,    kFBMaterialTextureReflectionFactor,    kFBMaterialTextureDisplacementColor }
	Ways to apply Rotation. More...
enum	FBClusterMode {    kFBClusterNormalize,    kFBClusterAdditive,    kFBClusterTotal100 }
	Different clustering modes. More...
enum	FBCameraFrameSizeMode {    kFBFrameSizeWindow,    kFBFrameSizeFixedRatio,    kFBFrameSizeFixedResolution,    kFBFrameSizeFixedWidthResolution,    kFBFrameSizeFixedHeightResolution }
	Frame size modes. More...
enum	FBCameraResolutionMode {    kFBResolutionCustom,    kFBResolutionD1NTSC,    kFBResolutionNTSC,    kFBResolutionPAL,    kFBResolutionD1PAL,    kFBResolutionHD,    kFBResolution640x480,    kFBResolution320x200,    kFBResolution320x240,    kFBResolution128x128,    kFBResolutionFullScreen }
	Resolution modes. More...
enum	FBCameraApertureMode {    kFBApertureVertical,    kFBApertureHorizontal,    kFBApertureVertHoriz,    kFBApertureFocalLength }
	Aperture modes. More...
enum	FBCameraFilmBackType {    kFBFilmBackCustom,    kFBFilmBack16mmTheatrical,    kFBFilmBackSuper16mm,    kFBFilmBack35mmAcademy,    kFBFilmBack35mmTVProjection,    kFBFilmBack35mmFullAperture,    kFBFilmBack35mm185Projection,    kFBFilmBack35mmAnamorphic,    kFBFilmBack70mmProjection,    kFBFilmBackVistaVision,    kFBFilmBackDynavision,    kFBFilmBackIMAX }
	Filmback types. More...
enum	FBCameraViewPlaneMode {    kFBViewPlaneDisabled,    kFBViewPlaneAlways,    kFBViewPlaneWhenMedia }
	Camera plane viewing modes. More...
enum	FBCameraDistanceMode {    kFBDistModeRelativeToInterest,    kFBDistModeAbsoluteFromCamera }
	Camera plane distance modes. More...
enum	FBCameraSafeAreaMode {    kFBSafeAreaSquare,    kFBSafeAreaRound }
	Safe area modes. More...
enum	FBCameraAntiAliasingMethod {    kFBAntiAliasingSoftware,    kFBAntialiasingMultiSamplingOnyx }
	Antialiasing methods. More...
enum	FBCameraSamplingType {    kFBSamplingUniform,    kFBSamplingStochastic }
	Antialiasing sampling types. More...
enum	FBCameraFocusDistanceSource {    kFBFocusDistanceCameraInterest,    kFBFocusDistanceSpecificDistance }
	Focus distance sources. More...
enum	FBCameraType {    kFBCameraTypePerspective,    kFBCameraTypeOrthogonal }
	Focus distance types. More...
enum	FBCameraMatrixType {    kFBProjection,    kFBModelView }
	Camera matrix types. More...
enum	FBFogMode {    kFBFogModeLinear,    kFBFogModeExponential,    kFBFogModeSquareExponential }
	Fog falloff modes. More...
enum	FBLightType {    kFBLightTypePoint,    kFBLightTypeInfinite,    kFBLightTypeSpot }
	Light types. More...
enum	FBAttenuationType {    kFBAttenuationNone = 0,    kFBAttenuationLinear,    kFBAttenuationQuadratic,    kFBAttenuationCubic }
	Light attenuation types. More...
enum	FBGeometryPrimitiveType {    kFBGeometry_POINTS = 0x0000,    kFBGeometry_LINES = 0x0001,    kFBGeometry_LINE_LOOP = 0x0002,    kFBGeometry_LINE_STRIP = 0x0003,    kFBGeometry_TRIANGLES = 0x0004,    kFBGeometry_TRIANGLE_STRIP = 0x0005,    kFBGeometry_TRIANGLE_FAN = 0x0006,    kFBGeometry_QUADS = 0x0007,    kFBGeometry_QUADS_STRIP = 0x0008,    kFBGeometry_POLYGON = 0x0009 }
enum	FBGeometryArrayID {    kFBGeometryArrayID_Point,    kFBGeometryArrayID_NormalByPoint,    kFBGeometryArrayID_Tangent,    kFBGeometryArrayID_Binormal }
	ID to use when requesting a specific array of data for a model. More...
enum	FBGeometryArrayElementType {    kFBGeometryArrayElementType_Unknown,    kFBGeometryArrayElementType_Integer,    kFBGeometryArrayElementType_Float,    kFBGeometryArrayElementType_Float2,    kFBGeometryArrayElementType_Float3,    kFBGeometryArrayElementType_Float4,    kFBGeometryArrayElementType_FloatMatrix4x4,    kFBGeometryArrayElementType_IntegerArrayPointer }
	Type of data when requesting an array. More...
enum	FBGeometryMappingMode {    kFBGeometryMapping_NONE,    kFBGeometryMapping_BY_CONTROL_POINT,    kFBGeometryMapping_BY_POLYGON_VERTEX,    kFBGeometryMapping_BY_POLYGON,    kFBGeometryMapping_BY_EDGE,    kFBGeometryMapping_ALL_SAME }
	Determine how the element is mapped on a surface. More...
enum	FBGeometryReferenceMode {    kFBGeometryReference_DIRECT,    kFBGeometryReference_INDEX,    kFBGeometryReference_INDEX_TO_DIRECT }
	Determine how the mapping information is stored in the array of coordinate. More...
enum	kFBGeometryUpdateFlags {    kFBGeometryUpdateNone = 0,    kFBGeometryUpdateAll = 1 << 0,    kFBGeometryUpdatePositionAndNormal = 1 << 1,    kFBGeometryUpdateSkinWeight = 1 << 2,    kFBGeometryUpdateInverseNormal = 1 << 3,    kFBGeometryUpdateMappingMode = 1 << 4 }
enum	FBSurfaceMode {    kFBSurfaceModeRaw,    kFBSurfaceModeLowNoNormals,    kFBSurfaceModeLow,    kFBSurfaceModeHighNoNormals,    kFBSurfaceModeHigh }
	Surface modes. More...
enum	FBSurfaceType {    kFBSurfaceTypeBezier,    kFBSurfaceTypeBezierQuadric,    kFBSurfaceTypeCardinal,    kFBSurfaceTypeBspline,    kFBSurfaceTypeLinear }
	Surface types. More...
enum	FBNurbType {    kFBNurbTypePeriodic,    kFBNurbTypeClosed,    kFBNurbTypeOpen }
	Surface types. More...
Functions
K_DLLIMPORT void	FBModelTransactionBegin ()
	FBModelTransactionBegin.
K_DLLIMPORT void	FBModelTransactionEnd ()
	FBModelTransactionEnd.
	__FB_FORWARD (FBMaterial)
	PropertyList: Material
	__FB_FORWARD (FBTexture)
	PropertyList: Texture

---

Define Documentation

#define FBSDK_DLL   K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

..

Definition at line 48 of file fbmodel.h.

---

Typedef Documentation

typedef class K_DLLIMPORT FBArrayTemplate<HFBModel> FBModelList

typedef class FBSDK_DLL

Definition at line 63 of file fbmodel.h.

---

Enumeration Type Documentation

enum FBAttenuationType

Light attenuation types.

Enumerator:

kFBAttenuationNone	No attenuation.
kFBAttenuationLinear	Linear attenuation.
kFBAttenuationQuadratic	Quadratic attenuation.
kFBAttenuationCubic	Cubic attenuation.

Definition at line 1383 of file fbmodel.h.

enum FBCameraAntiAliasingMethod

Antialiasing methods.

Enumerator:

kFBAntiAliasingSoftware	Antaliasing in software.
kFBAntialiasingMultiSamplingOnyx	Multisampling (only on Onyx).

Definition at line 1120 of file fbmodel.h.

enum FBCameraApertureMode

Aperture modes.

Enumerator:

kFBApertureVertical	Vertical aperture varies.
kFBApertureHorizontal	Horizontal aperture varies.
kFBApertureVertHoriz	Vertical and horizontal aperture varies.
kFBApertureFocalLength	Focal Length aperture varies.

Definition at line 1077 of file fbmodel.h.

enum FBCameraDistanceMode

Camera plane distance modes.

Enumerator:

kFBDistModeRelativeToInterest	Camera plane distance relative to interest.
kFBDistModeAbsoluteFromCamera	Camera plane distance absolute from camera.

Definition at line 1108 of file fbmodel.h.

enum FBCameraFilmBackType

Filmback types.

Enumerator:

kFBFilmBackCustom	Custom Filmback.
kFBFilmBack16mmTheatrical	16mm Theatrical.
kFBFilmBackSuper16mm	Super16mm.
kFBFilmBack35mmAcademy	35mm Academy.
kFBFilmBack35mmTVProjection	35mm TV Projection.
kFBFilmBack35mmFullAperture	35mm Full Aperture.
kFBFilmBack35mm185Projection	35mm 185 Projection.
kFBFilmBack35mmAnamorphic	35mm Anamorphic.
kFBFilmBack70mmProjection	70mm Projection.
kFBFilmBackVistaVision	Vista Vision.
kFBFilmBackDynavision	Dynavision.
kFBFilmBackIMAX	IMAX.

Definition at line 1085 of file fbmodel.h.

enum FBCameraFocusDistanceSource

Focus distance sources.

Enumerator:

kFBFocusDistanceCameraInterest	Interest as source.
kFBFocusDistanceSpecificDistance	Specific distance as source.

Definition at line 1132 of file fbmodel.h.

enum FBCameraFrameSizeMode

Frame size modes.

Enumerator:

kFBFrameSizeWindow	Frame size of window.
kFBFrameSizeFixedRatio	Fixed ratio.
kFBFrameSizeFixedResolution	Fixed resolution.
kFBFrameSizeFixedWidthResolution	Fixed width resolution.
kFBFrameSizeFixedHeightResolution	Fixed height resolution.

Definition at line 1053 of file fbmodel.h.

enum FBCameraMatrixType

Camera matrix types.

Enumerator:

kFBProjection	Projection View matrix (OpenGL).
kFBModelView	Model View matrix (OpenGL).

Definition at line 1146 of file fbmodel.h.

enum FBCameraResolutionMode

Resolution modes.

Enumerator:

kFBResolutionCustom	Custom resolution mode or From Camera as a render setting.
kFBResolutionD1NTSC	D1 NTSC.
kFBResolutionNTSC	NTSC.
kFBResolutionPAL	PAL.
kFBResolutionD1PAL	D1 PAL.
kFBResolutionHD	HD 1920x1080.
kFBResolution640x480	640x480.
kFBResolution320x200	320x200.
kFBResolution320x240	320x240.
kFBResolution128x128	128x128.
kFBResolutionFullScreen	FullScreen.

Definition at line 1062 of file fbmodel.h.

enum FBCameraSafeAreaMode

Safe area modes.

Enumerator:

kFBSafeAreaSquare	Square safe area.
kFBSafeAreaRound	Round safe area.

Definition at line 1114 of file fbmodel.h.

enum FBCameraSamplingType

Antialiasing sampling types.

Enumerator:

kFBSamplingUniform	Uniform sampling.
kFBSamplingStochastic	Stochastic sampling.

Definition at line 1126 of file fbmodel.h.

enum FBCameraType

Focus distance types.

Enumerator:

kFBCameraTypePerspective	Interest as source.
kFBCameraTypeOrthogonal	Specific distance as source.

Definition at line 1139 of file fbmodel.h.

enum FBCameraViewPlaneMode

Camera plane viewing modes.

Enumerator:

kFBViewPlaneDisabled	Camera plane disabled.
kFBViewPlaneAlways	Always draw camera plane.
kFBViewPlaneWhenMedia	Camera plane when media.

Definition at line 1101 of file fbmodel.h.

enum FBClusterMode

Different clustering modes.

Enumerator:

kFBClusterNormalize	Normalize (values between 0.0 and 1.0 ).
kFBClusterAdditive	Add the values together.
kFBClusterTotal100	The balanced values will add up to 100 percent.

Definition at line 912 of file fbmodel.h.

enum FBFogMode

Fog falloff modes.

Enumerator:

kFBFogModeLinear	Linear falloff.
kFBFogModeExponential	Exponential falloff.
kFBFogModeSquareExponential	Squared exponential falloff.

Definition at line 1338 of file fbmodel.h.

enum FBGeometryArrayElementType

Type of data when requesting an array.

Enumerator:

kFBGeometryArrayElementType_Unknown
kFBGeometryArrayElementType_Integer
kFBGeometryArrayElementType_Float
kFBGeometryArrayElementType_Float2
kFBGeometryArrayElementType_Float3	Each element is an array of 3 float.
kFBGeometryArrayElementType_Float4	Each element is an array of 4 float.
kFBGeometryArrayElementType_FloatMatrix4x4
kFBGeometryArrayElementType_IntegerArrayPointer

Definition at line 1462 of file fbmodel.h.

enum FBGeometryArrayID

ID to use when requesting a specific array of data for a model.

Enumerator:

kFBGeometryArrayID_Point	ID to the Point array.
kFBGeometryArrayID_NormalByPoint	ID to the Normal by Point array.
kFBGeometryArrayID_Tangent	ID to the Tangent array.
kFBGeometryArrayID_Binormal	ID to the Binormal array.

Definition at line 1454 of file fbmodel.h.

enum FBGeometryMappingMode

Determine how the element is mapped on a surface.

• kFBGeometryMapping_NONE The mapping is undetermined.
• kFBGeometryMapping_BY_CONTROL_POINT There will be one mapping coordinate for each surface control point/vertex.
• kFBGeometryMapping_BY_POLYGON_VERTEX There will be one mapping coordinate for each vertex, for each polygon/strip it is part of. This means that a vertex will have as many mapping coordinates as polygons it is part of.
• kFBGeometryMapping_BY_POLYGON There can be only one mapping coordinate for the whole polygon/strip.
• kFBGeometryMapping_BY_EDGE There will be one mapping coordinate for each unique edge in the mesh. This is meant to be used with smoothing layer elements.
• kFBGeometryMapping_ALL_SAME There can be only one mapping coordinate for the whole surface.

Enumerator:

kFBGeometryMapping_NONE
kFBGeometryMapping_BY_CONTROL_POINT
kFBGeometryMapping_BY_POLYGON_VERTEX
kFBGeometryMapping_BY_POLYGON
kFBGeometryMapping_BY_EDGE
kFBGeometryMapping_ALL_SAME

Definition at line 1662 of file fbmodel.h.

enum FBGeometryPrimitiveType

Enumerator:

kFBGeometry_POINTS
kFBGeometry_LINES
kFBGeometry_LINE_LOOP
kFBGeometry_LINE_STRIP
kFBGeometry_TRIANGLES
kFBGeometry_TRIANGLE_STRIP
kFBGeometry_TRIANGLE_FAN
kFBGeometry_QUADS
kFBGeometry_QUADS_STRIP
kFBGeometry_POLYGON

Definition at line 1439 of file fbmodel.h.

enum FBGeometryReferenceMode

Determine how the mapping information is stored in the array of coordinate.

• kFBGeometryReference_DIRECT This indicates that the mapping information for the n'th element is found in the n'th place of DirectArray.
• kFBGeometryReference_INDEX, This indicates that the mapping information for the n'th element is found in the n'th place of IndexArray.
• kFBGeometryReference_INDEX_TO_DIRECT This indicates that the KLayerElementTemplate::mIndexArray contains, for the n'th element, an index in the KLayerElementTemplate::mDirectArray array of mapping elements. eINDEX_TO_DIRECT is usually useful to store coordinates for eBY_POLYGON_VERTEX mapping mode elements. Since the same coordinates are usually repeated a large number of times, it saves spaces to store the coordinate only one time and refer to them with an index. Materials and Textures are also referenced with this mode and the actual Material/Texture can be accessed via the KLayerElementTemplate::mDirectArray

Enumerator:

kFBGeometryReference_DIRECT
kFBGeometryReference_INDEX
kFBGeometryReference_INDEX_TO_DIRECT

Definition at line 1683 of file fbmodel.h.

enum FBLightType

Light types.

Enumerator:

kFBLightTypePoint	Point light.
kFBLightTypeInfinite	Infinite light (plane).
kFBLightTypeSpot	Spotlight.

Definition at line 1373 of file fbmodel.h.

enum FBMarkerLook

Look of the marker.

Enumerator:

kFBMarkerLookCube	Cube.
kFBMarkerLookHardCross	Thick cross.
kFBMarkerLookLightCross	Wireframe cross.
kFBMarkerLookSphere	Sphere.
kFBMarkerLookCapsule	Capsule.

Definition at line 489 of file fbmodel.h.

enum FBMarkerResolutionLevel

Resolution of marker mesh sphere and capsule (Quality).

Enumerator:

kFBMarkerLowResolution	Lowest resolution.
kFBMarkerMediumResolution	Medium resolution.
kFBMarkerHighResolution	Highest resolution.

Definition at line 481 of file fbmodel.h.

enum FBMarkerType

Type of the marker.

Enumerator:

kFBMarkerTypeStandard	Standard.
kFBMarkerTypeOptical	Optical.
kFBMarkerTypeFKEffector	FK effector.
kFBMarkerTypeIKEffector	IK effector.

Definition at line 499 of file fbmodel.h.

enum FBMaterialTextureType

Ways to apply Rotation.

Enumerator:

kFBMaterialTextureEmissive
kFBMaterialTextureEmissiveFactor
kFBMaterialTextureAmbient
kFBMaterialTextureAmbientFactor
kFBMaterialTextureDiffuse
kFBMaterialTextureDiffuseFactor
kFBMaterialTextureSpecular
kFBMaterialTextureSpecularFactor
kFBMaterialTextureShiness
kFBMaterialTextureBump
kFBMaterialTextureNormalMap
kFBMaterialTextureTransparent
kFBMaterialTextureTransparentFactor
kFBMaterialTextureReflection
kFBMaterialTextureReflectionFactor
kFBMaterialTextureDisplacementColor

Definition at line 830 of file fbmodel.h.

enum FBModelRenderPass

Model Render pass.

Enumerator:

kFBModelRenderPassStandard	Standard pass.
kFBModelRenderPassTransparency	Transparency pass.
kFBModelRenderPassPick	Pick pass.

Definition at line 206 of file fbmodel.h.

enum FBModelRotationOrder

Ways to apply Rotation.

Enumerator:

kFBEulerXYZ	XYZ Euler Order.
kFBEulerXZY	XZY Euler Order.
kFBEulerYZX	YZX Euler Order.
kFBEulerYXZ	YXZ Euler Order.
kFBEulerZXY	ZXY Euler Order.
kFBEulerZYX	ZYX Euler Order.
kFBSphericXYZ	Spheric XYZ Order.

Definition at line 213 of file fbmodel.h.

enum FBModelShadingMode

Modes for model shading.

Enumerator:

kFBModelShadingDefault	Default shading.
kFBModelShadingWire	Wireframe shading.
kFBModelShadingFlat	Flat shading.
kFBModelShadingLight	Lighted shading.
kFBModelShadingHard	Hard shading.
kFBModelShadingTexture	Textured shading.
kFBModelShadingAll	Lighted, shaded, textured shading.

Definition at line 195 of file fbmodel.h.

enum FBModelTransformationMatrix

Types of transformation vector/matrices possible.

Enumerator:

kModelTransformation	Transformation.
kModelRotation	Rotation.
kModelTranslation	Translation.
kModelScaling	Scaling.
kModelInverse_Transformation	Inverse transformation.
kModelInverse_Rotation	Inverse rotation.
kModelInverse_Translation	Inverse translation.
kModelInverse_Scaling	Inverse scaling.
kModelCenter	Center.
kModelAll	All.

Definition at line 181 of file fbmodel.h.

enum FBNurbType

Surface types.

Enumerator:

kFBNurbTypePeriodic	Periodic Type Nurb.
kFBNurbTypeClosed	Closed Type Nurb.
kFBNurbTypeOpen	Open Type Nurb.

Definition at line 2216 of file fbmodel.h.

enum FBPathTangeantMode

Tangeant modes available for path keys.

Enumerator:

kFBPathTangeantInvalid	Invalid tangeant.
kFBPathTangeantLinear	Linear tangeant.
kFBPathTangeantCubic	Cubic tangeant.
kFBPathTangeantAuto	Automatic-cubic tangeant.
kFBPathTangeantUser	User-cubic tangeant.

Definition at line 594 of file fbmodel.h.

enum FBSurfaceMode

Surface modes.

Enumerator:

kFBSurfaceModeRaw	Raw data.
kFBSurfaceModeLowNoNormals	Low quality, no normals.
kFBSurfaceModeLow	Low quality.
kFBSurfaceModeHighNoNormals	High quality, no normals.
kFBSurfaceModeHigh	High quality.

Definition at line 2121 of file fbmodel.h.

enum FBSurfaceType

Surface types.

Enumerator:

kFBSurfaceTypeBezier	Bezier surface.
kFBSurfaceTypeBezierQuadric	Bezier Quadric surface.
kFBSurfaceTypeCardinal	Cardinal surface.
kFBSurfaceTypeBspline	BSpline surface.
kFBSurfaceTypeLinear	Linear surface.

Definition at line 2132 of file fbmodel.h.

enum FBTextureBlendMode

Texture blend modes.

How the texture is blended with another.

Enumerator:

kFBTextureBlendTranslucent	Layer transparency.
kFBTextureBlendAdditive	Layer addition.
kFBTextureBlendModulate	Layer multiplication.
kFBTextureBlendModulate2	Layer multiplication + brightness.

Definition at line 745 of file fbmodel.h.

enum FBTextureMapping

Texture mapping modes.

How the texture is mapped.

Enumerator:

kFBTextureMappingUV	UV mapping.
kFBTextureMappingXY	XY mapping.
kFBTextureMappingYZ	YZ mapping.
kFBTextureMappingXZ	XZ mapping.
kFBTextureMappingSpherical	Spherical mapping.
kFBTextureMappingCylindrical	Cylindrical mapping.
kFBTextureMappingEnvironment	Environment mapping.
kFBTextureMappingProjection	Projection mapping.

Definition at line 731 of file fbmodel.h.

enum FBTextureUseType

Texture Use Type.

How the texture is used.

Enumerator:

kFBTextureUseColor	standard color type, work with material.
kFBTextureUseShadowMap	Shadow Map, work with model.
kFBTextureUseLightMap	Light Map, work with model.
kFBTextureUseSphericalReflexionMap	Spherical Reflexion Map, work with model.
kFBTextureUseSphereReflexionMap	Sphere Reflexion Map, work with model.
kFBTextureUseBumpNormalMap	Bump Normal Map, work with model.

Definition at line 719 of file fbmodel.h.

enum kFBGeometryUpdateFlags

Enumerator:

kFBGeometryUpdateNone	no update done
kFBGeometryUpdateAll	control point add/remove, topology change, cluster/shape change and such events requiring regenerate optimized strip.
kFBGeometryUpdatePositionAndNormal	only control point's position & normal change, so only update those values in the strip.
kFBGeometryUpdateSkinWeight	update skin weight
kFBGeometryUpdateInverseNormal	inverse normal request.
kFBGeometryUpdateMappingMode	mapping mode request from associated shading network change.

Definition at line 1693 of file fbmodel.h.

---

Function Documentation

__FB_FORWARD

(

FBTexture

)

PropertyList: Texture

__FB_FORWARD

(

FBMaterial

)

PropertyList: Material

K_DLLIMPORT void FBModelTransactionBegin

(

)

FBModelTransactionBegin.

This set of functions speeds up the process of batch operations on models.

K_DLLIMPORT void FBModelTransactionEnd

(

)

FBModelTransactionEnd.

This set of functions speeds up the process of batch operations on models.

---

Please send us your comments about this page.
