FBModelPath3D Class Reference

#include <fbmodel.h>
FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D FBModelPath3D

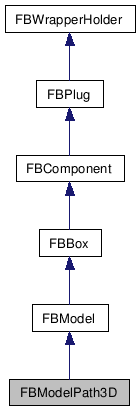

Inheritance diagram for FBModelPath3D:
Inheritance graph
[legend]

List of all members.

Detailed Description

Path 3D model class.

Definition at line 605 of file fbmodel.h.


Public Member Functions
  FBModelPath3D (char *pName, HIObject pObject=NULL)
  Constructor.
void  PathSetKeyLeftRightTangeant (int pKeyIndex, FBVector4d pKeyTLocal, FBVector4d pLeftTangentTLocal, FBVector4d pRightTangentTLocal, bool pUpdate=true)
  Set Path 3D's Key, Key Left Tangent and Key Right Tangent for designated index at a time.
void  UpdateGeometry ()
  Update Path 3D geometry explicitly.

Constructor & Destructor Documentation

FBModelPath3D ( char *  pName,
HIObject  pObject = NULL
)

Constructor.

Parameters:
pName  Name of Path 3D.
pObject  For internal use only(default=NULL).
Python sample code:
        Script Sample.
        from pyfbsdk import *

        path = FBModelPath3D("Test")
        path.Show = True
        der = temp.Total_LocalPathEvaluateDerivative(1)
        tgMode = path.GetLeftTangeantMode(0)
        temp.PathKeySetLeftTangeant(1,FBVector4d(25,25,25,25),True)
        ## Ajouter un Vertex
        temp.PathKeyStartAdd(FBVector4d(0,0,100,0))
        temp.PathKeyEndAdd(FBVector4d(100,0,0,0))
        ## Creer Vertex
        temp.Segment_PathKeyAdd(75.0,FBVector4d(25,25,25,25))
        temp.Segment_PathKeyAdd(25.0,FBVector4d(25,0,25,25))

Member Function Documentation

void PathSetKeyLeftRightTangeant ( int  pKeyIndex,
FBVector4d  pKeyTLocal,
FBVector4d  pLeftTangentTLocal,
FBVector4d  pRightTangentTLocal,
bool  pUpdate = true
)

Set Path 3D's Key, Key Left Tangent and Key Right Tangent for designated index at a time.

Parameters:
pKeyIndex  Key ID to set with
pKeyTLocal  Vector to use to set values to Key
pLeftTangentTLocal  Vector to use to set values to Key Left Tangent
pRightTangentTLocal  Vector to use to set values to Key Right Tangent
pUpdate  true if geometry update is required, false if not required (default=true)

void UpdateGeometry (  )

Update Path 3D geometry explicitly.
