FBGeometry Class Reference

#include <fbmodel.h>

FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry FBGeometry

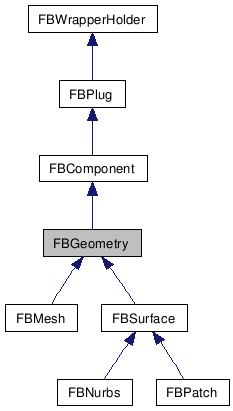

Inheritance diagram for FBGeometry:

[legend]

List of all members.

---

Detailed Description

Geometry class.

This class groups all geometry related elements which are shared across the different subclasses (FBMesh, FBSurface, FBNurbs and FBPatch). Geometry Material always use kFBGeometryReference_INDEX mode. While Normal, UV could have different combination of mapping and reference modes.

Geometries created with SDK can only use the mapping/reference mode kFBGeometryMapping_ALL_SAME/kFBGeometryReference_INDEX for material, kFBGeometryMapping_BY_CONTROL_POINT/kFBGeometryReference_DIRECT for Normal and UV. And only one set of UV could be created.

Geometries passed from FBXSDK pipeline could have various complex mapping/reference mode combination for material, normal and UV. And could potentially contains multiple set of UVs.

Definition at line 1719 of file fbmodel.h.

Query interface for Geometry Position, Normal, UV, Material array.
FBPropertyGeometryMappingMode	NormalMappingMode
	Read Only Property: Normal mapping mode.
FBPropertyGeometryReferenceMode	NormalReferenceMode
	Read Only Property: Normal reference mode.
FBPropertyGeometryMappingMode	MaterialMappingMode
	Read Only Property: Material mapping mode.
int *	GetNormalsIndexArray (int &pOutArrayCount) const
	Get a pointer to the index array of normals.
FBNormal *	GetNormalsDirectArray (int &pOutArrayCount) const
	Get a pointer to the direct array of normals.
FBStringList	GetUVSets () const
	Get available UVSet name.
FBGeometryMappingMode	GetUVSetMappingMode (const char *pUVSetName) const
	Get UVSet mapping mode.
FBGeometryReferenceMode	GetUVSetReferenceMode (const char *pUVSetName) const
	Get UVSet reference mode.
int *	GetVUVSetIndexArray (int &pOutArrayCount, const char *pUVSetName) const
	Get a pointer to the index array of UVset.
FBUV *	GetUVSetDirectArray (int &pOutArrayCount, const char *pUVsetName=NULL) const
	Get a pointer to the direct array of UVset.
int *	GetMaterialIndexArray (int &pOutArrayCount, const char *pUVSetName) const
	Get a pointer to the index array of Material.
Public Member Functions
	FBGeometry (char *pName, HIObject pObject=NULL)
	Constructor.
void	VertexInit (int pSize, bool pResize, bool pInitUV=true)
	Resize or Reserve vertex, normal and UV array for performance.
bool	VertexClear ()
	Clear all vertices.
int	VertexAdd (FBVertex pVertex)
	Add a vertex.
int	VertexAdd (FBVertex pVertex, FBNormal pNormal)
	Add a vertex.
int	VertexAdd (FBVertex pVertex, FBNormal pNormal, FBUV pUV)
	Add a vertex.
int	VertexAdd (double px, double py, double pz)
	Add a vertex.
bool	VertexSet (FBVertex pVertex, int pIndex=-1)
	Set a vertex.
bool	VertexSet (double px, double py, double pz, int pIndex=-1)
	Set a vertex.
bool	VertexNormalSet (FBNormal pVertex, int pIndex=-1)
	Set a normal at a vertex.
bool	VertexNormalSet (double px, double py, double pz, int pIndex=-1)
	Set a normal at a vertex.
bool	VertexUVSet (FBUV pUV, int pIndex=-1)
	Set a UV coordinate.
bool	VertexUVSet (float pU, float pV, int pIndex=-1)
	Set a UV coordinate.
Simple Geometry Editing Interface: Vertex, Normal, UV.
Geometries created with SDK can only use the mapping/reference mode kFBGeometryMapping_ALL_SAME/kFBGeometryReference_INDEX for material, kFBGeometryMapping_BY_CONTROL_POINT/kFBGeometryReference_DIRECT for Normal and UV. And only one set of UV could be created.
bool	GeometryBegin ()
	Begin/End geometry mapping.
bool	GeometryEnd ()
	Begin/End geometry mapping.
Query interface for Vertex's Position, Normal, UV of default set.
int	VertexCount () const
	Get the number of vertices in the geometry.
FBVertex	VertexGet (int pIndex) const
	Get a vertex.
FBVertex *	GetVertexes () const
	Get a pointer to the array of vertexes.
FBNormal	VertexNormalGet (int pIndex=-1) const
	Get a normal at a vertex.
FBUV	VertexUVGet (int pIndex=-1) const
	Get a UV coordinate.
Vertex Selection/Manipulation Interface.
bool	VertexGetSelected (int pIndex)
	Get the selected state of a vertex.
bool	VertexSetSelected (int pIndex, bool pState)
	Set the selected state of a vertex.
bool	VertexGetVisible (int pIndex)
	Get the visible state of a vertex.
bool	VertexSetVisible (int pIndex, bool pState)
	Set the visible state of a vertex.
bool	VertexGetTransformable (int pIndex)
	Get the Transformable state of a vertex.
Shape Management Interface
int	ShapeGetCount () const
	Get Shape Count.
const char *	ShapeGetName (int pShapeIdx) const
	Return the shape Name.
int	ShapeAdd (const char *pName)
	Add new shape.
void	ShapeClearAll ()
	Clears all the shapes.
void	ShapeInit (int pShapeIdx, int pDiffSize, bool pWithNormal=false)
	Init the shape.
int	ShapeGetDiffPointCount (int pShapeIdx) const
	Return the shape's total diff points count.
bool	ShapeSetDiffPoint (int pShapeIdx, int pDiffIndex, int pOriIndex, const FBVertex &pPosDiff)
	Set the differentiate point.
bool	ShapeSetDiffPoint (int pShapeIdx, int pDiffIndex, int pOriIndex, const FBVertex &pPosDiff, const FBNormal &pNormalDiff)
	Get Shape Count.
bool	ShapeGetDiffPoint (int pShapeIdx, int pDiffIndex, int &pOriIndex, FBVertex &pPosDiff) const
	Get the differentiate point.
bool	ShapeGetDiffPoint (int pShapeIdx, int pDiffIndex, int &pOriIndex, FBVertex &pPosDiff, FBNormal &pNormalDiff) const
	Get Shape Count.
Geometry Editting Notfication
void	ModifyNotify (kFBGeometryUpdateFlags pFlags=kFBGeometryUpdateAll, int pFirstIndex=-1, int pLastIndex=-1)
	The geometry has change, update the necessary flags.

---

Constructor & Destructor Documentation

FBGeometry	(	char *	pName,
		HIObject	pObject = NULL
	)

Constructor.

Parameters:

	pName	Name of Geometry.
	pObject	For internal use only(default=NULL).

---

Member Function Documentation

bool GeometryBegin

(

)

Begin/End geometry mapping.

Returns:

true if successful.

bool GeometryEnd

(

)

Begin/End geometry mapping.

Returns:

true if successful.

void VertexInit	(	int	pSize,
		bool	pResize,
		bool	pInitUV = true
	)

Resize or Reserve vertex, normal and UV array for performance.

Parameters:

	pSize	Number of vertices to resize or reserve.
	pResize	True, for the geometry with known vertex count, we should resize the arrays to fixed size, and call VertexSet() afterwards; Flase, While for dynamic size geometry, we should only reserve the arrays with the estimated optimal size, then call VertexAdd() to dynamically increase the vertex count.
	pInit	init UV array if true.

bool VertexClear

(

)

Clear all vertices.

Returns:

true if successful.

Remarks:

Clear normal, UV and material as well.

int VertexAdd

(

FBVertex

pVertex

)

Add a vertex.

Parameters:

pVertex

Vertex values used to add vertex.

Returns:

Index where vertex was added.

Remarks:

Set Normal with default value

int VertexAdd	(	FBVertex	pVertex,
		FBNormal	pNormal
	)

Add a vertex.

Parameters:

	pVertex	Vertex values used to add vertex.
	pNormal	Normal values used to add vertex.

Returns:

Index where vertex was added.

int VertexAdd	(	FBVertex	pVertex,
		FBNormal	pNormal,
		FBUV	pUV
	)

Add a vertex.

Parameters:

	pVertex	Vertex values used to add vertex.
	pNormal	Normal values used to add vertex.
	pUV	UV values used to add vertex.

Returns:

Index where vertex was added.

int VertexAdd	(	double	px,
		double	py,
		double	pz
	)

Add a vertex.

Parameters:

	px	X coordinate of vertex to add.
	py	Y coordinate of vertex to add.
	pz	Z coordinate of vertex to add.

Returns:

Index where vertex was added.

Remarks:

Set Normal with default value

bool VertexSet	(	FBVertex	pVertex,
		int	pIndex = -1
	)

Set a vertex.

Parameters:

	pVertex	Vertex values used to set vertex.
	pIndex	Index of vertex to affect (default=-1).

Returns:

true if successful.

bool VertexSet	(	double	px,
		double	py,
		double	pz,
		int	pIndex = -1
	)

Set a vertex.

Parameters:

	px	X coordinate to set.
	py	Y coordinate to set.
	pz	Z coordinate to set.
	pIndex	Index of vertex to set(default=-1).

Returns:

true if successful.

bool VertexNormalSet	(	FBNormal	pVertex,
		int	pIndex = -1
	)

Set a normal at a vertex.

Parameters:

	pVertex	Normal to set.
	pIndex	Index of vertex to set Normal at(default=-1).

Returns:

true if successful.

bool VertexNormalSet	(	double	px,
		double	py,
		double	pz,
		int	pIndex = -1
	)

Set a normal at a vertex.

Parameters:

	px	X coordinate of normal.
	py	Y coordinate of normal.
	pz	Z coordinate of normal.
	pIndex	Index of vertex to set Normal at(default=-1).

Returns:

true if successful.

bool VertexUVSet	(	FBUV	pUV,
		int	pIndex = -1
	)

Set a UV coordinate.

Parameters:

	pUV	UV coordinate to set.
	pIndex	Index of Vertex to affect with UV coordinate(default=-1).

Returns:

true if successful.

bool VertexUVSet	(	float	pU,
		float	pV,
		int	pIndex = -1
	)

Set a UV coordinate.

Parameters:

	pU	U coordinate to set.
	pV	V coordinate to set.
	pIndex	Index of Vertex to affect with UV coordinate(default=-1).

Returns:

true if successful.

int VertexCount

(

)

const

Get the number of vertices in the geometry.

Returns:

Number of vertices in the geometry.

FBVertex VertexGet

(

int

pIndex

)

const

Get a vertex.

Parameters:

pIndex

Index of vertex to get.

Returns:

Vertex stored at pIndex.

FBVertex* GetVertexes

(

)

const

Get a pointer to the array of vertexes.

Returns:

pointer to the array of vertexes, or NULL if the array has not been allocated.

FBNormal VertexNormalGet

(

int

pIndex = -1

)

const

Get a normal at a vertex.

Parameters:

pIndex

Vertex to get normal at(default=-1).

Returns:

Normal of vertex at pIndex.

FBUV VertexUVGet

(

int

pIndex = -1

)

const

Get a UV coordinate.

Parameters:

pIndex

Index of Vertex to get UV coordinate for(default=-1).

Returns:

UV coordinate of vertex at UVSetIndex.

int* GetNormalsIndexArray

(

int &

pOutArrayCount

)

const

Get a pointer to the index array of normals.

Parameters:

pOutArrayCount

To return the length the array.

Returns:

Pointer to index array of normals, or NULL if the array hasn't been allocated yet.

FBNormal* GetNormalsDirectArray

(

int &

pOutArrayCount

)

const

Get a pointer to the direct array of normals.

Parameters:

pOutArrayCount

To return the length the array.

Returns:

Pointer to direct array of normals, or NULL if the array hasn't been allocated yet.

FBStringList GetUVSets

(

)

const

Get available UVSet name.

Returns:

StringList contain all the available UVSets' name.

FBGeometryMappingMode GetUVSetMappingMode

(

const char *

pUVSetName

)

const

Get UVSet mapping mode.

Parameters:

pUVsetName

The name of UVset

Returns:

Mapping mode of the UVset.

FBGeometryReferenceMode GetUVSetReferenceMode

(

const char *

pUVSetName

)

const

Get UVSet reference mode.

Parameters:

pUVsetName

The name of UVset

Returns:

Reference mode of the UVset.

int* GetVUVSetIndexArray	(	int &	pOutArrayCount,
		const char *	pUVSetName
	)			const

Get a pointer to the index array of UVset.

Parameters:

	pOutArrayCount	To return the length the array.
	pUVsetName	The name of UVset

Returns:

Pointer to index array of UVSet, or NULL if the array hasn't been allocated yet.

FBUV* GetUVSetDirectArray	(	int &	pOutArrayCount,
		const char *	pUVsetName = NULL
	)			const

Get a pointer to the direct array of UVset.

Parameters:

	pOutArrayCount	To return the length the array.
	pUVsetName	The name of UVset

Returns:

pointer to the array of UV, or NULL is the array hasn't been allocated yet.

int* GetMaterialIndexArray	(	int &	pOutArrayCount,
		const char *	pUVSetName
	)			const

Get a pointer to the index array of Material.

Parameters:

pOutArrayCount

To return the length the array.

Returns:

Pointer to index array of Material, or NULL if the array hasn't been allocated yet.

bool VertexGetSelected

(

int

pIndex

)

Get the selected state of a vertex.

Parameters:

pIndex

The index of the vertex

Returns:

true if the vertex is selected.false if not

bool VertexSetSelected	(	int	pIndex,
		bool	pState
	)

Set the selected state of a vertex.

Parameters:

	pIndex	The index of the vertex
	pState	The true to selected, false to unselect

Returns:

true if the vertex is selected.false if not

bool VertexGetVisible

(

int

pIndex

)

Get the visible state of a vertex.

Parameters:

pIndex

The index of the vertex

Returns:

true if the vertex is visible.false if not

bool VertexSetVisible	(	int	pIndex,
		bool	pState
	)

Set the visible state of a vertex.

Parameters:

	pIndex	The index of the vertex
	pState	The true to visible, false to unselect

Returns:

true if the vertex is visible.false if not

bool VertexGetTransformable

(

int

pIndex

)

Get the Transformable state of a vertex.

Parameters:

pIndex

The index of the vertex

Returns:

true if the vertex is Transformable.false if not

int ShapeGetCount

(

)

const

Get Shape Count.

const char* ShapeGetName

(

int

pShapeIdx

)

const

Return the shape Name.

int ShapeAdd

(

const char *

pName

)

Add new shape.

Parameters:

pName

the shape name

Returns:

the index of the new shape, -1 if the shape adding fail.

void ShapeClearAll

(

)

Clears all the shapes.

void ShapeInit	(	int	pShapeIdx,
		int	pDiffSize,
		bool	pWithNormal = false
	)

Init the shape.

Parameters:

	pShapeIdx	The index of the shape to be inited.
	pDiffSize	Total number of different point (pos or normal) compared to base geometry.
	pWithNormal	Currently normal won't be considered during shape blending.

int ShapeGetDiffPointCount

(

int

pShapeIdx

)

const

Return the shape's total diff points count.

Parameters:

pShapeIdx

The index of the shape

bool ShapeSetDiffPoint	(	int	pShapeIdx,
		int	pDiffIndex,
		int	pOriIndex,
		const FBVertex &	pPosDiff
	)

Set the differentiate point.

Parameters:

	pShapeIdx	The index of the shape
	pDiffIndex	The index of the diff point in this shape.
	pOriIndex	The index of the diff point in the original geometry.
	pPosDiff	The position differentiation.
	pNormalDiff	The normal differentiation.

bool ShapeSetDiffPoint	(	int	pShapeIdx,
		int	pDiffIndex,
		int	pOriIndex,
		const FBVertex &	pPosDiff,
		const FBNormal &	pNormalDiff
	)

Get Shape Count.

bool ShapeGetDiffPoint	(	int	pShapeIdx,
		int	pDiffIndex,
		int &	pOriIndex,
		FBVertex &	pPosDiff
	)			const

Get the differentiate point.

Parameters:

	pShapeIdx	The index of the shape
	pDiffIndex	The index of the diff point in this shape.
	pOriIndex	The index of the diff point in the original geometry.
	pPosDiff	The position differentiation.
	pNormalDiff	The normal differentiation.

bool ShapeGetDiffPoint	(	int	pShapeIdx,
		int	pDiffIndex,
		int &	pOriIndex,
		FBVertex &	pPosDiff,
		FBNormal &	pNormalDiff
	)			const

Get Shape Count.

void ModifyNotify	(	kFBGeometryUpdateFlags	pFlags = kFBGeometryUpdateAll,
		int	pFirstIndex = -1,
		int	pLastIndex = -1
	)

The geometry has change, update the necessary flags.

Parameters:

	pFlags	flags for the kind of update that was done.
	pFirstIndex	Correspond to the start index of modification of points or normals.
	pLastIndex	Correspond to the last index of modification of points or normals.

---

Member Data Documentation

FBPropertyGeometryMappingMode NormalMappingMode

Read Only Property: Normal mapping mode.

Definition at line 1885 of file fbmodel.h.

FBPropertyGeometryReferenceMode NormalReferenceMode

Read Only Property: Normal reference mode.

Definition at line 1886 of file fbmodel.h.

FBPropertyGeometryMappingMode MaterialMappingMode

Read Only Property: Material mapping mode.

Definition at line 1931 of file fbmodel.h.

---

Please send us your comments about this page.
