FBCharacterSolver Class Reference

#include
<fbcharactersolver.h>

FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver FBCharacterSolver

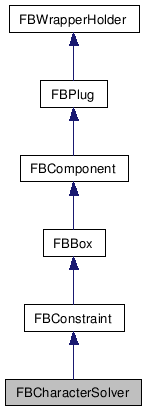

Inheritance diagram for FBCharacterSolver:

[legend]

List of all members.

Detailed Description

Constraint class.

Definition at line 116 of file fbcharactersolver.h.


Public Member Functions
	FBCharacterSolver (char *pName, HIObject pObject=NULL)
	Constructor.
virtual int	GetExtraFKCount ()
	Return number of extra FK model (ex.
virtual const char *	GetExtraFKNameAt (int pIndex)
	Return the specified extra FK Name (ex.
virtual FBBodyPartId	GetExtraFKBodyPartAt (int pIndex)
	Return The specified extra FK BodyPart (ex.
virtual int	GetExtraBoneCount ()
	Return number of extra Bone model (ex.
virtual const char *	GetExtraBoneNameAt (int pIndex)
	Return The specified extra Bone name (ex.
virtual FBBodyPartId	GetExtraBoneBodyPartAt (int pIndex)
	Return The specified extra Bone BodyPart (ex.
FBModel *	GetExtraBoneModelAt (int pIndex)
	Return The specified extra Bone model (ex.
FBModelMarker *	GetExtraFKModelAt (int pIndex)
	Return the specified extra FK model (ex.
void	SetExtraBoneModelAt (FBModel *pModel, int pIndex)
	Set the specified extra Bone model for a specified Extra Bone Index.
void	SetExtraFKModelAt (FBModelMarker *pModel, int pIndex)
	Set the specified extra FK model for a specified Extra FK Index (ex.
void	ExtractOffsets ()
	Extract Transforms Of Extra Bones for character stance pose information.
void	GetTransformOffset (FBVector3d &pT, FBRVector &pR, FBSVector &pS, int pIndex)
	Get the transform of the Given Extra Bone Index.
void	SetTransformOffset (FBVector3d &pT, FBRVector &pR, FBSVector &pS, int pIndex)
	Set the transform of the Given Extra Bone Index.
void	GetParentRotationOffset (FBRVector &pR, int pIndex)
	Get the Parent Rotation Offset of the Given Extra Bone Index.
void	SetParentRotationOffset (FBRVector &pR, int pIndex)
	Set the Parent Rotation Offset of the Given Extra Bone Index.
virtual void	CharacterPasteState (FBCharacter pFromCharacter, FBCharacterPose pPose, FBCharacterPoseOptions &pCharacterPoseOptions)
	Paste the state of a character on another one.
Public Attributes
int	mEvaluationId
	Last Evaluation Id.
FBPropertyCharacter	TargetCharacter
	Read Write Property: The character being constrained.
FBPropertyComponent	Source
	Read Write Property: Source character when doing a character retarget.

Constructor & Destructor Documentation

FBCharacterSolver	(	char *	pName,
		HIObject	pObject = `NULL`
	)

Constructor.

Parameters:

	pName	Name of constraint.
	pObject	For internal use only (default is NULL).

Member Function Documentation

virtual int GetExtraFKCount ( ) [inline, virtual]

Return number of extra FK model (ex.

extra shoulder)

Returns:: number of extra FK.

Definition at line 139 of file fbcharactersolver.h.

virtual const char* GetExtraFKNameAt ( int pIndex ) [inline, virtual]

Return the specified extra FK Name (ex.

extra shoulder)

Parameters:

pIndex

Index of extra FK to get.

Returns:: Name corresponding to FK index.

Definition at line 144 of file fbcharactersolver.h.

virtual FBBodyPartId GetExtraFKBodyPartAt ( int pIndex ) [inline, virtual]

Return The specified extra FK BodyPart (ex.

Left Arm )

Parameters:

pIndex

Index of extra Bone to get.

Returns:: BodyPart associated with this model.

Definition at line 149 of file fbcharactersolver.h.

References kFBCtrlSetPartNone.

virtual int GetExtraBoneCount ( ) [inline, virtual]

Return number of extra Bone model (ex.

extra shoulder)

Returns:: number of extra Bone.

Definition at line 153 of file fbcharactersolver.h.

virtual const char* GetExtraBoneNameAt ( int pIndex ) [inline, virtual]

Return The specified extra Bone name (ex.

extra shoulder)

Parameters:

pIndex

Index of extra Bone to get.

Returns:: Name corresponding to Bone index.

Definition at line 158 of file fbcharactersolver.h.

virtual FBBodyPartId GetExtraBoneBodyPartAt ( int pIndex ) [inline, virtual]

Return The specified extra Bone BodyPart (ex.

Left Arm )

Parameters:

pIndex

Index of extra Bone to get.

Returns:: BodyPart associated with this model.

Definition at line 163 of file fbcharactersolver.h.

References kFBCtrlSetPartNone.

FBModel* GetExtraBoneModelAt ( int pIndex )

Return The specified extra Bone model (ex.

extra shoulder)

Parameters:

pIndex

Index of extra Bone to get.

Returns:: FBModel corresponding to Bone index.

FBModelMarker* GetExtraFKModelAt ( int pIndex )

Return the specified extra FK model (ex.

extra shoulder)

Parameters:

pIndex

Index of extra FK to get.

Returns:: FBModel corresponding to FK index.

void SetExtraBoneModelAt	(	FBModel *	pModel,
		int	pIndex
	)

Set the specified extra Bone model for a specified Extra Bone Index.

(ex. extra shoulder)

Parameters:

	pModel	Extra Bone Model used for characterization.
	pIndex	Index of extra Bone to set.

void SetExtraFKModelAt	(	FBModelMarker *	pModel,
		int	pIndex
	)

Set the specified extra FK model for a specified Extra FK Index (ex.

extra shoulder)

Parameters:

	pModel	Extra FK Model used for character Rig
	pIndex	Index of extra FK to set.

void ExtractOffsets ( )

Extract Transforms Of Extra Bones for character stance pose information.

void GetTransformOffset	(	FBVector3d &	pT,
		FBRVector &	pR,
		FBSVector &	pS,
		int	pIndex
	)

Get the transform of the Given Extra Bone Index.

The transorm is the Global Transform extracted at Characterisation (in Stance Pose)

Parameters:

	pT	return Global Translation in Stance Pose.
	pR	return Global Rotation in Stance Pose.
	pS	return Global Scaling in Stance Pose.
	pIndex	Index of extra Bone to get.

void SetTransformOffset	(	FBVector3d &	pT,
		FBRVector &	pR,
		FBSVector &	pS,
		int	pIndex
	)

Set the transform of the Given Extra Bone Index.

The transorm is the Global Transform extracted at Characterisation (in Stance Pose)

Parameters:

	pT	Global Translation to set for the Stance Pose.
	pR	Global Rotation to set for the Stance Pose.
	pS	Global Scaling to set for the Stance Pose.
	pIndex	Index of extra Bone to set.

void GetParentRotationOffset	(	FBRVector &	pR,
		int	pIndex
	)

Get the Parent Rotation Offset of the Given Extra Bone Index.

The rotation Offset if extracted at Characterisation (in Stance Pose). You don't need this value if the parent of the bone is characterized too.

Parameters:

	pR	Offset Rotation between the Bone and is parent at Stance Pose.
	pIndex	Index of extra Bone to get.

void SetParentRotationOffset	(	FBRVector &	pR,
		int	pIndex
	)

Set the Parent Rotation Offset of the Given Extra Bone Index.

The rotation Offset if extracted at Characterisation (in Stance Pose). You don't need this value if the parent of the bone is characterized too.

Parameters:

	pR	Offset Rotation between the Bone and is parent at Stance Pose.
	pIndex	Index of extra Bone to get.

virtual void CharacterPasteState	(	FBCharacter *	pFromCharacter,
		FBCharacterPose *	pPose,
		FBCharacterPoseOptions &	pCharacterPoseOptions
	)			`[inline, virtual]`

Paste the state of a character on another one.

Parameters:

	pFromCharacter	Character with the state that we want to paste.
	pPose	Pose object containing the pose.
	pCharacterPoseOptions	Pose options to use with this paste.

Definition at line 228 of file fbcharactersolver.h.

Member Data Documentation

int mEvaluationId

Last Evaluation Id.

Definition at line 130 of file fbcharactersolver.h.

FBPropertyCharacter TargetCharacter

Read Write Property: The character being constrained.

Definition at line 131 of file fbcharactersolver.h.

FBPropertyComponent Source

Read Write Property: Source character when doing a character retarget.

Definition at line 132 of file fbcharactersolver.h.
