fbsystem.h File Reference

Detailed Description

Basic system interaction.

The FBSystem file contains the necessary data structure to interface with the underlying system.

Definition in file fbsystem.h.

#include <kaydaradef.h>
#include <fbsdk/fbcomponent.h>
#include <fbsdk/fbdata.h>
#include <fbsdk/fbio.h>
#include <fbsdk/fbshader.h>
#include <fbsdk/fbmodel.h>
#include <fbsdk/fbaudio.h>
#include <fbsdk/fbvideo.h>
#include <fbsdk/fbdeck.h>
#include <fbsdk/fbassetmng.h>
#include <fbsdk/fbmanipulator.h>

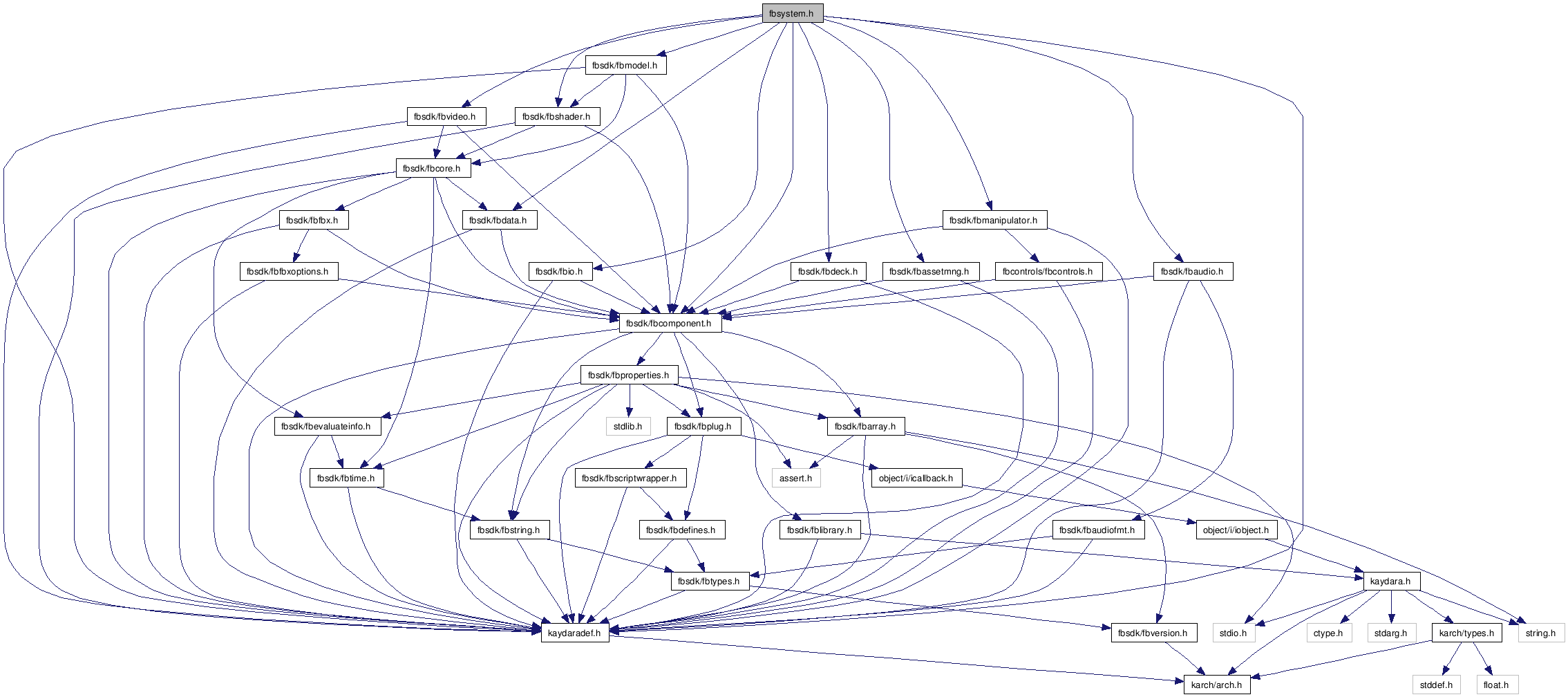

Include dependency graph for fbsystem.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


Classes
class	FBSystem
	Provides access to the underlying system, and the MotionBuilder scene. More...
class	FBTriggerManager
	Trigger engine management. More...
class	FBBatchOptions
	Option parameters for the batch process. More...
class	FBPlotOptions
	Option parameters for plotting. More...
class	FBApplication
	FBApplication is used mainly to manage files. More...
class	FBPlayerControl
	Player control. More...
class	FBKeyControl
	Key control. More...
class	FBCriticalSection
	High priority critical section class. More...
class	FBReferenceTime
	Reference time class. More...
Defines
#define	FBSDK_DLL K_DLLIMPORT
	Be sure that FBSDK_DLL is defined only once.
Typedefs
typedef FBVideoGrabOptions *	HFBVideoGrabOptions
	typedef FBVideoGrabOptions* HFBVideoGrabOptions;
typedef class K_DLLIMPORT FBArrayTemplate < FBPickInfos >	FBPickInfosList
	typedef class FBSDK_DLL FBArrayTemplate<FBPickInfos> FBPickInfosList
Enumerations
enum	FBBatchProcessType { kFBBatchProcessTypeLoad, kFBBatchProcessTypeSave, kFBBatchProcessTypeConvert }
	Different process type for the batch. More...
enum	FBBatchFileFormat { kFBBatchFileFormatTRC, kFBBatchFileFormatC3D, kFBBatchFileFormatAMC, kFBBatchFileFormatBVH, kFBBatchFileFormatHTR, kFBBatchFileFormatFBX }
	Different file formats for the batch. More...
enum	FBBatchOnTakeExist { kFBBatchOnTakeExistOverwrite, kFBBatchOnTakeExistSkip }
	Different actions to perform when a take already exist while in a batch process. More...
enum	FBBatchOnContainsBatchTakes { kFBBatchOnContainsBatchTakesSaveBatchTakesOnly, kFBBatchOnContainsBatchTakesSaveAllTakes }
	Different actions to perform when a scene already contains batch takes while in a batch process. More...
enum	FBBatchStatus { kFBBatchStatusSuccess, kFBBatchStatusError, kFBBatchStatusCharacterNotSpecified, kFBBatchStatusCharacterNotCharacterized, kFBBatchStatusCharacterHasNoReference, kFBBatchStatusInputActorNotSpecified, kFBBatchStatusActorInputMarkersetNotSpecified, kFBBatchStatusActorInputMarkersetHasNoReferenceModel, kFBBatchStatusActorInputMarkersetNotCorrectlyAssociated, kFBBatchStatusInputCharacterNotCharacterized, kFBBatchStatusInputCharacterHasNoReference, kFBBatchStatusInputDirectoryNotValid, kFBBatchStatusAsfSkeletonFileNotSpecified, kFBBatchStatusCantOpenAsfSkeletonFile, kFBBatchStatusOutputDirectoryNotValid }
	Different return values of the Batch process. More...
enum	FBRotationFilter { kFBRotationFilterNone, kFBRotationFilterGimbleKiller, kFBRotationFilterUnroll }
	Rotation filters. More...
enum	FBViewerMode { kFBViewerModeOneWindow, kFBViewerModeTwoWindow, kFBViewerModeThreeWindow, kFBViewerModeFourWindow, kFBViewerModeSchematic }
	Different viewer modes for the 3D viewer. More...
enum	FBTransportMode { kFBTransportPlay, kFBTransportPlayPrepare, kFBTransportPlayReady, kFBTransportStop, kFBTransportStopPost, kFBTransportStopReady, kFBTransportShuttle, kFBTransportShuttlePrepare, kFBTransportShuttleReady, kFBTransportPlayReverse, kFBTransportPlayReversePrepare, kFBTransportPlayReverseReady, kFBTransportJog, kFBTransportJogPrepare, kFBTransportJogReady, kFBTransportGoto, kFBTransportGotoPrepare, kFBTransportGotoReady, kFBTransportStepForward, kFBTransportStepForwardPrepare, kFBTransportStepForwardReady, kFBTransportStepBackward, kFBTransportStepBackwardPrepare, kFBTransportStepBackwardReady }
	Transport modes. More...
enum	FBTransportTimeFormat { kFBTimeFormatTimecode, kFBTimeFormatFrame }
	Available transport control time display. More...
enum	FBTransportPlaySpeed { kFBSpeed_1_10x, kFBSpeed_1_5x, kFBSpeed_1_4x, kFBSpeed_1_3x, kFBSpeed_1_2x, kFBSpeed_1x, kFBSpeed_ALL_FR, kFBSpeed_2x, kFBSpeed_3x, kFBSpeed_4x, kFBSpeed_5x, kFBSpeed_10x }
	Available transport control play speed. More...
enum	FBTransportSnapMode { kFBTransportSnapModeNoSnap, kFBTransportSnapModeSnapOnFrames, kFBTransportSnapModePlayOnFrames, kFBTransportSnapModeSnapAndPlayOnFrames }
	Available snap methods for the transport control. More...
Functions
K_DLLIMPORT HIObject	FBGetFBObject (HIObject pObject, bool pAutoCreate=false)
	Get the SDK object from an Internal Object.
template<class T>
T *	FBCast (HIObject pObject, bool pAutoCreate=false)
	Cast the SDK object using it's IObject interface into the proper class.
K_DLLIMPORT FBModelList *	FBCreateModelList ()
	Create a FBModelList object.
K_DLLIMPORT void	FBDestroyModelList (FBModelList *pModelList)
	Delete a FBModelList object.
K_DLLIMPORT FBPickInfosList *	FBCreatePickInfosList ()
	Create a FBPickInfosList object.
K_DLLIMPORT void	FBDestroyPickInfosList (FBPickInfosList *pPickInfosList)
	Delete a FBPickInfosList object.
K_DLLIMPORT FBComponentList *	FBCreateComponentList ()
	Create a FBObjectList object.
K_DLLIMPORT void	FBDestroyComponentList (FBComponentList *pObjectList)
	Delete a FBObjectList object.
K_DLLIMPORT void	FBSleep (unsigned long MilliSeconds)
	Sleep function Puts system to sleep for specified time.
K_DLLIMPORT HFBModel	FBFindModelByName (char *pModelName, HFBModel pParent=NULL)
	Find a model in the hierarchy.
K_DLLIMPORT HFBModel	FBLoadFbxPrimitivesModel (char *pModelName)
	Load a model.
K_DLLIMPORT void	FBFindModelsOfType (FBModelList &pList, int pTypeInfo, HFBModel pParent=NULL)
	Find all models of a certain type in the scene.
K_DLLIMPORT void	FBGetSelectedModels (FBModelList &pList, HFBModel pParent=NULL, bool pSelected=true, bool pSortBySelectOrder=false)
	Find all models that are selected (if `pSelected` is true) Searches recursively from a root model for models that are selected, and adds them to a list of models.
K_DLLIMPORT void	FBSelectObjectsByNamespace (char *pNameSpaceName, bool pSelect, bool pSearchExclusive=true)
	FBSelectObjectsByNamespace.
K_DLLIMPORT void	FBFindObjectsByName (const char *pNamePattern, FBComponentList &pList, bool pIncludeNamespace=true, bool pModelsOnly=false)
	FBFindObjectsByName.
K_DLLIMPORT void	FBFindObjectsByNamespace (const char *pNamePattern, FBComponentList &pList)
	FBFindObjectsByName.
K_DLLIMPORT void	FBTrace (char *pFormatString,...)
	This function prints useful debugging strings in the console.
K_DLLIMPORT bool	FBPopNormalTool (char *pToolName, bool pSetFocus=true)
	This function is used to bring up a specific tool in the GUI.

Define Documentation

#define FBSDK_DLL K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

Definition at line 50 of file fbsystem.h.

Typedef Documentation

typedef class K_DLLIMPORT FBArrayTemplate<FBPickInfos> FBPickInfosList

typedef class FBSDK_DLL FBArrayTemplate<FBPickInfos> FBPickInfosList

Definition at line 94 of file fbsystem.h.

typedef FBVideoGrabOptions* HFBVideoGrabOptions

typedef FBVideoGrabOptions* HFBVideoGrabOptions;

Definition at line 88 of file fbsystem.h.

Enumeration Type Documentation

enum FBBatchFileFormat

Different file formats for the batch.

Enumerator:

kFBBatchFileFormatTRC	File format for Motion Analysis TRC.
kFBBatchFileFormatC3D	File format for Vicon C3D.
kFBBatchFileFormatAMC	File format for Acclaim AMC.
kFBBatchFileFormatBVH	File format for Biovision BVH.
kFBBatchFileFormatHTR	File format for Motion Analysis HTR.
kFBBatchFileFormatFBX	File format for FBX (animation only).

Definition at line 272 of file fbsystem.h.

enum FBBatchOnContainsBatchTakes

Different actions to perform when a scene already contains batch takes while in a batch process.

Enumerator:

kFBBatchOnContainsBatchTakesSaveBatchTakesOnly	Save only the batch takes.
kFBBatchOnContainsBatchTakesSaveAllTakes	Save all the takes.

Definition at line 292 of file fbsystem.h.

enum FBBatchOnTakeExist

Different actions to perform when a take already exist while in a batch process.

Enumerator:

kFBBatchOnTakeExistOverwrite	Overwrite the take.
kFBBatchOnTakeExistSkip	Skip the take.

Definition at line 284 of file fbsystem.h.

enum FBBatchProcessType

Different process type for the batch.

Enumerator:

kFBBatchProcessTypeLoad	Load the files and plot the character with every take.
kFBBatchProcessTypeSave	Save the takes in different files.
kFBBatchProcessTypeConvert	Does the load and save.

Definition at line 263 of file fbsystem.h.

enum FBBatchStatus

Different return values of the Batch process.

Enumerator:

kFBBatchStatusSuccess
kFBBatchStatusError
kFBBatchStatusCharacterNotSpecified
kFBBatchStatusCharacterNotCharacterized
kFBBatchStatusCharacterHasNoReference
kFBBatchStatusInputActorNotSpecified
kFBBatchStatusActorInputMarkersetNotSpecified
kFBBatchStatusActorInputMarkersetHasNoReferenceModel
kFBBatchStatusActorInputMarkersetNotCorrectlyAssociated
kFBBatchStatusInputCharacterNotCharacterized
kFBBatchStatusInputCharacterHasNoReference
kFBBatchStatusInputDirectoryNotValid
kFBBatchStatusAsfSkeletonFileNotSpecified
kFBBatchStatusCantOpenAsfSkeletonFile
kFBBatchStatusOutputDirectoryNotValid

Definition at line 300 of file fbsystem.h.

enum FBRotationFilter

Rotation filters.

Enumerator:

kFBRotationFilterNone
kFBRotationFilterGimbleKiller
kFBRotationFilterUnroll

Definition at line 364 of file fbsystem.h.

enum FBTransportMode

Transport modes.

Enumerator:

kFBTransportPlay
kFBTransportPlayPrepare	!< Play mode
kFBTransportPlayReady
kFBTransportStop
kFBTransportStopPost	!< Stop mode
kFBTransportStopReady
kFBTransportShuttle
kFBTransportShuttlePrepare	!< Shuttle mode
kFBTransportShuttleReady
kFBTransportPlayReverse
kFBTransportPlayReversePrepare	!< Play reverse.
kFBTransportPlayReverseReady
kFBTransportJog
kFBTransportJogPrepare	!< Jog.
kFBTransportJogReady
kFBTransportGoto
kFBTransportGotoPrepare	!< Goto.
kFBTransportGotoReady
kFBTransportStepForward
kFBTransportStepForwardPrepare	!< Step forward
kFBTransportStepForwardReady
kFBTransportStepBackward
kFBTransportStepBackwardPrepare	!< Step backward.
kFBTransportStepBackwardReady

Definition at line 637 of file fbsystem.h.

enum FBTransportPlaySpeed

Available transport control play speed.

Enumerator:

kFBSpeed_1_10x	1/10x.
kFBSpeed_1_5x	1/5x
kFBSpeed_1_4x	1/4x
kFBSpeed_1_3x	1/3x
kFBSpeed_1_2x	1/2x
kFBSpeed_1x	1x
kFBSpeed_ALL_FR	All frames.
kFBSpeed_2x	2x
kFBSpeed_3x	3x
kFBSpeed_4x	4x
kFBSpeed_5x	5x
kFBSpeed_10x	10x

Definition at line 660 of file fbsystem.h.

enum FBTransportSnapMode

Available snap methods for the transport control.

Enumerator:

kFBTransportSnapModeNoSnap	No snapping is applied.
kFBTransportSnapModeSnapOnFrames	Snaps to an exact frame when modifying the current time.
kFBTransportSnapModePlayOnFrames	When playing, plays to exact frames.
kFBTransportSnapModeSnapAndPlayOnFrames	Combines both Snap and Play on frames modes.

Definition at line 678 of file fbsystem.h.

enum FBTransportTimeFormat

Available transport control time display.

Enumerator:

kFBTimeFormatTimecode	Timecode time display mode.
kFBTimeFormatFrame	Frame time display mode.

Definition at line 650 of file fbsystem.h.

enum FBViewerMode

Different viewer modes for the 3D viewer.

Enumerator:

kFBViewerModeOneWindow	View one pane.
kFBViewerModeTwoWindow	View two panes.
kFBViewerModeThreeWindow	View three panes.
kFBViewerModeFourWindow	View four panes.
kFBViewerModeSchematic	Schematic view.

Definition at line 404 of file fbsystem.h.

Function Documentation

T* FBCast	(	HIObject	pObject,
		bool	pAutoCreate = `false`
	)			`[inline]`

Cast the SDK object using it's IObject interface into the proper class.

Parameters:

	pObject	Object to get SDK object for.
	pAutoCreate	Create object if it doesn't exist? (default = false)

Returns:: SDK object for pObject.

Definition at line 116 of file fbsystem.h.

References FBGetFBObject().

K_DLLIMPORT FBComponentList* FBCreateComponentList ( )

Create a FBObjectList object.

This is to get around memory management issues when mixing debug and release runtime libraties on Windows. By using the FBCreateObjectList/FBDestroyObjectList duo of functions, you ensure that the memory used in the array is allocated, reallocated and freed in the same memory pool.

K_DLLIMPORT FBModelList* FBCreateModelList ( )

Create a FBModelList object.

This is to get around memory management issues when mixing debug and release runtime libraties on Windows. By using the FBCreateModelList/FBDestroyModelList duo of functions, you ensure that the memory used in the array is allocated, reallocated and freed in the same memory pool.

K_DLLIMPORT FBPickInfosList* FBCreatePickInfosList ( )

Create a FBPickInfosList object.

This is to get around memory management issues when mixing debug and release runtime libraties on Windows. By using the FBCreatePickInfosList/FBDestroyPickInfosList duo of functions, you ensure that the memory used in the array is allocated, reallocated and freed in the same memory pool.

K_DLLIMPORT void FBDestroyComponentList ( FBComponentList * pObjectList )

Delete a FBObjectList object.

Parameters:

pObjectList

pointer to the object created with a call to FBCreateObjectList().

K_DLLIMPORT void FBDestroyModelList ( FBModelList * pModelList )

Delete a FBModelList object.

Parameters:

pModelList

pointer to the object created with a call to FBCreateModelList().

K_DLLIMPORT void FBDestroyPickInfosList ( FBPickInfosList * pPickInfosList )

Delete a FBPickInfosList object.

Parameters:

pPickInfosList

pointer to the object created with a call to FBCreatePickInfosList().

K_DLLIMPORT HFBModel FBFindModelByName	(	char *	pModelName,
		HFBModel	pParent = `NULL`
	)

Find a model in the hierarchy.

Searches the scene for a model, based on the model's unique name.

Parameters:

	pModelName	Name of model to search for.
	pParent	Root model to search from (default=NULL(root)).

Returns:: A handle onto the model that was found, returns NULL if no model was found by the search.

K_DLLIMPORT void FBFindModelsOfType	(	FBModelList &	pList,
		int	pTypeInfo,
		HFBModel	pParent = `NULL`
	)

Find all models of a certain type in the scene.

Searches recursively from a root model for models of a certain type, and adds them to a list of models.

Return values:

pList

List to add found models to.

Parameters:

	pTypeInfo	Model type to look for.
	pParent	Root model to look from (default=NULL(root)).

K_DLLIMPORT void FBFindObjectsByName	(	const char *	pNamePattern,
		FBComponentList &	pList,
		bool	pIncludeNamespace = `true`,
		bool	pModelsOnly = `false`
	)

FBFindObjectsByName.

This function will query the system for objects fulfilling a particular name pattern

Parameters:

	pNamePattern	Indicate the name pattern to search. This pattern can contain any amount of . (ex: trmodscene )
	pList	List that contains the objects
	pIncludeNamespace	Does the search use the complete name (with namespace)
	pModelsOnly	Is the search on models or all types of objects

K_DLLIMPORT void FBFindObjectsByNamespace	(	const char *	pNamePattern,
		FBComponentList &	pList
	)

FBFindObjectsByName.

This function will query the system for objects fulfilling a particular namespace pattern

Parameters:

	pNamePattern	Indicate the name pattern to search. This pattern can contain any amount of . (ex: trmodscene )
	pList	List that contains the objects

K_DLLIMPORT HIObject FBGetFBObject	(	HIObject	pObject,
		bool	pAutoCreate = `false`
	)

Get the SDK object from an Internal Object.

Parameters:

	pObject	Object to get SDK object for.
	pAutoCreate	Create object if it doesn't exist? (default = false)

Returns:: SDK object for pObject.

Referenced by FBCast().

K_DLLIMPORT void FBGetSelectedModels	(	FBModelList &	pList,
		HFBModel	pParent = `NULL`,
		bool	pSelected = `true`,
		bool	pSortBySelectOrder = `false`
	)

Find all models that are selected (if pSelected is true) Searches recursively from a root model for models that are selected, and adds them to a list of models.

Return values:

pList

List to add found models to.

Parameters:

	pParent	Root model to look from (default=NULL(root)).
	pSelected	true to find selected models, false to find unselected models(default=true).
	pSortBySelectOrder	true to sort the result by selection order, first selected model in the first part of the list; false to sort the result by scene graph order

K_DLLIMPORT HFBModel FBLoadFbxPrimitivesModel ( char * pModelName )

Load a model.

Parameters:

pModelName

Name of primitive model to load.

Returns:: A handle onto the model that was loaded, returns NULL if no model was found.

K_DLLIMPORT bool FBPopNormalTool	(	char *	pToolName,
		bool	pSetFocus = `true`
	)

This function is used to bring up a specific tool in the GUI.

Parameters:

	pToolName	The name of the tool as shown in the Open Reality menu.
	pSetFocus	Indicate if the tool will have the focus.

Returns:: If the tool was brought up successfully.

K_DLLIMPORT void FBSelectObjectsByNamespace	(	char *	pNameSpaceName,
		bool	pSelect,
		bool	pSearchExclusive = `true`
	)

FBSelectObjectsByNamespace.

This function will select objects in the current scene according to the parameters you provide

Parameters:

	pNameSpaceName	Indicate the name to search for selection/deselection.
	pSelect	Indicate if we select or unselect the objects
	pSearchExclusive	"true" will select object that are exclusive to that namespace(pNameSpaceName), "false" will select object that could be part of that namespace as well as others namespace.

K_DLLIMPORT void FBSleep ( unsigned long MilliSeconds )

Sleep function Puts system to sleep for specified time.

Parameters:

MilliSeconds

Time to sleep for.

K_DLLIMPORT void FBTrace	(	char *	pFormatString,
			...
	)

This function prints useful debugging strings in the console.

By passing the argument "-console" when launching MotionBuilder, it is possible to print formatted messages, as a printf would. On Mac OSX, the strings are simply sent to stderr.

Parameters:

pFormatString

A printf-style format string, to use the following arguments in the list.

Warning:: There is currently a limitation which sets the maximum length of the resulting string to be limited to 2048 bytes.
Not thread safe, as an static array is used internally.

Please send us your comments about this page.

fbsystem.h File Reference

Detailed Description

Classes

Defines

Typedefs

Enumerations

Functions

Define Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation
