Bridge Borders/Polygons (Polymesh)



Command entry:Select an Edit Poly or editable poly object. Modify panel Polygon or Border sub-object level Edit Polygons rollout Bridge (Settings)
Command entry:Select an Edit Poly or editable poly object. Polygon or Border sub-object level Quad menu Tools 2 quadrant Bridge (Settings)
Command entry:Select an Edit Poly or editable poly object. Modeling ribbon Graphite Modeling Tools tab Polygon Modeling panel (Polygon) or (Border) sub-object level Polygons or Border Edges panel Shift+click (Bridge) or choose Bridge Settings from the drop-down list.

Use these settings for bridging pairs of polygons, polygon selections, or borders in Interactive Manipulation mode.

NoteBridge calculates which way the bridge polygons should face. If you bridge two sub-objects so that the bridge goes through the object, the bridge polygons face inward. But if you create a bridge that goes through empty space, such as when connecting sub-objects between two elements, the polygons face outward. To reverse the facing of bridge polygons, use the Flip function.

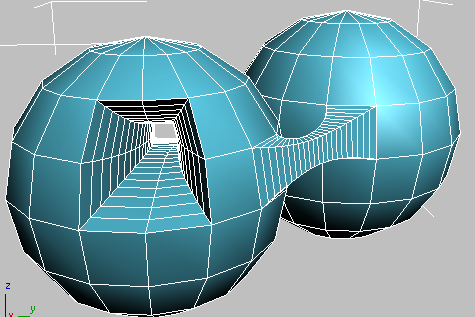

Examples of an internal bridge (left) and an external bridge (right), the latter connecting two elements

NoteBridging two elements makes them contiguous, combining them into a single element.

Interface

For details on using the caddy controls, see The Caddy Interface.

Bridge lets you use existing poly/border selections, or pick them with caddy controls.

Segments

Specifies the number of polygons along the length of the bridge connection. This setting also applies to manually bridged polygons.

TipWhen using Taper, set Segments to a value greater than 1.
Taper

Sets the extent to which the bridge width becomes smaller or larger toward its center. Negative settings taper the bridge center smaller; positive settings taper it larger.

NoteTo change the location of maximum taper, use the Bias setting.
Bias

Determines the location of maximum taper amount.

The range of the Bias value is -99.0 to 99.0. At the default value of 0.0, the taper amount is greatest at the center of the bridge. At -99.0, the taper amount is greatest near the first selected polygon or border; at 99.0, it's greatest near the second selected polygon or border.

Smooth

Determines the maximum angle between columns across which smoothing can occur. A column is a string of polygons extending along the length of the bridge.

Twist 1 / Twist 2

Rotates the order of connection between the edges of the two selections. The two controls let you set a different twist amount for each end of the bridge.

Use Selection / Use Specific [sub-objects]

Choose whether to bridge sub-objects that you choose with the caddy controls, or use an existing selection. The options are:

  • Use Polygon/Border SelectionIf one or more qualifying selection pairs exist, choosing this option connects them immediately. If not, you can select pairs of sub-objects in a viewport to connect them.

    If you make more than two qualifying selections, Bridge connects them in increasing order of ID. For example, if you select polygon 12, 35, and 89, Bridge connects polygons 12 and 35. But if you then deselect polygon 35, Bridge then connects polygons 12 and 89.

  • Use Specific Polygons/BordersIn this mode, use the Pick buttons to designate polygons or borders for bridging.
Pick Polygon/Border 1/2

Click each Pick button in turn, and then click a polygon or border edge in a viewport. At the Border sub-object level, clicking any edge on a border designates the entire border for bridging. Also, the edges you pick on each border are connected directly, and the remaining edges are connected in consecutive order. You can change the order of the edge correspondences with the Twist settings. Available only in Use Specific mode.

After you pick a sub-object, the small circle on the Pick button changes appearance from empty to filled in. You can change the selection at any time by clicking the Pick button again and picking a different sub-object.

_____

OK

Applies the settings to the current selection and closes the caddy.

Apply and Continue

Applies the settings to the current selection, retaining them for the preview if you then change the selection.

Cancel

Closes the caddy without applying the settings to the current selection. Does not reverse previous uses of Apply.
