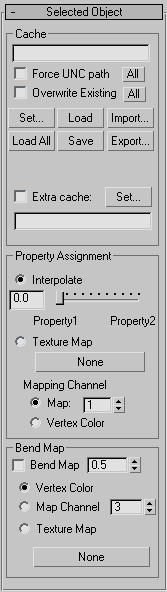

Cache group

Use these settings for network simulation. When you render with Sim On Render on, Cloth can run the simulation on a networked machine, leaving your local machine free for other work. For a procedure, see To run a cloth simulation with a networked render farm:.

[text field]

Shows the current path and file name for the cache file. You can edit this field, but the path must exist; the file will be created if necessary.

For any cloth object for which you have not specified a file name, Cloth creates one based on the object name.

Force UNC Path

If the text field path is to a mapped drive, converts the path to UNC format. This makes the path readily accessible to any computer on the network. To convert cache paths for all cloth objects in the current simulation to UNC format, click the All button.

Overwrite Existing

When on, Cloth can overwrite existing cache files. To enable overwriting for all cloth objects in the current simulation, click the All button.

Set

Lets you specify the path and filename of the cache file for the selected object. Click Set, navigate to the directory, enter the file name, and then click Save.

Load

Loads the specified file into the selected object's cache.

Import

Opens a file dialog to load a cache file other than the specified one.

Load All

Loads the specified cache file for every cloth object in the simulation.

Save

Saves the current cache, if any, using the specified file name and path. If no file is specified, Cloth creates one based on the object name.

Export

Opens a file dialog to save the cache to a file other than the specified one. You can save in the default CFX format or in PointCache2 format.

Extra Cache

To create a second cache in PointCache2 format, turn on Extra Cache and click Set to specify a path and file name. This file is also created when you render with Sim On Render on.

Property Assignment group

Interpolate

Interpolates between the two different property settings in the Object Properties dialog (as determined by the Property 1 and Property 2 radio buttons at the top right corner). You can use this slider to animate between these two properties to adjust the type of fabric settings the garment is using.

Texture Map

Set a texture map and apply the Property 1 and Property 2 settings to the cloth object. You can add a grayscale texture map in this slot to blend between the two properties set in the Object Properties dialog. Black will represent property 1 and white property 2. Any grayscale value will blend between these two properties. You can drag a texture map onto this button.

Cloth object with a burlap material in Property 1 and silk in Property 2 being controlled by a Checker procedural map

Mapping Channel

Lets you specify the mapping channel the Texture map will work from, or choose Vertex Color to use that instead. Vertex color can be particularly useful in conjunction with the new painting tools in 3ds Max. You can paint vertex colors directly onto your object and use the painted areas for material assignment.

Bend Map group

The Bend Map option lets you use a texture map, map channel, or vertex colors to modulate the target bend angles. The value of this is that you can paint deformations onto your cloth, or use some kind of noise map to add irregularity to the cloth.

Bend Map

Toggles the use of the Bend Map option.

Set the strength of the modulation with the numeric value. In most cases, the value should be less than 1.0. Range=0.0 to 100.0. Default=0.5.

[map type]

Choose the map type for the Bend map:

• Vertex ColorUses the Vertex Color channel for modulation.
• Map ChannelUses a map channel other than Vertex Color for modulation. Set the channel with the spinner.
• Texture MapUses a texture map for modulation. To specify a texture map, click the button (labeled None by default) and then use the Material/Map Browser to choose the map. Thereafter the map name appears on the button.
