Map file locations

Painted PTEX maps and Region Maps

When you paint PTEX maps, such as a Mask or Region map, to control the primitives, Maya creates sub-folders inside the Description for these PTEX files. The data path connecting the maps with Description is specified by the ${DESC} XGen variable. This ensures that all .ptex files are correctly sourced by the Description.

For example, if you modified the GrassDescription Description ( see Manage XGen files) by

• creating a painted Mask for the primitive generation Density named grassDensity,
• creating a painted map for the Length attributed named grasslength,
• creating a painted Region Map named grassRegion,

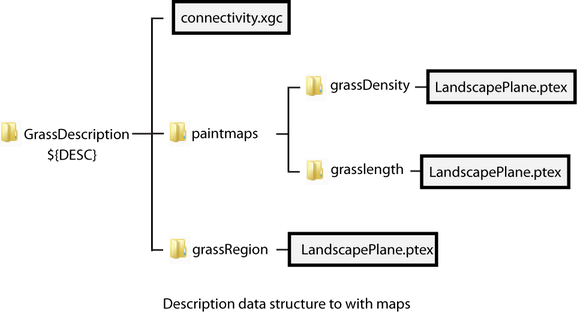

Maya generates the following default data structure for the map files:

See also Control primitives with PTEX maps and Create a PTEX map to control primitives.

Modifiers PTEX and Point map file locations

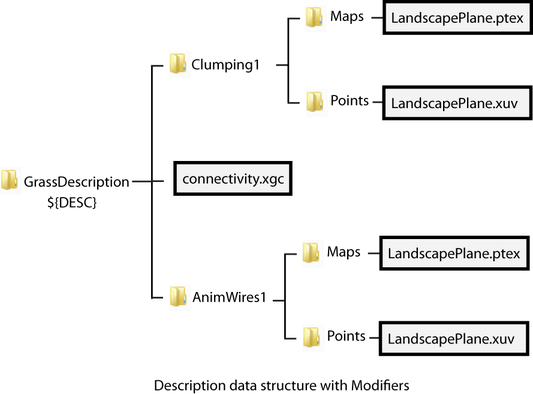

XGen uses the same data structure for the PTEX maps generated byModifiers, such as a clumping maps created by the Clumping Modifiers. For example if you added Clumping and AnimWire Modifiers to GrassDescription Description, Maya generates the following default data structure:

See also Modifiers and Create clumping maps.

Groomable spline maps

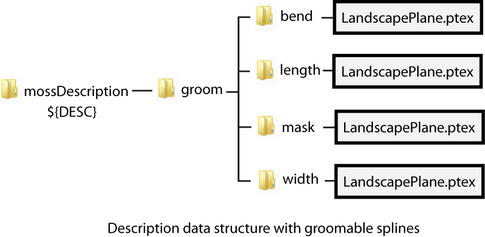

For a groomable splines Description (called MossDescription for example), PTEX files are created for attributes modified by the Grooming brushes. Maya generates the following default data structure:

See also Groomable splines and Add groomable splines to geometry surfaces.
