About the Modular Keyer
![](./../images/nav-prev-xp.gif)
Modular Keyer
![](./../images/nav-up-xp.gif)
Setting Up the Processing Pipeline
Accessing the Modular Keyer
As with the traditional Keyer, you load
three clips into the Modular Keyer to create a key: a front clip,
a back clip, and a key-in clip. You use the key-in clip, which is
usually the same as the front clip, to create the matte for the
front clip.
To
access the Modular Keyer:
- In
the Main menu, click Effects.
- In
the Effects menu, click Modular Keyer.
- Select
a front, back, and key-in clip. Make sure the front, back, and matte
clips are the same resolution. If not, resize them. See
Resize Settings.
- Select
a destination.

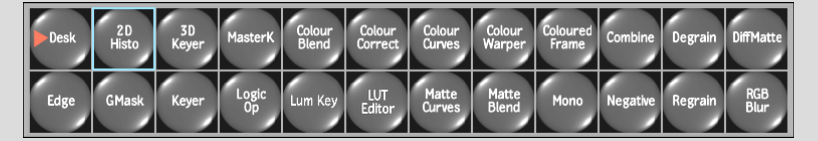

The Modular Keyer menu, shown below, and the
processing pipeline appear.
