fbconstraint.h File Reference

Detailed Description

fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h fbconstraint.h
Contraint classes.

Classes from this file permit the user to derive, create and control constraints via the software development kit.

Definition in file fbconstraint.h.

#include <kaydaradef.h>
#include <fbsdk/fbcomponent.h>
#include <fbsdk/fbcore.h>

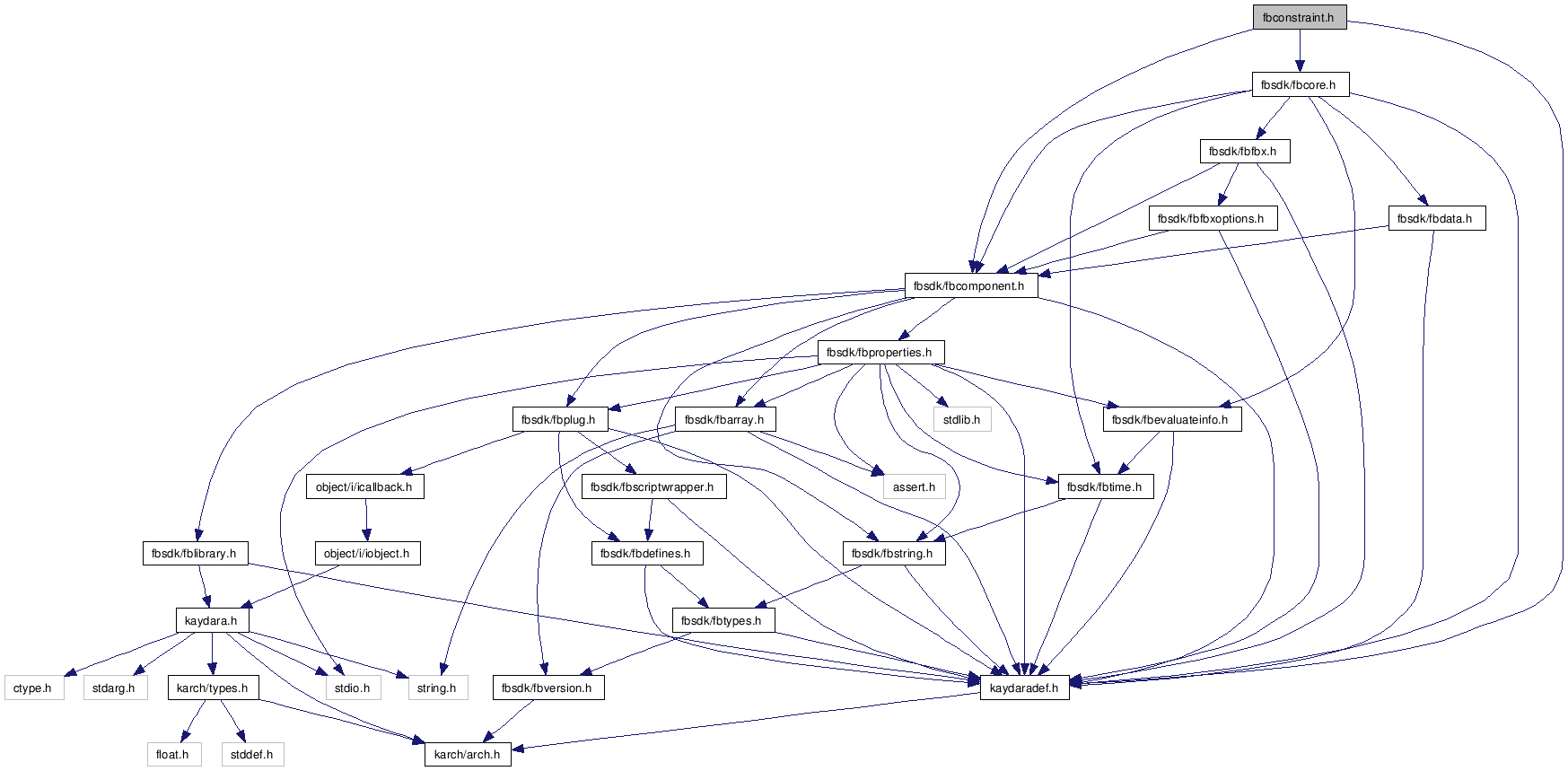

Include dependency graph for fbconstraint.h:

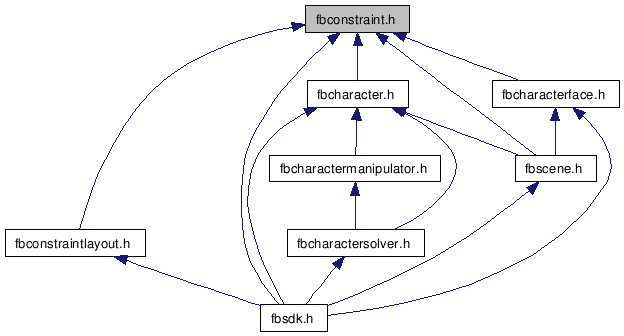

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


Classes
class   FBConstraintInfo
  Constraint information class. More...
class   FBConstraint
  Constraint class. More...
class   FBPropertyListConstraint
  PropertyList: Contraint More...
class   FBPropertyListBox
  List: Box informations for constraint relation. More...
class   FBBoxPlaceHolder
  Wrapper around a specific instance of a FBBox object. More...
class   FBModelPlaceHolder
  Wrapper around a specific instance of a FBModel object. More...
class   FBConstraintRelation
  ConstraintRelation class. More...
class   FBConstraintSolver
  Base class for constraint solver. More...
class   FBPropertyListConstraintSolver
  PropertyList: Contraint solver More...
class   FBPhysicalProperties
  Base class for physical properties attach to a model. More...
class   FBPropertyListPhysicalProperties
  PropertyList: Physical properties More...
class   FBConstraintManager
  Constraint manager. More...

Defines
#define  FBSDK_DLL   K_DLLIMPORT
  Be sure that FBSDK_DLL is defined only once.
#define  FBRegisterConstraint(UniqueNameStr, ClassName, Label, Description, IconFilename)
  Register the constraint.
#define  FBConstraintDeclare(ClassName, Parent)
  Constraint class declaration.
#define  FBConstraintImplementation(ThisComponent)   FBClassImplementation( ThisComponent )
  Constraint class implementation.
#define  FBRegisterConstraintSolver(UniqueNameStr, ClassName, Label, Description, IconFilename)
  Register the constraint.
#define  FBConstraintSolverDeclare(ClassName, Parent)
  Constraint class declaration.
#define  FBConstraintSolverImplementation(ThisComponent)   FBClassImplementation( ThisComponent )
  Constraint class implementation.
#define  FBRegisterPhysicalProperties(UniqueNameStr, ClassName, Label, Description, IconFilename)
  Register the constraint.
#define  FBPhysicalPropertiesDeclare(ClassName, Parent)
  Constraint class declaration.
#define  FBPhysicalPropertiesImplementation(ThisComponent)   FBClassImplementation( ThisComponent )
  Constraint class implementation.

Define Documentation

#define FBConstraintDeclare ( ClassName,
Parent   )

Value:

FBClassDeclare( ClassName, Parent ); \
  public: \
    ClassName(char * pName):Parent(pName) { FBClassInit; } \
  private:
Constraint class declaration.
Parameters:
ClassName  Constraint class name.
Parent  Parent class name.
Warning:
The class must inherit directly from FBConstraint.

Definition at line 93 of file fbconstraint.h.

#define FBConstraintImplementation ( ThisComponent   )     FBClassImplementation( ThisComponent )

Constraint class implementation.

Parameters:
ThisComponent  The name of the class to implement.

Definition at line 102 of file fbconstraint.h.

#define FBConstraintSolverDeclare ( ClassName,
Parent   )

Value:

FBClassDeclare( ClassName, Parent ); \
  public: \
    ClassName(char * pName):Parent(pName) { FBClassInit; } \
  private:
Constraint class declaration.
Parameters:
ClassName  Constraint class name.
Parent  Parent class name.
Warning:
The class must inherit directly from FBConstraint.

Definition at line 532 of file fbconstraint.h.

#define FBConstraintSolverImplementation ( ThisComponent   )     FBClassImplementation( ThisComponent )

Constraint class implementation.

Parameters:
ThisComponent  The name of the class to implement.

Definition at line 541 of file fbconstraint.h.

#define FBPhysicalPropertiesDeclare ( ClassName,
Parent   )

Value:

FBClassDeclare( ClassName, Parent ); \
  public: \
    ClassName(char * pName):Parent(pName) { FBClassInit; } \
  private:
Constraint class declaration.
Parameters:
ClassName  Constraint class name.
Parent  Parent class name.
Warning:
The class must inherit directly from FBConstraint.

Definition at line 615 of file fbconstraint.h.

#define FBPhysicalPropertiesImplementation ( ThisComponent   )     FBClassImplementation( ThisComponent )

Constraint class implementation.

Parameters:
ThisComponent  The name of the class to implement.

Definition at line 624 of file fbconstraint.h.

#define FBRegisterConstraint ( UniqueNameStr,
ClassName,
Label,
Description,
IconFilename   )

Value:

HIObject RegisterConstraint##ClassName##Create( HIObject /*pOwner*/,char * pName,void * /*pData*/) \
    { \
      ClassName *Class = new ClassName(pName); \
        Class->UniqueName = UniqueNameStr; \
        if (Class->FBCreate()) { \
            return Class->GetHIObject(); \
        } else { \
            delete Class; \
            return NULL; \
        } \
    } \
\
    FBLibraryModule( ClassName ) \
    {   \
        FBRegisterObject( ClassName##R1,"Constraints",Label,Description,RegisterConstraint##ClassName##Create,true, IconFilename ); \
        FBRegisterObject( ClassName##R2,"FbxStorable/Constraint",UniqueNameStr,Description,RegisterConstraint##ClassName##Create,true, IconFilename ); \
    }
Register the constraint.
Parameters:
UniqueNameStr  Unique name.
ClassName  Name of the constraint class.
Label  Short description of constraint.
Description  Long description of constraint.
IconFilename  Filename of associated icon.

Definition at line 69 of file fbconstraint.h.

#define FBRegisterConstraintSolver ( UniqueNameStr,
ClassName,
Label,
Description,
IconFilename   )

Value:

HIObject RegisterConstraintSolver##ClassName##Create( HIObject /*pOwner*/,char * pName,void * /*pData*/) \
    { \
      ClassName *Class = new ClassName(pName); \
        Class->UniqueName = UniqueNameStr; \
        if (Class->FBCreate()) { \
            return Class->GetHIObject(); \
        } else { \
            delete Class; \
            return NULL; \
        } \
    } \
\
    FBLibraryModule( ClassName ) \
    {   \
        FBRegisterObject( ClassName##R1,"Browsing/Templates/Solvers",Label,Description,RegisterConstraintSolver##ClassName##Create,true, IconFilename ); \
        FBRegisterObject( ClassName##R2,"FbxStorable/Constraint",UniqueNameStr,Description,RegisterConstraintSolver##ClassName##Create,true, IconFilename ); \
    }
Register the constraint.
Parameters:
UniqueNameStr  Unique name.
ClassName  Name of the constraint class.
Label  Short description of constraint.
Description  Long description of constraint.
IconFilename  Filename of associated icon.

Definition at line 508 of file fbconstraint.h.

#define FBRegisterPhysicalProperties ( UniqueNameStr,
ClassName,
Label,
Description,
IconFilename   )

Value:

HIObject RegisterPhysicalProperties##ClassName##Create( HIObject /*pOwner*/,char * pName,void * /*pData*/) \
    { \
      ClassName *Class = new ClassName(pName); \
        if (Class->FBCreate()) { \
            return Class->GetHIObject(); \
        } else { \
            delete Class; \
            return NULL; \
        } \
    } \
\
    FBLibraryModule( ClassName ) \
    {   \
        FBRegisterObject( ClassName##R1,"Browsing/Templates/Physical Properties",Label,Description,RegisterPhysicalProperties##ClassName##Create,true, IconFilename ); \
        FBRegisterObject( ClassName##R2,"FbxStorable/Physical Properties",UniqueNameStr,Description,RegisterPhysicalProperties##ClassName##Create,true, IconFilename ); \
    }
Register the constraint.
Parameters:
UniqueNameStr  Unique name.
ClassName  Name of the constraint class.
Label  Short description of constraint.
Description  Long description of constraint.
IconFilename  Filename of associated icon.

Definition at line 592 of file fbconstraint.h.

#define FBSDK_DLL   K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

..

Definition at line 50 of file fbconstraint.h.
