FBConstraintRelation Class Reference

#include <fbconstraint.h>

FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation FBConstraintRelation

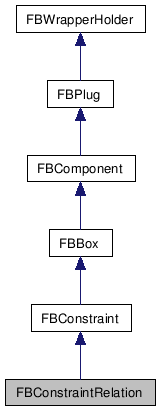

Inheritance diagram for FBConstraintRelation:

[legend]

List of all members.

---

Detailed Description

ConstraintRelation class.

This class exposes the relation constraint and allows addition of new boxes and removal of existing ones.

Definition at line 441 of file fbconstraint.h.

Public Member Functions
	FBConstraintRelation (char *pName, HIObject pObject=NULL)
	Constructor.
HFBBox	SetAsSource (HFBBox pSource)
	Create a sender box.
HFBBox	ConstrainObject (HFBBox pConstrainedObject)
	Create a receiver box.
HFBBox	CreateFunctionBox (char *pGroup, char *pName)
	Create a function box.
bool	GetBoxPosition (HFBBox pBox, int &pX, int &pY)
	Get a box position in the GUI.
bool	SetBoxPosition (HFBBox pBox, int pX, int pY)
	Set a box position in the GUI.
Public Attributes
FBPropertyListBox	Boxes
	List: Boxes used in this constraint.

---

Constructor & Destructor Documentation

FBConstraintRelation	(	char *	pName,
		HIObject	pObject = NULL
	)

Constructor.

Parameters:

	pName	Name of constraint.
	pObject	For internal use only (default is NULL).

---

Member Function Documentation

HFBBox SetAsSource

(

HFBBox

pSource

)

Create a sender box.

Use an existing FBBox object to create a sender in the relation.

Parameters:

pSource

Source box to insert in the constraint.

Returns:

A place holder box for the object.

HFBBox ConstrainObject

(

HFBBox

pConstrainedObject

)

Create a receiver box.

Use an existing FBBox object to create a receiver in the relation.

Parameters:

pConstrainedObject

Destination box to insert in the constraint.

Returns:

A place holder box for the object.

HFBBox CreateFunctionBox	(	char *	pGroup,
		char *	pName
	)

Create a function box.

Ask the constraint to create new function box.

Parameters:

	pGroup	Name of the group under which the function is located in the Constraint Relation GUI (case-sensitive!).
	pName	Name of the function, as seen in the GUI (case-sensitive!).

Returns:

The newly created function box, or NULL if the name/group combination was invalid.

bool GetBoxPosition	(	HFBBox	pBox,
		int &	pX,
		int &	pY
	)

Get a box position in the GUI.

Get the position of a box within the constraint layout view.

Parameters:

	pBox	Box from which the information will be queryed.
	pX	X position.
	pY	Y position.

Returns:

A boolean value indicating success (True) or failure (False).

Warning:

Should the function return False, the X and Y values will not be set.

bool SetBoxPosition	(	HFBBox	pBox,
		int	pX,
		int	pY
	)

Set a box position in the GUI.

Set the position of a box within the constraint layout view.

Parameters:

	pBox	Box which needs to be moved.
	pX	New X position.
	pY	New Y position.

Returns:

A boolean value indicating success (True) or failure (False).

---

Member Data Documentation

FBPropertyListBox Boxes

List: Boxes used in this constraint.

Definition at line 493 of file fbconstraint.h.

---
