MFnManip3D Class Reference
[OpenMayaUI - API module for user interfaceFunctionSet classes]

#include <MFnManip3D.h>

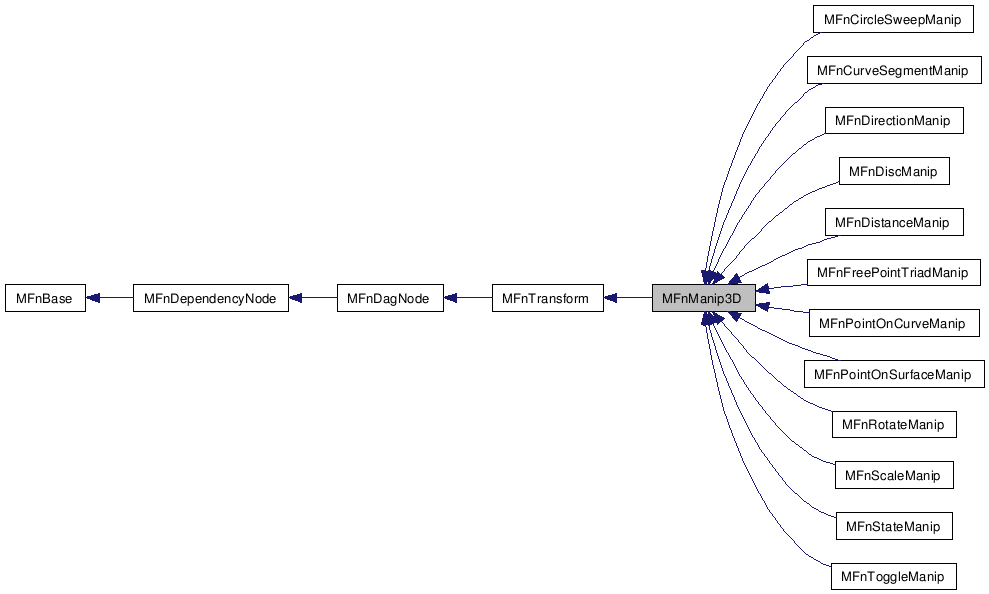

Inheritance diagram for MFnManip3D:
Inheritance graph
[legend]

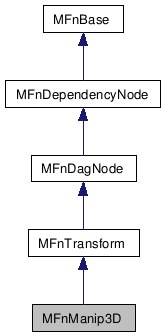

Collaboration diagram for MFnManip3D:
Collaboration graph
[legend]

List of all members.


Detailed Description

3D manipulator function set

MFnManip3D allows the creation and manipulation of 3D manipulators. MFnManip3D is the base class from which MFnFreePointTriadManip, MFnDirectionManip, MFnDistanceManip, MFnPointOnCurveManip, MFnPointOnSurfaceManip, MFnDiscManip, MFnCircleSweepManip, MFnToggleManip, MFnStateManip, and MFnCurveSegmentManip are derived.


Public Member Functions

virtual MFn::Type  type () const
  Function set type.
virtual  ~MFnManip3D ()
  Destructor.
  MFnManip3D ()
  Default constructor.
  MFnManip3D (MObject &object, MStatus *ReturnStatus=NULL)
  Constructor.
  MFnManip3D (const MDagPath &object, MStatus *ret=NULL)
  Constructor.
bool  isVisible (MStatus *ReturnStatus) const
MStatus  setVisible (bool isVisible)
float  manipScale (MStatus *ReturnStatus) const
MStatus  setManipScale (float size)
bool  isOptimizePlaybackOn (MStatus *ReturnStatus) const
MStatus  setOptimizePlayback (bool optimizePlayback)
MEulerRotation  rotateXYZValue (const unsigned int valIndex, MStatus *ReturnStatus=NULL)
  MFnManip3D (const MObject &object, MStatus *ret=NULL)
  Constructor.

Static Public Member Functions

static float  globalSize ()
static void  setGlobalSize (float size)
static float  handleSize ()
static void  setHandleSize (float size)
static float  lineSize ()
static void  setLineSize (float size)
static MStatus  deleteManipulator (MObject &manip)

Protected Member Functions

virtual const char *  className () const
  Class name.

Constructor & Destructor Documentation

MFnManip3D::~MFnManip3D (  )  [virtual]

Destructor.

Class destructor.

MFnManip3D::MFnManip3D ( MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

MFnManip3D::MFnManip3D ( const MDagPath object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:
[in]  object  The const MDagPath to attach the function set to
[out]  ReturnStatus  The return status
Status Codes:

MFnManip3D::MFnManip3D ( const MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

Member Function Documentation

MFn::Type MFnManip3D::type (  )  const [virtual]

const char * MFnManip3D::className (  )  const [protected, virtual]

bool MFnManip3D::isVisible ( MStatus ReturnStatus  )  const

Returns whether or not the manipulator is visible.

Parameters:
[out]  ReturnStatus  return status
Returns:
  • true the manipulator is visible
  • false the manipulator is not visible
Status Codes:

MStatus MFnManip3D::setVisible ( bool  isVisible  )

Sets whether or not the manipulator is visible.

Parameters:
[out]  isVisible  whether or not the manipulator is visible
Returns:

float MFnManip3D::manipScale ( MStatus ReturnStatus  )  const

Returns the manipulator scale.

Parameters:
[out]  ReturnStatus  return status
Returns:
The manipulator scale
Status Codes:

MStatus MFnManip3D::setManipScale ( float  size  )

Sets the manipulator scale.

Parameters:
[in]  size  the manipulator scale
Returns:

bool MFnManip3D::isOptimizePlaybackOn ( MStatus ReturnStatus  )  const

Returns whether or not optimize playback is on

Parameters:
[out]  ReturnStatus  return status
Returns:
  • true optimize playback is on
  • false optimize playback is off
Status Codes:

MStatus MFnManip3D::setOptimizePlayback ( bool  optimizePlayback  )

Sets whether or not to optimize the playback

Parameters:
[in]  optimizePlayback  whether or not to optimize the playback
Returns:

float MFnManip3D::globalSize (  )  [static]

Returns the global manipulator size.

Returns:
The global manipulator size

void MFnManip3D::setGlobalSize ( float  size  )  [static]

Sets the global manipulator size.

Parameters:
[in]  size  the global manipulator size

float MFnManip3D::handleSize (  )  [static]

Returns the manipulator handle size.

Returns:
The manipulator handle size

void MFnManip3D::setHandleSize ( float  size  )  [static]

Sets the manipulator handle size.

Parameters:
[in]  size  the manipulator handle size

float MFnManip3D::lineSize (  )  [static]

Returns the manipulator line size.

Returns:
The manipulator line size

void MFnManip3D::setLineSize ( float  size  )  [static]

Sets the manipulator line size.

Parameters:
[in]  size  the manipulator line size

MStatus MFnManip3D::deleteManipulator ( MObject manip  )  [static]

Delete a manipulator. This method should be used to delete manipulators that have been created using base manipulator create() methods.

Parameters:
[in]  manip  the manipulator to be deleted
Returns:

MEulerRotation MFnManip3D::rotateXYZValue ( const unsigned int  valIndex,
MStatus ReturnStatus = NULL
)

Gets the rotation for the active manipulator.

Parameters:
[in]  valIndex  rotation index of the manipulator
Returns:
Rotate value of the active manip
Status Codes:
