MFnToggleManip Class Reference
[OpenMayaUI - API module for user interfaceFunctionSet classes]

#include <MFnToggleManip.h>

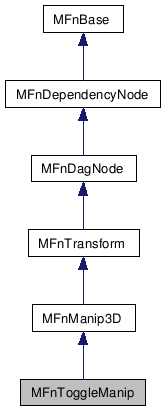

Inheritance diagram for MFnToggleManip:
Inheritance graph
[legend]
Collaboration diagram for MFnToggleManip:
Collaboration graph
[legend]

List of all members.


Detailed Description

ToggleManip function set.

The ToggleManip allows the user to switch between two modes or some on/off state. It is drawn as a circle with or without a dot. When the mode is on, the dot is drawn in the circle; when the mode is off, the circle is drawn without the dot. This manipulator generates a boolean value corresponding to whether or not the mode is on or off.

Examples:

swissArmyManip.cpp.


Public Member Functions

virtual MFn::Type  type () const
  Function set type.
virtual  ~MFnToggleManip ()
  Destructor.
  MFnToggleManip ()
  Default constructor.
  MFnToggleManip (MObject &object, MStatus *ReturnStatus=NULL)
  Constructor.
  MFnToggleManip (const MDagPath &object, MStatus *ret=NULL)
  Constructor.
MObject  create (MStatus *ReturnStatus=NULL)
MObject  create (const MString &manipName, const MString &toggleName, MStatus *ReturnStatus=NULL)
MStatus  connectToTogglePlug (MPlug &togglePlug)
MPoint  startPoint (MStatus *ReturnStatus=NULL) const
MVector  direction (MStatus *ReturnStatus=NULL) const
double  length (MStatus *ReturnStatus=NULL) const
bool  toggle (MStatus *ReturnStatus=NULL) const
unsigned int  startPointIndex (MStatus *ReturnStatus=NULL) const
unsigned int  directionIndex (MStatus *ReturnStatus=NULL) const
unsigned int  lengthIndex (MStatus *ReturnStatus=NULL) const
unsigned int  toggleIndex (MStatus *ReturnStatus=NULL) const
MStatus  setStartPoint (MPoint &startPoint)
MStatus  setDirection (MVector &direction)
MStatus  setLength (double length)
MStatus  setToggle (bool toggle)
  MFnToggleManip (const MObject &object, MStatus *ret=NULL)
  Constructor.

Protected Member Functions

virtual const char *  className () const
  Class name.

Constructor & Destructor Documentation

MFnToggleManip::~MFnToggleManip (  )  [virtual]

Destructor.

Class destructor.

MFnToggleManip::MFnToggleManip ( MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

MFnToggleManip::MFnToggleManip ( const MDagPath object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:
[in]  object  The const MDagPath to attach the function set to
[out]  ReturnStatus  The return status
Status Codes:

MFnToggleManip::MFnToggleManip ( const MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

Member Function Documentation

MFn::Type MFnToggleManip::type (  )  const [virtual]

Function set type.

Return the class type : MFn::kToggleManip

Reimplemented from MFnManip3D.

const char * MFnToggleManip::className (  )  const [protected, virtual]

Class name.

Return the class name : "MFnToggleManip"

Reimplemented from MFnManip3D.

MObject MFnToggleManip::create ( MStatus ReturnStatus = NULL  )

Creates a new ToggleManip. This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite ToggleManip.

The name that appears in the feedback line is "toggle"

Parameters:
[out]  ReturnStatus  return status
Returns:
Newly created ToggleManip
Status Codes:

MObject MFnToggleManip::create ( const MString manipName,
const MString toggleName,
MStatus ReturnStatus = NULL
)

Creates a new ToggleManip. This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite ToggleManip.

The name that appears in the feedback line is specified by the toggleName argument.

Parameters:
[in]  toggleName  the name that appears in the feedback line
[out]  ReturnStatus  return status
Returns:
Newly created ToggleManip
Status Codes:

Reimplemented from MFnDependencyNode.

MStatus MFnToggleManip::connectToTogglePlug ( MPlug togglePlug  )

Connect to the toggle plug. The data type corresponding to the togglePlug is a boolean value.

Parameters:
[in]  togglePlug  the toggle plug
Returns:

MPoint MFnToggleManip::startPoint ( MStatus ReturnStatus = NULL  )  const

Returns the start point.

Parameters:
[out]  ReturnStatus  return status
Returns:
The start point
Status Codes:

MVector MFnToggleManip::direction ( MStatus ReturnStatus = NULL  )  const

Returns the direction.

Parameters:
[out]  ReturnStatus  return status
Returns:
The direction
Status Codes:

double MFnToggleManip::length ( MStatus ReturnStatus = NULL  )  const

Returns the length.

Parameters:
[out]  ReturnStatus  return status
Returns:
Length
Status Codes:

bool MFnToggleManip::toggle ( MStatus ReturnStatus = NULL  )  const

Returns the toggle.

Parameters:
[out]  ReturnStatus  return status
Returns:
Toggle
Status Codes:

unsigned int MFnToggleManip::startPointIndex ( MStatus ReturnStatus = NULL  )  const

Returns the index of the start point of the ToggleManip. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:
[out]  ReturnStatus  return status
Returns:
Start point index
Status Codes:

unsigned int MFnToggleManip::directionIndex ( MStatus ReturnStatus = NULL  )  const

Returns the index of the direction. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:
[out]  ReturnStatus  return status
Returns:
Direction index
Status Codes:

unsigned int MFnToggleManip::lengthIndex ( MStatus ReturnStatus = NULL  )  const

Returns the index of the length of the ToggleManip. The data type corresponding to this index is a double.

Parameters:
[out]  ReturnStatus  return status
Returns:
Length index
Status Codes:

unsigned int MFnToggleManip::toggleIndex ( MStatus ReturnStatus = NULL  )  const

Returns the index of the toggle of the ToggleManip. The data type corresponding to this index is a boolean.

Parameters:
[out]  ReturnStatus  return status
Returns:
Toggle index
Status Codes:

MStatus MFnToggleManip::setStartPoint ( MPoint startPoint  )

Sets the start point of the ToggleManip.

Parameters:
[in]  startPoint  the start point of the ToggleManip
Returns:

MStatus MFnToggleManip::setDirection ( MVector direction  )

Sets the direction of the ToggleManip.

Parameters:
[in]  direction  the direction of the ToggleManip
Returns:

MStatus MFnToggleManip::setLength ( double  length  )

Sets the length of the ToggleManip.

Parameters:
[in]  length  the length of the ToggleManip
Returns:

MStatus MFnToggleManip::setToggle ( bool  toggle  )

Sets the toggle of the ToggleManip.

Parameters:
[in]  toggle  the toggle of the ToggleManip
Returns:
