MFnStateManip Class Reference
[OpenMayaUI - API module for user interface, FunctionSet classes]

#include <MFnStateManip.h>

Inheritance diagram for MFnStateManip:

[legend]

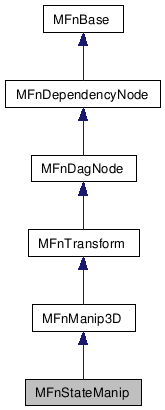

Collaboration diagram for MFnStateManip:

[legend]

List of all members.

---

Detailed Description

StateManip function set.

The StateManip allows the user to switch between multiple states. It is drawn as a circle with a notch. Each click on the circle increments the value of the state (modulo the maximum number of states). This manipulator generates an integer value corresponding to the state of the manip.

Examples:

rotateManip.cpp, and swissArmyManip.cpp.

Public Member Functions
virtual MFn::Type	type () const
	Function set type.
virtual	~MFnStateManip ()
	Destructor.
	MFnStateManip ()
	Default constructor.
	MFnStateManip (MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
	MFnStateManip (const MDagPath &object, MStatus *ret=NULL)
	Constructor.
MObject	create (MStatus *ReturnStatus=NULL)
MObject	create (const MString &manipName, const MString &stateName, MStatus *ReturnStatus=NULL)
MStatus	connectToStatePlug (MPlug &statePlug)
MStatus	setInitialState (unsigned int initialState)
MStatus	setMaxStates (unsigned int numStates)
unsigned int	maxStates (MStatus *ReturnStatus=NULL) const
unsigned int	state (MStatus *ReturnStatus=NULL) const
unsigned int	positionIndex (MStatus *ReturnStatus=NULL) const
unsigned int	stateIndex (MStatus *ReturnStatus=NULL) const
	MFnStateManip (const MObject &object, MStatus *ret=NULL)
	Constructor.
Protected Member Functions
virtual const char *	className () const
	Class name.

---

Constructor & Destructor Documentation

MFnStateManip::~MFnStateManip

(

)

[virtual]

Destructor.

Class destructor.

MFnStateManip::MFnStateManip	(	MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnStateManip::MFnStateManip	(	const MDagPath &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:

[in]	object	The const MDagPath to attach the function set to
[out]	ReturnStatus	The return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnStateManip::MFnStateManip	(	const MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

---

Member Function Documentation

MFn::Type MFnStateManip::type

(

)

const [virtual]

Function set type.

Return the class type : MFn::kStateManip

Reimplemented from MFnManip3D.

const char * MFnStateManip::className

(

)

const [protected, virtual]

Class name.

Return the class name : "MFnStateManip"

Reimplemented from MFnManip3D.

MObject MFnStateManip::create

(

MStatus *

ReturnStatus = NULL

)

Creates a new StateManip. This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite StateManip.

The name that appears in the feedback line is "state"

Parameters:

[out]

ReturnStatus

return status

Returns:

Newly created StateManip

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MObject MFnStateManip::create	(	const MString &	manipName,
		const MString &	stateName,
		MStatus *	ReturnStatus = NULL
	)

Creates a new StateManip. This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite StateManip.

The name that appears in the feedback line is specified by the stateName argument.

Parameters:

[in]	stateName	the name that appears in the feedback line
[out]	ReturnStatus	return status

Returns:

Newly created StateManip

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Reimplemented from MFnDependencyNode.

MStatus MFnStateManip::connectToStatePlug

(

MPlug &

statePlug

)

Connect to the state plug. The data type corresponding to the statePlug is a int integer.

Parameters:

[in]

statePlug

the state plug

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnStateManip::setInitialState

(

unsigned int

initialState

)

Sets the initial state of the StateManip.

Parameters:

[in]

initialState

initial state of the StateManip

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnStateManip::setMaxStates

(

unsigned int

numStates

)

Sets the maximum number of states that the StateManip will have. The default number of maximum states is 4.

Parameters:

[in]

numStates

the maxiumum number of states

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnStateManip::maxStates

(

MStatus *

ReturnStatus = NULL

)

const

Returns the number of maximum states.

Parameters:

[out]

ReturnStatus

return status

Returns:

Maximum states

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnStateManip::state

(

MStatus *

ReturnStatus = NULL

)

const

Returns the current state.

Parameters:

[out]

ReturnStatus

return status

Returns:

Current states

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnStateManip::positionIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the position of the StateManip. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:

[out]

ReturnStatus

return status

Returns:

Position index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnStateManip::stateIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the state. The data type corresponding to this index is a int integer.

Parameters:

[out]

ReturnStatus

return status

Returns:

State index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed
