MFnDirectionManip Class Reference
[OpenMayaUI - API module for user interface, FunctionSet classes]

#include <MFnDirectionManip.h>

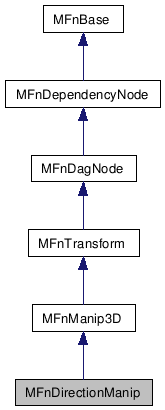

Inheritance diagram for MFnDirectionManip:

[legend]

Collaboration diagram for MFnDirectionManip:

[legend]

List of all members.

---

Detailed Description

DirectionManip function set.

The DirectionManip allows the user to specify a direction, as defined by the vector from the start point to the manipulator position. It uses a FreePointTriadManip to specify the end point of a vector relative to a given start point. This manipulator generates a vector from the start point to the end point.

Examples:

swissArmyManip.cpp.

Public Member Functions
virtual MFn::Type	type () const
	Function set type.
virtual	~MFnDirectionManip ()
	Destructor.
	MFnDirectionManip ()
	Default constructor.
	MFnDirectionManip (MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
	MFnDirectionManip (const MDagPath &object, MStatus *ret=NULL)
	Constructor.
MObject	create (MStatus *ReturnStatus=NULL)
MObject	create (const MString &manipName, const MString &directionName, MStatus *ReturnStatus=NULL)
MStatus	connectToDirectionPlug (MPlug &directionPlug)
MStatus	setNormalizeDirection (bool state)
MStatus	setDrawStart (bool state)
MStatus	setStartPoint (MPoint &startPoint)
MStatus	setDirection (MVector &direction)
unsigned int	startPointIndex (MStatus *ReturnStatus=NULL) const
unsigned int	endPointIndex (MStatus *ReturnStatus=NULL) const
unsigned int	directionIndex (MStatus *ReturnStatus=NULL) const
	MFnDirectionManip (const MObject &object, MStatus *ret=NULL)
	Constructor.
Protected Member Functions
virtual const char *	className () const
	Class name.

---

Constructor & Destructor Documentation

MFnDirectionManip::~MFnDirectionManip

(

)

[virtual]

Destructor.

Class destructor.

MFnDirectionManip::MFnDirectionManip	(	MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnDirectionManip::MFnDirectionManip	(	const MDagPath &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:

[in]	object	The const MDagPath to attach the function set to
[out]	ReturnStatus	The return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnDirectionManip::MFnDirectionManip	(	const MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

---

Member Function Documentation

MFn::Type MFnDirectionManip::type

(

)

const [virtual]

Function set type.

Return the class type : MFn::kDirectionManip

Reimplemented from MFnManip3D.

const char * MFnDirectionManip::className

(

)

const [protected, virtual]

Class name.

Return the class name : "MFnDirectionManip"

Reimplemented from MFnManip3D.

MObject MFnDirectionManip::create

(

MStatus *

ReturnStatus = NULL

)

Creates a new DirectionManip. This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite DirectionManip.

The name that appears in the feedback line is "direction"

Parameters:

[out]

ReturnStatus

return status

Returns:

Newly created DirectionManip

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MObject MFnDirectionManip::create	(	const MString &	manipName,
		const MString &	directionName,
		MStatus *	ReturnStatus = NULL
	)

Creates a new DirectionManip. This function set's object is set to be the new manipulator.

This method should only be used to create a non-composite DirectionManip.

The name that appears in the feedback line is specified by the directionName argument.

Parameters:

[in]	manipName	Name of the manip for UI purposes.
[in]	directionName	Label for the direction value which appears in the feedback line.
[out]	ReturnStatus	Status code.

Returns:

Newly created DirectionManip.

Status Codes:

• MS::kSuccess Operation successful.
• MS::kFailure Operation failed.

Reimplemented from MFnDependencyNode.

MStatus MFnDirectionManip::connectToDirectionPlug

(

MPlug &

directionPlug

)

Connect to the direction plug. The data type corresponding to the directionPlug is MFnNumericData::k3Double.

Parameters:

[in]

directionPlug

the direction plug

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Examples:

swissArmyManip.cpp.

MStatus MFnDirectionManip::setNormalizeDirection

(

bool

state

)

Sets whether or not to the direction should be normalized. By default the direction is normalized.

Parameters:

[in]

state

whether or not the direction should be normalized

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnDirectionManip::setDrawStart

(

bool

state

)

Sets whether or not to draw the start of the DirectionManip. The start of the DirectionManip is indicated by a grey dot. By default the start is not drawn.

Parameters:

[in]

state

whether or not the start should be drawn

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnDirectionManip::setStartPoint

(

MPoint &

startPoint

)

Sets the start point of the DirectionManip.

Parameters:

[in]

startPoint

the start point of the DirectionManip

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

MStatus MFnDirectionManip::setDirection

(

MVector &

direction

)

Sets the direction of the DirectionManip.

Parameters:

[in]

direction

the direction of the DirectionManip

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnDirectionManip::startPointIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the start point of the DirectionManip. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:

[out]

ReturnStatus

return status

Returns:

Start point index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Examples:

swissArmyManip.cpp.

unsigned int MFnDirectionManip::endPointIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the end point of the DirectionManip. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:

[out]

ReturnStatus

return status

Returns:

End point index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

unsigned int MFnDirectionManip::directionIndex

(

MStatus *

ReturnStatus = NULL

)

const

Returns the index of the direction. The data type corresponding to this index is MFnNumericData::k3Double.

Parameters:

[out]

ReturnStatus

return status

Returns:

Direction index

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed
