Sliding Door



Command entry: Create panel (Geometry) Doors Sliding button
Command entry:Create menu AEC Objects Sliding Door

The Sliding door slides as if on a track or railing. It has two door elements: one remains stationary while the other moves.

Sliding doors with different numbers of panels

This topic describes only controls and behavior unique to the Sliding door. Most door parameters are common to all kinds of doors; see Doors.

Interface

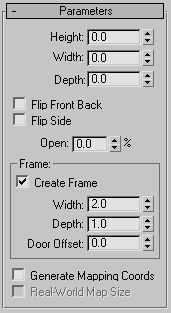

Parameters rollout

Flip Front Back

Changes which element is in front, compared to the default.

Flip Side

Changes the current sliding element to the stationary element, and vice versa.
