Setting Up the Crowd Particle Emission





In crowd simulations, particles are emitted with an instance of an actor proxy attached to each particle. As with typical ICE particle emissions, there are a number of parameters you can use to set up the particles to be the way you want.

You can set up the particle emission for the crowd simulation in the appropriate Emit compound that is created by default in the crowd simulation point cloud's Emit ICE tree:

To open the property editor for the Emit compound of the current crowd, choose the CrowdFX Simulation Edit Inspect Emitter command from the ICE toolbar.

Thee Emit compound can also be used for emitting standard ICE particles, but some of the parameters are designed only for crowd simulations.

Setting the Number of Particles

The number of particles is set differently depending on the type of emission you're creating. For example, pedestrian or basic crowd emission.

Defining a Pedestrian Actor's "Personal Space" at Emission

The following are parameters in the Emit Evenly from Geometry compound that prevent actors from colliding with each other immediately upon emission. After the particles are emitted, you can add a buffer around each actor to help prevent collisions when moving - see Creating a Buffer Around the Actors.

Setting the Particle's (and Actor's) Size and Scale at Emission

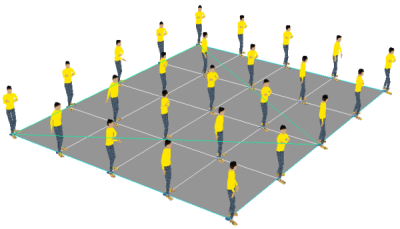

As with regular particle instances, when you set the particle's Size and Scale (the size along each axis) in the appropriate Emit compound, the instanced object (actor) inherits that size and scale. A value of 1 is the same size and scale as the original model from which the actor was duplicated.

In the image below, a simple Randomize node has been plugged into the Size port on the Emit compound to vary the size of each particle and its actor.

You can also use a scaling constraint compound (or pose constraint) to constrain the scaling of certain deformers in the actor's rig proxy - see Constraining the Orientation or Scale.

Setting the Actor's Orientation at Emission

When particles are emitted, they are oriented in the direction as defined by the emitter object's CrowdFX_Emitter_Forward attribute with their Y axes defined as their up vector.

With a directional emitter, the actors are automatically oriented in the direction of the arrow on the emitter (see Using Directional Emitters). However, you can set a different forward vector for the actors using the Actor Direction options in the Initialize Collision Avoidance compound.

Only rotations about the actor's Y axis are valid.

How Particles Are Distributed on the Emitters

There are several different parameters in both Emit compounds that affect how many particles are emitted and how they're placed when emitted.

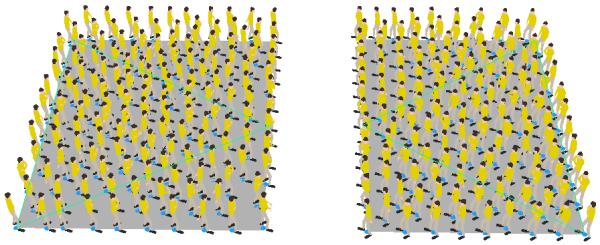

In either Emit compound, you can set the Seed value to get a different distribution of particles on the emitters.

For Pedestrian Simulations

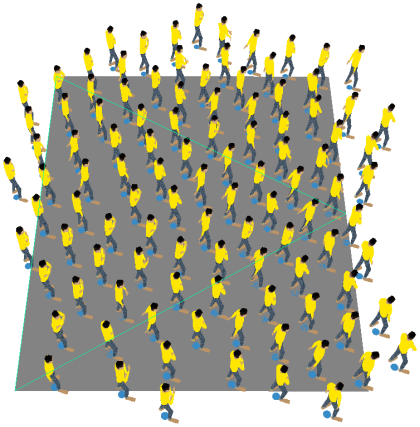

  • Select Delete Outside Boundary to delete any particles that are outside of the boundary of the emitter. Note that this changes the number of particles that are emitted.

  • Select Boundary Constraint in the Emit Evenly from Geometry compound to keep all particles within the boundary of the emitter object.

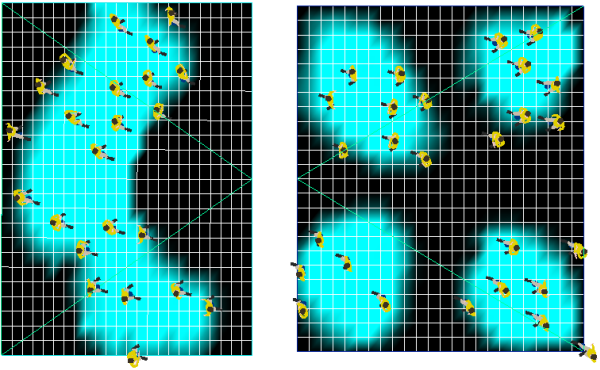

Using Weight Maps to Define an Emission Area

You can use weight maps, or other attributes, on the emitter objects to define areas of emission.

  1. Make sure that the emitter object has an appropriate resolution level.

    If you're using a directional emitter object, select the Create Grid option and increase the U/V Subdiv values in the Set Emitter Data compound to be high enough resolution for a weight map.

  2. Create a weight map one or more emitter objects - see Weight Maps.
  3. Open the Emit ICE tree for the crowd simulation point cloud.
  4. Disconnect the Get Emitter Group node from the Emit Evenly from Geometry compound, then get a separate Get Data for the emitter. This is because the reference to the weight map can only be to an individual emitter object.

    If you are using multiple emitters, each one needs to have its own Get Data node plugged into its own Emit node.

  5. In each Emit Evenly from Geometry compound, specify the emitter object's Weights attribute for the appropriate weight map in the Filter > Reference text box.

    The syntax should be something like this: cls.WeightMapCls.Weight_Map.Weights

  6. Set the Rate Control to Proportional to Filtered Area.

    The particles are emitted only where the weight map values are not 0.

    Click the Invert option to emit particles where the values are not 1.

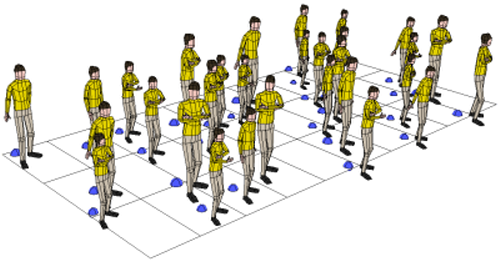

Emitting Actors from Points on the Emitter

As with regular ICE particles, you can emit one particle per point with the Emit Evenly from Geometry compound. You may want to do this for crowd simulations that involve marching armies or parade formations.

  1. Make sure that the emitter object has an appropriate resolution level.

    If you're using a directional emitter object, select the Create Grid option and make sure that the U/V Subdiv values in the Set Emitter Data compound are at an appropriate level.

  2. Open the Emit ICE tree for the crowd simulation point cloud.
  3. Open the Emit Evenly from Geometry compound for editing, and then open the Generate Sample Set node.
  4. In this node, change the Emission Type to Point and the Rate Type to All Points.

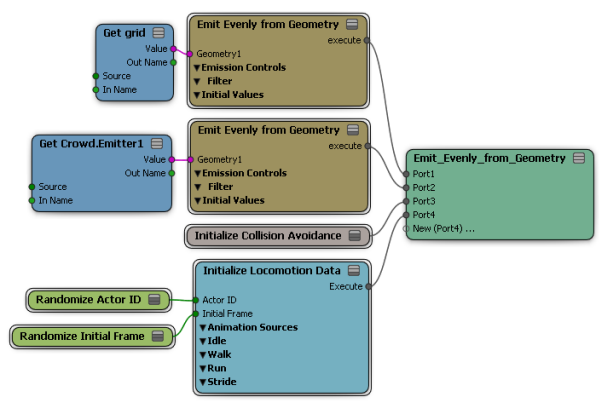

This affects all emitters in the Emitters group, unless you plug each emitter geometry separately into their own Emit compounds (as shown in the ICE tree image above).
