Detailed Description

Base class for constraints.

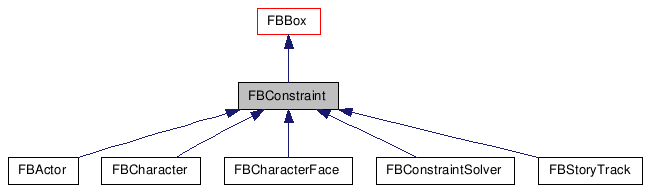

Inheritance diagram for FBConstraint:

[legend]

Public Member Functions
HFBAnimationNode	AnimationNodeOutCreate (int pUserId, FBModel pModel, str pAttribute)
	Animation Node Creations (IN/OUT).
HFBAnimationNode	AnimationNodeInCreate (int pUserId, FBModel pModel, str pAttribute)
HFBAnimationNode	AnimationNodeInCreate (int pUserId, HFBProperty pProperty)
	Animation Node Creations (IN).
bool	ReferenceAddNotify (int pGroupIndex, FBModel pModel)
	Notification callbacks for when a reference is added or removed.
bool	ReferenceRemoveNotify (int pGroupIndex, FBModel pModel)
bool	DeformerBind (FBModel pModel)
	Bind/Unbind pModel to deformation constraint.
bool	DeformerUnBind (FBModel pModel)
bool	FbxStore (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat)
	Store/Retrieve data to/from FBX files.
bool	FbxRetrieve (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat)
	__init__ (str pName, object pObject=None)
	Constructor.
	IObject_Declare (Implementation)
	ActiveChanged ()
	Notification for Activation Status Change.
	RemoveAllAnimationNodes ()
	Remove animation nodes.
	SetupAllAnimationNodes ()
	Setup animation nodes.
	SnapSuggested ()
	Suggest 'snap'.
	FreezeSuggested ()
	Suggest 'freeze'.
bool	Disable (FBModel pModel)
	Disable constraint on pModel.
bool	Enable (FBModel pModel)
	Enable constraint on pModel.
bool	AnimationNodeNotify (HFBAnimationNode pAnimationNode, HFBEvaluateInfo pEvaluateInfo, HFBConstraintInfo pConstraintInfo)
	Notification callback for connectors.
	SaveModelState (FBModel pModel, bool pS, bool pR, bool pT)
	Save current state of pModel.
	RestoreModelState (FBModel pModel)
	Restore the saved model state onto pModel.
	FreezeSRT (FBModel pModel, bool pS, bool pR, bool pT)
	Freeze current model state.
HFBConstraint	Clone ()
	Clone the constraint.
int	ReferenceGroupGetCount ()
	Return the number of reference groups.
int	ReferenceGroupAdd (str pGroupName, int pMaxItemCount)
	Add a group of references.
str	ReferenceGroupGetName (int pGroupIndex)
	Get the name of the reference group.
int	ReferenceGroupGetMaxCount (int pGroupIndex)
	Get the maximum number of items that can exist in the reference group in question.
FBModel	ReferenceGet (int pGroupIndex, int pItemIndex=0)
	Get a reference.
int	ReferenceGetCount (int pGroupIndex)
	Get number of references in a specified group.
bool	ReferenceAdd (int pGroupIndex, FBModel pModel)
	Add a reference to a specified group.
bool	ReferenceRemove (int pGroupIndex, FBModel pModel)
	Remove a reference to pModel from the group at pGroupIndex.
	ReferenceRemoveAll ()
	Remove All References.
bool	DeformerPreNotify (FBModel pModel, HFBEvaluateInfo pEvaluateInfo, FBVector4 pBBoxMin, FBVector4 pBBoxMax)
	Deformation pre-notification function This function pass the evaluation information for deformation (if timing is required).
bool	DeformerNotify (FBModel pModel, FBVector4 pSrcVertex, FBVector4 pSrcNormal, int pCount, FBVector4 pDstVertex, FBVector4 pDstNormal)
	Deformation notification function.
Public Attributes
FBPropertyBase	Deformer
	Read Write Property: Is a deformer constraint?.
FBPropertyBase	HasLayout
	Read Write Property: Does the constraint have a layout?.
FBPropertyString	Description
	Read Write Property: Long description of constraint.
FBPropertyBase	Active
	Read Write Property: Active state.
FBPropertyBase	Lock
	Read Write Property: Lock state.
FBPropertyAction	Snap
	Function Property: Snap constraint.
FBPropertyBaseAnimatable	Weight
	Read Write Property: Weight of constraint.

Member Function Documentation

HFBAnimationNode AnimationNodeOutCreate	(	int	pUserId,
		FBModel	pModel,
		str	pAttribute
	)

Search for all occurrences

Animation Node Creations (IN/OUT).

Used to create the connectors (in or out) on an animation node. This function will return a newly created animation node, connected to the model specified by pModel.

Parameters:

pUserId	User specified reference number.
pModel	Model to associate with animation node.
pAttribute	Attribute of model to animate (i.e. Translation, Lcl Translation, etc.)

Returns:: Newly created IN/OUT animation node.

HFBAnimationNode AnimationNodeInCreate	(	int	pUserId,
		FBModel	pModel,
		str	pAttribute
	)

Search for all occurrences

HFBAnimationNode AnimationNodeInCreate	(	int	pUserId,
		HFBProperty	pProperty
	)

Search for all occurrences

Animation Node Creations (IN).

Used to create the In connectors on an animation node. This function will return a newly created animation node, connected to the model specified by pProperty.

Parameters:

pUserId	User specified reference number.
pProperty	Property of model to animate (must be animatable)

Returns:: Newly created IN animation node.

bool ReferenceAddNotify	(	int	pGroupIndex,
		FBModel	pModel
	)

Search for all occurrences

Notification callbacks for when a reference is added or removed.

Parameters:

pGroupIndex	Index of group where reference was affected.
pModel	Model to which reference was associated.

Returns:: true if successful.

bool ReferenceRemoveNotify	(	int	pGroupIndex,
		FBModel	pModel
	)

Search for all occurrences

bool DeformerBind ( FBModel pModel )

Search for all occurrences

Bind/Unbind pModel to deformation constraint.

These functions are used for adding/removing a deformation binding to/from pModel if the constraint is a deformation constraint.

Parameters:

pModel Model to bind/unbind.

Returns:: true if successful.

bool DeformerUnBind ( FBModel pModel )

Search for all occurrences

bool FbxStore	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

Search for all occurrences

Store/Retrieve data to/from FBX files.

Parameters:

pFbxObject	Interface to FBX format.
pStoreWhat	Attributes to store in FBX file.

Returns:: true if successful.

Reimplemented from FBBox.

bool FbxRetrieve	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

Search for all occurrences

Reimplemented from FBBox.

__init__	(	str	pName,
		object	pObject = `None`
	)

Search for all occurrences

Constructor.

Parameters:

pName	Name of constraint.
pObject	For internal use only (default is NULL).

Reimplemented from FBBox.

Reimplemented in FBActor, FBCharacter, FBCharacterFace, and FBConstraintSolver.

IObject_Declare ( Implementation )

Search for all occurrences

Reimplemented from FBBox.

Reimplemented in FBCharacter, and FBCharacterFace.

ActiveChanged ( )

Search for all occurrences

Notification for Activation Status Change.

RemoveAllAnimationNodes ( )

Search for all occurrences

Remove animation nodes.

SetupAllAnimationNodes ( )

Search for all occurrences

Setup animation nodes.

SnapSuggested ( )

Search for all occurrences

Suggest 'snap'.

FreezeSuggested ( )

Search for all occurrences

Suggest 'freeze'.

bool Disable ( FBModel pModel )

Search for all occurrences

Disable constraint on pModel.

Parameters:

pModel Model on which constraint should be disabled.

Returns:: true if successful.

bool Enable ( FBModel pModel )

Search for all occurrences

Enable constraint on pModel.

Parameters:

pModel Model on which constraint should be enable.

Returns:: true if successful.

bool AnimationNodeNotify	(	HFBAnimationNode	pAnimationNode,
		HFBEvaluateInfo	pEvaluateInfo,
		HFBConstraintInfo	pConstraintInfo
	)

Search for all occurrences

Notification callback for connectors.

Parameters:

pAnimationNode	Animation node being notified.
pEvaluateInfo	Information for evaluation.
pConstraintInfo	Information for constraint.

Returns:: true if successful.

SaveModelState	(	FBModel	pModel,
		bool	pS,
		bool	pR,
		bool	pT
	)

Search for all occurrences

Save current state of pModel.

Parameters:

pModel	Model to save.
pS	Scaling information?
pR	Rotation information?
pT	Translation information?

RestoreModelState ( FBModel pModel )

Search for all occurrences

Restore the saved model state onto pModel.

Parameters:

pModel Model to affect with previous state.

FreezeSRT	(	FBModel	pModel,
		bool	pS,
		bool	pR,
		bool	pT
	)

Search for all occurrences

Freeze current model state.

Parameters:

pModel	Model to freeze constraint on.
pS	Scaling freeze?
pR	Rotation freeze?
pT	Translation freeze?

HFBConstraint Clone ( )

Search for all occurrences

Clone the constraint.

Returns:: Newly created (and copied) constraint.

Reimplemented in FBCharacter.

int ReferenceGroupGetCount ( )

Search for all occurrences

Return the number of reference groups.

Returns:: Number of reference groups.

int ReferenceGroupAdd	(	str	pGroupName,
		int	pMaxItemCount
	)

Search for all occurrences

Add a group of references.

Parameters:

pGroupName	Name of reference group to add.
pMaxItemCount	Maximum number of items in pGroupName.

Returns:: Index of new reference group.

str ReferenceGroupGetName ( int pGroupIndex )

Search for all occurrences

Get the name of the reference group.

Parameters:

pGroupIndex Index of the reference group to get the name for.

Returns:: The name of the reference group pGroupIndex.

int ReferenceGroupGetMaxCount ( int pGroupIndex )

Search for all occurrences

Get the maximum number of items that can exist in the reference group in question.

Parameters:

pGroupIndex Index of reference group.

Returns:: Maximum number of items that can be added to the reference group.

FBModel ReferenceGet	(	int	pGroupIndex,
		int	pItemIndex = `0`
	)

Search for all occurrences

Get a reference.

Parameters:

pGroupIndex	Index of reference group containing desired reference.
pItemIndex	Index of reference in group to get (default is 0).

Returns:: Model at specified reference.

int ReferenceGetCount ( int pGroupIndex )

Search for all occurrences

Get number of references in a specified group.

Parameters:

pGroupIndex Index of group to query the number of references.

Returns:: Number of references in specified group.

bool ReferenceAdd	(	int	pGroupIndex,
		FBModel	pModel
	)

Search for all occurrences

Add a reference to a specified group.

Parameters:

pGroupIndex	Group to add reference to.
pModel	Model to place at new reference.

Returns:: true if successful.

Warning:: If you try to add a model to a group that is already full, the success of the operation will be false and the reference will not be added.

bool ReferenceRemove	(	int	pGroupIndex,
		FBModel	pModel
	)

Search for all occurrences

Remove a reference to pModel from the group at pGroupIndex.

Parameters:

pGroupIndex	Index to remove reference from.
pModel	Model to remove reference from.

Returns:: true if successful.

ReferenceRemoveAll ( )

Search for all occurrences

Remove All References.

bool DeformerPreNotify	(	FBModel	pModel,
		HFBEvaluateInfo	pEvaluateInfo,
		FBVector4	pBBoxMin,
		FBVector4	pBBoxMax
	)

Search for all occurrences

Deformation pre-notification function This function pass the evaluation information for deformation (if timing is required).

And user should provide the estimation of the bounding volume of the model after deformation. This estimation will be used to determine the model's visibility in the camera's frustum. Only those potential visible models will receive the following DeformerNotify() callback.

Parameters:

pModel	Model to deform.
pEvaluateInfo	Information for evaluation.
pBBoxMin	(In/Out) The estimation of min vertex of the bounding box before & after deformation
pBBoxMax	(In/Out) The estimation of max vertex of the bounding box before & after deformation

Returns:: true if the deformer provide valid bbox estimation and wish reduce the following deformation if possible, false if deformer wish to continue deformation without considering frustum visibility.

bool DeformerNotify	(	FBModel	pModel,
		FBVector4	pSrcVertex,
		FBVector4	pSrcNormal,
		int	pCount,
		FBVector4	pDstVertex,
		FBVector4	pDstNormal
	)

Search for all occurrences

Deformation notification function.

Parameters:

pModel	Model to deform.
pSrcVertex	Source vertex array (i.e. vertex to deform).
pSrcNormal	Normals at source vertex array.
pCount	Number of vertices in source/destination arrays
pDstVertex	Destination vertex array (i.e. where source vertex gets deformed to)
pDstNormal	Normals at destination vertex array.
