FBModel Class Reference

Search for all occurrences

---

Detailed Description

Model class.

In the MotionBuilder UI, a model can be any object in a scene, created using geometry. Models can represent simple objects like cubes, or complex objects like characters.

FBModel is a base class which is not used so much directly, but is the parent of well-used classes like FBCamera, FBLight, and FBModelMarker.

It also implements a number of widely-implemented functions and attributes, such as:

1. Clone(), FBDelete()

2. UI attributes such as Show, Pickable, and Visibility

3. Positional atributes such as Rotation, Scaling, and Translation The following Python snippet shows how to create, show, rotate, and delete a cube

       from pyfbsdk import *
       myCube = FBModelCube("cube")
       myCube.Show = True
       myCube.Rotation = FBVector3d(45, 45, 45)
       myCube.FBDelete()


There is a few ways to get a handle on existing models in a scene:

1. FBFindObjectsByName and FBFindObjectsByNamespace return a list of objects matching a pattern (can contain *). For usage, see: FindObjectsWithWildcard.py

2. If you know the name of the model, use FBFindModelByName, as demonstrated in FBComponent.py.

3. FBGetSelectedModels can get a handle to an object which is derived from FBModel. It searches the scene for a model, based on the model's unique name and returns a list of all the selected things in the scene.

4. FBSelectObjectsByNamespace selects (or deselects) objects in the current scene.

Examples

Tasks/ResetLocalTranslationRotation.py

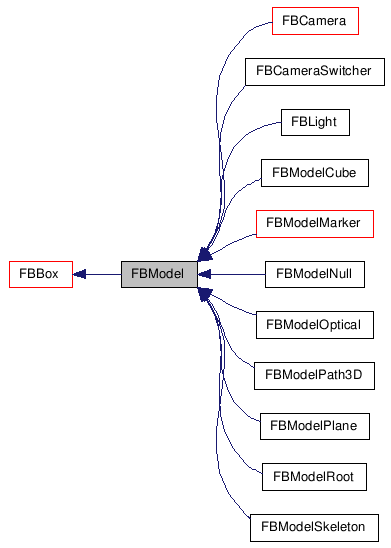

Inheritance diagram for FBModel:

List of all members.

Public Member Functions
	__init__ (str pName, object pObject=None)
	Constructor.
	FBDelete ()
	Open Reality deletion function.
	IQuery_Declare (Implementation)
	ICallback_Declare (Implementation)
FBModel	Clone ()
	Clone the model.
	SetMatrix (FBMatrix pMatrix, int pWhat=kModelTransformation, bool pGlobalInfo=True, bool pPushUndo=False, HFBEvaluateInfo pEvaluateInfo=None)
	Set a matrix for the model.
	GetMatrix (FBMatrix pMatrix, int pWhat=kModelTransformation, bool pGlobalInfo=True, HFBEvaluateInfo pEvaluateInfo=None)
	Get a matrix from the model.
	SetVector (FBVector3 pVector, int pWhat=kModelTranslation, bool pGlobalInfo=True, bool pPushUndo=False, HFBEvaluateInfo pEvaluateInfo=None)
	Set a vector for the model.
	GetVector (FBVector3 pVector, int pWhat=kModelTranslation, bool pGlobalInfo=True, HFBEvaluateInfo pEvaluateInfo=None)
	Get a vector from the model.
	SetSchematicPosition (int pX, int pY)
	Set the position in the schematic view for the model.
	SetSchematicPosition (FBVector2 pVector2d)
	Set the position in the schematic view for the model.
FBVector2	GetSchematicPosition ()
	Get the position in the schematic view for the model.
	GetBoundingBox (FBVector3 pMin, FBVector3 pMax)
	Get the bounding box of the model.
int	NoFrustumCullingRequire ()
	Acquire no frustum culling request.
int	NoFrustumCullingRelease ()
	Release no frustum culling request.
bool	UseFrustumCulling ()
	Get the current Frustum Culling Status.
bool	HasCustomDisplay ()
	Function to overload to handle custom display.
	CustomModelDisplay (FBCamera pCamera, FBModelShadingMode pShadingMode, FBModelRenderPass pRenderPass, float pPickingAreaWidth, float pPickingAreaHeight)
	Custom display function called when HasCustomDisplay returns true;.
bool	CustomModelPicking (int pNbHits, int pSelectBuffer, FBCamera pCamera, int pMouseX, int pMouseY, FBVector4 pLocalRaySrc, FBVector4 pLocalRayDir, FBVector4 pWorldRaySrc, FBVector4 pWorldRayDir, FBMatrix pGlobalInverseMatrix, FBVector4 pOutPickedPoint)
	Custom picking for selection.
str	GetSelectedPoints ()
	Get the list of the points selection state.
int	GetSelectedPointsCount ()
	Get the number of selected points in the model.
bool	FbxStore (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat)
	Store and Retrieve function that can be overloaded.
bool	FbxRetrieve (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat)
	SetupPropertiesForShapes ()
	Setup Shape Properties.
str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Model'.
str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'.
Public Attributes
FBPropertyListModel	Children
	List: Children for model.
FBPropertyListShader	Shaders
	List: Shaders for model.
FBPropertyListMaterial	Materials
	List: Materials for model.
FBPropertyListTexture	Textures
	List: Textures with Special UseType (Other than "Color" which should connect to materials).
FBPropertyListDeformer	Deformers
	List: Deformers (Skeleton Deformer or Point Cache Deformer).
FBPropertyBase	Icon3D
	Read Write Property: Is model a 3D icon?.
FBPropertyBase	SoftSelected
	Read Write Property: Is model Soft selected?.
FBPropertyBase	IsDeformable
	Read Only Property: Is model deformable?.
FBPropertyBase	IsConstrained
	Read Only Property: Is model constrained?.
FBPropertyBase	SkeletonDeformable
	Read Write Property: Model skeleton deformable.
FBPropertyBase	BlendShapeDeformable
	Read Write Property: Model blendshape deformable.
FBPropertyBase	ConstrainDeformable
	Read Write Property: Model constraint deformable.
FBPropertyBase	PointCacheDeformable
	Read Write Property: Model point cache deformable.
FBPropertyBase	PointCacheRecord
	Read Write Property: Record Point Cache for model? Not Savable.
FBPropertyModel	Parent
	Read Write Property: Parent model.
FBPropertyModel	LookAt
	Read Write Property: Look at model (interest point).
FBPropertyModel	UpVector
	Read Write Property: UpVector model.
FBPropertyGeometry	Geometry
	Read Write Property: Geometry for the model.
FBPropertyMesh	TessellatedMesh
	Read Only Property: Tessellated Mesh for the model.
FBPropertyModelVertexData	ModelVertexData
	Read Only Property: ModelVertexData for the model.
FBPropertyCluster	Cluster
	Read Only Property: Link Cluster for the model.
FBPropertyScene	Scene
	Read Only Property: Scene containing the model.
FBPropertyModelShadingMode	ShadingMode
	Read Write Property: Shading mode for the model.
FBPropertyAnimationNode	AnimationNode
	Read Only Property: Animation node of the model.
FBPropertyModelRotationOrder	RotationOrder
	Read Write Property: Rotation order.
FBPropertyBase	RotationSpaceForLimitOnly
	Read Write Property: Apply Post Rotation Matrix only for Limits?.
FBPropertyBase	RotationActive
	Read Write Property: Is model using Rotation Limits?.
FBPropertyBase	PreRotation
	Read Write Property: Pre Rotation (considered if RotationActive is true).
FBPropertyBase	PostRotation
	Read Write Property: Post Rotation (considered if RotationActive is true).
FBPropertyBase	RotationMin
	Read Write Property: Min Rotation Limit (considered if RotationActive is true).
FBPropertyBase	RotationMax
	Read Write Property: Max Rotation Limit (considered if RotationActive is true).
FBPropertyBase	RotationMinX
	Read Write Property: Is model using Minimum Rotation Limits On X?.
FBPropertyBase	RotationMinY
	Read Write Property: Is model using Minimum Rotation Limits On Y?.
FBPropertyBase	RotationMinZ
	Read Write Property: Is model using Minimum Rotation Limits On Z?.
FBPropertyBase	RotationMaxX
	Read Write Property: Is model using Maximum Rotation Limits On X?.
FBPropertyBase	RotationMaxY
	Read Write Property: Is model using Maximum Rotation Limits On Y?.
FBPropertyBase	RotationMaxZ
	Read Write Property: Is model using Maximum Rotation Limits On Z?.
FBPropertyBaseAnimatable	Visibility
	Read Write Property: Visibility of model.
FBPropertyBase	VisibilityInheritance
	Read Write Property: //!< When this value is set to True the Visibility of this model is also applied to all its descendants.
FBPropertyBaseAnimatable	Translation
	Read Write Property: Lcl translation.
FBPropertyBaseAnimatable	Rotation
	Read Write Property: Lcl rotation.
FBPropertyBaseAnimatable	Scaling
	Read Write Property: Lcl scaling.
FBPropertyBase	GeometricTranslation
	Read Write Property: Geometric translation.
FBPropertyBase	GeometricRotation
	Read Write Property: Geometric rotation.
FBPropertyBase	GeometricScaling
	Read Write Property: Geometric scaling.
FBPropertyBase	QuaternionInterpolate
	Read Write Property: Use quaternion interpolation.
FBPropertyBase	Show
	Read Write Property: Indicate if the viewer should show the object, according to its visibility value.
FBPropertyBase	Pickable
	Read Write Property: Indicate if a model can be picked in the viewer.

---

Member Function Documentation

__init__	(	str	pName,
		object	pObject = None
	)

Search for all occurrences

Constructor.

Parameters:

pName	Name of model.
pObject	For internal use only(default=NULL).

Examples

Tasks/ResetLocalTranslationRotation.py

Reimplemented from FBBox.

Reimplemented in FBCamera, FBCameraStereo, FBLight, FBModelCube, FBModelMarker, FBModelNull, FBModelOptical, FBModelPath3D, FBModelPlane, FBModelRoot, and FBModelSkeleton.

FBDelete

(

)

Search for all occurrences

Open Reality deletion function.

Examples

Tasks/DeleteHierarchy.py

Reimplemented from FBComponent.

IQuery_Declare

(

Implementation

)

Search for all occurrences

ICallback_Declare

(

Implementation

)

Search for all occurrences

Reimplemented from FBComponent.

FBModel Clone

(

)

Search for all occurrences

Clone the model.

This will duplicate the current model.

Returns:

Newly created model.

SetMatrix	(	FBMatrix	pMatrix,
		int	pWhat = kModelTransformation,
		bool	pGlobalInfo = True,
		bool	pPushUndo = False,
		HFBEvaluateInfo	pEvaluateInfo = None
	)

Search for all occurrences

Set a matrix for the model.

Parameters:

pMatrix	Information to use to set the model's matrix.
pWhat	Type of matrix to set (default=transformation).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
pPushUndo	true if this operation is undoable, don't push undo in non UI thread.
pEvaluateInfo	EvaluateInfo, Take Display if none specified

GetMatrix	(	FBMatrix	pMatrix,
		int	pWhat = kModelTransformation,
		bool	pGlobalInfo = True,
		HFBEvaluateInfo	pEvaluateInfo = None
	)

Search for all occurrences

Get a matrix from the model.

Parameters:

pWhat	Type of information requested (default=transformation).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).

Return values:

pMatrix

Matrix to fill with requested information.

Parameters:

pEvaluateInfo

EvaluateInfo, Take Display if none specified.

SetVector	(	FBVector3	pVector,
		int	pWhat = kModelTranslation,
		bool	pGlobalInfo = True,
		bool	pPushUndo = False,
		HFBEvaluateInfo	pEvaluateInfo = None
	)

Search for all occurrences

Set a vector for the model.

Parameters:

pVector	Vector to use to set values.
pWhat	Type of information to set (default=translation, inverses not supported).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).
pPushUndo	true if this operation is undoable, don't push undo in non UI thread.
pEvaluateInfo	EvaluateInfo, Take Display if none specified

GetVector	(	FBVector3	pVector,
		int	pWhat = kModelTranslation,
		bool	pGlobalInfo = True,
		HFBEvaluateInfo	pEvaluateInfo = None
	)

Search for all occurrences

Get a vector from the model.

Parameters:

pWhat	Type of information requested (default=translation, inverses not supported).
pGlobalInfo	true if it is GlobalInfo, false if Local (default=true).

Return values:

pVector

Vector to fill with requested values.

Parameters:

pEvaluateInfo

EvaluateInfo, Take Display if none specified

SetSchematicPosition	(	int	pX,
		int	pY
	)

Search for all occurrences

Set the position in the schematic view for the model.

Parameters:

pX	X position to set.
pY	Y position to set.

SetSchematicPosition

(

FBVector2

pVector2d

)

Search for all occurrences

Set the position in the schematic view for the model.

Parameters:

pVector2d

Position to set.

FBVector2 GetSchematicPosition

(

)

Search for all occurrences

Get the position in the schematic view for the model.

Returns:

Current position for the model.

GetBoundingBox	(	FBVector3	pMin,
		FBVector3	pMax
	)

Search for all occurrences

Get the bounding box of the model.

Return values:

pMin	Minimum value of the bounding box.
pMax	Maximum value of the bounding box.

int NoFrustumCullingRequire

(

)

Search for all occurrences

Acquire no frustum culling request.

Returns:

Current no frustum culling request count after function call.

int NoFrustumCullingRelease

(

)

Search for all occurrences

Release no frustum culling request.

Returns:

Current no frustum culling request count after function call.

bool UseFrustumCulling

(

)

Search for all occurrences

Get the current Frustum Culling Status.

Returns:

True if model don't use frustum culling currently.

bool HasCustomDisplay

(

)

Search for all occurrences

Function to overload to handle custom display.

Returns:

True is this model class has custom display function ModelDisplay

CustomModelDisplay	(	FBCamera	pCamera,
		FBModelShadingMode	pShadingMode,
		FBModelRenderPass	pRenderPass,
		float	pPickingAreaWidth,
		float	pPickingAreaHeight
	)

Search for all occurrences

Custom display function called when HasCustomDisplay returns true;.

Parameters:

pCamera	Current camera for display.
pShadingMode	Shading mode to render see FBModelShadingMode.
pRenderPass	Actual rendering pass, see FBModelRenderPass.
pPickingAreaWidth	Width of picking area.
pPickingAreaHeight	Height of picking area.

bool CustomModelPicking	(	int	pNbHits,
		int	pSelectBuffer,
		FBCamera	pCamera,
		int	pMouseX,
		int	pMouseY,
		FBVector4	pLocalRaySrc,
		FBVector4	pLocalRayDir,
		FBVector4	pWorldRaySrc,
		FBVector4	pWorldRayDir,
		FBMatrix	pGlobalInverseMatrix,
		FBVector4	pOutPickedPoint
	)

Search for all occurrences

Custom picking for selection.

Parameters:

pNbHits	Number of hits.
pSelectBuffer	OpenGL hit buffer.
pCamera	Current camera for rendering.
pMouseX	Mouse X position.
pMouseY	Mouse Y position.
pLocalRaySrc	Local picking ray source.
pLocalRayDir	Local picking ray direction.
pWorldRaySrc	World coordinate picking ray source.
pWorldRayDir	World coordinate picking ray direction.
pGlobalInverseMatrix	Inverse transformation matrix of the model.
pOutPickedPoint	Picked position.

str GetSelectedPoints

(

)

Search for all occurrences

Get the list of the points selection state.

Returns:

Pointer to the list of the points selection state.

int GetSelectedPointsCount

(

)

Search for all occurrences

Get the number of selected points in the model.

Returns:

Number of selected points.

bool FbxStore	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

Search for all occurrences

Store and Retrieve function that can be overloaded.

Parameters:

pFbxObject	FBX Object that is used to communicate I/O operations.
pStoreWhat	Which attributes are currently stored/retrieved.

Reimplemented from FBBox.

bool FbxRetrieve	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

Search for all occurrences

Reimplemented from FBBox.

SetupPropertiesForShapes

(

)

Search for all occurrences

Setup Shape Properties.

Normally this function is called automatically at the next global synchronization point after the geometry has been updated. However you must call it explicitly to access the shape properties immediately after shapes adding/removing before next global synchronization point.

str FbxGetObjectType

(

)

Search for all occurrences

Returns the class type inherited by the class of an object, for example: 'Model'.

Reimplemented from FBBox.

str FbxGetObjectSubType

(

)

Search for all occurrences

Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'.

Reimplemented from FBBox.

---

Member Data Documentation

FBPropertyListModel Children

Search for all occurrences

List: Children for model.

FBPropertyListShader Shaders

Search for all occurrences

List: Shaders for model.

FBPropertyListMaterial Materials

Search for all occurrences

List: Materials for model.

FBPropertyListTexture Textures

Search for all occurrences

List: Textures with Special UseType (Other than "Color" which should connect to materials).

FBPropertyListDeformer Deformers

Search for all occurrences

List: Deformers (Skeleton Deformer or Point Cache Deformer).

FBPropertyBase Icon3D

Search for all occurrences

Read Write Property: Is model a 3D icon?.

FBPropertyBase SoftSelected

Search for all occurrences

Read Write Property: Is model Soft selected?.

FBPropertyBase IsDeformable

Search for all occurrences

Read Only Property: Is model deformable?.

FBPropertyBase IsConstrained

Search for all occurrences

Read Only Property: Is model constrained?.

FBPropertyBase SkeletonDeformable

Search for all occurrences

Read Write Property: Model skeleton deformable.

Not Savable

FBPropertyBase BlendShapeDeformable

Search for all occurrences

Read Write Property: Model blendshape deformable.

Not Savable

FBPropertyBase ConstrainDeformable

Search for all occurrences

Read Write Property: Model constraint deformable.

Not Savable

FBPropertyBase PointCacheDeformable

Search for all occurrences

Read Write Property: Model point cache deformable.

Not Savable

FBPropertyBase PointCacheRecord

Search for all occurrences

Read Write Property: Record Point Cache for model? Not Savable.

FBPropertyModel Parent

Search for all occurrences

Read Write Property: Parent model.

FBPropertyModel LookAt

Search for all occurrences

Read Write Property: Look at model (interest point).

FBPropertyModel UpVector

Search for all occurrences

Read Write Property: UpVector model.

FBPropertyGeometry Geometry

Search for all occurrences

Read Write Property: Geometry for the model.

FBPropertyMesh TessellatedMesh

Search for all occurrences

Read Only Property: Tessellated Mesh for the model.

FBPropertyModelVertexData ModelVertexData

Search for all occurrences

Read Only Property: ModelVertexData for the model.

FBPropertyCluster Cluster

Search for all occurrences

Read Only Property: Link Cluster for the model.

FBPropertyScene Scene

Search for all occurrences

Read Only Property: Scene containing the model.

FBPropertyModelShadingMode ShadingMode

Search for all occurrences

Read Write Property: Shading mode for the model.

FBPropertyAnimationNode AnimationNode

Search for all occurrences

Read Only Property: Animation node of the model.

FBPropertyModelRotationOrder RotationOrder

Search for all occurrences

Read Write Property: Rotation order.

FBPropertyBase RotationSpaceForLimitOnly

Search for all occurrences

Read Write Property: Apply Post Rotation Matrix only for Limits?.

FBPropertyBase RotationActive

Search for all occurrences

Read Write Property: Is model using Rotation Limits?.

FBPropertyBase PreRotation

Search for all occurrences

Read Write Property: Pre Rotation (considered if RotationActive is true).

FBPropertyBase PostRotation

Search for all occurrences

Read Write Property: Post Rotation (considered if RotationActive is true).

FBPropertyBase RotationMin

Search for all occurrences

Read Write Property: Min Rotation Limit (considered if RotationActive is true).

FBPropertyBase RotationMax

Search for all occurrences

Read Write Property: Max Rotation Limit (considered if RotationActive is true).

FBPropertyBase RotationMinX

Search for all occurrences

Read Write Property: Is model using Minimum Rotation Limits On X?.

FBPropertyBase RotationMinY

Search for all occurrences

Read Write Property: Is model using Minimum Rotation Limits On Y?.

FBPropertyBase RotationMinZ

Search for all occurrences

Read Write Property: Is model using Minimum Rotation Limits On Z?.

FBPropertyBase RotationMaxX

Search for all occurrences

Read Write Property: Is model using Maximum Rotation Limits On X?.

FBPropertyBase RotationMaxY

Search for all occurrences

Read Write Property: Is model using Maximum Rotation Limits On Y?.

FBPropertyBase RotationMaxZ

Search for all occurrences

Read Write Property: Is model using Maximum Rotation Limits On Z?.

FBPropertyBaseAnimatable Visibility

Search for all occurrences

Read Write Property: Visibility of model.

This can be overriden by the 'Show' property.

FBPropertyBase VisibilityInheritance

Search for all occurrences

Read Write Property: //!< When this value is set to True the Visibility of this model is also applied to all its descendants.

FBPropertyBaseAnimatable Translation

Search for all occurrences

Read Write Property: Lcl translation.

FBPropertyBaseAnimatable Rotation

Search for all occurrences

Read Write Property: Lcl rotation.

FBPropertyBaseAnimatable Scaling

Search for all occurrences

Read Write Property: Lcl scaling.

FBPropertyBase GeometricTranslation

Search for all occurrences

Read Write Property: Geometric translation.

FBPropertyBase GeometricRotation

Search for all occurrences

Read Write Property: Geometric rotation.

FBPropertyBase GeometricScaling

Search for all occurrences

Read Write Property: Geometric scaling.

FBPropertyBase QuaternionInterpolate

Search for all occurrences

Read Write Property: Use quaternion interpolation.

FBPropertyBase Show

Search for all occurrences

Read Write Property: Indicate if the viewer should show the object, according to its visibility value.

This has a default value of 'false'.

FBPropertyBase Pickable

Search for all occurrences

Read Write Property: Indicate if a model can be picked in the viewer.

This has a default value of 'true'.
