This topic will use diagrams to show how to use multiple geometry layers (class KFbxLayer) to create a layered texture (class KFbxLayeredTexture). A layered texture consists of several textures (class KFbxTexture) that are partially transparent, and that are overlaid to create a texture that is a blending of the original textures. This topic also provides a visual review of geometry layers and geometry layer elements.

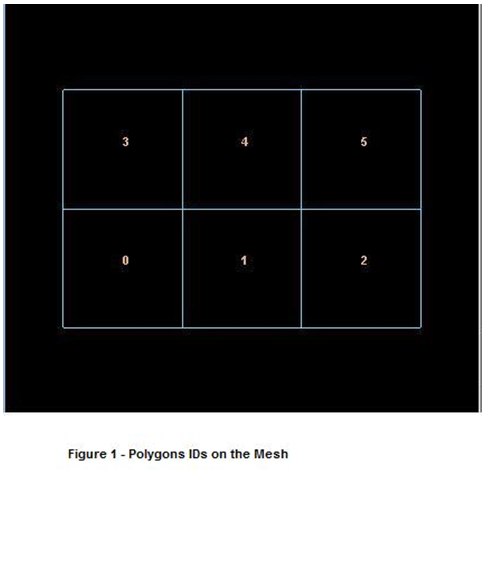

Here is a mesh in the form of a plane. Like the cube, it has six polygons, numbered 0 through 5:

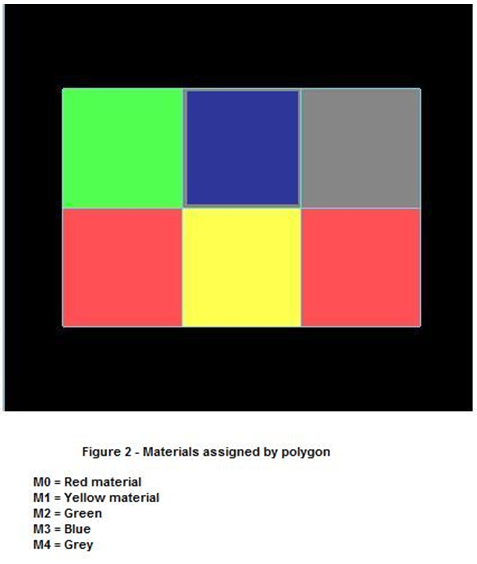

We have five materials (M0 through M4) that we want to apply to the six polygons. We’ll apply the red material M0 to polygons 0 and 2:

Let’s look at this in terms of FBX classes:

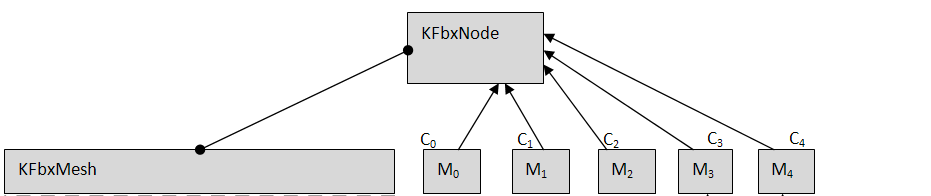

• The mesh object is the node attribute of a node object (class KFbxNode).
• The five material objects are connected to the node object (not the mesh object) by five connections, C0 to C4 (see Connections).

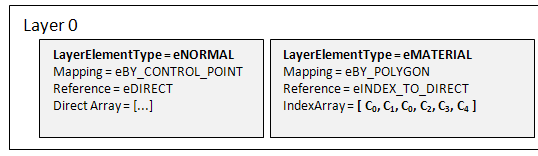

To do this, we create a geometry layer as a container for two geometry layer elements: normals and materials. The layer is Layer 0. We recommend that you use Layer 0 and only Layer 0, unless you have a particular reason for using another layer or layers. We’ll see a situation that requires multiple layers later on in this topic.

The normals for the 24 vertices (control points) are contained in a KFbxLayerElementNormal object. We’ll map the normals to the control points of the polygons. And we’ll use a DirectArray of 24 items, where each item is a KFbxVector4 object containing a normal. “Reference = eDIRECT” means that FBX SDK will refer to the elements of the DirectArray directly, i.e., without using an IndexArray.

We also need a KFbxLayerElementMaterial object, whose IndexArray contains the index numbers of connections. In our example, there are six elements in the IndexArray, one for each polygon in the mesh. Each IndexArray element contains the index number of the connection for that polygon. This maps the five connections (one connection for each of the five materials) to the six polygons of the mesh. The red material (M0) is applied to polygon 0 and polygon 2: that’s why C0 is in element #0 and element #2 of the IndexArray.

Next, we want to:

• Apply a texture to polygon 4. The texture contains an image of the number 1.
• Apply a layered texture to polygon 3. The layered texture will be a blending of three textures. The three textures contain the images of the numbers 1, 2, and 3, respectively

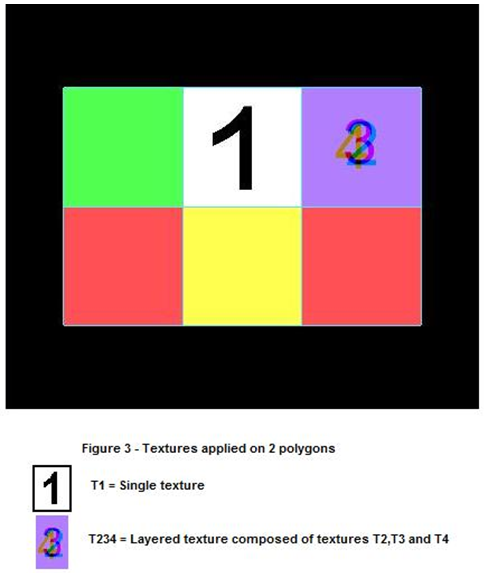

When we are done, the mesh will look like this:

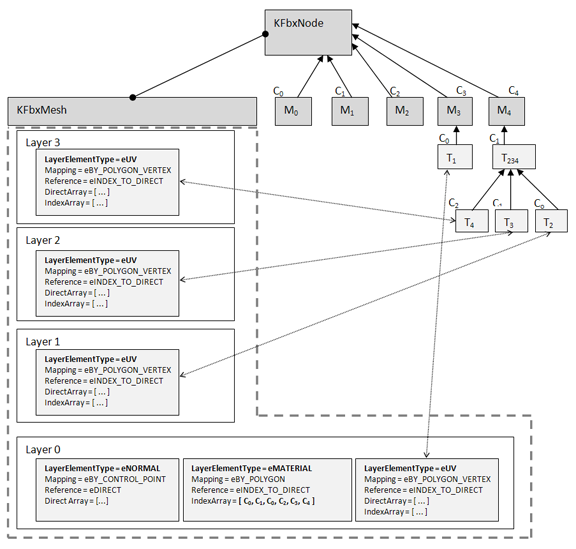

The texture with the number 1 is called T1. To apply the texture to polygon 4, we create a layer element for UVs in Layer 0. This layer element is an object of class KFbxLayerElementUV. And as you will see from the Figure 3, to apply texture T1 to polygon 4, we connect T1 to the material M3 (which is itself connected to polygon 4), and use the UVs to position the texture on the material.

The textures for the numbers 2, 3, and 4 are respectively T2, T3, and T4. Each of these three textures needs a separate layer element (Layers 1, 2, and 3, respectively) so they can be blended together into a layered texture (class KFbxLayeredTexture).

Layered textures require the use of more than one Layer.
