Detailed Description

Layer element for mapping materials (KFbxSurfaceMaterial) to a geometry.

FBX SDK 2011 and later connects materials (KFbxSurfaceMaterial) to nodes (KFbxNode). The direct array of this class is no longer used. The integer "n" in the index array of this class represents the n-th material (zero-based) connected to the node.

For example:

Mapping mode eALL_SAME and index array {0} means the whole geometry is assigned with the 0-th material connected to the node.

Mapping mode eBY_POLYGON and index array {0, 1} means the first polygon is assigned with the 0-th material and the second polygon is assigned with the 1-th material.

You can access the materials from a node by using KFbxNode::GetMaterialCount() and KFbxNode::GetMaterial(int pIndex) or the more generic calls to GetSrcObjectCount(FBX_TYPE(KFbxSurfaceMaterial)) and GetSrcObject(FBX_TYPE(KFbxSurfaceMaterial), index)

For example:

 KFbxNode* node;
 int nbMat = node->GetMaterialCount();
 int nbMat1= node->GetSrcObjectCount(FBX_TYPE(KFbxSurfaceMaterial));

 KFbxSurfaceMaterial* material;
 KFbxLayerElementMaterial* layerElement;
 if (layerElement->GetMappingMode() == KFbxLayerElement::eALL_SAME)
 {
     int index = layerElement->GetIndexArray()[0];
     material = node->GetMaterial(index);
 }

Remarks:: The DirectArray() methods still exist for legacy reasons but has been made private and should not be used.

See also:: KFbxSurfaceMaterial; KFbxNode

Examples:: ExportDocument/main.cxx, ExportScene02/main.cxx, ExportScene03/main.cxx, ImportScene/DisplayMesh.cxx, Layers/main.cxx, ProceduralTexture/main.cxx, and UIExamples/CubeCreator/SDK_Utility.cxx.

Definition at line 1425 of file kfbxlayer.h.

#include <kfbxlayer.h>

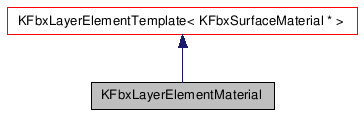

Inheritance diagram for KFbxLayerElementMaterial:

[legend]

List of all members.

Classes
class	LayerElementArrayProxy
Public Types
typedef KFbxLayerElementTemplate < KFbxSurfaceMaterial * >	ParentClass
Public Member Functions
	CREATE_DECLARE (LayerElementMaterial)
	Allocation method.
virtual void	AllocateArrays ()
virtual void	SetOwner (KFbxLayerContainer *pOwner, int pInstance=0)
virtual void	SetInstance (int pInstance)
Protected Member Functions
	KFbxLayerElementMaterial ()
	~KFbxLayerElementMaterial ()
Friends
class	KFbxLayerContainer
