Plotting Single Colour Values

Plotting a pixel in the key image sets the exact location of the colour value in the RGB viewer. The colour value is identified by a small, white wireframe cube in the viewer. As an alternative, you can use the Plot tool to select a colour value directly in the viewer by clicking on a 3D histogram cube.

If a key element in the viewer is selected before you plot the colour value, the element's directional arrow moves to point towards that colour. Plotting pixels in this way allows you to quickly refine the matte by translating or scaling a key element with respect to the plotted colour.

To plot a pixel on the key image:

1. In the RGB viewer, select the key element that you want to modify in relation to a plotted colour value. For example, click a patch key element.

   If you have problems selecting the element, see Selecting Key Elements in the RGB Viewer.

2. If needed, zoom in on the key image so that you can select a pixel more easily.

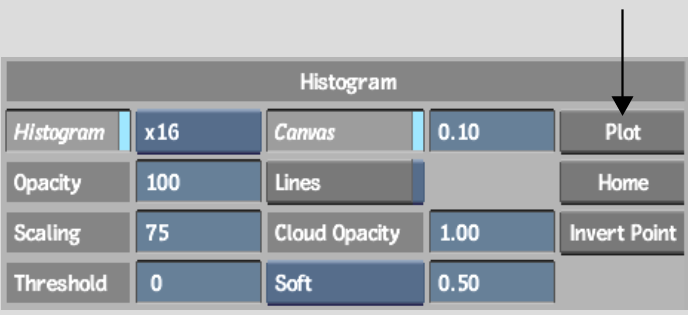

3. Click Plot (or press O).




   Plot is enabled.

4. Click a pixel in the key image. You can also drag the cursor in the image, then release the cursor when the colour picker is over the desired pixel.

   In the RGB viewer, the colour value of the selected pixel is plotted and the arrow of the selected key element moves to point towards the plotted colour value.

   If needed, rotate the viewer by pressing Ctrl and dragging it to get a better view of the key element with respect to the plotted value.

5. Proceed with modifying the selected key element. Using the hot keys, you can move the selected key element to refine the key.

   Press:	To:
   V-click	Sample pixels where you click in the image. The arrow is repositioned in the RGB viewer. Drag left or right to scale along this axis.
   6 and drag key element	Move the selected key element in the direction of the arrow.
   7 and drag key element	Rotate the selected key element in any direction around its centre point.
   8 and drag key element	Scale the selected key element proportionally from its centre. Drag left to scale down and right to scale up.
   9 and drag key element	Scale the selected key element in the direction of the arrow (non-proportionally) from its centre. Drag left to scale down and right to scale up.
   0 and drag key element	Scale the selected key element in the direction of the arrow (non-proportionally), starting from the point on the key element's surface where the back of the arrow remains anchored in place.

   As you move the key element away from the plotted pixel, you can see the effect on the key image or the matte.

To select a colour value in the RGB viewer:

1. In the RGB viewer, select the key element that you want to modify in relation to a plotted colour value. For example, click a patch key element.

   If you have problems selecting the element, see Selecting Key Elements in the RGB Viewer.

2. Press H to display the 3D histogram.
3. If needed, zoom in on the viewer or rotate it so that you can select a histogram cube more easily.
4. Click Plot (or press O).




   Plot mode is activated and the cursor changes to a colour picker.

5. Select a cube in the histogram of the RGB viewer. If needed, drag the colour picker around the viewer until it is pointing to the correct colour value.

   The selected cube is surrounded by a white wireframe box and the direction of the key element arrow moves toward the selected cube.

Plotting a Range of Colour Values

When you plot a range of colour values in the image, the resulting plotted region in the RGB viewer appears as a 3D convex hull. You can plot up to three colour ranges in the image. The plotted regions do not in themselves affect the key image in any way.

A plotted region allows you to compare the intersection of a key element with a particular colour range in the image, providing you with yet another alternative for adding precision to your key.

For example, use this tool to plot a colour range that you do not want to be softened. Using the plotting region as the reference, you translate and scale the softness ellipsoid away from the plotted region to ensure the softness precision of the key. Plotted regions also help you to determine whether or not to use a garbage mask. If a colour that you want to soften is the exact colour that you want key out, then you should apply a garbage mask.

To plot a region:

1. In the Preferences menu, enable the Plot Regions 1 button.

   The display of Plot region 1 is enabled.

2. In the Sampling box, select Plot1.




3. In the key image, sample one or more pixels using the same methods that you use for sampling tolerance or softness (simply drag in the image, or press Ctrl or Ctrl+Alt).

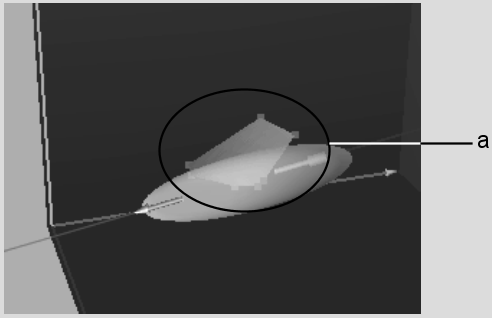

   A 3D convex hull appears in the RGB viewer.




   (a) Each vertex contributes to the convex hull that represents the plotted region.  

4. Continue sampling pixels in the key image until you are finished plotting the region.

Plotting Several RegionsYou can plot a second and third region, and compare the positions of the convex hulls. To plot a second region, use the procedure described above, selecting Plot 2 from the Sampling box and enabling the Plot Regions 2 button.

For example, sample one plot region in an area of the matte containing unwanted grey areas, and another plot region where the grey area is intentional. You can then observe where the colours of the two regions are the same (where the plotted regions intersect), and adjust the softness accordingly.
