You can use Dual view and Multi view in the SDI monitor.

To view multiple shots on the SDI monitor:

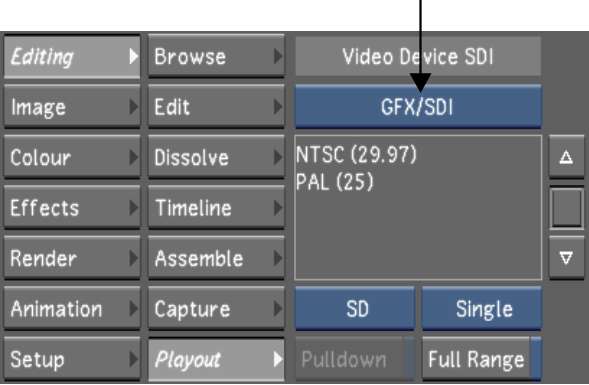

1. Click Editing in the Main menu, and then click Playout.

   The Playout menu is displayed.

2. Make sure GFX/SDI is selected in the Video/Graphics Raster option box.




3. From the Raster list, select the video resolution and scan mode that corresponds with your footage.
4. Press F7 to activate the SDI output mode.
5. Complete one of the following:
   • To view two frames on the SDI monitor, perform the procedure for viewing two frames. See Using Dual View.
   • To view multiple shots on the SDI monitor, perform the procedure for viewing multiple shots. See Using Multi View.
