The two images displayed in Dual view are the current frames on Playheads A and B. Dual view is useful for matching two shots or for copying colour correction parameters from one shot to another. You can view images side by side, or use a wipe. With a wipe (i.e., horizontal or vertical), you see a portion of each image. You can control the position of the wipe bar by adjusting the Value slider.

In a stereoscopic project, you can view the image of the Left Eye in one viewer and the image at the same frame of the Right Eye in the other. See Viewing Stereoscopic Footage in Dual View.

To display Dual view:

1. Do one of the following:
   • Enable the Viewing Options button, and in the Viewer option box, select Dual View.
   • With the Viewing Options button enabled, press F3 or click the Viewer option box to cycle through the viewer options until Dual View is displayed.
   • If you are in Single view, and the previous mode was Dual view, press F5 to toggle between the two views.

     The last used mode in Dual view is displayed.

2. Press F4 to cycle through the display modes.

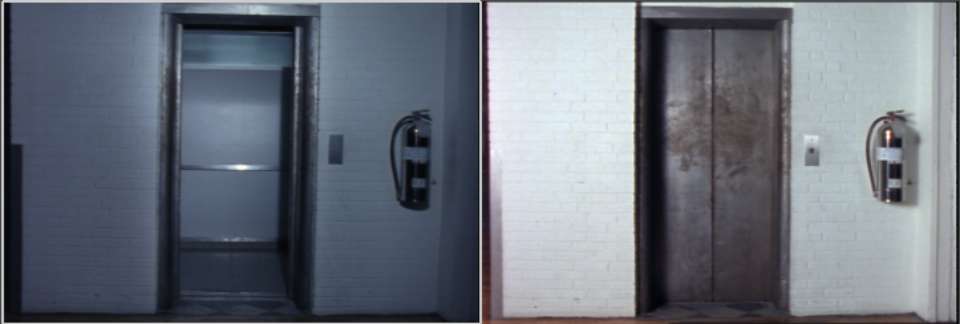

   • 2-up The current frames on Playheads A and B are displayed side by side.




   • Horizontal Wipe The images assigned to Playheads A and B appear on the top and bottom, respectively.

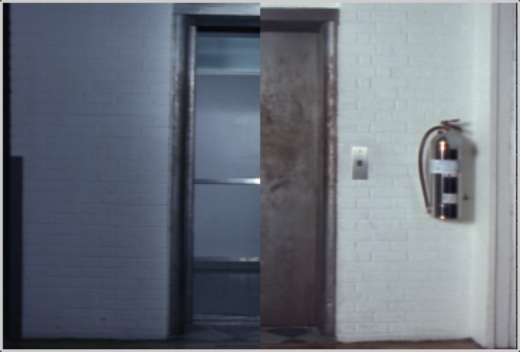

   • Vertical WipeThe images assigned to Playheads A and B appear on the left and right, respectively.




   TipWhen applying a wipe, use the Value slider to edit the percentage of the viewer that displays the image on Playhead B.
   NoteIf you are working in a stereoscopic project, you can blend the Right Eye image over the Left Eye. See Viewing Stereoscopic Footage in Dual View.
