fbshader.h File Reference

---

Detailed Description

fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h fbshader.h

Declaration for the classes FBShaderManager, FBShader, FBPropertyListShader and other subclasses.

Definition in file fbshader.h.

#include <kaydaradef.h>
#include <fbsdk/fbcomponent.h>
#include <fbsdk/fbcore.h>

Include dependency graph for fbshader.h:

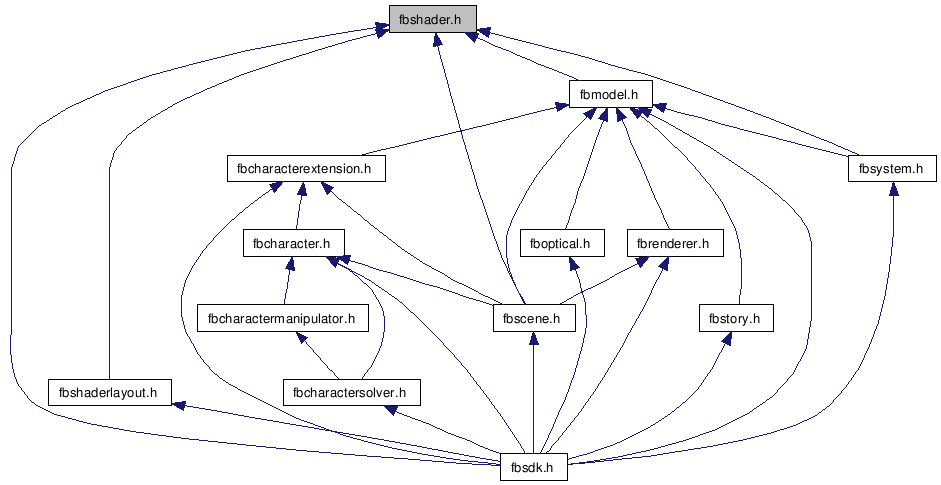

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	FBShaderManager
	Shader manager. More...
class	FBShaderModelInfo
class	FBRenderOptions
class	FBShader
	Shader class. More...
class	FBPropertyListShader
	PropertyList: Shader More...
class	FBShaderLighted
	Lighted shader class. More...
class	FBShaderShadowLive
	Shader Shadow Live class. More...
Defines
#define	FBSDK_DLL   K_DLLIMPORT
	Be sure that FBSDK_DLL is defined only once.
#define	FBRegisterShader(UniqueNameStr, ClassName, Label, Description, IconFilename)
	Shader class registration.
#define	FBShaderDeclare(ClassName, Parent)
	Shader class declaration.
#define	FBShaderImplementation(ThisComponent)   FBClassImplementation( ThisComponent )
	Shader class implementation.
Enumerations
enum	FBRenderingPass {    kFBPassInvalid = 0,    kFBPassPreRender = 1 << 0,    kFBPassFlat = 1 << 1,    kFBPassLighted = 1 << 2,    kFBPassMatte = 1 << 3,    kFBPassZTranslucent = 1 << 4,    kFBPassZTranslucentAlphaTest = 1 << 5,    kFBPassTranslucent = 1 << 6,    kFBPassAddColor = 1 << 7,    kFBPassTranslucentZSort = 1 << 8,    kFBPassPostRender = 1 << 9 }
	Rendering Pass. More...
enum	FBAlphaSource {    kFBAlphaSourceNoAlpha,    kFBAlphaSourceAccurateAlpha,    kFBAlphaSourceTransluscentAlpha,    kFBAlphaSourceMatteAlpha,    kFBAlphaSource2DTransparency,    kFBAlphaSourceAdditiveAlpha,    kFBAlphaSourceTransluscentZSortAlpha }
	Shader transparency computation. More...
enum	FBShadowType {    kFBShadowTypeShadowPlanar,    kFBShadowTypeShadowProjectiveTexture,    kFBShadowTypeLightMapProjectiveTexture,    kFBShadowTypeZShadowProjectiveTexture,    kFBShadowTypeZLightMapProjectiveTexture }
	Shadow types. More...
enum	FBShadowFrameType {    kFBShadowFrameTypeShadowReceiver,    kFBShadowFrameTypeShadowCaster,    kFBShadowFrameTypeShadowCubeMap }
	Shadow calculation methods. More...
Functions
	FB_FORWARD (FBRenderOptions)
	FBRenderOptions.

---

Define Documentation

#define FBRegisterShader	(	UniqueNameStr,
		ClassName,
		Label,
		Description,
		IconFilename		)

Value:

HIObject RegisterShader##ClassName( HIObject /*pOwner*/,char * pName,void * /*pData*/) \
    { \
      ClassName *Class = new ClassName( pName ); \
        Class->UniqueName = UniqueNameStr; \
        Class->ShaderDescription = Description; \
        if (Class->FBCreate()) { \
            return Class->GetHIObject(); \
        } else { \
            delete Class; \
            return NULL; \
        } \
    } \
    FBLibraryModule( ClassName )    \
    {   \
        FBRegisterObject( ClassName##R1,"renderer/usershader/ogl",Label,Description,RegisterShader##ClassName,true, IconFilename ); \
        FBRegisterObject( ClassName##R2,"FbxStorable/Shader",UniqueNameStr,Description,RegisterShader##ClassName,true, IconFilename );  \
    }

Shader class registration.

Parameters:

	UniqueNameStr	Unique name.
	ClassName	Shader class name.
	Label	Short description.
	Description	Long description.
	IconFilename	Name of the file containing the icon.

Definition at line 71 of file fbshader.h.

#define FBSDK_DLL   K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

..

Definition at line 50 of file fbshader.h.

#define FBShaderDeclare	(	ClassName,
		Parent		)

Value:

FBClassDeclare( ClassName,Parent); \
  public: \
    ClassName(char * pName):Parent(pName) { FBClassInit; } \
  private:

Shader class declaration.

Parameters:

	ClassName	Shader class name.
	Parent	Class parent.

Definition at line 94 of file fbshader.h.

#define FBShaderImplementation

(

ThisComponent

)

FBClassImplementation( ThisComponent )

Shader class implementation.

Parameters:

ThisComponent

Class to implement.

Definition at line 103 of file fbshader.h.

---

Enumeration Type Documentation

enum FBAlphaSource

Shader transparency computation.

There are different way to compute transparency, and this lists the supported options.

Enumerator:

kFBAlphaSourceNoAlpha	No transparency.
kFBAlphaSourceAccurateAlpha	Accurate Transparency.
kFBAlphaSourceTransluscentAlpha	Translucent.
kFBAlphaSourceMatteAlpha	Matte.
kFBAlphaSource2DTransparency	2D Transparency.
kFBAlphaSourceAdditiveAlpha	Additive Transparency.
kFBAlphaSourceTransluscentZSortAlpha	Translucent(Models Z Sort).

Definition at line 364 of file fbshader.h.

enum FBRenderingPass

Rendering Pass.

Use with FBShader::RenderingPass properties to make the shader be called at any pass. Passes will be called in the order of the enum.

Enumerator:

kFBPassInvalid	No pass selected.
kFBPassPreRender	Before anything.
kFBPassFlat	Lighting off.
kFBPassLighted	Lighting on.
kFBPassMatte	Alpha > 0.5 will show up.
kFBPassZTranslucent	Writes to depth buffer.
kFBPassZTranslucentAlphaTest	Writes to depth buffer where Alpha > 0.5.
kFBPassTranslucent	Models are blended.
kFBPassAddColor	Models are blended additively.
kFBPassTranslucentZSort	Models are sorted and blended.
kFBPassPostRender	After everything.

Definition at line 346 of file fbshader.h.

enum FBShadowFrameType

Shadow calculation methods.

Enumerator:

kFBShadowFrameTypeShadowReceiver	Bases the shadow calculation on the shadow of the receiver.
kFBShadowFrameTypeShadowCaster	Bases the shadow calculation on the shadow of the caster.
kFBShadowFrameTypeShadowCubeMap	Undocumented or unsupported.

Definition at line 621 of file fbshader.h.

enum FBShadowType

Shadow types.

The different types of shadow mapping.

Enumerator:

kFBShadowTypeShadowPlanar	Use this shadow type to create darkened shadow areas only on planar surfaces.
kFBShadowTypeShadowProjectiveTexture	Uses a texture projection to create a shadow.
kFBShadowTypeLightMapProjectiveTexture	Uses a texture projection as a shadow.
kFBShadowTypeZShadowProjectiveTexture	Similar to the Projective Shadow, except that it uses a boolean algorithm to create a self-shadow.
kFBShadowTypeZLightMapProjectiveTexture	Similar to the Projective Light Map except that it uses a boolean algorithm to create a self-shadow.

Definition at line 609 of file fbshader.h.

---

Function Documentation

FB_FORWARD

(

FBRenderOptions

)

FBRenderOptions.

---
