#include<kfbxobject.h>

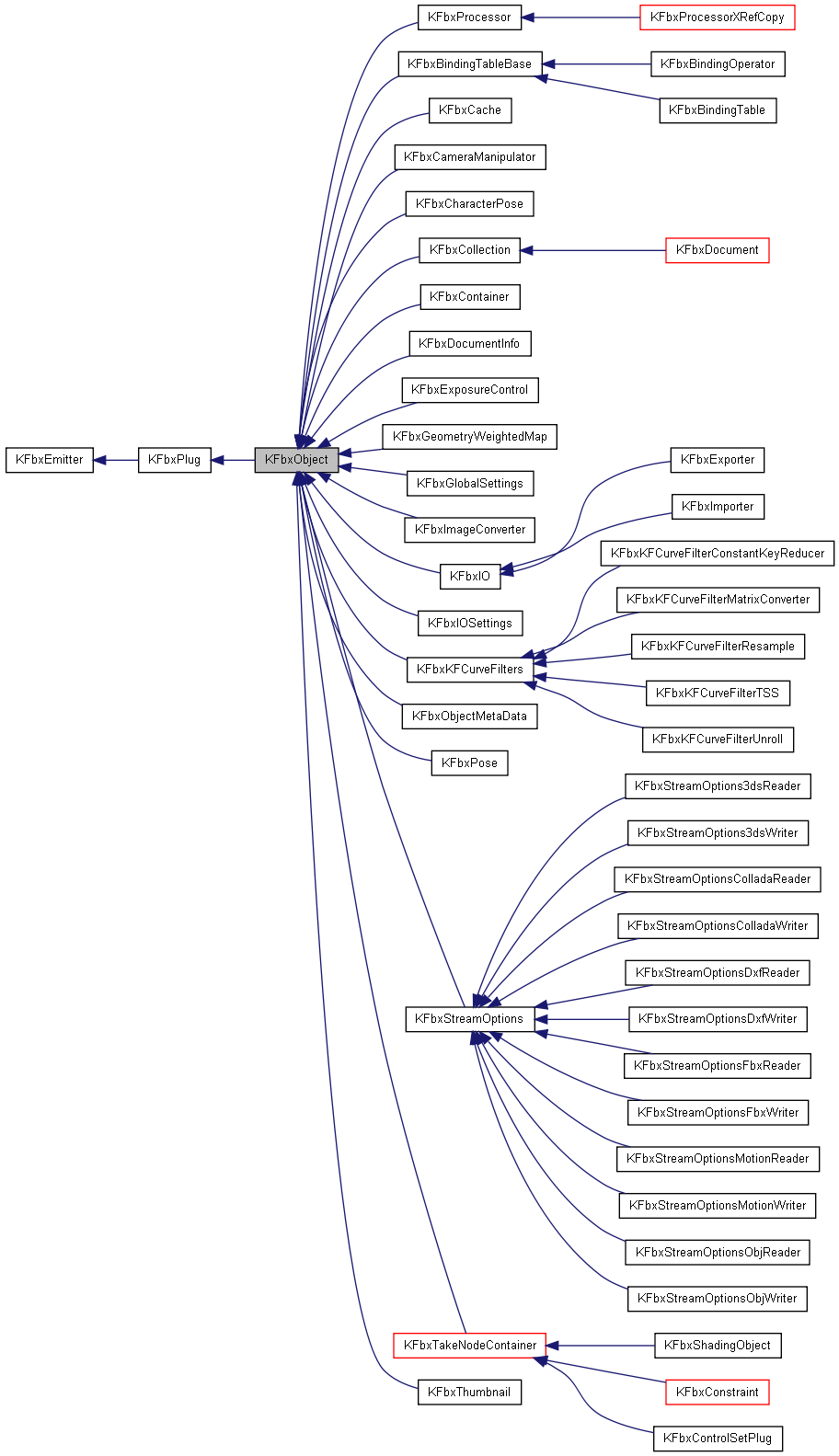

Inheritance diagram for KFbxObject:

[legend]

List of all members.

Detailed Description

Basic class for object type identification and instance naming.

Definition at line145of filekfbxobject.h.

UpdateId Management
enum	eFbxUpdateIdType
virtual kFbxUpdateId	GetUpdateId(eFbxUpdateIdType pUpdateId=eUpdateId_Object) const
virtual kFbxUpdateId	IncUpdateId(eFbxUpdateIdType pUpdateId=eUpdateId_Object)
Properties access
enum	eFbxPropertyNotify
KFbxProperty	RootProperty
KFbxProperty	GetFirstProperty() const
KFbxProperty	GetNextProperty(KFbxPropertyconst&pProperty) const
KFbxProperty	FindProperty(const char *pName, bool pCaseSensitive=true) const
	Find a property using its name and its data type.
KFbxProperty	FindProperty(const char *pName,KFbxDataTypeconst&pDataType, bool pCaseSensitive=true) const
KFbxProperty	FindPropertyHierarchical(const char *pName, bool pCaseSensitive=true) const
KFbxProperty	FindPropertyHierarchical(const char *pName,KFbxDataTypeconst&pDataType, bool pCaseSensitive=true) const
KFbxProperty&	GetRootProperty()
constKFbxProperty&	GetRootProperty() const
KFbxProperty	GetClassRootProperty()
virtual bool	PropertyNotify(eFbxPropertyNotify pType,KFbxProperty*pProperty)
Cloning and references
virtualKFbxObject*	Clone(KFbxObject*pContainer,KFbxObject::ECloneTypepCloneType) const
	Creates a clone of this object.
bool	IsAReferenceTo(void) const
	Check if this object is a reference clone of another.
KFbxObject*	GetReferenceTo(void) const
	If this object is a reference clone, this method returns the original object from which this one was cloned.
bool	IsReferencedBy(void) const
	Check if any objects were reference cloned from this one.
int	GetReferencedByCount(void) const
	Get the number of objects that were reference cloned from this one.
KFbxObject*	GetReferencedBy(int pIndex) const
	Get a reference clone of this object.
Object Name Management
void	SetName(char const *pName)
	Set the name of the object.
char const *	GetName() const
	Return the full name of the object.
KString	GetNameWithoutNameSpacePrefix() const
	Return the name of the object without the namespace qualifier.
KString	GetNameWithNameSpacePrefix() const
	Return the name of the object with the namespace qualifier.
void	SetInitialName(char const *pName)
	Set the initial name of the object.
char const *	GetInitialName() const
	Return the initial name of the object.
KString	GetNameSpaceOnly()
	Return the namespace of the object.
void	SetNameSpace(KStringpNameSpace)
	Set the namespace of the object.
KArrayTemplate<KString*>	GetNameSpaceArray(char identifier)
	Return an array of all the namespace of the object.
KString	GetNameOnly() const
	Get the name only (no namespace or prefix) of the object.
KString	GetNameSpacePrefix() const
	Get the namespace qualifier.
KFbxObjectID const&	GetUniqueID() const
	Get the unique id of object.
staticKString	RemovePrefix(char *pName)
	Remove the prefix of pName.
staticKString	StripPrefix(KString&lName)
	Strip the prefix of pName.
staticKString	StripPrefix(const char *pName)
	Strip the prefix of pName.
Off-loading Management
Remarks: the unloaded state flag can be modified using the SetObjectFlags() method. The ContentIsUnloaded() method below (implemented in this class) is simply a synonym to GetObjectFlags(eCONTENT_UNLOADED_FLAG)
int	ContentUnload()
	Unload this object content using the offload peripheral currently set in the document then flush it from memory.
int	ContentLoad()
	Load this object content using the offload peripheral currently set in the document.
bool	ContentIsLoaded() const
	Returns true if this object content is currently loaded.
void	ContentDecrementLockCount()
	Decrement the content lock count of an object.
void	ContentIncrementLockCount()
	Increment the content lock count of an object.
bool	ContentIsLocked() const
	Returns true if this object content is locked.
virtual void	ContentClear()
	Clear this object content from memory.
virtualKFbxPeripheral*	GetPeripheral()
	Retrieve the peripheral of that object.
Off-loading Serialization section
The methods in this section are, usually, called by a peripheral.
virtual bool	ContentWriteTo(KFbxStream&pStream) const
	Write the content of the object to the given stream.
virtual bool	ContentReadFrom(constKFbxStream&pStream)
	Read the content of the object from the given stream.
Selection management
virtual bool	GetSelected()
virtual void	SetSelected(bool pSelected)
Evaluation Info
virtual bool	Evaluate(KFbxProperty&pProperty,KFbxEvaluationInfoconst *pEvaluationInfo)
General Object Connection and Relationship Management
bool	ConnectSrcObject(KFbxObject*pObject, kFbxConnectionType pType=eFbxConnectionNone)
bool	IsConnectedSrcObject(constKFbxObject*pObject) const
bool	DisconnectSrcObject(KFbxObject*pObject)
bool	DisconnectAllSrcObject()
bool	DisconnectAllSrcObject(KFbxCriteriaconst&pCriteria)
bool	DisconnectAllSrcObject(kFbxClassIdpClassId)
bool	DisconnectAllSrcObject(kFbxClassIdpClassId,KFbxCriteriaconst&pCriteria)
int	GetSrcObjectCount() const
int	GetSrcObjectCount(KFbxCriteriaconst&pCriteria) const
int	GetSrcObjectCount(kFbxClassIdpClassId) const
int	GetSrcObjectCount(kFbxClassIdpClassId,KFbxCriteriaconst&pCriteria) const
KFbxObject*	GetSrcObject(int pIndex=0) const
KFbxObject*	GetSrcObject(KFbxCriteriaconst&pCriteria, int pIndex=0) const
KFbxObject*	GetSrcObject(kFbxClassIdpClassId, int pIndex=0) const
KFbxObject*	GetSrcObject(kFbxClassIdpClassId,KFbxCriteriaconst&pCriteria, int pIndex=0) const
KFbxObject*	FindSrcObject(const char *pName, int pStartIndex=0) const
KFbxObject*	FindSrcObject(KFbxCriteriaconst&pCriteria, const char *pName, int pStartIndex=0) const
KFbxObject*	FindSrcObject(kFbxClassIdpClassId, const char *pName, int pStartIndex=0) const
KFbxObject*	FindSrcObject(kFbxClassIdpClassId,KFbxCriteriaconst&pCriteria, const char *pName, int pStartIndex=0) const
template<class T>
bool	DisconnectAllSrcObject(T const *pFBX_TYPE)
template<class T>
bool	DisconnectAllSrcObject(T const *pFBX_TYPE,KFbxCriteriaconst&pCriteria)
template<class T>
int	GetSrcObjectCount(T const *pFBX_TYPE) const
template<class T>
int	GetSrcObjectCount(T const *pFBX_TYPE,KFbxCriteriaconst&pCriteria) const
template<class T>
T *	GetSrcObject(T const *pFBX_TYPE, int pIndex=0) const
template<class T>
T *	GetSrcObject(T const *pFBX_TYPE,KFbxCriteriaconst&pCriteria, int pIndex=0) const
template<class T>
T *	FindSrcObject(T const *pFBX_TYPE, const char *pName, int pStartIndex=0) const
template<class T>
T *	FindSrcObject(T const *pFBX_TYPE,KFbxCriteriaconst&pCriteria, const char *pName, int pStartIndex=0) const
bool	ConnectDstObject(KFbxObject*pObject, kFbxConnectionType pType=eFbxConnectionNone)
bool	IsConnectedDstObject(constKFbxObject*pObject) const
bool	DisconnectDstObject(KFbxObject*pObject)
bool	DisconnectAllDstObject()
bool	DisconnectAllDstObject(KFbxCriteriaconst&pCriteria)
bool	DisconnectAllDstObject(kFbxClassIdpClassId)
bool	DisconnectAllDstObject(kFbxClassIdpClassId,KFbxCriteriaconst&pCriteria)
int	GetDstObjectCount() const
int	GetDstObjectCount(KFbxCriteriaconst&pCriteria) const
int	GetDstObjectCount(kFbxClassIdpClassId) const
int	GetDstObjectCount(kFbxClassIdpClassId,KFbxCriteriaconst&pCriteria) const
KFbxObject*	GetDstObject(int pIndex=0) const
KFbxObject*	GetDstObject(KFbxCriteriaconst&pCriteria, int pIndex=0) const
KFbxObject*	GetDstObject(kFbxClassIdpClassId, int pIndex=0) const
KFbxObject*	GetDstObject(kFbxClassIdpClassId,KFbxCriteriaconst&pCriteria, int pIndex=0) const
KFbxObject*	FindDstObject(const char *pName, int pStartIndex=0) const
KFbxObject*	FindDstObject(KFbxCriteriaconst&pCriteria, const char *pName, int pStartIndex=0) const
KFbxObject*	FindDstObject(kFbxClassIdpClassId, const char *pName, int pStartIndex=0) const
KFbxObject*	FindDstObject(kFbxClassIdpClassId,KFbxCriteriaconst&pCriteria, const char *pName, int pStartIndex=0) const
template<class T>
bool	DisconnectAllDstObject(T const *pFBX_TYPE)
template<class T>
bool	DisconnectAllDstObject(T const *pFBX_TYPE,KFbxCriteriaconst&pCriteria)
template<class T>
int	GetDstObjectCount(T const *pFBX_TYPE) const
template<class T>
int	GetDstObjectCount(T const *pFBX_TYPE,KFbxCriteriaconst&pCriteria) const
template<class T>
T *	GetDstObject(T const *pFBX_TYPE, int pIndex=0) const
template<class T>
T *	GetDstObject(T const *pFBX_TYPE,KFbxCriteriaconst&pCriteria, int pIndex=0) const
template<class T>
T *	FindDstObject(T const *pFBX_TYPE, const char *pName, int pStartIndex=0) const
template<class T>
T *	FindDstObject(T const *pFBX_TYPE,KFbxCriteriaconst&pCriteria, const char *pName, int pStartIndex=0) const
General Property Connection and Relationship Management
bool	ConnectSrcProperty(KFbxPropertyconst&pProperty)
bool	IsConnectedSrcProperty(KFbxPropertyconst&pProperty)
bool	DisconnectSrcProperty(KFbxPropertyconst&pProperty)
int	GetSrcPropertyCount() const
KFbxProperty	GetSrcProperty(int pIndex=0) const
KFbxProperty	FindSrcProperty(const char *pName, int pStartIndex=0) const
bool	ConnectDstProperty(KFbxPropertyconst&pProperty)
bool	IsConnectedDstProperty(KFbxPropertyconst&pProperty)
bool	DisconnectDstProperty(KFbxPropertyconst&pProperty)
int	GetDstPropertyCount() const
KFbxProperty	GetDstProperty(int pIndex=0) const
KFbxProperty	FindDstProperty(const char *pName, int pStartIndex=0) const
User data
void	SetUserDataPtr(KFbxObjectID const&pUserID, void *pUserData)
void *	GetUserDataPtr(KFbxObjectID const&pUserID) const
void	SetUserDataPtr(void *pUserData)
void *	GetUserDataPtr() const
Document Management
KFbxDocument*	GetDocument() const
	Get a pointer to the document containing this object.
KFbxDocument*	GetRootDocument() const
	Get a const pointer to the root document containing this object.
KFbxScene*	GetScene() const
	Get a pointer to the scene containing this object.
Logging.
void	EmitMessage(KFbxMessage *pMessage) const
	Emit a message in all available message emitter in the document or SDK manager.
Localization helper.
virtual const char *	Localize(const char *pID, const char *pDefault=NULL) const
	Localization helper function.
Application Implementation Management
KFbxLibrary*	GetParentLibrary(void) const
	Get a handle on the parent library if exists.
bool	AddImplementation(KFbxImplementation *pImplementation)
	Adds an implementation.
bool	RemoveImplementation(KFbxImplementation *pImplementation)
	Removes an implementation.
bool	HasDefaultImplementation(void) const
	Tells if this shading node has a default implementation.
KFbxImplementation *	GetDefaultImplementation(void) const
	Returns the default implementation.
bool	SetDefaultImplementation(KFbxImplementation *pImplementation)
	Sets the default implementation.
int	GetImplementationCount(constKFbxImplementationFilter*pCriteria=NULL) const
	Returns the number of implementations that correspond to a given criteria.
KFbxImplementation *	GetImplementation(int pIndex, constKFbxImplementationFilter*pCriteria=NULL) const
	Returns a handle on the (pIndex)th implementation that corresponds to the given criteria.
Object Storage&&Retrieval
virtualKString	GetUrl() const
virtual bool	SetUrl(char *pUrl)
virtual bool	PopulateLoadSettings(KFbxObject*pSettings, char *pFileName=0)
virtual bool	Load(char *pFileName=0)
virtual bool	PopulateSaveSettings(KFbxObject*pSettings, char *pFileName=0)
virtual bool	Save(char *pFileName=0)
Public Types
enum	ECloneType{ ,   eREFERENCE_CLONE,   eDEEP_CLONE }
	Types of clones that can be created for KFbxObjects.More...

Member Enumeration Documentation

enumECloneType

Types of clones that can be created for KFbxObjects.

Enumerator:

eREFERENCE_CLONE	Changes to original object propagate to clone. Changes to clone do not propagate to original.
eDEEP_CLONE	A deep copy of the object. Changes to either the original or clone do not propagate to each other.

Definition at line151of filekfbxobject.h.

Member Function Documentation

virtualKFbxObject* Clone	(	KFbxObject*	pContainer,
		KFbxObject::ECloneType	pCloneType
	)			const[virtual]

Creates a clone of this object.

Parameters:

	pContainer	The object, typically a document or scene, that will contain the new clone. Can be NULL.
	pCloneType	The type of clone to create

Returns:

The new clone, or NULL if the specified clone type is not supported.

Reimplemented inKFbxControlSetPlug,KFbxIOSettings,KFbxGeometry,KFbxNodeAttribute,KFbxNurbsCurve, andKFbxProceduralGeometry.

bool IsAReferenceTo

(

void

)

const

Check if this object is a reference clone of another.

Returns:

true if this object is a clone of another, false otherwise

KFbxObject* GetReferenceTo

(

void

)

const

If this object is a reference clone, this method returns the original object from which this one was cloned.

Returns:

The original, or NULL if this object is not a reference clone.

bool IsReferencedBy

(

void

)

const

Check if any objects were reference cloned from this one.

Returns:

true If objects were cloned from this one, false otherwise.

int GetReferencedByCount

(

void

)

const

Get the number of objects that were reference cloned from this one.

Returns:

The number of objects cloned from this one.

KFbxObject* GetReferencedBy

(

int

pIndex

)

const

Get a reference clone of this object.

Parameters:

pIndex

Valid values are [0,GetReferencedByCount())

Returns:

The requested clone, or NULL if pIndex is out of range.

void SetName

(

char const *

pName

)

Set the name of the object.

Parameters:

pName

ANULLterminated string.

char const* GetName

(

)

const

Return the full name of the object.

Returns:

Return aNULLterminated string.

Referenced byKFbxNameFilter::Match().

KStringGetNameWithoutNameSpacePrefix

(

)

const

Return the name of the object without the namespace qualifier.

Returns:

Return the name in a temporary string.

KStringGetNameWithNameSpacePrefix

(

)

const

Return the name of the object with the namespace qualifier.

Returns:

Return the name in a temporary string.

void SetInitialName

(

char const *

pName

)

Set the initial name of the object.

Parameters:

pName

ANULLterminated string.

char const* GetInitialName

(

)

const

Return the initial name of the object.

Returns:

Return aNULLterminated string.

KStringGetNameSpaceOnly

(

)

Return the namespace of the object.

Returns:

Return aNULLterminated string.

void SetNameSpace

(

KString

pNameSpace

)

Set the namespace of the object.

Parameters:

pNameSpace

Set the namespace as pNameSpace

Returns:

Return aNULLterminated string.

KArrayTemplate<KString*>GetNameSpaceArray

(

char

identifier

)

Return an array of all the namespace of the object.

Parameters:

identifier

The identifier of the namespace.

Returns:

Return aNULLterminated string.

KStringGetNameOnly

(

)

const

Get the name only (no namespace or prefix) of the object.

Returns:

Return aNULLterminated string.

KStringGetNameSpacePrefix

(

)

const

Get the namespace qualifier.

Returns:

The namespace qualifier.

staticKStringRemovePrefix

(

char *

pName

)

[static]

Remove the prefix of pName.

Parameters:

pName

Whose prefix is removed.

Returns:

A temporary string without prefix.

staticKStringStripPrefix

(

KString&

lName

)

[static]

Strip the prefix of pName.

Parameters:

lName

Whose prefix is stripped.

Returns:

lName with prefix stripped.

staticKStringStripPrefix

(

const char *

pName

)

[static]

Strip the prefix of pName.

Parameters:

pName

Whose prefix is stripped.

Returns:

A temporary string with prefix stripped.

KFbxObjectID const&GetUniqueID

(

)

const

Get the unique id of object.

int ContentUnload

(

)

Unload this object content using the offload peripheral currently set in the document then flush it from memory.

Returns:

2 if the object's content is already unloaded or 1 if this object content has been successfully unloaded to the current peripheral.

Remarks:

If the content is locked more than once or the peripheral cannot handle this object unload or an error occurred, the method will return 0 and the content is not flushed.

int ContentLoad

(

)

Load this object content using the offload peripheral currently set in the document.

Returns:

1 if this object content has been successfully loaded from the current peripheral. 2 If the content is already loaded and 0 if an error occurred or there is a lock on the object content.

Remarks:

On a successful Load attempt, the object content is locked.

bool ContentIsLoaded

(

)

const

Returns true if this object content is currently loaded.

Remarks:

An object that has not been filled yet must be considered unloaded.

void ContentDecrementLockCount

(

)

Decrement the content lock count of an object.

If the content lock count of an object is greater than 0, the content of the object is considered locked.

void ContentIncrementLockCount

(

)

Increment the content lock count of an object.

If the content lock count of an object is greater than 0, the content of the object is considered locked.

bool ContentIsLocked

(

)

const

Returns true if this object content is locked.

The content is locked if the content lock count is greater than 0

Remarks:

A locked state prevents the object content to be unloaded from memory but does not block the loading.

virtual void ContentClear

(

)

[protected, virtual]

Clear this object content from memory.

This method has to be overridden in the derived classes.

Remarks:

This method is called byContentUnload()upon success.

virtualKFbxPeripheral* GetPeripheral

(

)

[protected, virtual]

Retrieve the peripheral of that object.

Returns:

Return the current peripheral for that object

Remarks:

A peripheral manipulates the content of an object for instance, a peripheral can load the connections of an object on demand.

Reimplemented inKFbxDocument.

virtual bool ContentWriteTo

(

KFbxStream&

pStream

)

const[virtual]

Write the content of the object to the given stream.

Parameters:

pStream

The destination stream.

Returns:

True if the content has been successfully processed by the receiving stream.

Reimplemented inKFbxGeometryBase, andKFbxPatch.

virtual bool ContentReadFrom

(

constKFbxStream&

pStream

)

[virtual]

Read the content of the object from the given stream.

Parameters:

pStream

The source streak.

Returns:

True if the object has been able to fill itself with the received data from the stream.

Reimplemented inKFbxGeometryBase, andKFbxPatch.

KFbxPropertyFindProperty	(	const char *	pName,
		bool	pCaseSensitive=true
	)			const[inline]

Find a property using its name and its data type.

Parameters:

	pName	The name of the property as aNULLterminated string.
	pCaseSensitive

Returns:

A validKFbxPropertyif the property was found, else an invalidKFbxProperty. SeeKFbxProperty::IsValid()

Definition at line431of filekfbxobject.h.

KFbxDocument* GetDocument

(

)

const

Get a pointer to the document containing this object.

Returns:

Return a pointer to the document containing this object orNULLif the object does not belong to any document.

Referenced byKFbxDocument::IsARootDocument().

KFbxDocument* GetRootDocument

(

)

const

Get a const pointer to the root document containing this object.

Returns:

Return a const pointer to the root document containing this object orNULLif the object does not belong to any document.

KFbxScene* GetScene

(

)

const

Get a pointer to the scene containing this object.

Returns:

Return a pointer to the scene containing this object orNULLif the object does not belong to any scene.

void EmitMessage

(

KFbxMessage *

pMessage

)

const

Emit a message in all available message emitter in the document or SDK manager.

Parameters:

pMessage

the message to emit. Ownership is transfered, do not delete.

virtual const char* Localize	(	const char *	pID,
		const char *	pDefault=NULL
	)			const[virtual]

Localization helper function.

Calls the FBX SDK manager implementation. sub-classes which manage their own localization could over-ride this.

Parameters:

	pID	the identifier for the text to localize.
	pDefault	the default text. Uses pID if NULL.

Returns:

the potentially localized text. May return the parameter passed in.

Reimplemented inKFbxLibrary.

KFbxLibrary* GetParentLibrary

(

void

)

const

Get a handle on the parent library if exists.

Reimplemented inKFbxLibrary.

bool AddImplementation

(

KFbxImplementation *

pImplementation

)

Adds an implementation.

Parameters:

pImplementation

a handle on an implementation

Returns:

true on success, false otherwise

Remarks:

to succeed this function needs to be called with an implementation that has not already been added to this node.

bool RemoveImplementation

(

KFbxImplementation *

pImplementation

)

Removes an implementation.

Parameters:

pImplementation

a handle on an implementation

Returns:

true on success, false otherwise

Remarks:

to succeed this function needs to be called with an implementation that has already been added to this node.

bool HasDefaultImplementation

(

void

)

const

Tells if this shading node has a default implementation.

KFbxImplementation* GetDefaultImplementation

(

void

)

const

Returns the default implementation.

bool SetDefaultImplementation

(

KFbxImplementation *

pImplementation

)

Sets the default implementation.

Parameters:

pImplementation

a handle on an implementation

Returns:

true on success, false otherwise

Remarks:

to succeed this function needs to be called with an implementation that has already been added to this node.

int GetImplementationCount

(

constKFbxImplementationFilter*

pCriteria=NULL

)

const

Returns the number of implementations that correspond to a given criteria.

Parameters:

pCriteria

filtering criteria that identifyies the kind of implementations to take into account.

Returns:

the number of implementation(s)

KFbxImplementation* GetImplementation	(	int	pIndex,
		constKFbxImplementationFilter*	pCriteria=NULL
	)			const

Returns a handle on the (pIndex)th implementation that corresponds to the given criteria.

Parameters:

	pIndex
	pCriteria	filtering criteria that identifyies the kind of implementations to take into account.

Remarks:

returns NULL if the criteria or the index are invalid
