#include<kfbxpatch.h>

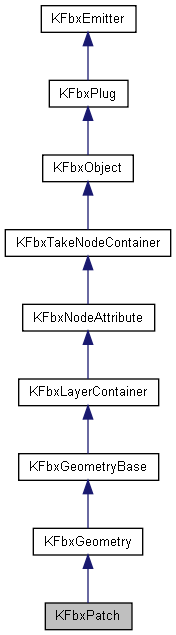

Inheritance diagram for KFbxPatch:

[legend]

List of all members.

Detailed Description

A patch is a type of parametric geometry node attribute.

Definition at line54of filekfbxpatch.h.

Patch Properties
enum	EPatchType
	Patch types.More...
void	SetSurfaceMode(KFbxGeometry::ESurfaceModepMode)
	Set surface mode.
KFbxGeometry::ESurfaceMode	GetSurfaceMode() const
	Get surface mode.
void	InitControlPoints(int pUCount,EPatchTypepUType, int pVCount,EPatchTypepVType)
	Allocate memory space for the array of control points.
int	GetUCount() const
	Get number of control points in U direction.
int	GetVCount() const
	Get number of control points in V direction.
EPatchType	GetPatchUType() const
	Get patch type in U direction.
EPatchType	GetPatchVType() const
	Get patch type in V direction.
void	SetStep(int pUStep, int pVStep)
	Set step.
int	GetUStep() const
	Get the number of divisions between adjacent control points in U direction.
int	GetVStep() const
	Get the number of divisions between adjacent control points in V direction.
void	SetClosed(bool pU, bool pV)
	Set closed flags.
bool	GetUClosed() const
	Get state of the U closed flag.
bool	GetVClosed() const
	Get state of the V closed flag.
void	SetUCapped(bool pUBottom, bool pUTop)
	Set U capped flags.
bool	GetUCappedBottom() const
	Get U capped bottom flag state.
bool	GetUCappedTop() const
	Get U capped top flag state.
void	SetVCapped(bool pVBottom, bool pVTop)
	Set V capped flags.
bool	GetVCappedBottom() const
	Get V capped bottom flag state.
bool	GetVCappedTop() const
	Get V capped top flag state.
Off-loading Serialization section
virtual bool	ContentWriteTo(KFbxStream&pStream) const
	Write the content of the object to the given stream.
virtual bool	ContentReadFrom(constKFbxStream&pStream)
	Read the content of the object from the given stream.
Public Member Functions
virtualEAttributeType	GetAttributeType() const
	Return the type of node attribute which is EAttributeType::ePATCH.
void	Reset()
	Reset the patch to default values.

Member Enumeration Documentation

enumEPatchType

Patch types.

• eBEZIER
• eBEZIER_QUADRIC
• eCARDINAL
• eBSPLINE
• eLINEAR

Definition at line86of filekfbxpatch.h.

Member Function Documentation

virtualEAttributeTypeGetAttributeType

(

)

const[virtual]

Return the type of node attribute which is EAttributeType::ePATCH.

Reimplemented fromKFbxGeometry.

void Reset

(

)

Reset the patch to default values.

void SetSurfaceMode

(

KFbxGeometry::ESurfaceMode

pMode

)

Set surface mode.

Parameters:

pMode

Surface mode identifier (see ClassKFbxGeometry)

KFbxGeometry::ESurfaceModeGetSurfaceMode

(

)

const[inline]

Get surface mode.

Returns:

Currently set surface mode identifier.

Definition at line77of filekfbxpatch.h.

void InitControlPoints	(	int	pUCount,
		EPatchType	pUType,
		int	pVCount,
		EPatchType	pVType
	)

Allocate memory space for the array of control points.

Parameters:

	pUCount	Number of control points in U direction.
	pUType	Patch type in U direction.
	pVCount	Number of control points in V direction.
	pVType	Patch type in V direction.

int GetUCount

(

)

const[inline]

Get number of control points in U direction.

Returns:

Number of control points in U.

Definition at line106of filekfbxpatch.h.

int GetVCount

(

)

const[inline]

Get number of control points in V direction.

Returns:

Number of control points in V.

Definition at line111of filekfbxpatch.h.

EPatchTypeGetPatchUType

(

)

const[inline]

Get patch type in U direction.

Returns:

Patch type identifier.

Definition at line116of filekfbxpatch.h.

EPatchTypeGetPatchVType

(

)

const[inline]

Get patch type in V direction.

Returns:

Patch type identifier.

Definition at line121of filekfbxpatch.h.

void SetStep	(	int	pUStep,
		int	pVStep
	)

Set step.

The step is the number of divisions between adjacent control points.

Parameters:

	pUStep	Steps in U direction.
	pVStep	Steps in V direction.

int GetUStep

(

)

const[inline]

Get the number of divisions between adjacent control points in U direction.

Returns:

Step value in U direction.

Definition at line133of filekfbxpatch.h.

int GetVStep

(

)

const[inline]

Get the number of divisions between adjacent control points in V direction.

Returns:

Step value in V direction.

Definition at line138of filekfbxpatch.h.

void SetClosed	(	bool	pU,
		bool	pV
	)

Set closed flags.

Parameters:

	pU	Set totrueif the patch is closed in U direction.
	pV	Set totrueif the patch is closed in V direction.

bool GetUClosed

(

)

const[inline]

Get state of the U closed flag.

Returns:

trueif the patch is closed in U direction.

Definition at line149of filekfbxpatch.h.

bool GetVClosed

(

)

const[inline]

Get state of the V closed flag.

Returns:

trueif the patch is closed in V direction.

Definition at line154of filekfbxpatch.h.

void SetUCapped	(	bool	pUBottom,
		bool	pUTop
	)

Set U capped flags.

Parameters:

	pUBottom	Set totrueif the patch is capped at the bottom in the U direction.
	pUTop	Settotrueif the patch is capped at the top in the U direction.

Remarks:

Capping options are saved but not loaded by Motionbuilder because they are computed from the patch topography.

bool GetUCappedBottom

(

)

const[inline]

Get U capped bottom flag state.

Returns:

trueif the patch is capped at the bottom.

Definition at line167of filekfbxpatch.h.

bool GetUCappedTop

(

)

const[inline]

Get U capped top flag state.

Returns:

trueif the patch is capped at the top.

Definition at line172of filekfbxpatch.h.

void SetVCapped	(	bool	pVBottom,
		bool	pVTop
	)

Set V capped flags.

Parameters:

	pVBottom	Set totrueif the patch is capped at the bottom in the V direction.
	pVTop	Set totrueif the patch is capped at the top in the V direction.

Remarks:

Capping options are saved but not loaded by Motionbuilder because they are computed from the patch topography.

bool GetVCappedBottom

(

)

const[inline]

Get V capped bottom flag state.

Returns:

trueif the patch is capped at the bottom.

Definition at line185of filekfbxpatch.h.

bool GetVCappedTop

(

)

const[inline]

Get V capped top flag state.

Returns:

trueif the patch is capped at the top.

Definition at line190of filekfbxpatch.h.

virtual bool ContentWriteTo

(

KFbxStream&

pStream

)

const[virtual]

Write the content of the object to the given stream.

Parameters:

pStream

The destination stream.

Returns:

True if the content has been successfully processed by the receiving stream.

Reimplemented fromKFbxGeometryBase.

virtual bool ContentReadFrom

(

constKFbxStream&

pStream

)

[virtual]

Read the content of the object from the given stream.

Parameters:

pStream

The source streak.

Returns:

True if the object has been able to fill itself with the received data from the stream.

Reimplemented fromKFbxGeometryBase.
