#include<kfbxmesh.h>

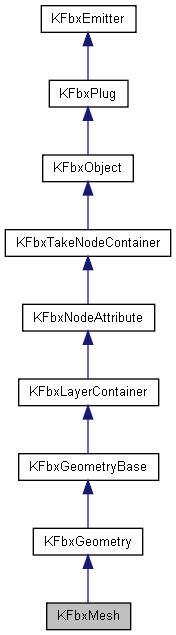

Inheritance diagram for KFbxMesh:

Detailed Description

A mesh is a geometry made of polygons.

Functions to initialize, set and access vertices are provided in theKFbxGeometrybase class. A vertex is referred as a control point in theKFbxGeometrybase class. Though a control point is made of four elements, meshes only use the first tree to store the XYZ coordinates.

Since the mesh-related terminology of the FBX SDK differs a little from the standard, here are some definitions:

A control point is a XYZ coordinate, it is synonym of vertex.
A polygon vertex is an index to a control point, it is synonym of vertex index.
A polygon is a group of polygon vertex.

Definition at line70of filekfbxmesh.h.


Utility functions
enum	ESplitObject{eBY_NORMAL}
	Object of interest when spliting.More...
typedef KArrayTemplate <KDuplicateVertex>	KArrayOfDuplicateVertex
	Object of interest when spliting.
void	Reset()
	Reset the mesh to default values.
void	ComputeVertexNormals(bool pCW=false)
	Compute the vertex normals on the mesh.
bool	CheckIfVertexNormalsCCW()
	Compares the normals calculated by doing cross-products between the polygon vertex and by the ones stored in the normal array.
bool	CheckSamePointTwice()
	Verify if the mesh has polygons that are defined on the same point more than once.
int	RemoveBadPolygons()
	Remove bad polygons from a mesh.
Polygon Management
void	BeginPolygon(int pMaterial=-1, int pTexture=-1, int pGroup=-1, bool pLegacy=true)
	Begin writing a polygon.
void	BeginPolygonExt(int pMaterial, int *pTextures)
	Begin writing a polygon.
void	AddPolygon(int pIndex, int pTextureUVIndex=-1)
	Add an index to a control point (i.e.
void	EndPolygon()
	End writing a polygon.
int	GetPolygonCount() const
	Get the polygon count of this mesh.
int	GetPolygonSize(int pPolygonIndex) const
	Get the number of polygon vertices in a polygon.
int	GetPolygonGroup(int pPolygonIndex) const
	Get the group index assigned to a polygon.
int	GetPolygonVertex(int pPolygonIndex, int pPositionInPolygon) const
	Get a polygon vertex (i.e.
void	GetPolygonVertexNormal(int pPolyIndex, int pVertexIndex,KFbxVector4&pNormal) const
	Get the normal associated with a polygon/vertex.
int *	GetPolygonVertices() const
	Get the array of polygon vertices (i.e.
int	GetPolygonVertexCount() const
	Gets the number of polygon vertices in the mesh.
int	GetPolygonVertexIndex(int pPolygonIndex) const
	Gets the start index into the array returned byGetPolygonVertices()for the given polygon.
int	RemovePolygon(int pPolygonIndex)
	Remove this polygon from the mesh.
Texture UV Utility Functions.
The functions you will find in this section are utility functions to handle UV coordinates quickly. Internaly they refer to`KFbxLayer`and`KFbxLayerElementUV`methods to do the work. These functions are only working on Layer 0. Use the`KFbxLayer`methods directly to access other layers.
void	InitTextureUV(int pCount,KFbxLayerElement::ELayerElementTypepTypeIdentifier=KFbxLayerElement::eDIFFUSE_TEXTURES)
	Init texture UV coordinates.
void	AddTextureUV(KFbxVector2pUV,KFbxLayerElement::ELayerElementTypepTypeIdentifier=KFbxLayerElement::eDIFFUSE_TEXTURES)
	Add texture UV coordinates.
int	GetTextureUVCount(KFbxLayerElement::ELayerElementTypepTypeIdentifier=KFbxLayerElement::eDIFFUSE_TEXTURES)
	Get the number of texture UV coordinates.
int	GetUVLayerCount()
	Get the number of layer containing at least one channel UVMap.
KArrayTemplate <KFbxLayerElement::ELayerElementType>	GetAllChannelUV(int pLayer)
	Get an array of UV of the different UV set for a layer.
Material, Texture and UV Indices Utility Functions.
The functions you will find in this section are utility functions to handle Material, Texture and UV indices. Internaly they refer to`KFbxLayer`and`KFbxLayerElement`methods to do the work. These functions are only working on Layer 0. Use the`KFbxLayer`methods directly to access other layers.
void	InitMaterialIndices(KFbxLayerElement::EMappingModepMappingMode)
	Initialize material indices.
void	InitTextureIndices(KFbxLayerElement::EMappingModepMappingMode,KFbxLayerElement::ELayerElementTypepTextureType)
	Initialize texture indices.
void	InitTextureUVIndices(KFbxLayerElement::EMappingModepMappingMode,KFbxLayerElement::ELayerElementTypepTypeIdentifier=KFbxLayerElement::eDIFFUSE_TEXTURES)
	Initialize texture UV indices.
int	GetTextureUVIndex(int pPolygonIndex, int pPositionInPolygon,KFbxLayerElement::ELayerElementTypepTypeIdentifier=KFbxLayerElement::eDIFFUSE_TEXTURES)
	Get a texture UV index associated with a polygon vertex (i.e.
void	SetTextureUVIndex(int pPolygonIndex, int pPositionInPolygon, int pIndex,KFbxLayerElement::ELayerElementTypepTypeIdentifier)
	Set a texture UV index associated with a polygon vertex (i.e.
Point Spliting/Merging utility functions
void	BuildSplitList(KArrayTemplate<KArrayOfDuplicateVertex*>&pSplitList,ESplitObjectpObject)
	Insert the DuplicateVertex information in the pSplitList for the points that have to be splited depending on pObject value.
void	SplitPointsForHardEdge(KArrayTemplate<KArrayOfDuplicateVertex*>&pSplitList,KFbxLayerElement::ELayerElementTypepTypeIdentifier=KFbxLayerElement::eDIFFUSE_TEXTURES)
	Split the points specified in the list.
bool	BuildMergeList(KArrayTemplate<int>&pMergeList,ESplitObjectpObject, bool pExport=false)
	Insert the new indexes of the object that have to be merged.
void	MergePointsForPolygonVerteNormals(KArrayTemplate<int>&pMergeList)
	Merge the points specified in the list.
Edge management functions
void	BuildMeshEdgeArray()
	Automatically generate edge data for the mesh.
int	GetMeshEdgeCount() const
	Query the number of edges defined on this mesh.
int	GetMeshEdgeIndex(int pStartVertexIndex, int pEndVertexIndex, bool&pReversed)
	Get the index for the edge between the given vertices.
int	GetMeshEdgeIndexForPolygon(int pPolygon, int pPositionInPolygon)
	Get the index for the specific edge of pPolygon.
void	GetMeshEdgeVertices(int pEdgeIndex, int&pStartVertexIndex, int&pEndVertexIndex)
	Get the vertices for the given edge.
void	BeginGetMeshEdgeVertices()
	Use this method in before calling GetMeshEdgeVertices if making several calls to that method.
void	EndGetMeshEdgeVertices()
	Automatically generate edge data for the mesh.
void	SetMeshEdgeCount(int pEdgeCount)
	Presets the number edge data elements.
void	SetMeshEdge(int pEdgeIndex, int pValue)
	Sets element in edge array to specific value.
int	AddMeshEdgeIndex(int pStartVertexIndex, int pEndVertexIndex, bool pCheckForDuplicates)
	Add an edge with the given start/end points.
int	SetMeshEdgeIndex(int pEdgeIndex, int pStartVertexIndex, int pEndVertexIndex, bool pCheckForDuplicates)
	Set the index for the edge with the given start/end points.
void	BeginAddMeshEdgeIndex()
	Call this before calling AddMeshEdgeIndex or SetMeshEdgeIndex to increase peformance.
void	EndAddMeshEdgeIndex()
	See BeginAddMeshEdgeIndex.
int	AddMeshEdgeIndexForPolygon(int pPolygonIndex, int pPositionInPolygon)
	Adds an edge for the specified polygon, and edge number within the polygon see SetMeshEdgeIndex for notes the the parameters.
bool	SetMeshEdgeIndex(int pEdgeIndex, int pPolygonIndex, int pPositionInPolygon)
	Sets the specified edge to the specified polygon's edge.
void	ComputeComponentMaps(KFbxComponentMap&pEdgeToPolyMap, KFbxComponentMap&pPolyToEdgeMap)
	Computer component maps.
bool	IsTriangleMesh() const
	Determines if the mesh is composed entirely of triangles.
Public Member Functions
virtualEAttributeType	GetAttributeType() const
	Return the type of node attribute.
Classes
class	KDuplicateVertex
	Internal structure used to keep the duplicate vertex information.More...
class	KVertexNormalInfo
	Internal structure used to compute the normals on a mesh.More...

Member Typedef Documentation

typedef KArrayTemplate<KDuplicateVertex>KArrayOfDuplicateVertex

Object of interest when spliting.

Definition at line376of filekfbxmesh.h.

Member Enumeration Documentation

enumESplitObject

Object of interest when spliting.

Enumerator:

eBY_NORMAL

Each splited point will have a different normal for polygon/vertex.

This is for normal mapping emulation.

Definition at line337of filekfbxmesh.h.

Member Function Documentation

virtualEAttributeTypeGetAttributeType ( ) const[virtual]

Return the type of node attribute.

Returns:: Return the type of this node attribute which isEAttributeType::eMESH.

Reimplemented fromKFbxGeometry.

void BeginPolygon	(	int	pMaterial=`-1`,
		int	pTexture=`-1`,
		int	pGroup=`-1`,
		bool	pLegacy=`true`
	)

Begin writing a polygon.

Parameters:

	pMaterial	Index of material to assign to this polygon if material mapping type iseBY_POLYGON. Otherwise it must be`-1`.
	pTexture	Index of texture to assign to this polygon if texture mapping type iseBY_POLYGON. Otherwise it must be`-1`.
	pGroup	Group index assigned to polygon.
	pLegacy	When set to`true`, automatically create a LayerElement of type Texture; this was the old behavior.

void BeginPolygonExt	(	int	pMaterial,
		int *	pTextures
	)

Begin writing a polygon.

Parameters:

	pMaterial	Index of material to assign to this polygon if material mapping type iseBY_POLYGON. Otherwise it must be`-1`.
	pTextures	Array of index of texture to assign to this polygon if texture mapping type iseBY_POLYGON. Otherwise it must be an array of`-1`.

void AddPolygon	(	int	pIndex,
		int	pTextureUVIndex=`-1`
	)

Add an index to a control point (i.e.

a polygon vertex) to the current polygon.

Parameters:

	pIndex	Index to a control point (i.e. a polygon vertex).
	pTextureUVIndex	Index of texture UV coordinates to assign to this polygon if texture UV mapping type iseBY_POLYGON_VERTEX. Otherwise it must be`-1`.

void EndPolygon ( )

End writing a polygon.

int GetPolygonCount ( ) const[inline]

Get the polygon count of this mesh.

Returns:: Return the number of polygons in the mesh.

Definition at line117of filekfbxmesh.h.

int GetPolygonSize ( int pPolygonIndex ) const[inline]

Get the number of polygon vertices in a polygon.

Parameters:

pPolygonIndex

Index of the polygon.

Returns:: The number of polygon vertices in the indexed polygon. If the polygon index is out of bounds, return -1.

Definition at line124of filekfbxmesh.h.

int GetPolygonGroup ( int pPolygonIndex ) const

Get the group index assigned to a polygon.

Parameters:

pPolygonIndex

Index of the polygon.

Returns:: Group index assigned to a polygon. If the polygon index is out of bounds, return -1.

int GetPolygonVertex	(	int	pPolygonIndex,
		int	pPositionInPolygon
	)			const`[inline]`

Get a polygon vertex (i.e.

an index to a control point).

Parameters:

	pPolygonIndex	Index of polygon. The valid range for this parameter is 0 to`KFbxMesh::GetPolygonCount()`.
	pPositionInPolygon	Position of polygon vertex in indexed polygon. The valid range for this parameter is 0 to`KFbxMesh::GetPolygonSize(pPolygonIndex)`.

Returns:: Return the polygon vertex indexed or -1 if the requested vertex does not exists.

Definition at line143of filekfbxmesh.h.

void GetPolygonVertexNormal	(	int	pPolyIndex,
		int	pVertexIndex,
		KFbxVector4&	pNormal
	)			const

Get the normal associated with a polygon/vertex.

Parameters:

	pPolyIndex	Index of the polygon.
	pVertexIndex	Index of the vertex in the polygon space.
	pNormal	The returned normal.

Remarks:: pNormalremain unchanged if the requested vertex does not exists.

int* GetPolygonVertices ( ) const

Get the array of polygon vertices (i.e.

index to control points). This array is a concatenation of the list of polygon vertices of all the polygons. Example: a mesh made of 2 triangles [1,2,3] and [2,3,4] results in [1,2,3,2,3,4]. The first polygon starts at position 0 and the second at position 3.

int GetPolygonVertexCount ( ) const

Gets the number of polygon vertices in the mesh.

int GetPolygonVertexIndex ( int pPolygonIndex ) const

Gets the start index into the array returned byGetPolygonVertices()for the given polygon.

Parameters:

pPolygonIndex

The polygon to query

Returns:: An index into theGetPolygonVertices()array

int RemovePolygon ( int pPolygonIndex )

Remove this polygon from the mesh.

Update layers accordingly.

Parameters:

pPolygonIndex

Index of the polygon.

Returns:: Polygon index. If the polygon index is out of bounds, return -1.

void InitTextureUV	(	int	pCount,
		KFbxLayerElement::ELayerElementType	pTypeIdentifier=`KFbxLayerElement::eDIFFUSE_TEXTURES`
	)

Init texture UV coordinates.

Parameters:

	pCount	Number of texture UV elements.
	pTypeIdentifier

Remarks:: pCountmust equal the number of control points of the Mesh if the UV mapping mode isKFbxLayerElement::eBY_CONTROL_POINT.

void AddTextureUV	(	KFbxVector2	pUV,
		KFbxLayerElement::ELayerElementType	pTypeIdentifier=`KFbxLayerElement::eDIFFUSE_TEXTURES`
	)

Add texture UV coordinates.

Appends a new element at the end of the array of texture UV coordinates.

Parameters:

	pUV	Texture UV coordinates, ranging between`0`and`1`.
	pTypeIdentifier

Remarks:: The final number of texture UV elements must equal the number of control points if the UV mapping mode isKFbxLayerElement::eBY_CONTROL_POINT.

int GetTextureUVCount ( KFbxLayerElement::ELayerElementType pTypeIdentifier=KFbxLayerElement::eDIFFUSE_TEXTURES )

Get the number of texture UV coordinates.

Parameters:

pTypeIdentifier

Type of the layer.

int GetUVLayerCount ( )

Get the number of layer containing at least one channel UVMap.

KArrayTemplate<KFbxLayerElement::ELayerElementType>GetAllChannelUV ( int pLayer )

Get an array of UV of the different UV set for a layer.

Parameters:

pLayer

Index of the layer.

void InitMaterialIndices ( KFbxLayerElement::EMappingMode pMappingMode )

Initialize material indices.

Parameters:

pMappingMode

The mapping mode. This function must be called after functionKFbxGeometryBase::InitControlPoints(). The material indices refer to the position of a material in the KFbxLayerElementMaterial's direct array. SeeKFbxLayerElementMaterialfor more details. Supported mapping types areeBY_CONTROL_POINT,eBY_POLYGONandeALL_SAME.

If mapping mode iseBY_CONTROL_POINT, there will be as many indices in the material index array as there are control points.
If mapping mode iseBY_POLYGON, there will be as many indices in the material index array as there are polygons in the mesh.
If mapping mode iseALL_SAME, there will be only one index in the material index array.

Remarks:: This function will set the Reference mode of theKFbxLayerElementMaterialon layer 0 toeINDEX_TO_DIRECT.

void InitTextureIndices	(	KFbxLayerElement::EMappingMode	pMappingMode,
		KFbxLayerElement::ELayerElementType	pTextureType
	)

Initialize texture indices.

Parameters:

	pMappingMode	The mapping mode. The texture indices refer to the position of a texture in the KFbxLayerElementTexture's direct array. SeeKFbxLayerElementTexturefor more details. Supported mapping modes areeBY_POLYGONandeALL_SAME. If mapping mode iseBY_POLYGON, there will be as many indices in the texture index array as there are polygons in the mesh. If mapping mode iseALL_SAME, there will be only one index in the texture index array.
	pTextureType

Remarks:: This function will set the Reference mode of theKFbxLayerElementTextureon layer 0 toeINDEX_TO_DIRECT.

void InitTextureUVIndices	(	KFbxLayerElement::EMappingMode	pMappingMode,
		KFbxLayerElement::ELayerElementType	pTypeIdentifier=`KFbxLayerElement::eDIFFUSE_TEXTURES`
	)

Initialize texture UV indices.

Parameters:

	pMappingMode	The mapping mode. The texture UV indices refer to the index of an element in the KFbxLayerElementTexture's direct array. SeeKFbxLayerElementTexturefor more details. Supported mapping types areeBY_CONTROL_POINT,eBY_POLYGON_VERTEXandeALL_SAME. If mapping mode iseBY_CONTROL_POINT, there will be as many indices in the UV index array as there are control points. This will also set the Reference mode of theKFbxLayerElementUVon layer 0 toeDIRECT. If mapping mode iseBY_POLYGON_VERTEX, there will be an index in the UV index array for each vertex, for each polygon it is part of. This will also set the Reference mode of theKFbxLayerElementUVon layer 0 toeINDEX_TO_DIRECT. If mapping mode iseALL_SAME, there will be no index in the UV index array. This will also set the Reference mode of theKFbxLayerElementUVon layer 0 toeDIRECT.
	pTypeIdentifier

int GetTextureUVIndex	(	int	pPolygonIndex,
		int	pPositionInPolygon,
		KFbxLayerElement::ELayerElementType	pTypeIdentifier=`KFbxLayerElement::eDIFFUSE_TEXTURES`
	)

Get a texture UV index associated with a polygon vertex (i.e.

an index to a control point).

Parameters:

	pPolygonIndex	Index of polygon. The valid range for this parameter is 0 toKFbxMesh::GetPolygonCount().
	pPositionInPolygon	Position of polygon vertex in indexed polygon. The valid range for this parameter is 0 to KFbxMesh::GetPolygonSize(pPolygonIndex).
	pTypeIdentifier

Returns:: Return a texture UV index.

Remarks:: This function only works if the texture UV mapping mode is set toeBY_POLYGON_VERTEX, otherwise it returns -1.

void SetTextureUVIndex	(	int	pPolygonIndex,
		int	pPositionInPolygon,
		int	pIndex,
		KFbxLayerElement::ELayerElementType	pTypeIdentifier
	)

Set a texture UV index associated with a polygon vertex (i.e.

an index to a control point).

Parameters:

	pPolygonIndex	Index of polygon. The valid range for this parameter is 0 toKFbxMesh::GetPolygonCount().
	pPositionInPolygon	Position of polygon vertex in indexed polygon. The valid range for this parameter is 0 to KFbxMesh::GetPolygonSize(pPolygonIndex).
	pIndex	The index of the texture UV we want to assign to the polygon vertex.
	pTypeIdentifier

Remarks:: This function only works if the texture UV mapping type is set toeBY_POLYGON_VERTEX.

void Reset ( )

Reset the mesh to default values.

Frees and set toNULLall layers and clear the polygon and the control point array.

void ComputeVertexNormals ( bool pCW=false )

Compute the vertex normals on the mesh.

The normals are per vertex and are the average of all the polygon normals associated with each vertex.

Parameters:

pCW

True if the normals are calculated clockwise, false otherwise (counter-clockwise).

bool CheckIfVertexNormalsCCW ( )

Compares the normals calculated by doing cross-products between the polygon vertex and by the ones stored in the normal array.

Returns:: falseif ALL of them are Clockwise. Returnstrueotherwise.

bool CheckSamePointTwice ( )

Verify if the mesh has polygons that are defined on the same point more than once.

Returns:: true if the mesh has that kind of polygon, false otherwise.

int RemoveBadPolygons ( )

Remove bad polygons from a mesh.

Degenerate polygons use a vertex more than once. Remove them from the mesh and from the layer element indices as needed.

Returns:: Number of polygons removed from the mesh, -1 if an error occured.

void BuildSplitList	(	KArrayTemplate<KArrayOfDuplicateVertex*>&	pSplitList,
		ESplitObject	pObject
	)

Insert the DuplicateVertex information in the pSplitList for the points that have to be splited depending on pObject value.

Parameters:

	pSplitList	The list containing theKDuplicateVertexinformation of the points that will be splited.
	pObject	The object of interest of the split.

void SplitPointsForHardEdge	(	KArrayTemplate<KArrayOfDuplicateVertex*>&	pSplitList,
		KFbxLayerElement::ELayerElementType	pTypeIdentifier=`KFbxLayerElement::eDIFFUSE_TEXTURES`
	)

Split the points specified in the list.

Parameters:

	pSplitList	The List containing the information on the points that will be splited.
	pTypeIdentifier

bool BuildMergeList	(	KArrayTemplate<int>&	pMergeList,
		ESplitObject	pObject,
		bool	pExport=`false`
	)

Insert the new indexes of the object that have to be merged.

Parameters:

	pMergeList	The list that will contain the indexes of the objects to merge.
	pObject	The object of interest of the merge.
	pExport	If set to`true`, include the duplicate indexes in the merge list.

void MergePointsForPolygonVerteNormals ( KArrayTemplate<int>& pMergeList )

Merge the points specified in the list.

Parameters:

pMergeList

list containing the information on the points that will be merge

void BuildMeshEdgeArray ( )

Automatically generate edge data for the mesh.

Clears all previously stored edge information

int GetMeshEdgeCount ( ) const

Query the number of edges defined on this mesh.

Returns:: The number of edges defined for this mesh

int GetMeshEdgeIndex	(	int	pStartVertexIndex,
		int	pEndVertexIndex,
		bool&	pReversed
	)

Get the index for the edge between the given vertices.

Note that the result of this method is the same if pStartVertexIndex and pEndVertexIndex are swapped.

Parameters:

	pStartVertexIndex	The starting point of the edge
	pEndVertexIndex	The ending point of the edge
	pReversed	flag will be set to true if the reverse edge is found, false otherwise

Returns:: -1 if no edge exists for the given pair of vertices

int GetMeshEdgeIndexForPolygon	(	int	pPolygon,
		int	pPositionInPolygon
	)

Get the index for the specific edge of pPolygon.

Parameters:

	pPolygon	The polygen.
	pPositionInPolygon	The specific edge number in the polygon.

Returns:: -1 if the specific edge does not exist.

void GetMeshEdgeVertices	(	int	pEdgeIndex,
		int&	pStartVertexIndex,
		int&	pEndVertexIndex
	)

Get the vertices for the given edge.

Note that the values returned are indices into the control point array.

Parameters:

	pEdgeIndex	The edge to query
	pStartVertexIndex	The edge's starting point will be stored here
	pEndVertexIndex	The edge's starting point will be stored here

void BeginGetMeshEdgeVertices ( )

Use this method in before calling GetMeshEdgeVertices if making several calls to that method.

Once done calling that method, call EndGetMeshEdgeVertices. This will optimize access time. Do not modify the mesh inbetween calls to BeginGetMeshEdgeVertices and EndGetMeshEdgeVertices.

void EndGetMeshEdgeVertices ( )

Automatically generate edge data for the mesh.

Clears all previously stored edge information

void SetMeshEdgeCount ( int pEdgeCount )

Presets the number edge data elements.

Parameters:

pEdgeCount

The number of edges to allocate

void SetMeshEdge	(	int	pEdgeIndex,
		int	pValue
	)			`[inline]`

Sets element in edge array to specific value.

Parameters:

	pEdgeIndex	The edge index
	pValue	The edge data

Definition at line482of filekfbxmesh.h.

int AddMeshEdgeIndex	(	int	pStartVertexIndex,
		int	pEndVertexIndex,
		bool	pCheckForDuplicates
	)

Add an edge with the given start/end points.

Note that the inserted edge may start at the given end point, and end at the given start point.

Parameters:

	pStartVertexIndex	The starting point of the edge
	pEndVertexIndex	The ending point of the edge.
	pCheckForDuplicates	Set to true to check if the mesh already contains an edge with these two points. Can be set to false to speed up this method, when the incoming edges are known to be consistent.

Returns:: Edge index of the new edge, or -1 on failure (edge/reverse edge already exists, no face using these 2 points consecutively )

int SetMeshEdgeIndex	(	int	pEdgeIndex,
		int	pStartVertexIndex,
		int	pEndVertexIndex,
		bool	pCheckForDuplicates
	)

Set the index for the edge with the given start/end points.

Note that the edge may start at the given end point, and end at the given start point.

Parameters:

	pEdgeIndex	The edge index of the edge.
	pStartVertexIndex	The starting point of the edge
	pEndVertexIndex	The ending point of the edge.
	pCheckForDuplicates	Set to true to check if the mesh already contains an edge with these two points. Can be set to false to speed up this method, when the incoming edges are known to be consistent.

Returns:: Edge index of the edge, or -1 on failure (edge/reverse edge already exists, no face using these 2 points consecutively )

void BeginAddMeshEdgeIndex ( )

Call this before calling AddMeshEdgeIndex or SetMeshEdgeIndex to increase peformance.

Once finished adding/setting edges EndAddMeshEdgeIndex should be called.

void EndAddMeshEdgeIndex ( )

See BeginAddMeshEdgeIndex.

int AddMeshEdgeIndexForPolygon	(	int	pPolygonIndex,
		int	pPositionInPolygon
	)

Adds an edge for the specified polygon, and edge number within the polygon see SetMeshEdgeIndex for notes the the parameters.

Parameters:

	pPolygonIndex	The polygon
	pPositionInPolygon	The edge within the polygon

Returns:: edge id or -1 if failed.

bool SetMeshEdgeIndex	(	int	pEdgeIndex,
		int	pPolygonIndex,
		int	pPositionInPolygon
	)

Sets the specified edge to the specified polygon's edge.

Note that the position in polygon ranges from 0 to GetPolygonSize(pPolygonindex) - 1 and represents the edge from GetPolygonVertex(pPolygonIndex, pPositionInPolygon) to GetPolygonVertex( pPolygonIndex, pPositionInPolygon + 1 ) or from pPositionInPolygon to 0 if pPositionInPolygon == GetPolygonSize(pPolygonindex) - 1

Parameters:

	pEdgeIndex	The edge
	pPolygonIndex	The polygon
	pPositionInPolygon	The specific edge number in the polygon

Returns:: true on success, false on failure. ( edge for the poly and position already exists )

void ComputeComponentMaps	(	KFbxComponentMap&	pEdgeToPolyMap,
		KFbxComponentMap&	pPolyToEdgeMap
	)

Computer component maps.

Parameters:

	pEdgeToPolyMap
	pPolyToEdgeMap

bool IsTriangleMesh ( ) const

Determines if the mesh is composed entirely of triangles.

Returns:: true if all polygons are triangles, false otherwise

Detailed Description

Utility functions

Polygon Management

Texture UV Utility Functions.

Material, Texture and UV Indices Utility Functions.

Point Spliting/Merging utility functions

Edge management functions

Public Member Functions

Classes

Member Typedef Documentation

Member Enumeration Documentation

Member Function Documentation
